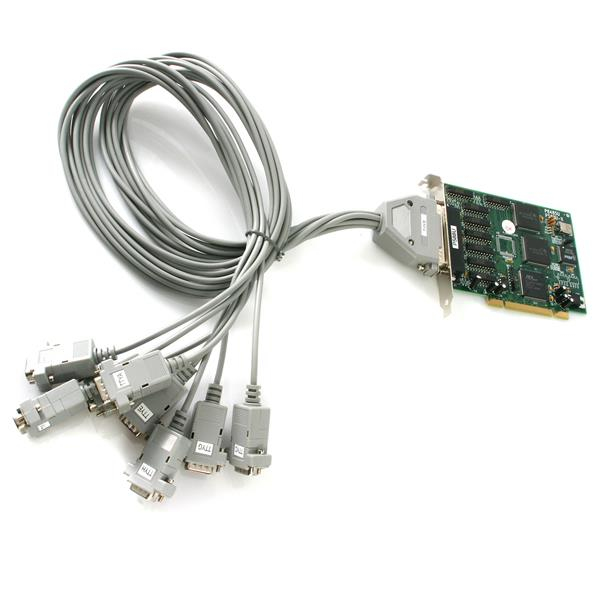

StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included

StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included

Model PCI8S9503VEAN 065030804370

31 specifications
  • Weight800 g
  • Host interfacePCI
  • InternalYes
  • ChipsetPLX PCI9030
  • Operating temperature (T-T)0 - 55 °C
  • Compliance certificatesRoHS
See all specifications

Overview

Weight
800 g
Host interface
PCI
Internal
Yes
Chipset
PLX PCI9030
Operating temperature (T-T)
0 - 55 °C
Compliance certificates
RoHS
Brand
StarTech.com
Model
PCI8S9503V
Part number
PCI8S9503V
EAN / UPC
065030804370
Also known as
StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included

Specifications

31 specifications in 10 groups

Ports & interfaces

Host interfacePCI
Output interfaceSerial
Serial ports quantity8
Serial interface typeRS-232
Connector(s)DB37 Female

Design

InternalYes

Features

ChipsetPLX PCI9030
FIFO (First In, First Out)16 B

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)0 - 65 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 2000, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows 95, Windows 98, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Win
Linux operating systems supportedYes

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width20 mm
Depth145 mm
Height104 mm
Weight800 g

Packaging data

Package width70 mm
Package depth294 mm
Package height263 mm
Package weight900 g

Logistics data

Case or master carton quantity10 pc(s)

Other features

Data transfer rate0.921 Mbit/s
Ports quantity8
Cable length1.2 m
Compatible operating systemsWindows 95/98/98SE/2000/NT/XP/Vista. Linux. Unix SCO Open Server.
Package length1.16 cm
Quantity per box10 pc(s)
I/O portsExternal Ports: 8 - DB 9-pin Serial Male
Package weight (imperial)0.88 kg (1.94 lbs)
