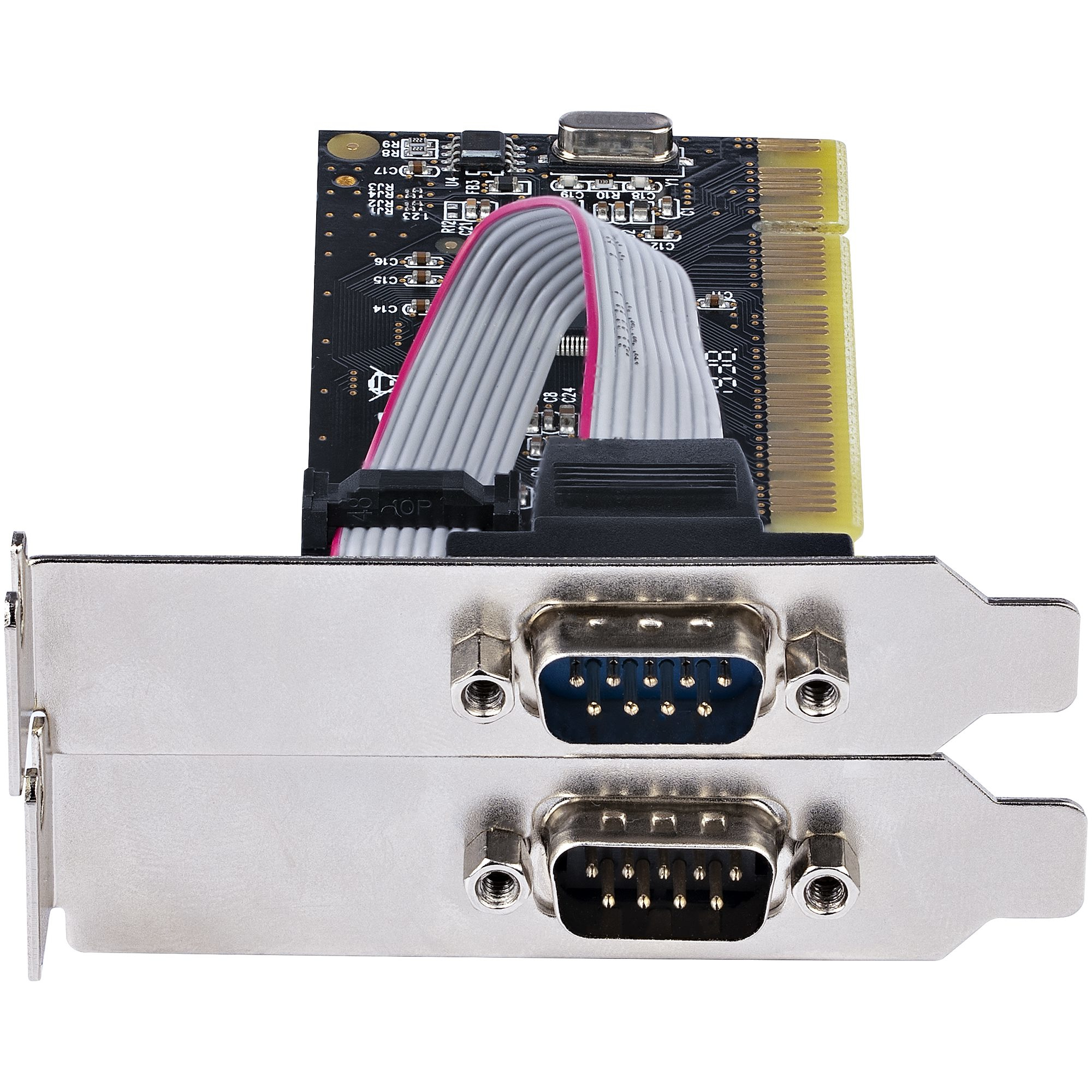

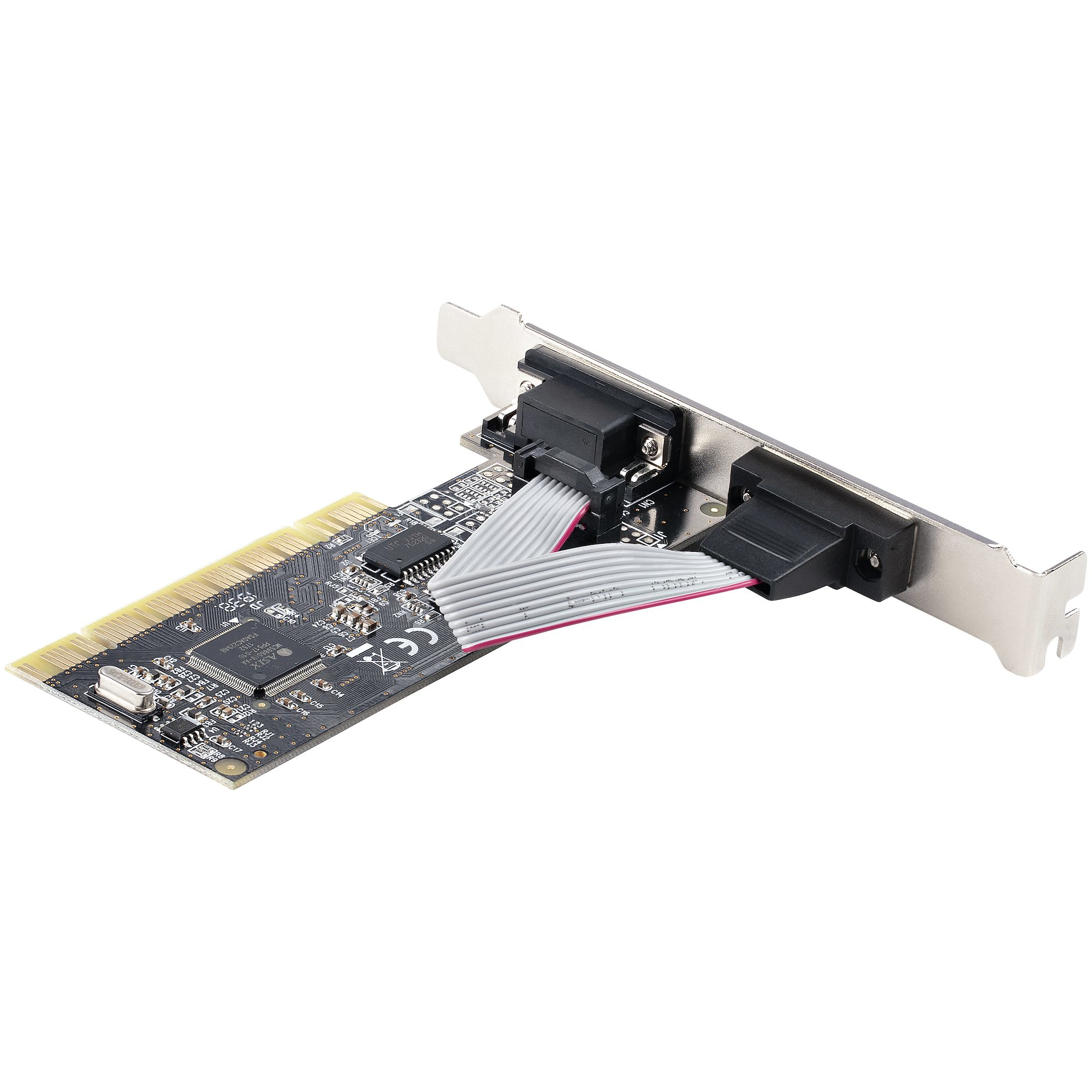

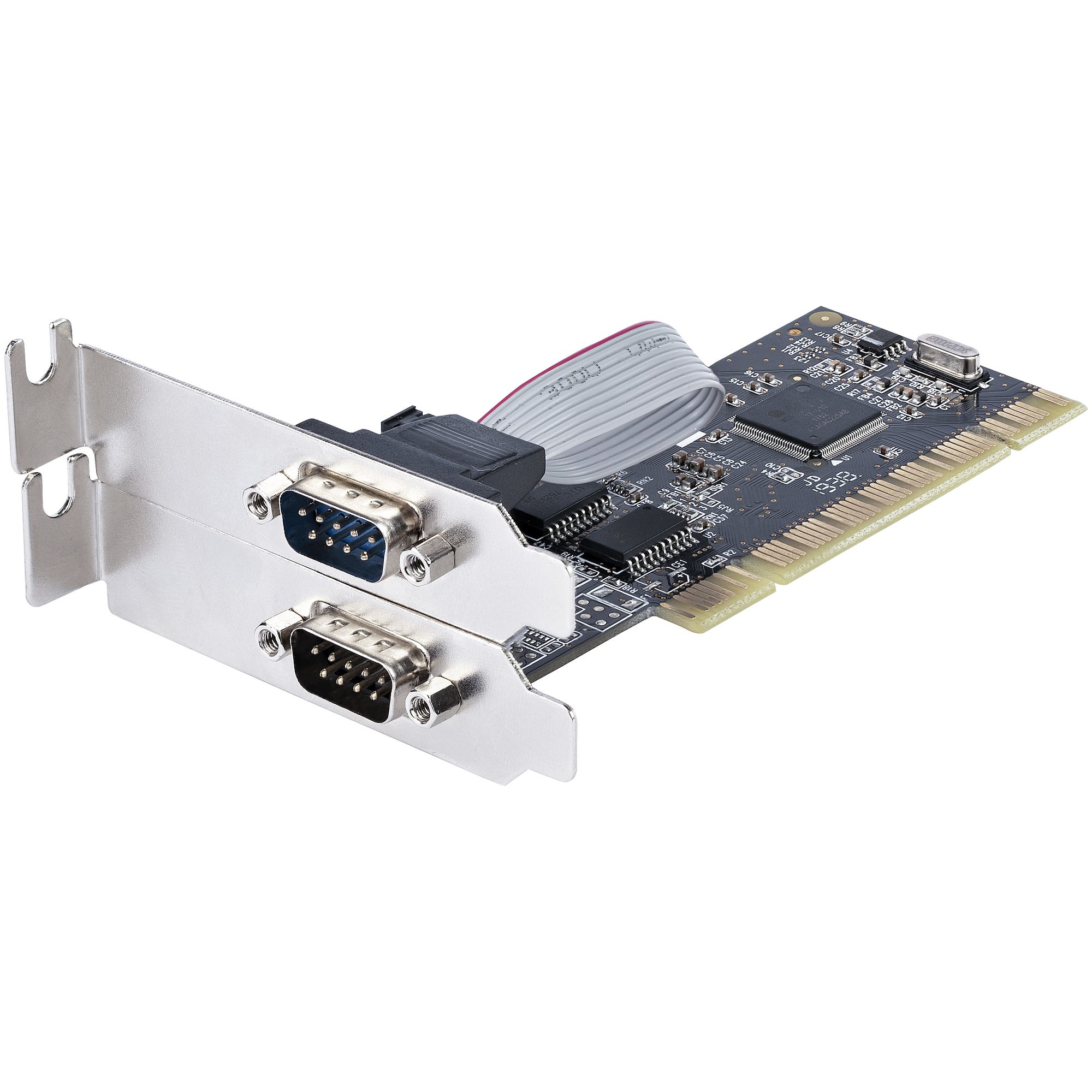

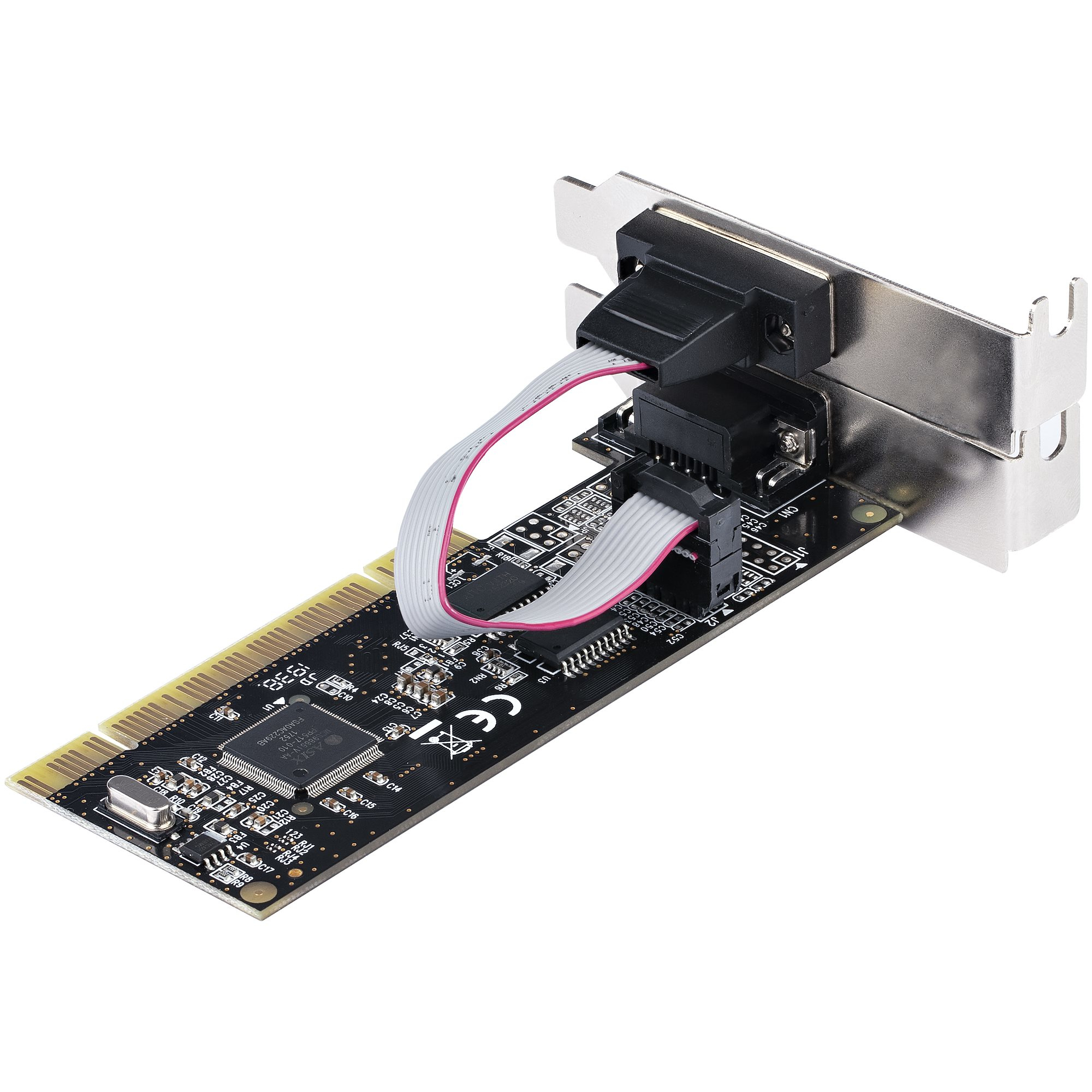

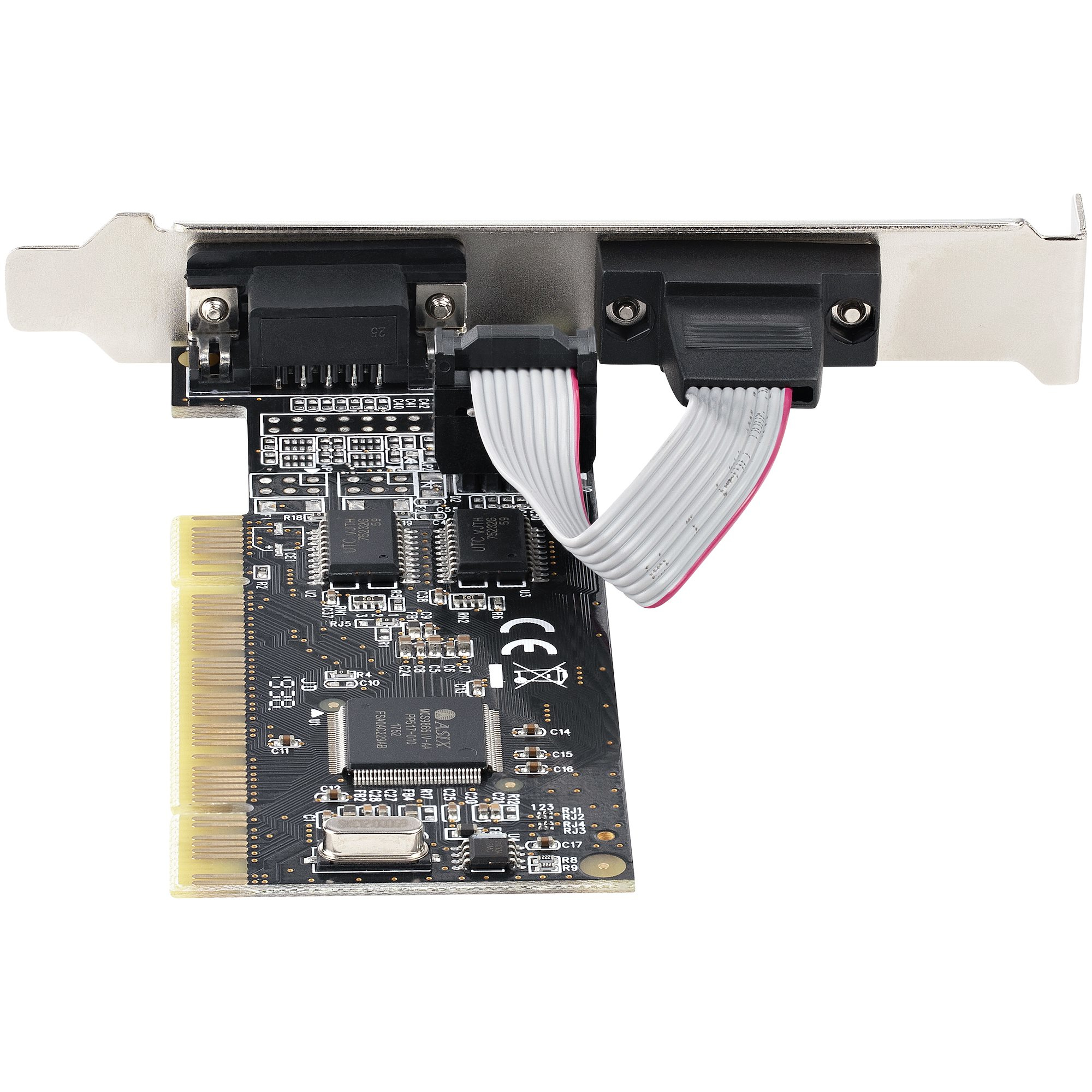

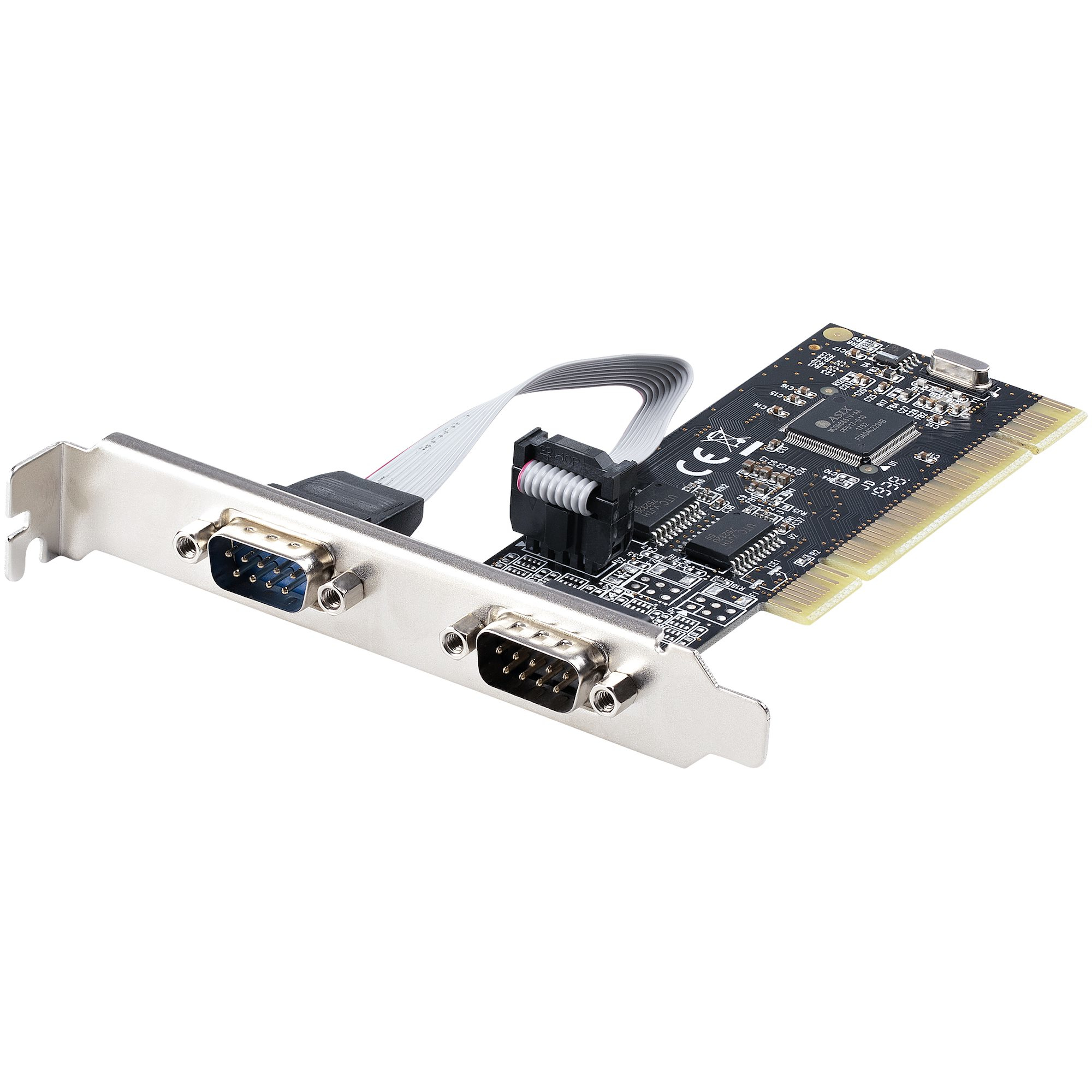

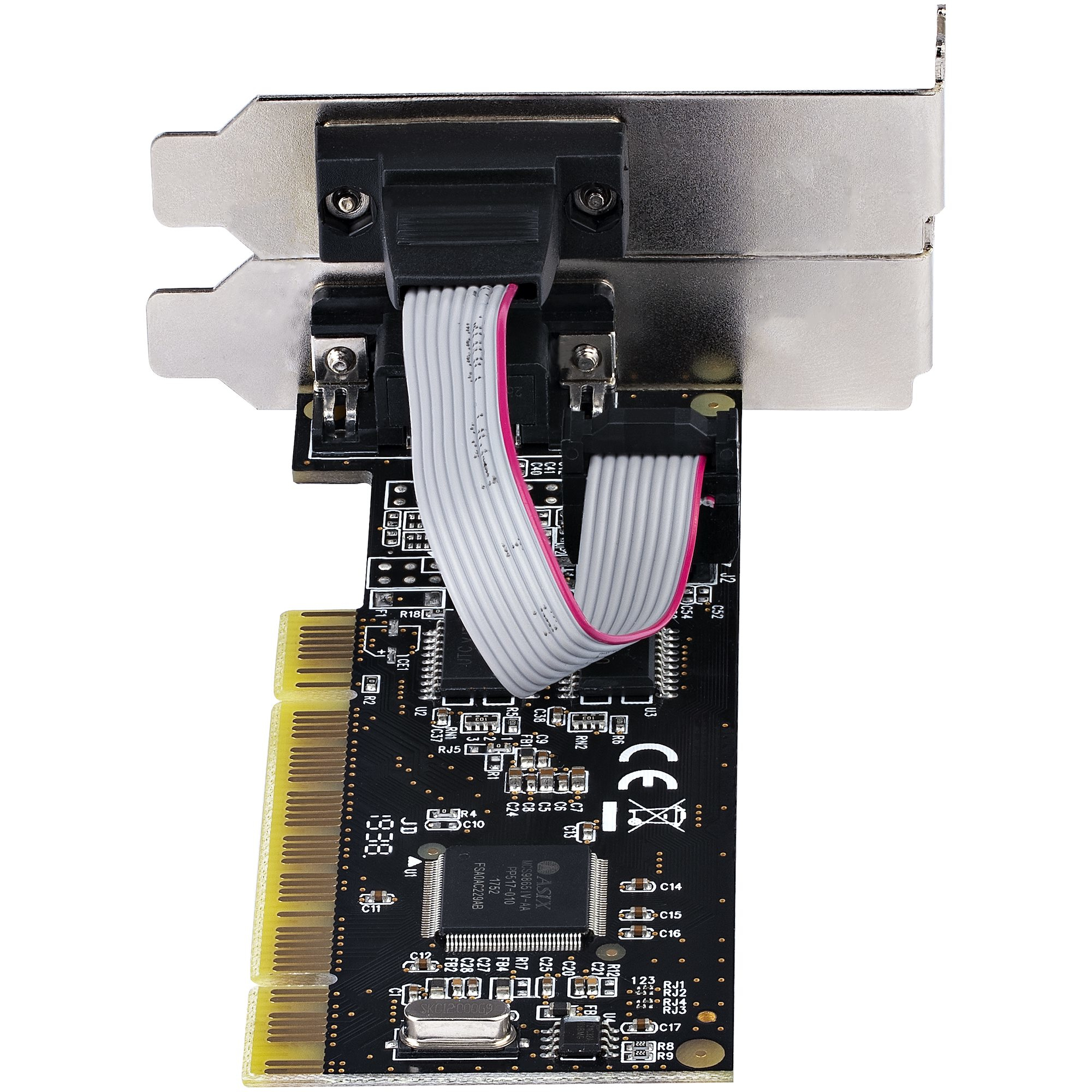

2-Port PCI RS232 Serial Adapter Card - PCI Serial Port Expansion Controller Card - PCI to Dual Serial DB9 Card - Standard (Installed) & Low Profile
Model PCI2S5502EAN 065030891318
35 specifications
- Weight141 g
- ColourBlack
- Host interfacePCI/PCI-X
- InternalYes
- ChipsetASIX - MCS9865
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 141 g
- Colour
- Black
- Host interface
- PCI/PCI-X
- Internal
- Yes
- Chipset
- ASIX - MCS9865
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PCI2S5502
- Part number
- PCI2S5502
- EAN / UPC
- 065030891318
- Also known as
- StarTech.com 2-Port PCI RS232 Serial Adapter Card - PCI Serial Port Expansion Controller Card - PCI to Dual Serial DB9 Card - Standard (Installed) & Low Profile
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - MCS9865 |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 21.6 mm |
| Depth | 134 mm |
| Height | 120 mm |
| Weight | 141 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 170 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 340 mm |
