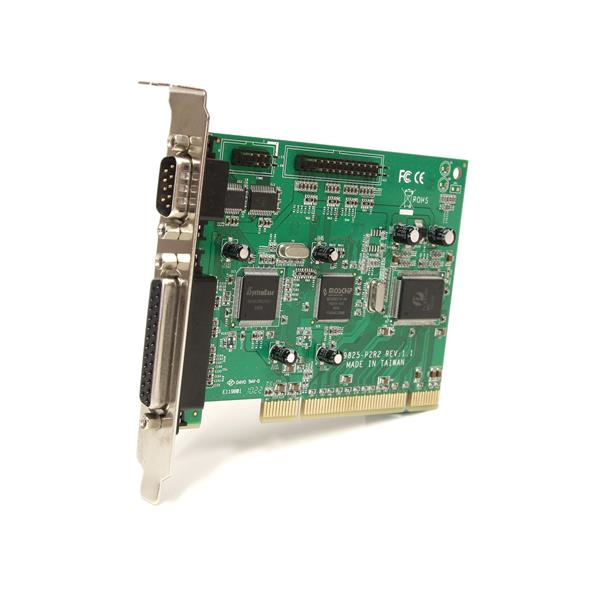

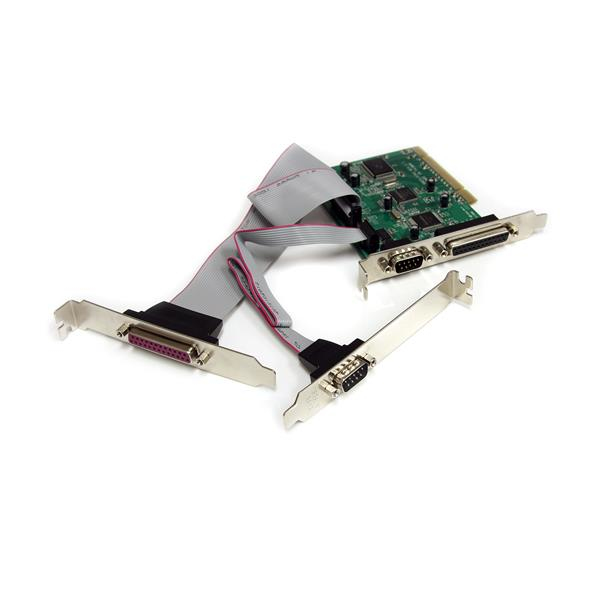

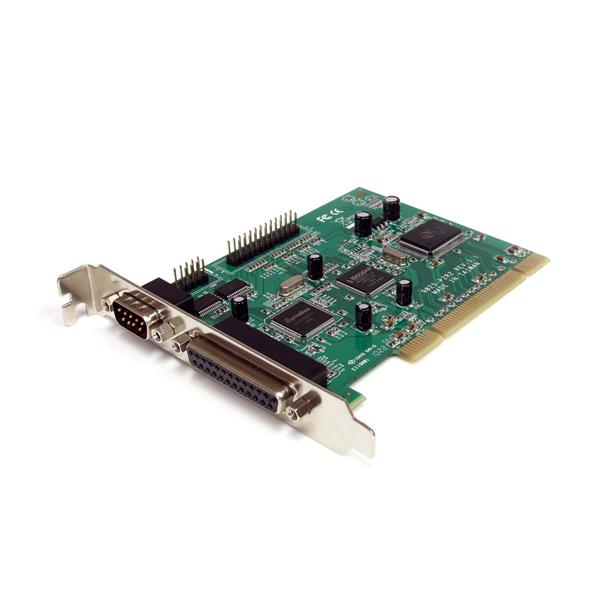

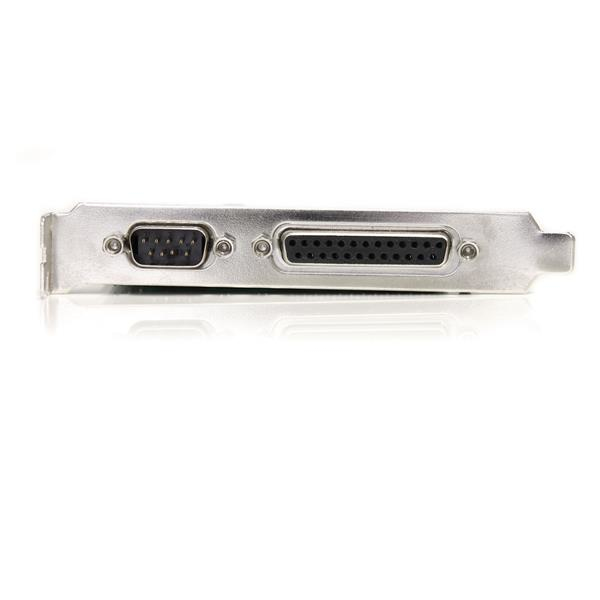

StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART

StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART

Model PCI2S2PMCEAN 5554442338146

35 specifications
  • ConnectivityWired
  • Weight80 g
  • ColourMulticolour
  • Host interfacePCI
  • InternalYes
  • FIFO (First In, First Out)256 B
See all specifications

Overview

Connectivity
Wired
Weight
80 g
Colour
Multicolour
Host interface
PCI
Internal
Yes
FIFO (First In, First Out)
256 B
Brand
StarTech.com
Model
PCI2S2PMC
Part number
PCI2S2PMC
EAN / UPC
5554442338146, 065030845823, 516868549358, 684372913856 +6 more
Also known as
StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART

Specifications

35 specifications in 8 groups

Ports & interfaces

Host interfacePCI
Output interfaceParallel, Serial
Expansion card form factorFull-height
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Firewire (IEEE 1394) ports0
Serial ports quantity2
Serial interface typeRS-232
Parallel ports quantity2
External mini-SAS ports0
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0

Design

InternalYes
Product colourMulticolour

Features

ChipsetMoschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A
FIFO (First In, First Out)256 B
Logical block addressing (LBA) support8 bit
Supports EPP and ECPYes

Operational conditions

Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-45 - 150 °C
Operating relative humidity (H-H)0 - 60%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Ba

Weight & dimensions

Width19 mm
Depth133 mm
Height89 mm
Weight80 g

Packaging data

Package width145 mm
Package depth210 mm
Package height40 mm
Package weight240 g

Other features

Data transfer rate1.5 Mbit/s
Ports quantity4
Connectivity technologyWired
Compatible operating systemsWindows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ 2000/ NT 4.0/ DOS 6.2, Windows Server 2003(32/64), Linux 2.6.x
Ethernet LAN (RJ-45) ports0
Mac compatibilityNo
