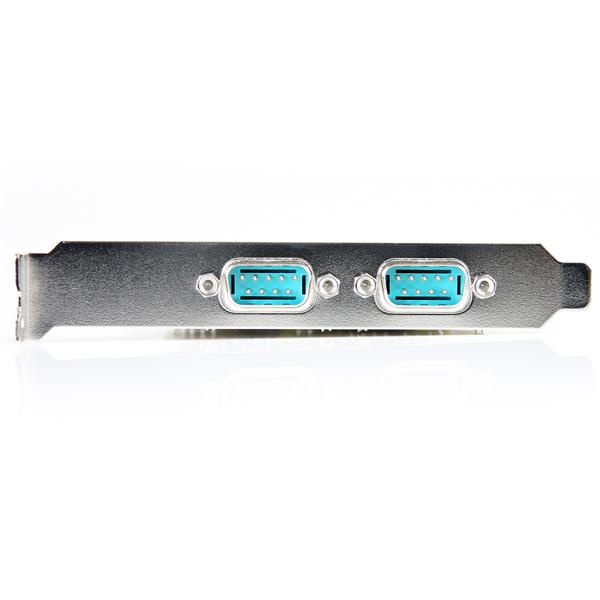

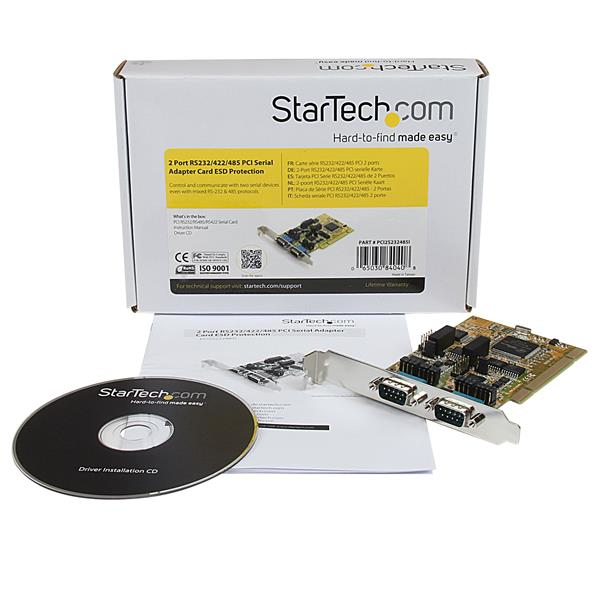

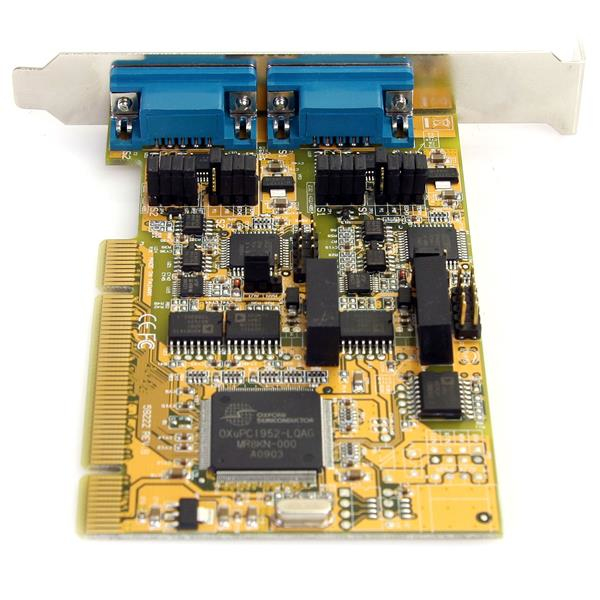

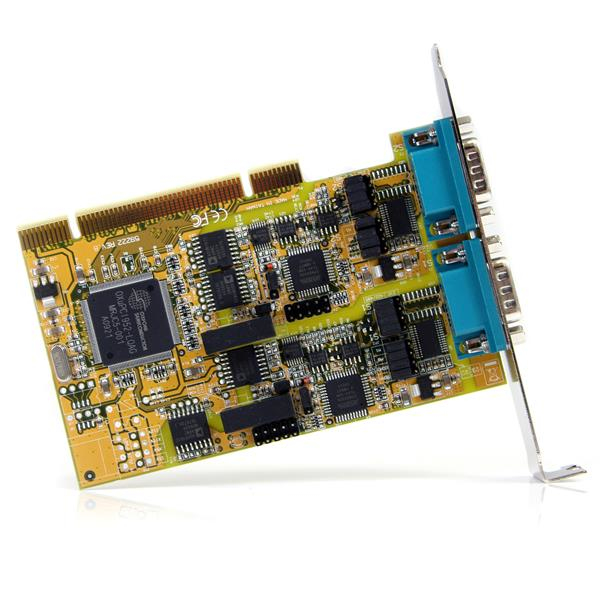

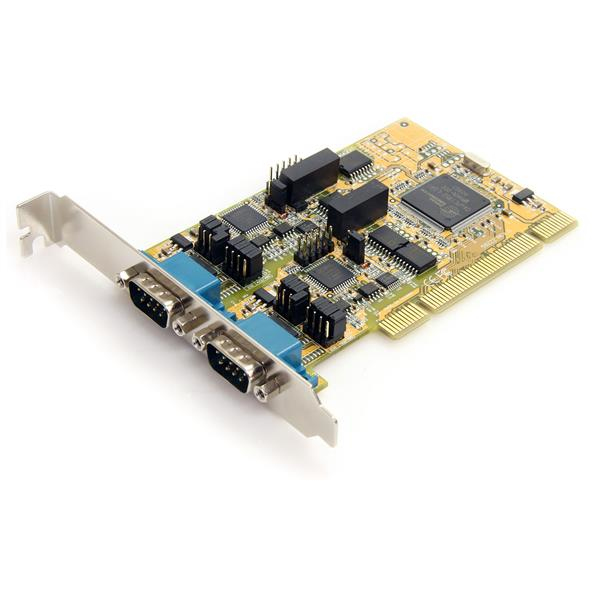

StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection

StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection

Model PCI2S232485IEAN 854587350535

32 specifications
  • Weight100 g
  • ColourYellow
  • Host interfacePCI/PCI-X
  • InternalYes
  • ChipsetPLX/Oxford - OXuPCI952
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Weight
100 g
Colour
Yellow
Host interface
PCI/PCI-X
Internal
Yes
Chipset
PLX/Oxford - OXuPCI952
Operating temperature (T-T)
0 - 55 °C
Brand
StarTech.com
Model
PCI2S232485I
Part number
PCI2S232485I
EAN / UPC
854587350535, 044111365733, 044113194980, 065030840408 +9 more
Also known as
StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection

Specifications

32 specifications in 9 groups

Ports & interfaces

Host interfacePCI/PCI-X
Output interfaceSerial
Expansion card standardPCI 2.2
Serial ports quantity2
Serial interface typeRS-232/422/485

Design

InternalYes
Product colourYellow
Mean time between failures (MTBF)234450 h
CertificationCE, FCC

Features

ChipsetPLX/Oxford - OXuPCI952
Baud rate921.6 Kbit/s
FIFO (First In, First Out)128 B
Data bits5, 6, 7, 8
Flow control supportYes

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width74 mm
Depth121 mm
Height18 mm
Weight100 g

Packaging data

Drivers includedYes
ManualYes
Package width147 mm
Package depth212 mm
Package height41 mm
Package weight200.26 g

Logistics data

Harmonized System (HS) code84733020
