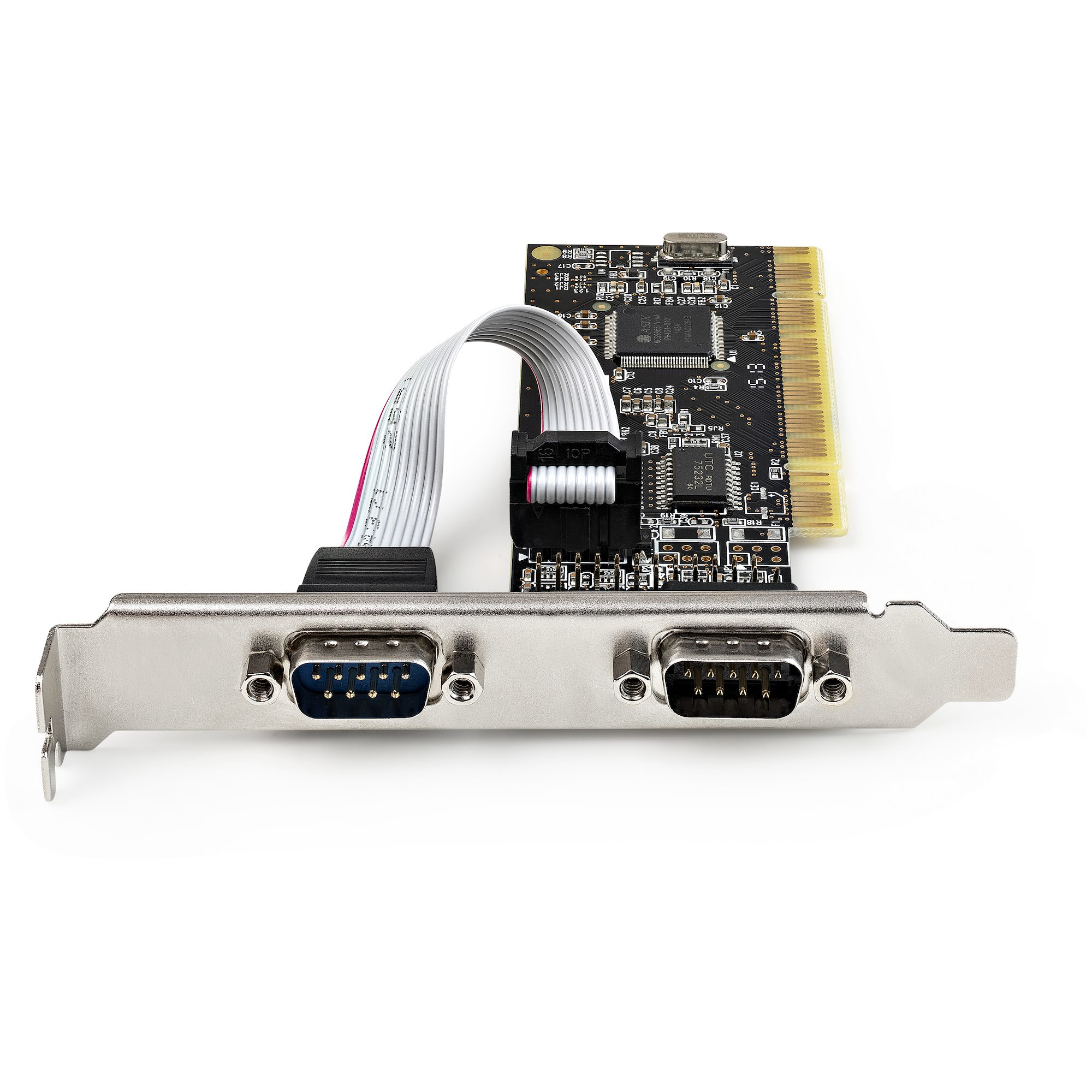

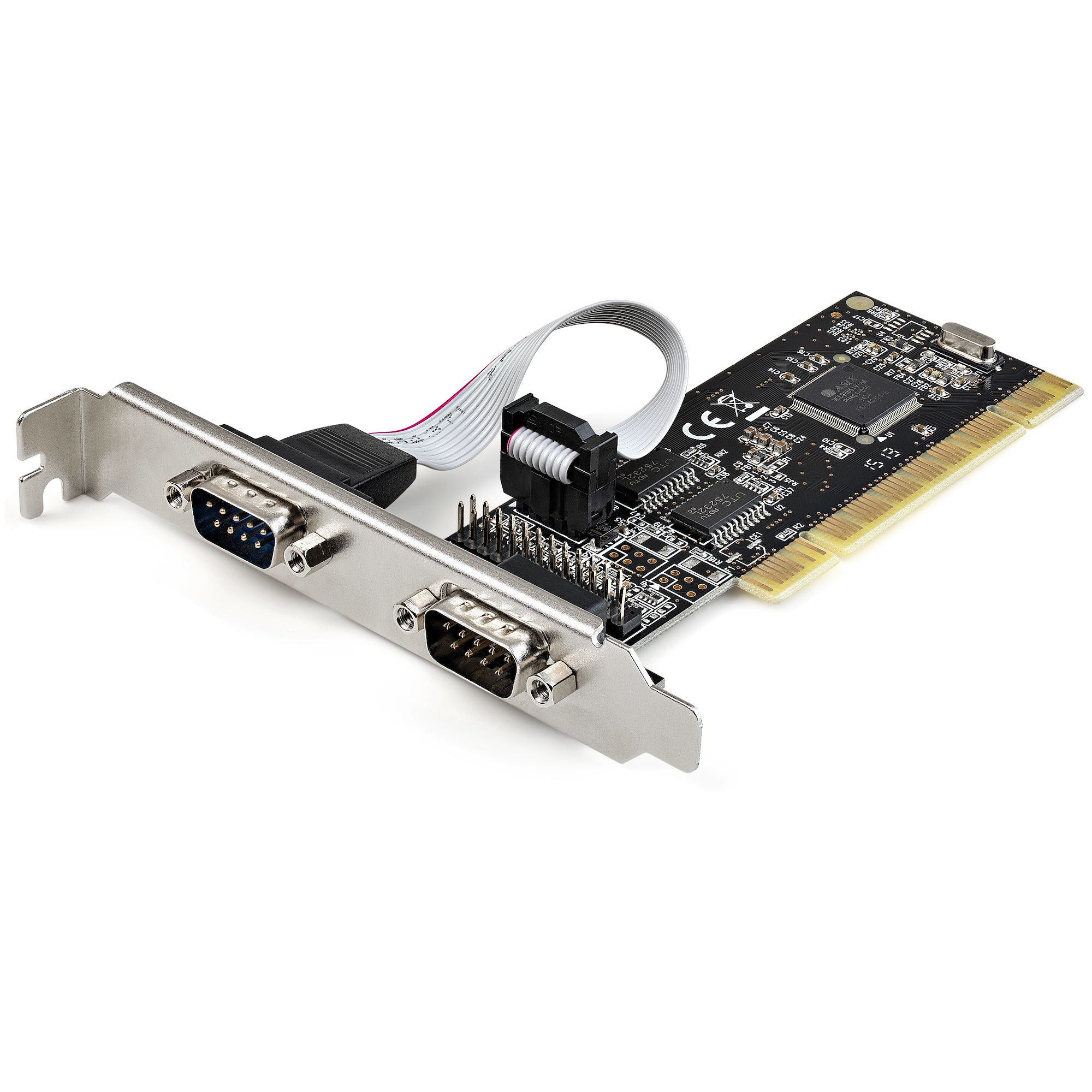

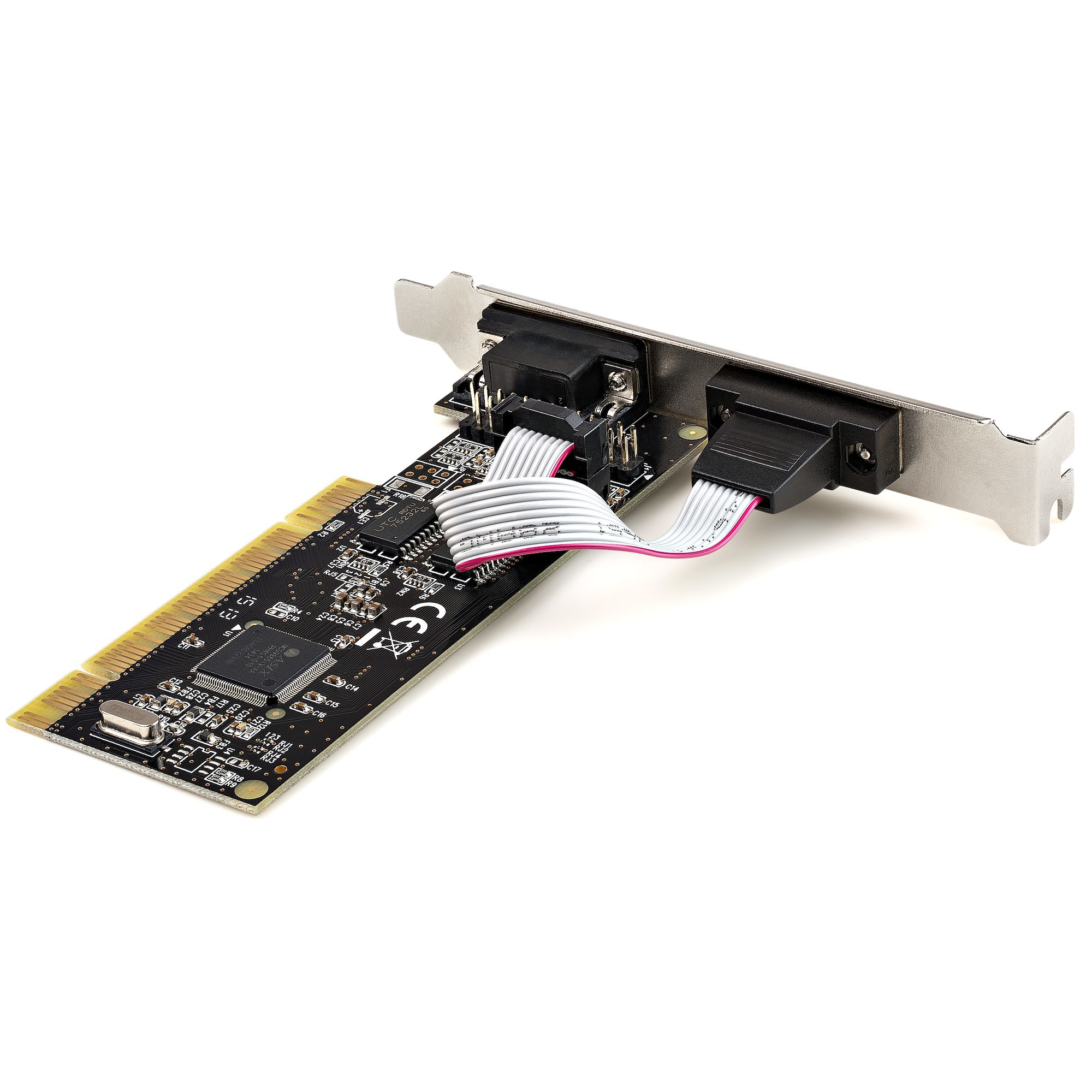

PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Contr
Model PCI2S1P2EAN 065030891301
37 specifications
- Weight141 g
- ColourBlack
- Host interfacePCI/PCI-X
- InternalYes
- ChipsetAsix - MCS9865
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 141 g
- Colour
- Black
- Host interface
- PCI/PCI-X
- Internal
- Yes
- Chipset
- Asix - MCS9865
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PCI2S1P2
- Part number
- PCI2S1P2
- EAN / UPC
- 065030891301
- Also known as
- StarTech.com PCI Serial Parallel Combo Card with Dual Serial RS232 Ports (DB9) & 1x Parallel LPT Port (DB25) - PCI Combo Adapter Card - PCI Expansion Card Contr
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI/PCI-X |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Chipset | Asix - MCS9865 |
| Data transfer rate (max) | 0.0015 Gbit/s |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 21.6 mm |
| Depth | 134 mm |
| Height | 120 mm |
| Weight | 141 g |
Packaging data
| Specification | Value |
|---|---|

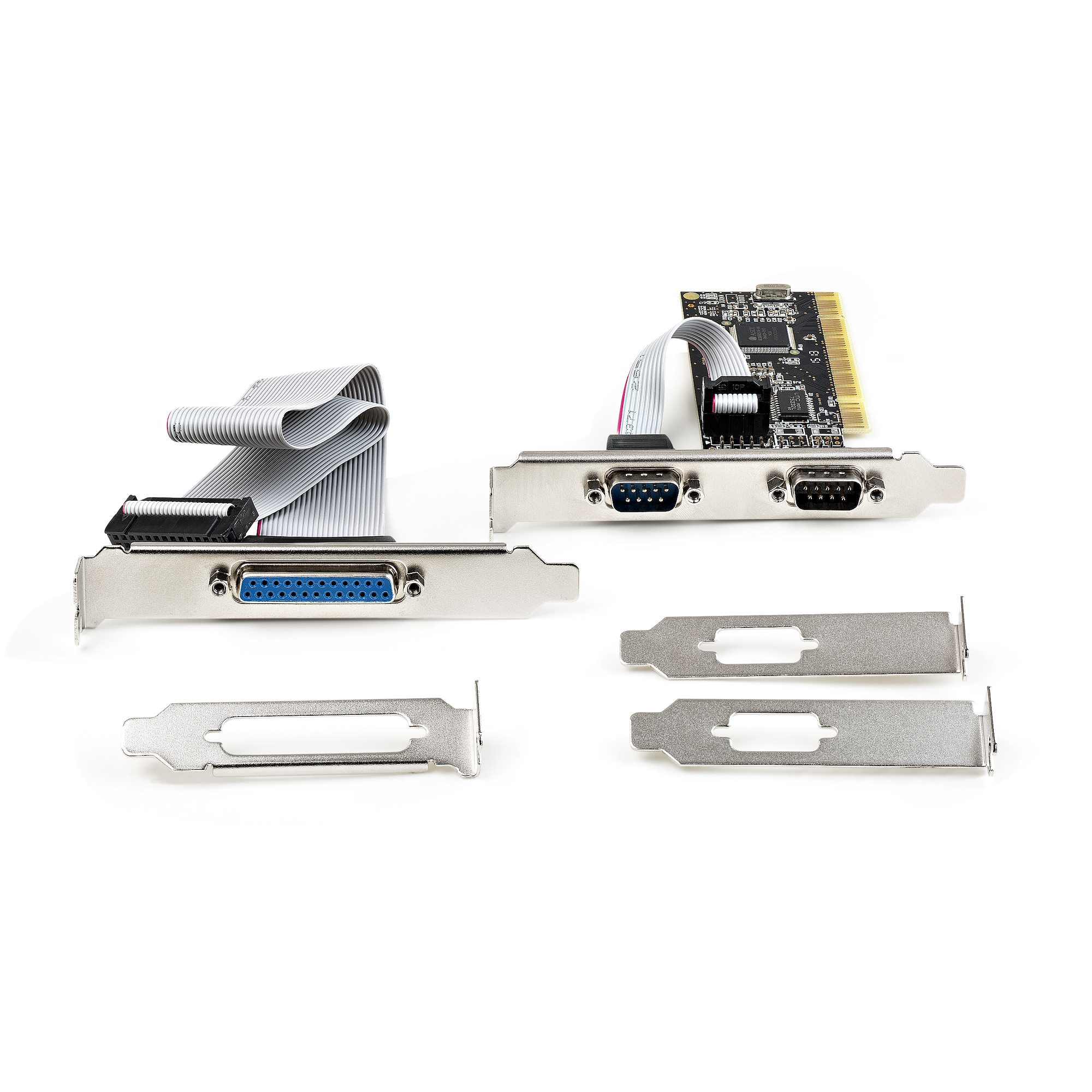

| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 190 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 340 mm |
