4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant
Model P10Q4C-USB-CARDEAN 065030911436
29 specifications
- Weight120 g
- ColourRed
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)10 Gbit/s
- Operating temperature (T-T)0 - 85 °C
Overview
- Weight
- 120 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 10 Gbit/s
- Operating temperature (T-T)
- 0 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- P10Q4C-USB-CARD
- Part number
- P10Q4C-USB-CARD
- EAN / UPC
- 065030911436
- Also known as
- StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant
Specifications
29 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB Type-C |
| Expansion card standard | PCI 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Internal SATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
| Data transfer rate (max) | 10 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |

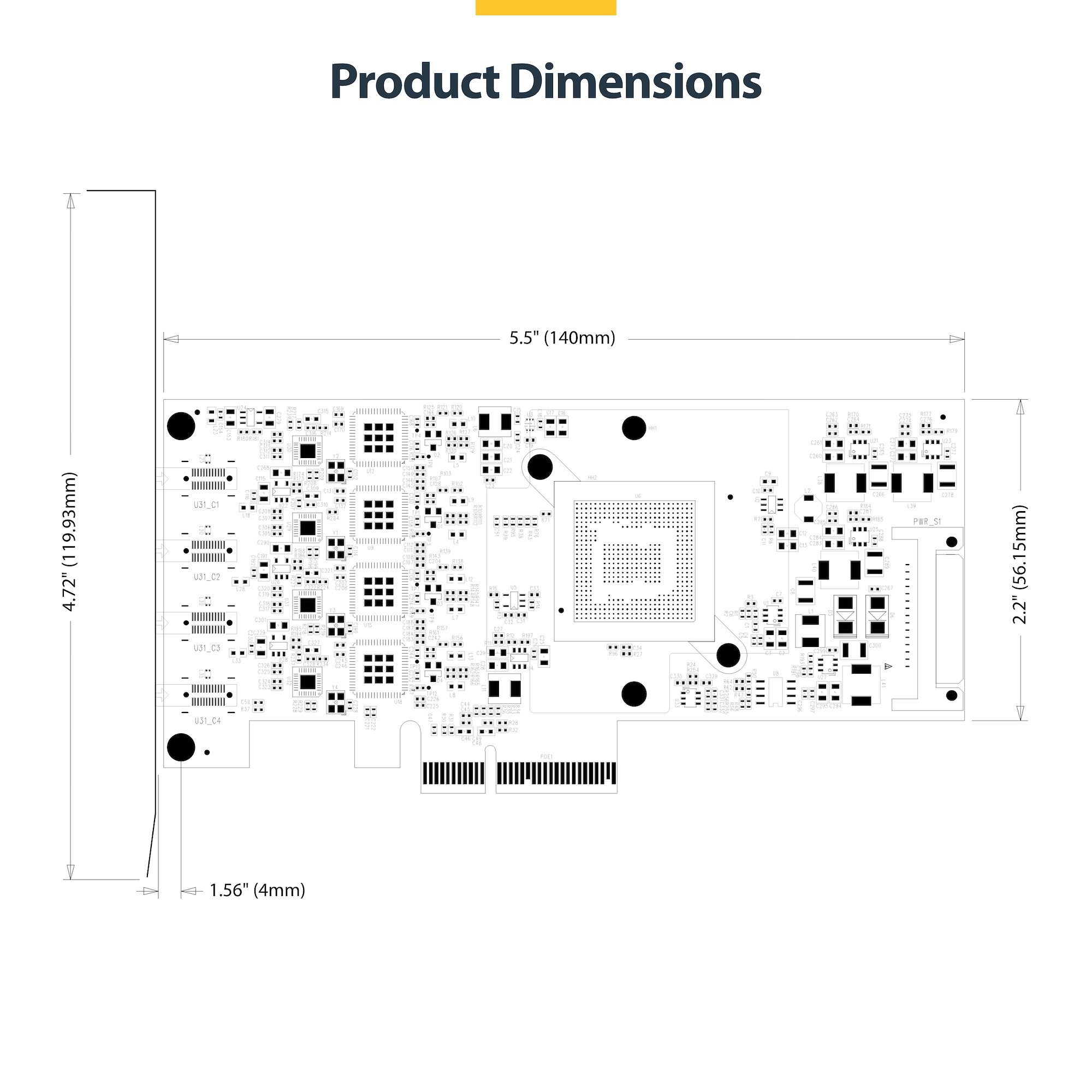

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 56.2 mm |
| Depth | 140 mm |
| Height | 119.9 mm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 160 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 500 mm |
