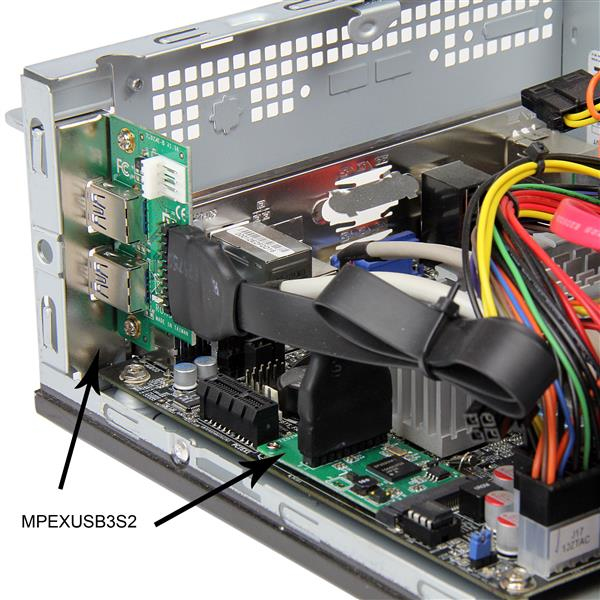

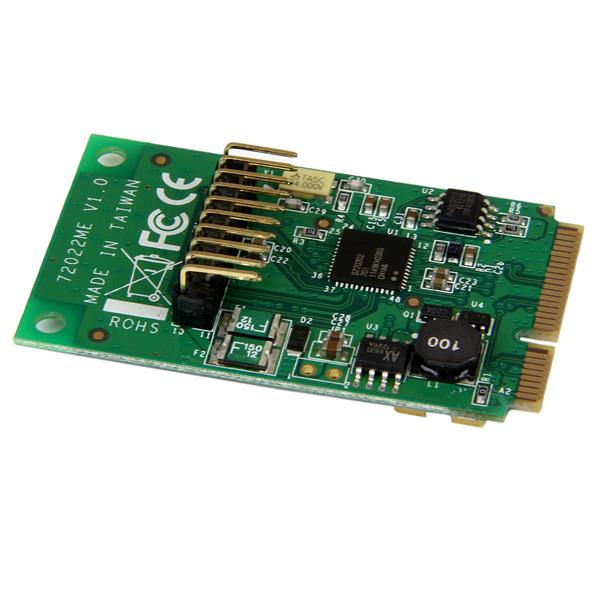

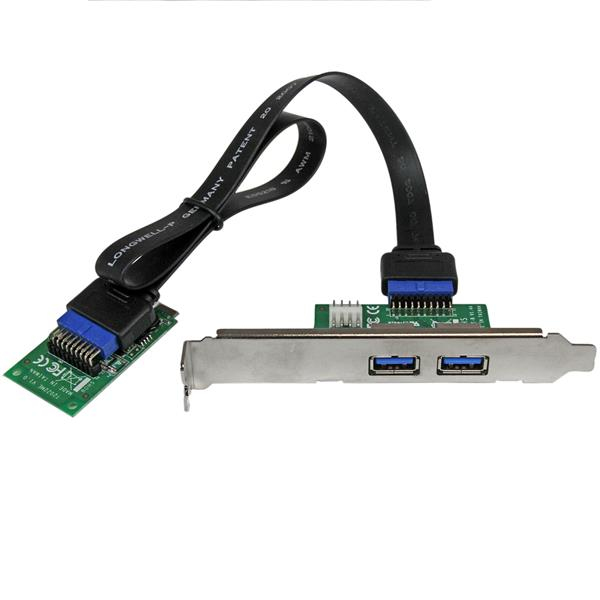

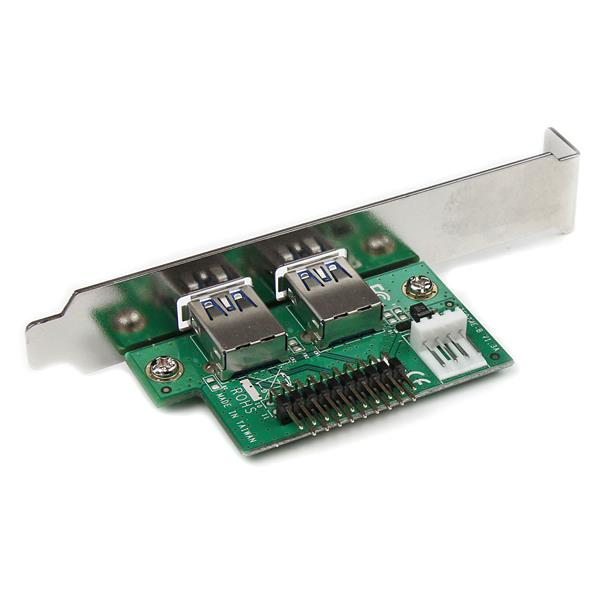

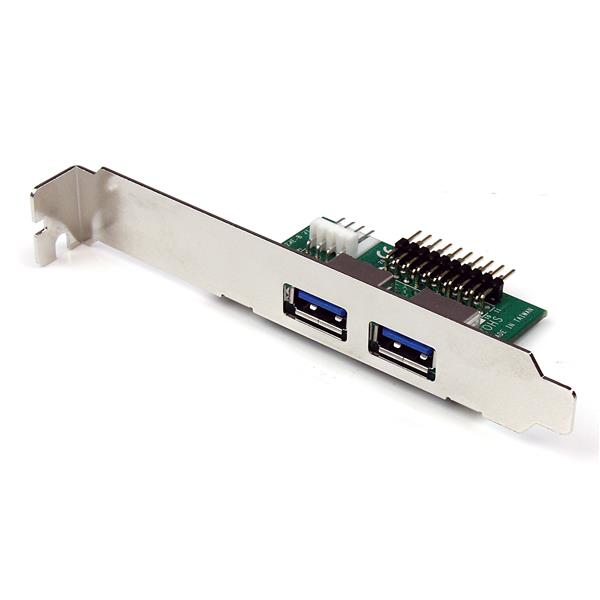

StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter
Model MPEXUSB3S2EAN 065030843355
17 specifications
- Weight70.4 g
- Host interfaceMini PCI Express
- InternalYes
- ChipsetNEC uPD720200
- Operating temperature (T-T)0 - 85 °C
- Width30 mm
Overview
- Weight
- 70.4 g
- Host interface
- Mini PCI Express
- Internal
- Yes
- Chipset
- NEC uPD720200
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 30 mm
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- MPEXUSB3S2
- Part number
- MPEXUSB3S2
- EAN / UPC
- 065030843355
- Also known as
- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter
Specifications
17 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Mini PCI Express |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | NEC uPD720200 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -65 - 125 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 50 mm |
| Height | 3 mm |
| Weight | 70.4 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 210 mm |
| Package height | 40 mm |
| Package weight | 174.2 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 5 Gbit/s |
| Compatible operating systems | Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2 |
Reviews
No reviews of StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter yet. Have you used it? Tell others what you think.
Write a reviewCompare StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter

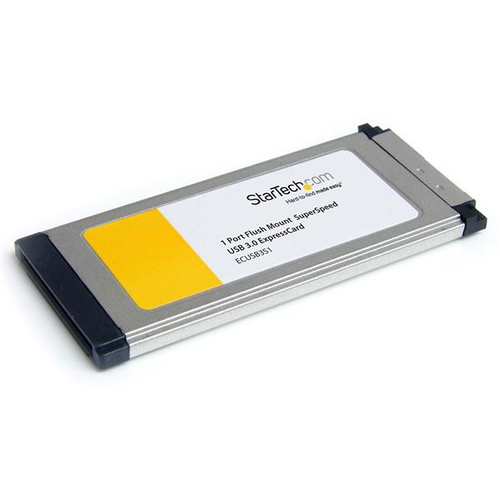

All interface cards/adapters comparisons- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsStarTech.com ECUSB3S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)Compare specs

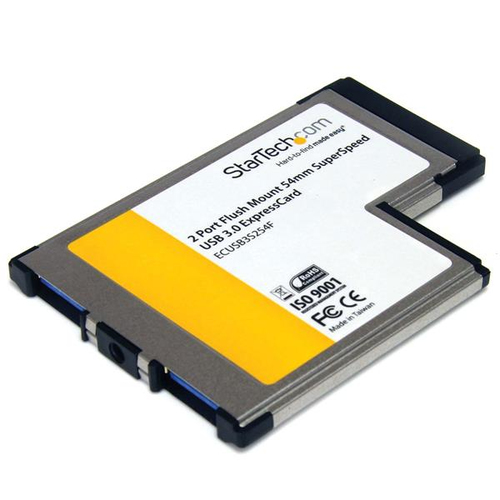

- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsStarTech.com 2 Port Flush Mount ExpressCardCompare specs
- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsStarTech.com 9in 9 Pin Serial Male to 10 Pin Motherboard Header Slot Plate AdapterCompare specs
- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsStarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout CableCompare specs

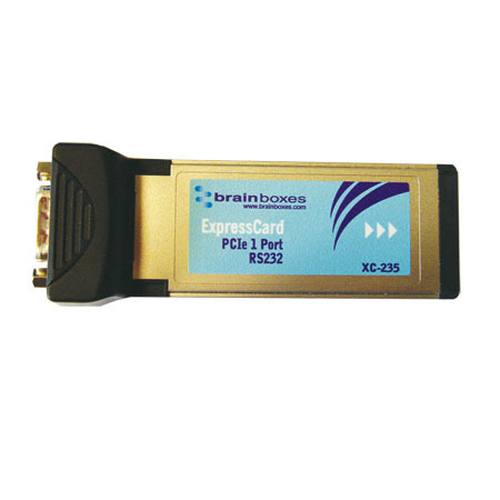

- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsBrainboxes XC-235 interface cards/adapter SerialCompare specs

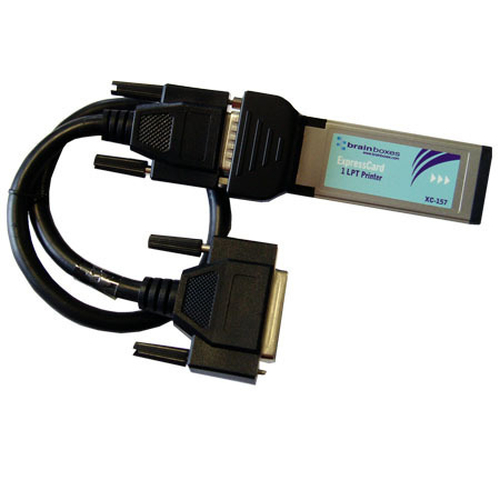

- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsBrainboxes XC-157 interface cards/adapter ParallelCompare specs

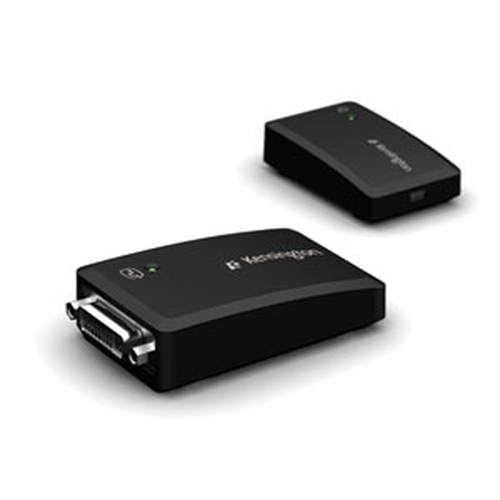

- StarTech.com 2 Port Mini PCI Express SuperSpeed USB 3.0 Card Adapter vsKensington Universal Multi-Display AdapterCompare specs
