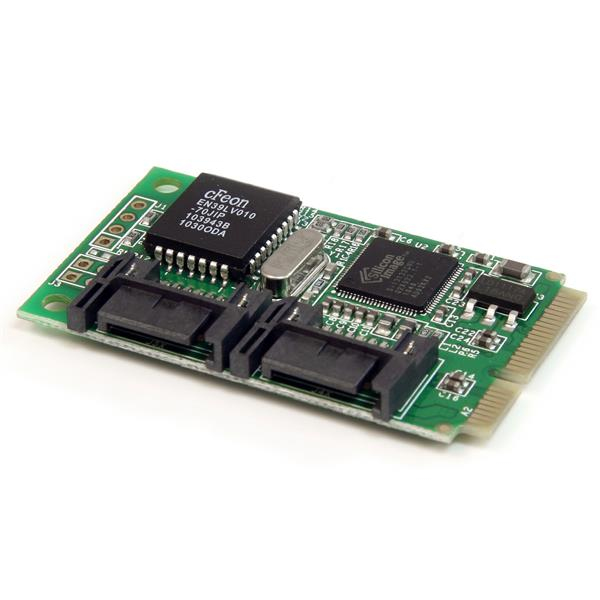

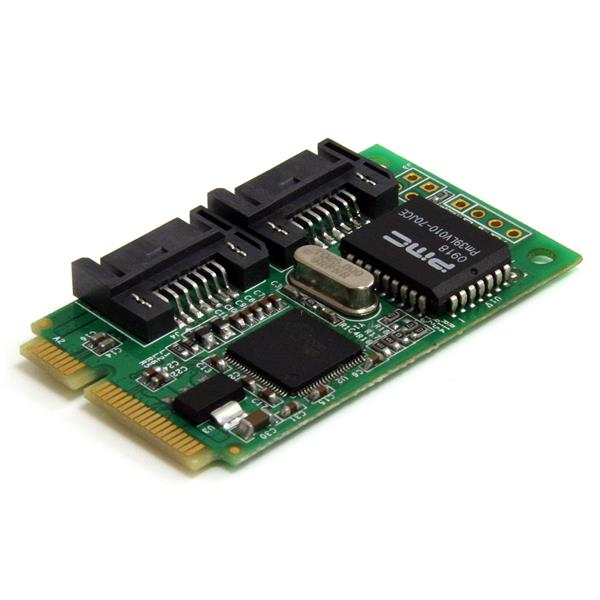

StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card

StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card

Model MPEXSATA22IEAN 5054629244562

31 specifications
  • Weight7.8 g
  • Host interfaceMini PCI Express
  • InternalYes
  • ChipsetSilicon Image - SiI3132
  • Operating temperature (T-T)0 - 70 °C
  • Compliance certificatesRoHS
See all specifications

Overview

Weight
7.8 g
Host interface
Mini PCI Express
Internal
Yes
Chipset
Silicon Image - SiI3132
Operating temperature (T-T)
0 - 70 °C
Compliance certificates
RoHS
Brand
StarTech.com
Model
MPEXSATA22I
Part number
MPEXSATA22I
EAN / UPC
5054629244562, 065030842501, 123656585339, 132018277041 +9 more
Also known as
StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card

Specifications

31 specifications in 8 groups

Ports & interfaces

Host interfaceMini PCI Express
Output interfaceSATA
SATA revision2.0
Internal SATA ports quantity2
Port multiplierNo

Design

InternalYes
Hot-swapYes
CertificationCE

Features

ChipsetSilicon Image - SiI3132
Data transfer rate (max)3 Gbit/s
Logical block addressing (LBA) support48 bit
Native Command Queuing (NCQ)Yes
RAID levels0, 1, BIG, JBOD
Plug and PlayYes

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-65 - 150 °C

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Pre
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width30 mm
Depth50 mm
Height4 mm
Weight7.8 g

Packaging data

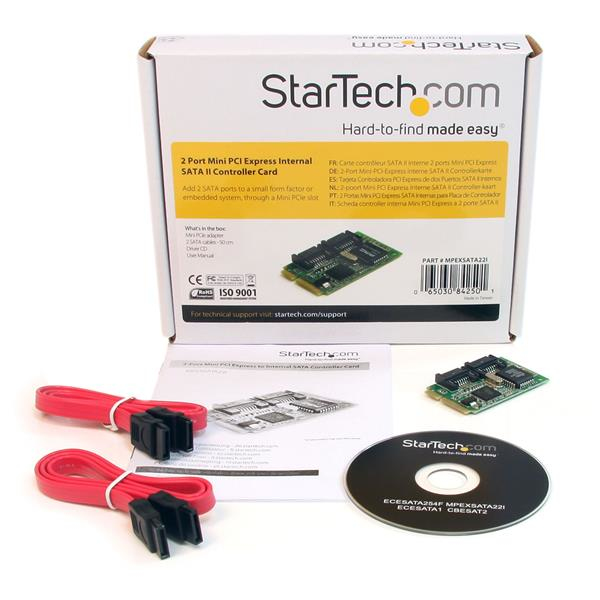

Cables includedSATA
Drivers includedYes
ManualYes
Package width145 mm
Package depth210 mm
Package height40 mm
Package weight131 g
