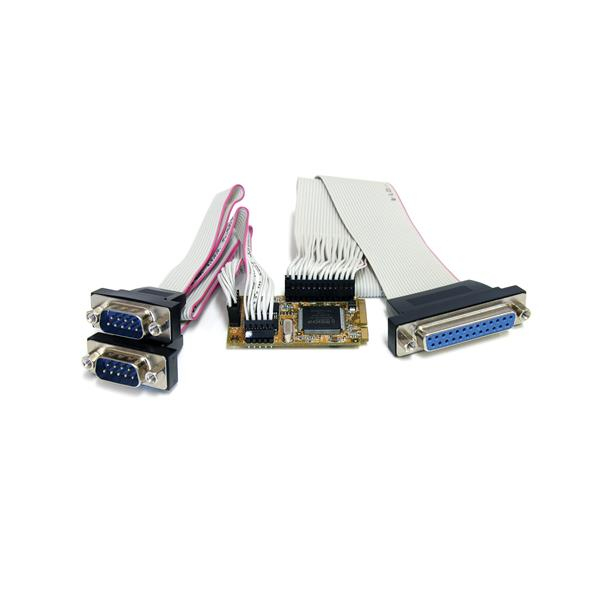

StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems

StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems

Model MPEX2S1P552EAN 5054565277839

29 specifications
  • Weight10 g
  • ColourGreen
  • Host interfaceMini PCI Express
  • InternalYes

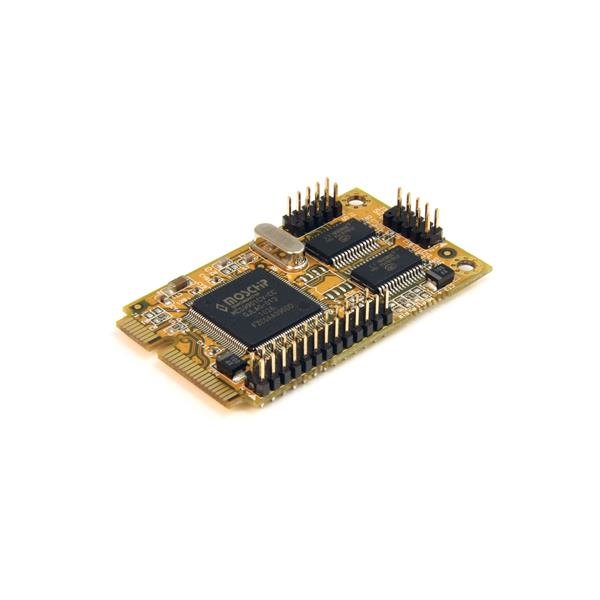

  • ChipsetMosChip MCS9901CV-CC
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Weight
10 g
Colour
Green
Host interface
Mini PCI Express
Internal
Yes
Chipset
MosChip MCS9901CV-CC
Operating temperature (T-T)
0 - 55 °C
Brand
StarTech.com
Model
MPEX2S1P552
Part number
MPEX2S1P552
EAN / UPC
5054565277839, 065030844659, 132017580166, 168141446481 +11 more
Also known as
StarTech.com 2s1p Serial Parallel Combo Mini PCI Express Card for Embedded Systems

Specifications

29 specifications in 9 groups

Ports & interfaces

Host interfaceMini PCI Express
Output interfaceParallel, Serial
Serial ports quantity2
Serial interface typeRS-232
Parallel ports quantity1

Design

InternalYes
Product colourGreen
CertificationMicrosoft WHQL

Features

ChipsetMosChip MCS9901CV-CC
FIFO (First In, First Out)256 B
Flow control supportYes

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes

Weight & dimensions

Width30 mm
Depth50 mm
Height8.5 mm
Weight10 g

Packaging data

Package width145 mm
Package depth210 mm
Package height40 mm
Package weight195 g

Logistics data

Harmonized System (HS) code84733020

Other features

Compatible operating systemsWindows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x
Compliance industry standardsPCI Express 1.1
I/O ports2 x RS-232 (DB-9 M) 1 x IEEE 1284 1 x DB-15
Quantity outer carton60 pc(s)
