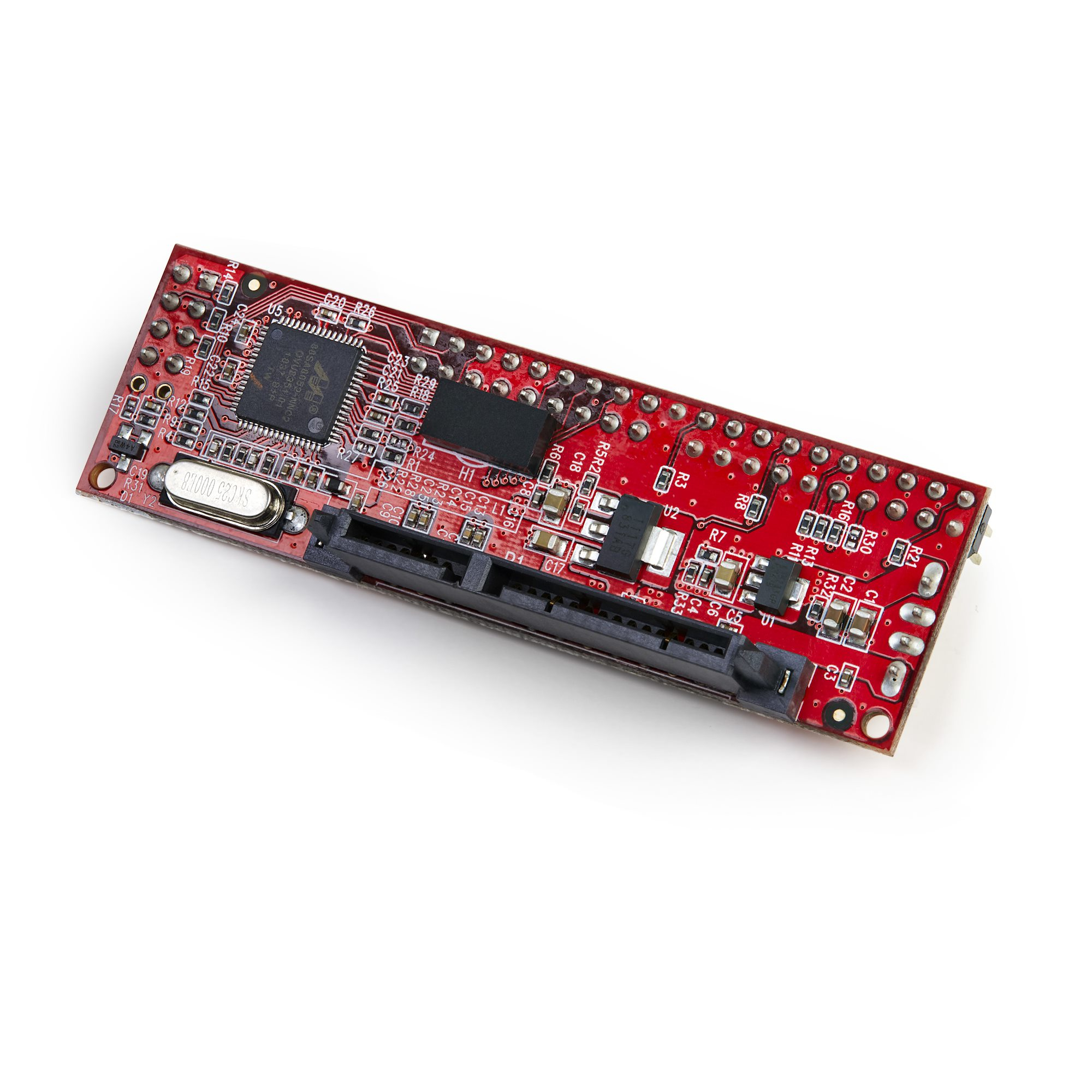

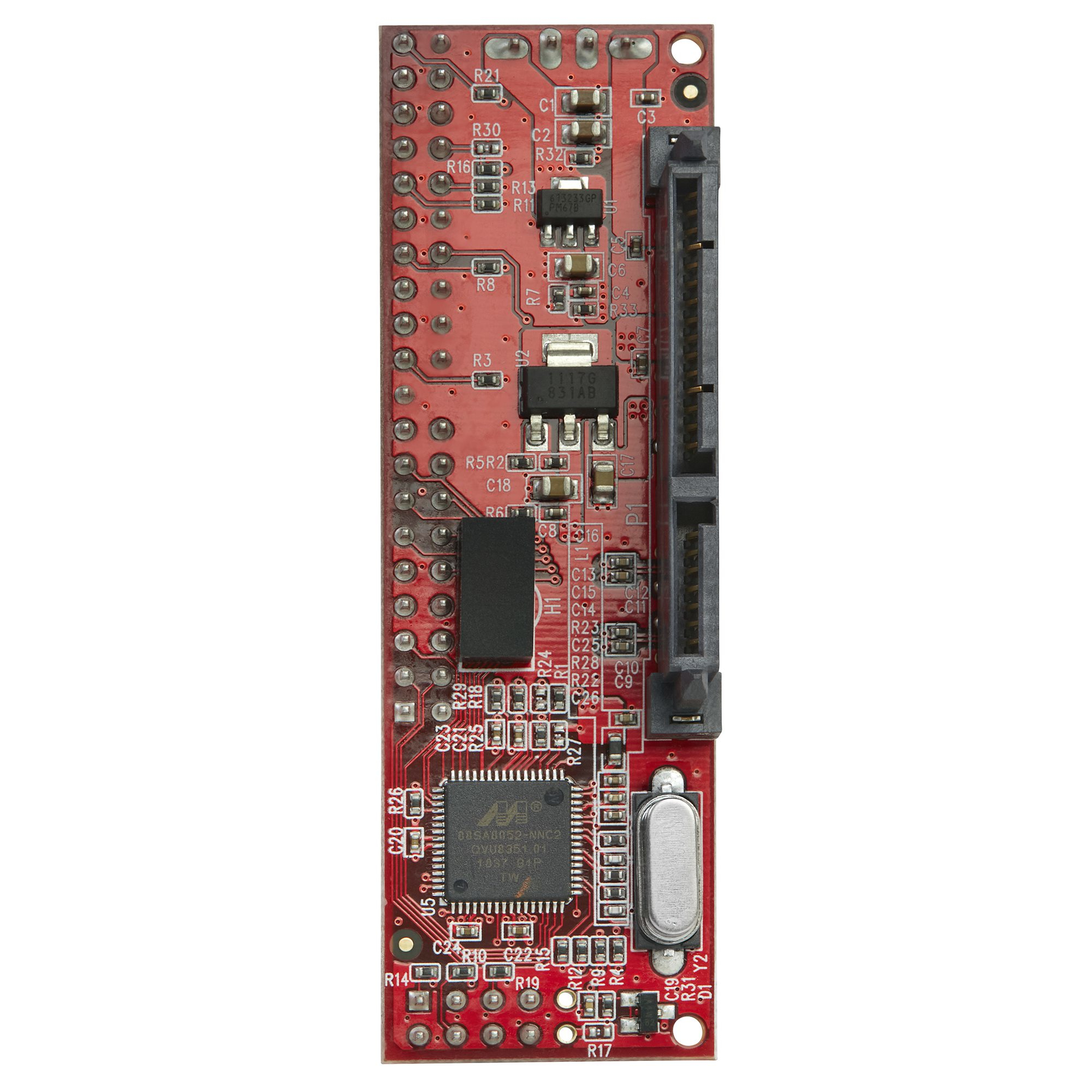

IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to
2.5" SATA HDD/SSD/ODD Converter - TAA
Model IDE2SAT2EAN 6403148872852
28 specifications
- Weight29 g
- ColourRed
- Host interfaceIDE
- InternalYes
- ChipsetMarvell - 88SA8052
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 29 g
- Colour
- Red
- Host interface
- IDE
- Internal
- Yes
- Chipset
- Marvell - 88SA8052
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- IDE2SAT2
- Part number
- IDE2SAT2
- EAN / UPC
- 6403148872852, 041114165216, 065030852258, 627796051049 +11 more
- Also known as
- StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter - TAA
Specifications
28 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | IDE |
| Output interface | SATA |
| Connector(s) | 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| Certification | FCC, CE, TAA, REACH |
Features
| Specification | Value |
|---|---|
| Chipset | Marvell - 88SA8052 |
| Data transfer rate (max) | 0.133 Gbit/s |
| Logical block addressing (LBA) support | 48 bit |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 20 mm |
| Depth | 75.5 mm |
| Height | 23 mm |
| Weight | 29 g |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 34 mm |
| Package weight | 89 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 512 mm |
| Master (outer) case length | 396 mm |
| Master (outer) case height | 326 mm |
Other features
| Specification | Value |
|---|---|
| Material | Plastic, Steel |
