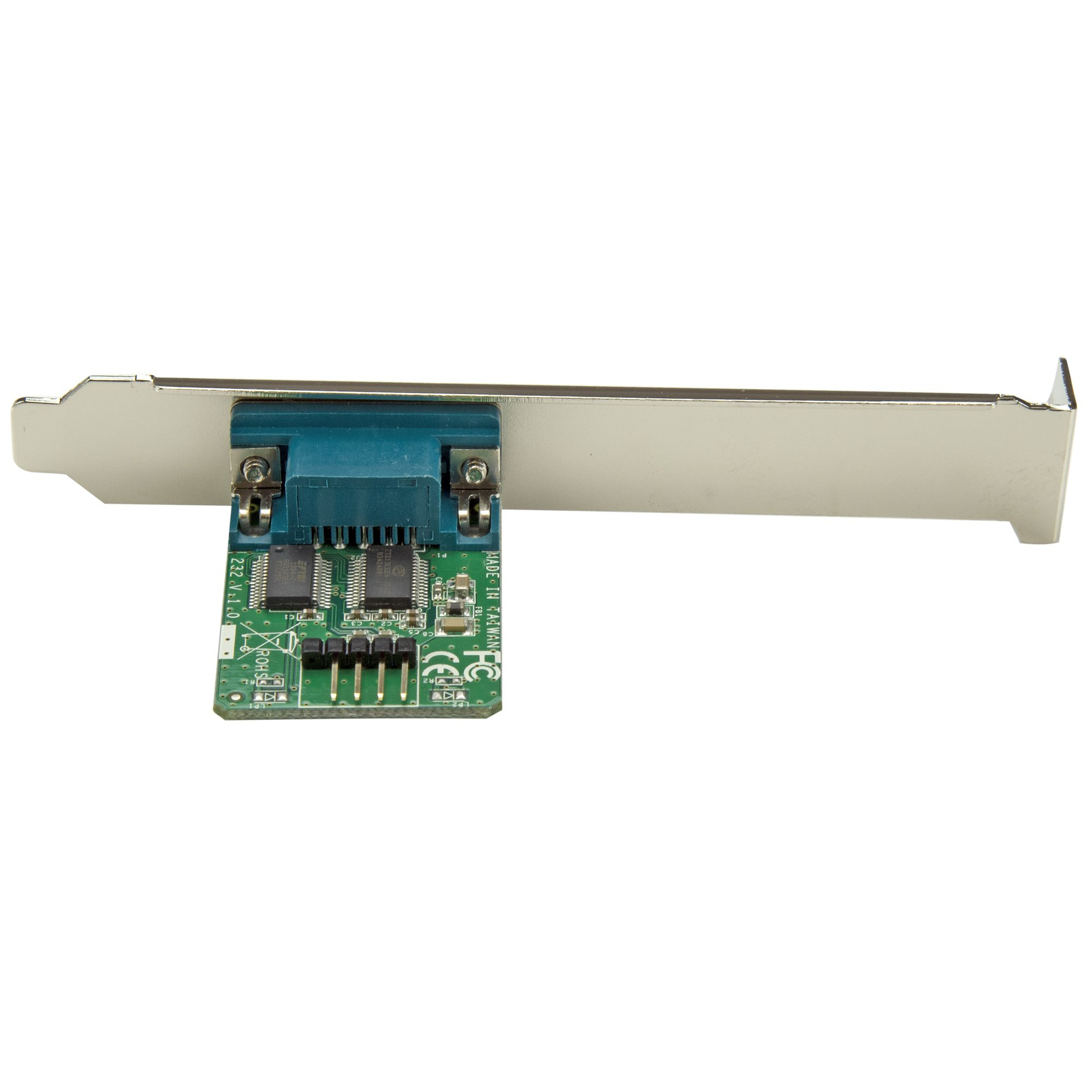

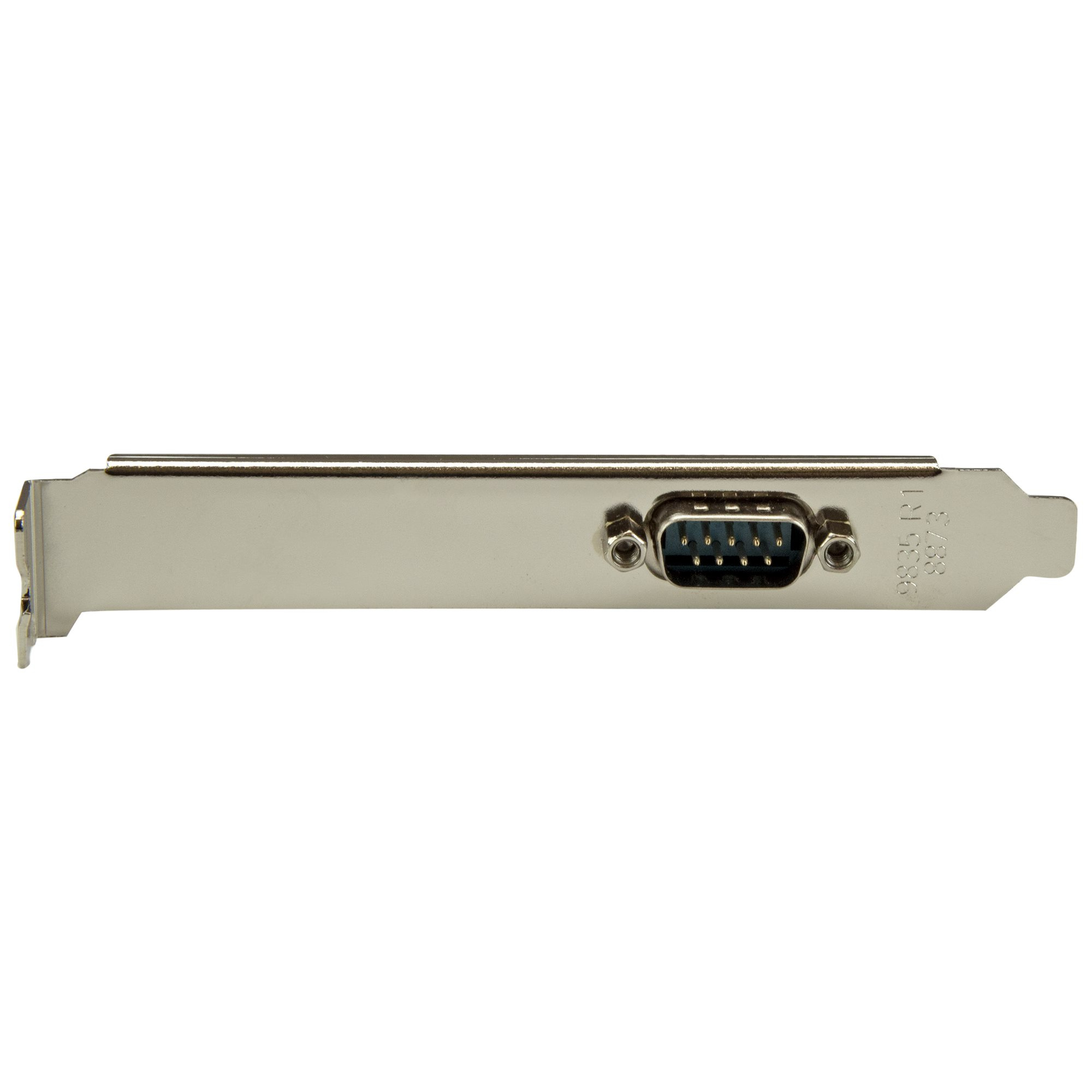

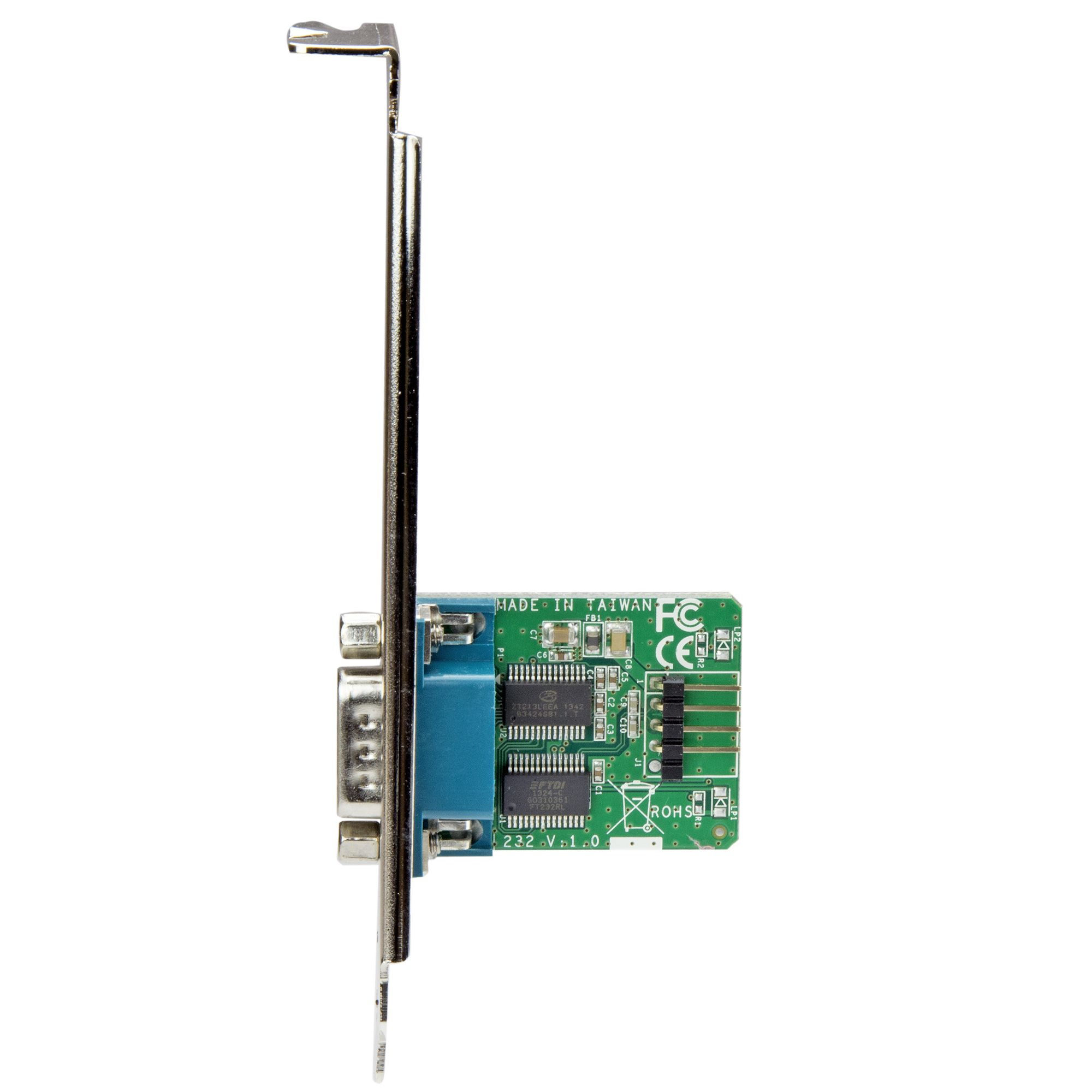

StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter - TAA

StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter - TAA

Model ICUSB232INT1EAN 5054533169999

34 specifications
  • Weight31 g
  • ColourBlack, Green, Silver
  • Host interfaceIDC
  • InternalYes
  • ChipsetFTDI - FT232RL
  • Operating temperature (T-T)-10 - 85 °C
See all specifications

Overview

Weight
31 g
Colour
Black, Green, Silver
Host interface
IDC
Internal
Yes
Chipset
FTDI - FT232RL
Operating temperature (T-T)
-10 - 85 °C
Brand
StarTech.com
Model
ICUSB232INT1
Part number
ICUSB232INT1
EAN / UPC
5054533169999, 049383197891, 065030840934, 163120289790 +12 more
Also known as
StarTech.com 24in Internal USB Motherboard Header to Serial RS232 Adapter - TAA

Specifications

34 specifications in 8 groups

Ports & interfaces

Host interfaceIDC
Output interfaceSerial
Serial ports quantity1
Serial interface typeRS-232

Design

InternalYes
Product colourBlack, Green, Silver
CertificationMicrosoft WHQL, CE, FCC

Features

ChipsetFTDI - FT232RL
Baud rate115.2 Kbit/s
FIFO (First In, First Out)256 B
Data bits7, 8
Stop bits1, 2

Operational conditions

Operating temperature (T-T)-10 - 85 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Bas
Mac operating systems supportedMac OS X 13.0 Ventura
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Weight & dimensions

Width123 mm
Depth45 mm
Height12 mm
Weight31 g

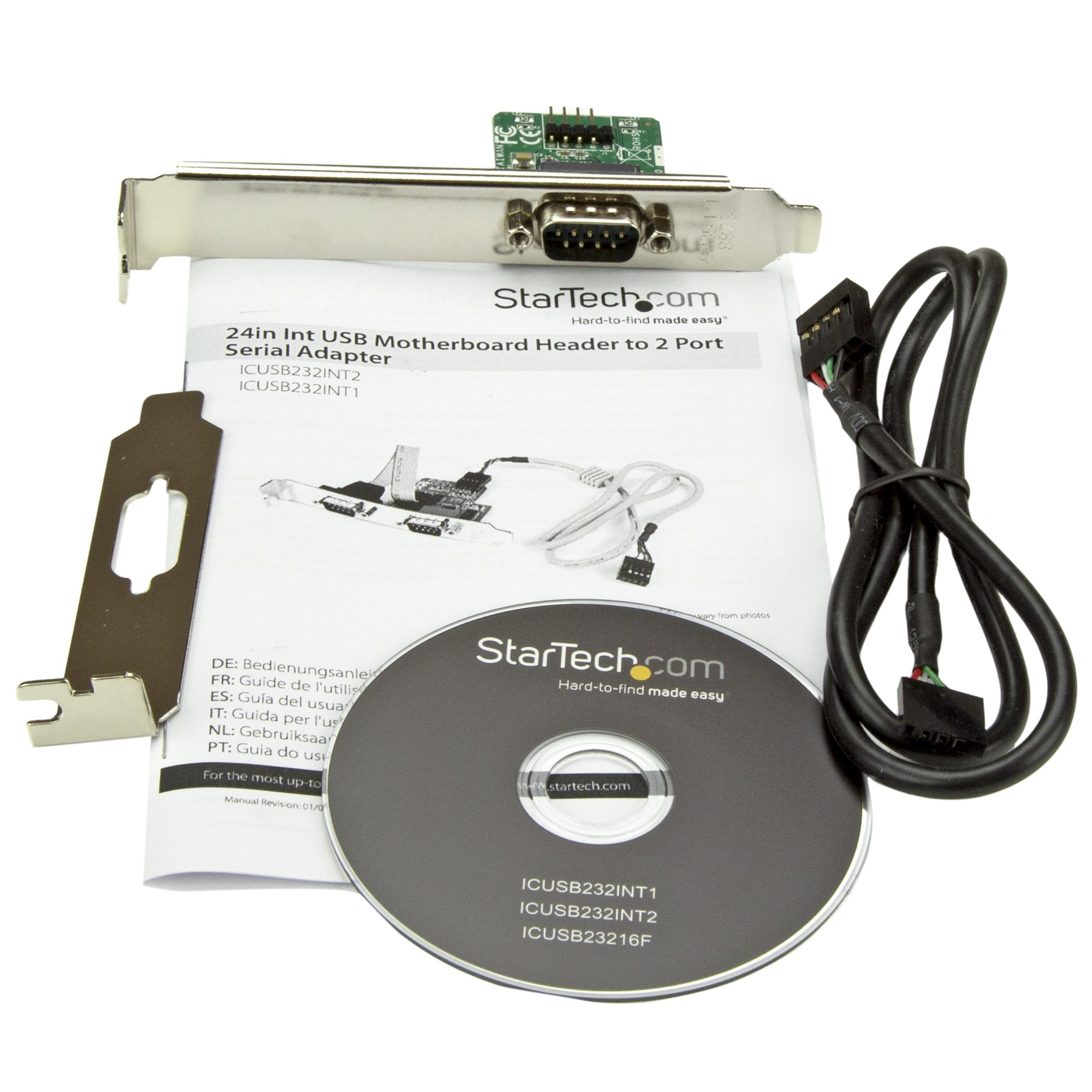

Packaging data

Mounting brackets includedYes
Drivers includedYes
ManualYes
Package width175 mm
Package depth143 mm
Package height33 mm
Package weight160 g

Logistics data

Harmonized System (HS) code84733020
Products per master (outer) case75 pc(s)
Master (outer) case width697 mm
Master (outer) case length360 mm
Master (outer) case height319 mm
