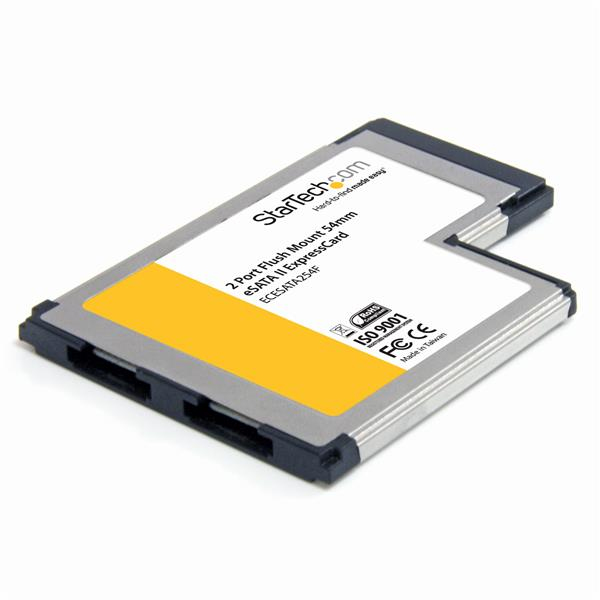

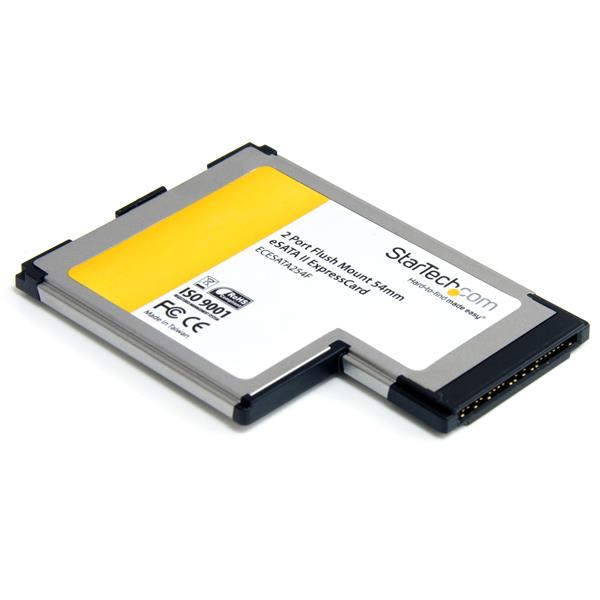

StarTech.com 2 Port Flush Mount ExpressCard
54mm eSATA II Controller Adapter Card
Model ECESATA254FEAN 065030842495
20 specifications
- ConnectivityWired
- Weight22.5 g
- Host interfaceExpressCard
- ChipsetSilicon Image Sil3132CNU
- Operating temperature (T-T)0 - 70 °C
- Width54 mm
Overview
- Connectivity
- Wired
- Weight
- 22.5 g
- Host interface
- ExpressCard
- Chipset
- Silicon Image Sil3132CNU
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 54 mm
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- ECESATA254F
- Part number
- ECESATA254F
- EAN / UPC
- 065030842495, 151903095799, 854587450204
- Also known as
- StarTech.com 2 Port Flush Mount ExpressCard 54mm eSATA II Controller Adapter Card
Specifications
20 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | ExpressCard |
| Output interface | SATA |
| eSATA ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Chipset | Silicon Image Sil3132CNU |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -65 - 150 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 75 mm |
| Height | 5 mm |
| Weight | 22.5 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 115 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 3000 Mbit/s |
| Ports quantity | 2 |
| Connectivity technology | Wired |
| Compatible operating systems | Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit), Linux |
| Mac compatibility | No |
