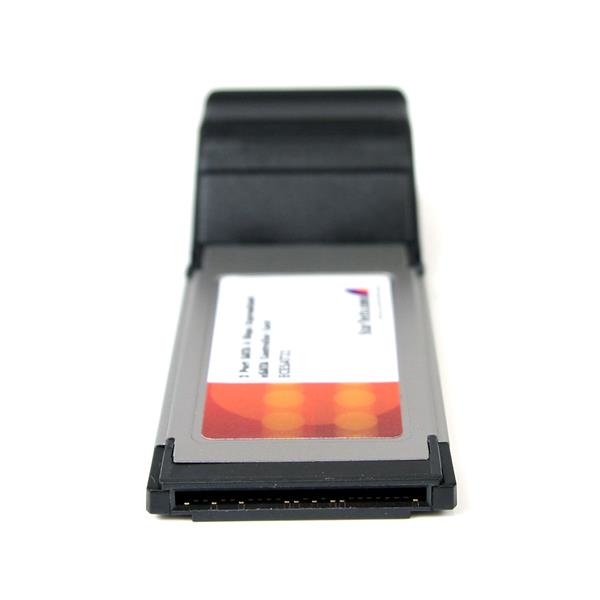

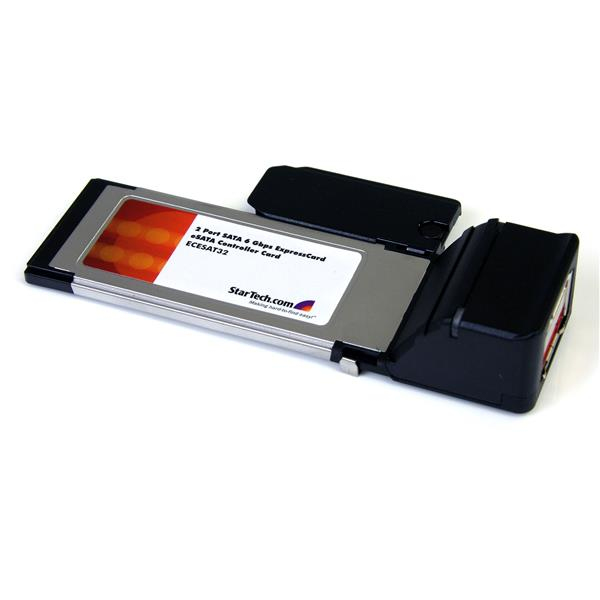

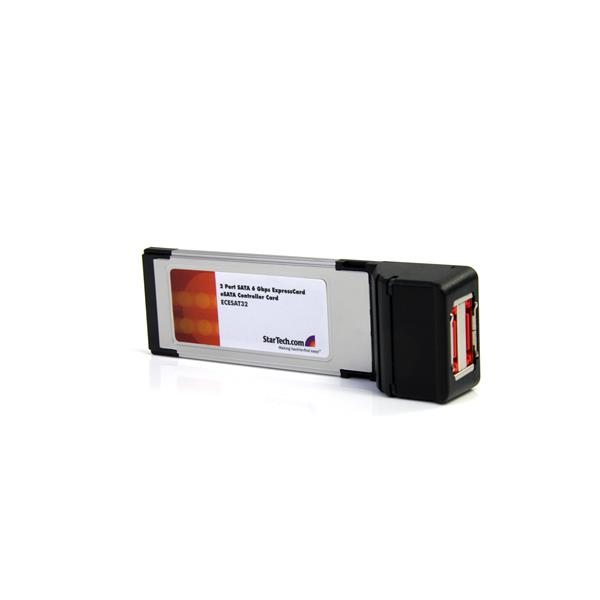

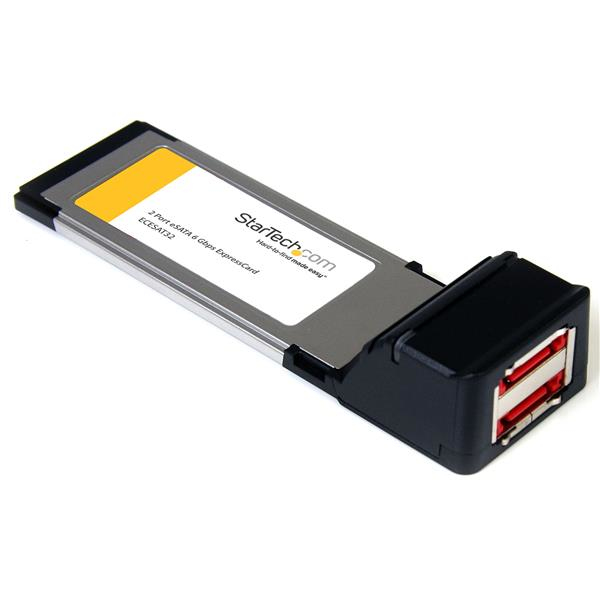

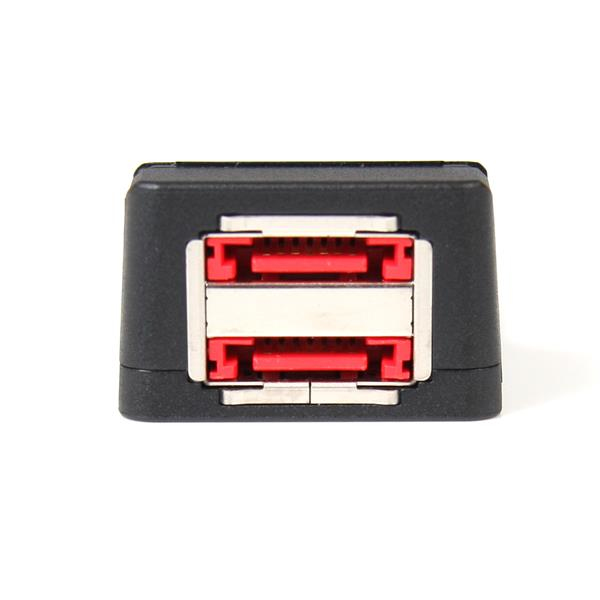

StarTech.com 2 Port SATA 6 Gbps ExpressCard eSATA Controller Card
Model ECESAT32EAN 7967907184505
23 specifications
- ConnectivityWired
- Weight40 g
- Host interfaceExpressCard
- CertificationRoHS
- ChipsetMarvell - 9128
- Operating temperature (T-T)5 - 50 °C
Overview
- Connectivity
- Wired
- Weight
- 40 g
- Host interface
- ExpressCard
- Certification
- RoHS
- Chipset
- Marvell - 9128
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- ECESAT32
- Part number
- ECESAT32
- EAN / UPC
- 7967907184505, 065030838931, 132018277034, 151903034460 +8 more
- Also known as
- StarTech.com 2 Port SATA 6 Gbps ExpressCard eSATA Controller Card
Specifications
23 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | ExpressCard |
| eSATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Certification | RoHS |
Features
| Specification | Value |
|---|---|
| Chipset | Marvell - 9128 |
| RAID levels | 0, 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 34 mm |
| Depth | 112 mm |
| Height | 21 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 158.8 mm |
| Package depth | 222.2 mm |
| Package height | 44.5 mm |
| Package weight | 210 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6000 Mbit/s |
| Ports quantity | 2 |
| Connectivity technology | Wired |
| Compatible operating systems | Windows XP/Server/Vista/7/Server 2003/Server 2008 |
| Mac compatibility | No |
| Operating temperature (T-T) | 41 - 122 °F |
| Quantity outer carton | 40 pc(s) |
