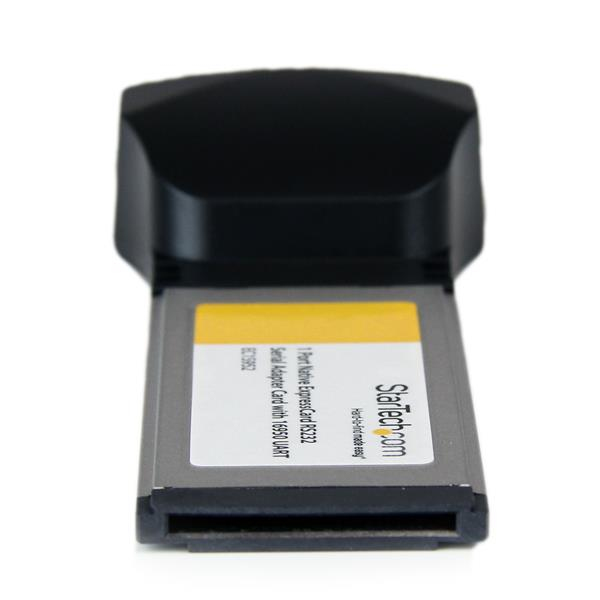

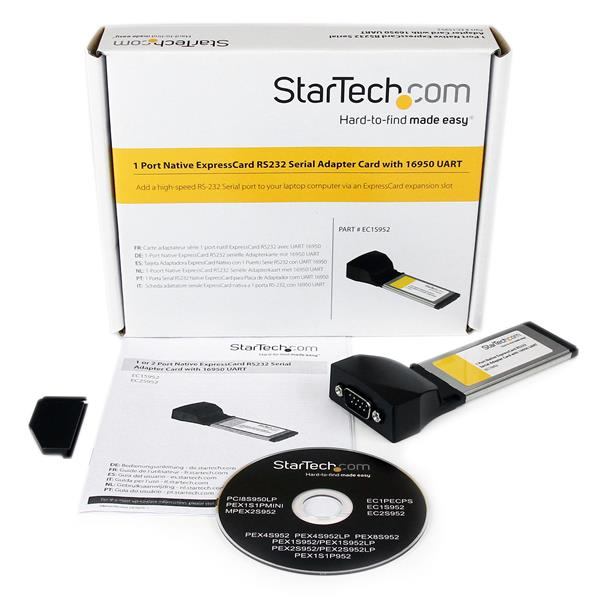

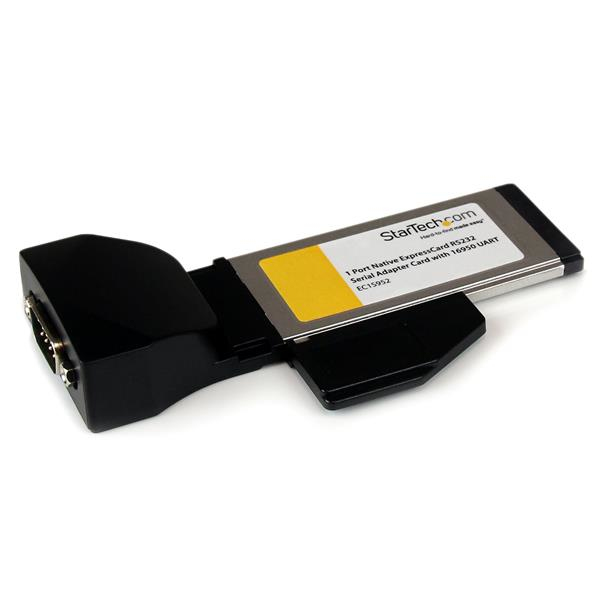

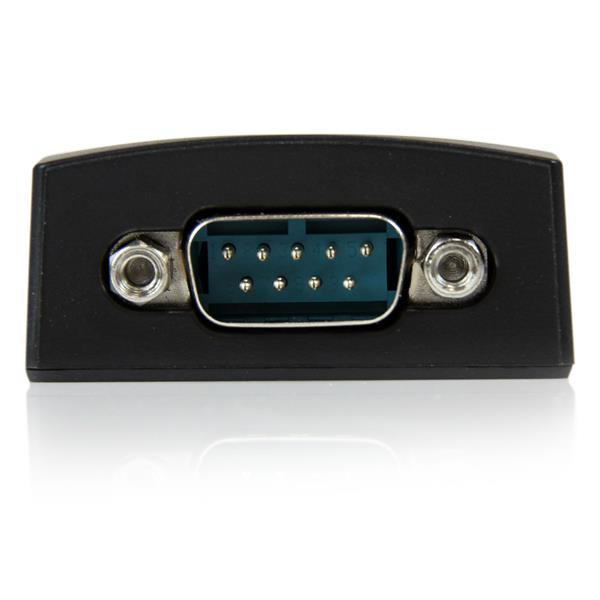

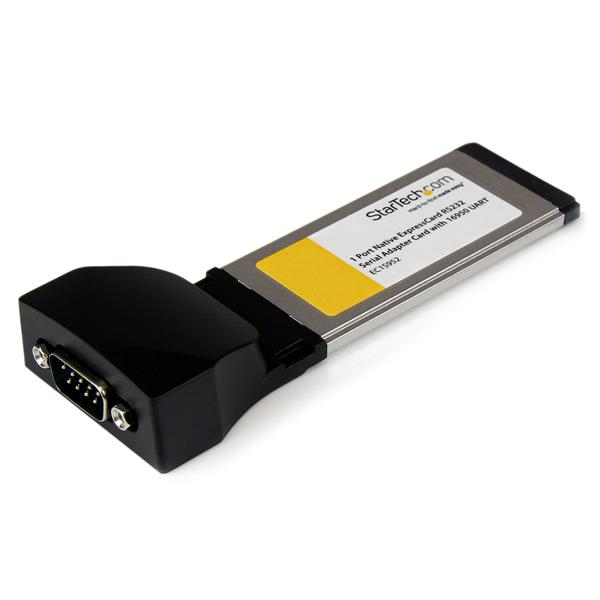

StarTech.com 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART

StarTech.com 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART

Model EC1S952EAN 999992951684

29 specifications
  • Weight34 g
  • ColourBlack, Silver
  • Host interfaceExpressCard
  • InternalNo
  • ChipsetPLX/Oxford - OXPCIe952
  • Operating temperature (T-T)-10 - 80 °C
See all specifications

Overview

Weight
34 g
Colour
Black, Silver
Host interface
ExpressCard
Internal
No
Chipset
PLX/Oxford - OXPCIe952
Operating temperature (T-T)
-10 - 80 °C
Brand
StarTech.com
Model
EC1S952
Part number
EC1S952
EAN / UPC
999992951684, 065030834926, 151903034378, 151903667538 +12 more
Also known as
StarTech.com 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART

Specifications

29 specifications in 9 groups

Ports & interfaces

Host interfaceExpressCard
Output interfaceSerial
Serial ports quantity1
Serial interface typeRS-232

Design

InternalNo
Product colourBlack, Silver
CertificationREACH, FCC, CE, TAA

Features

ChipsetPLX/Oxford - OXPCIe952
Baud rate115.2 Kbit/s
FIFO (First In, First Out)128 B

Operational conditions

Operating temperature (T-T)-10 - 80 °C
Storage temperature (T-T)-20 - 100 °C
Operating relative humidity (H-H)5 - 85%

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7,
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supportedWindows XP Embedded

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width45 mm
Depth115 mm
Height20 mm
Weight34 g

Packaging data

Drivers includedYes
ManualYes
Package width44 mm
Package depth214 mm
Package height150 mm
Package weight200 g

Logistics data

Harmonized System (HS) code84733020
