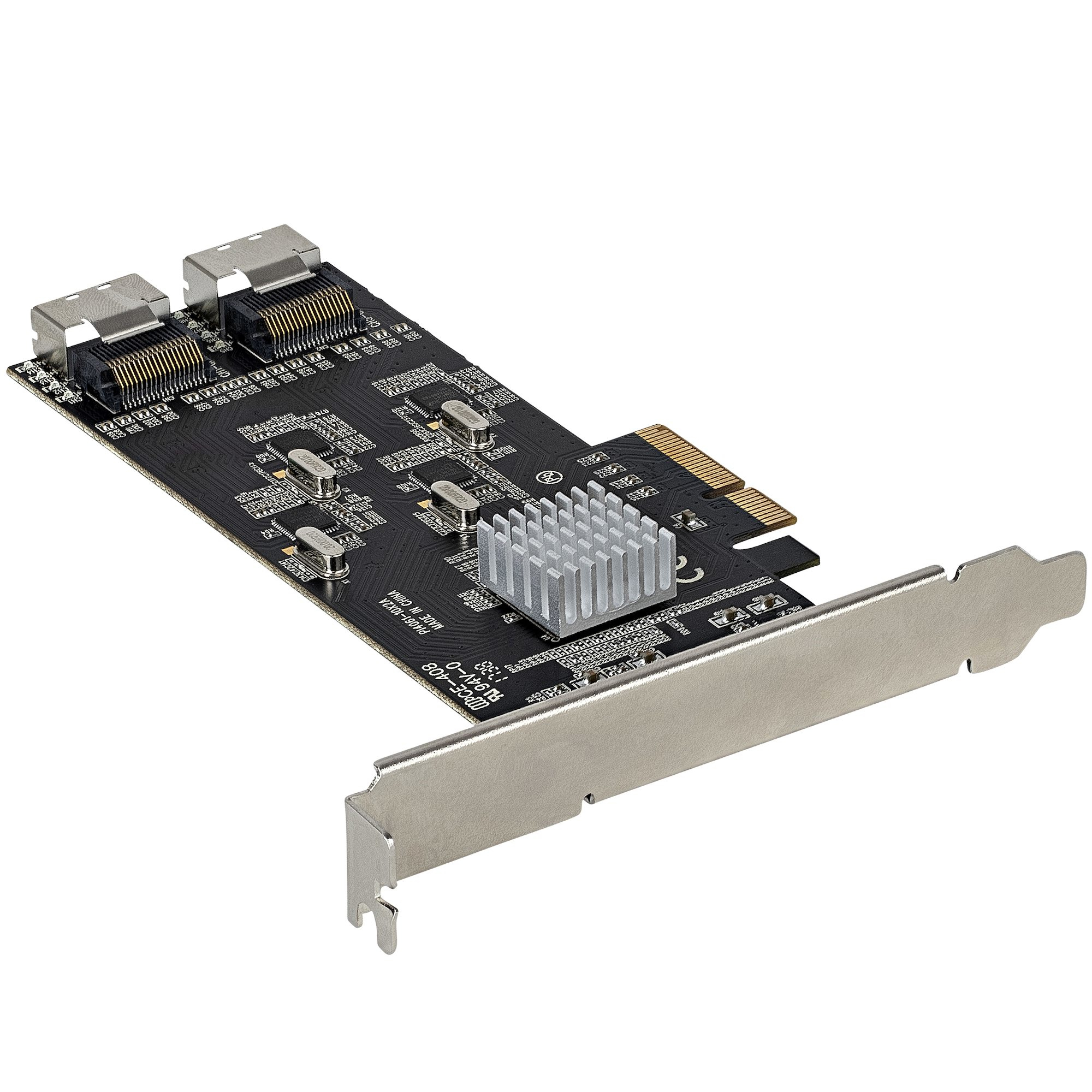

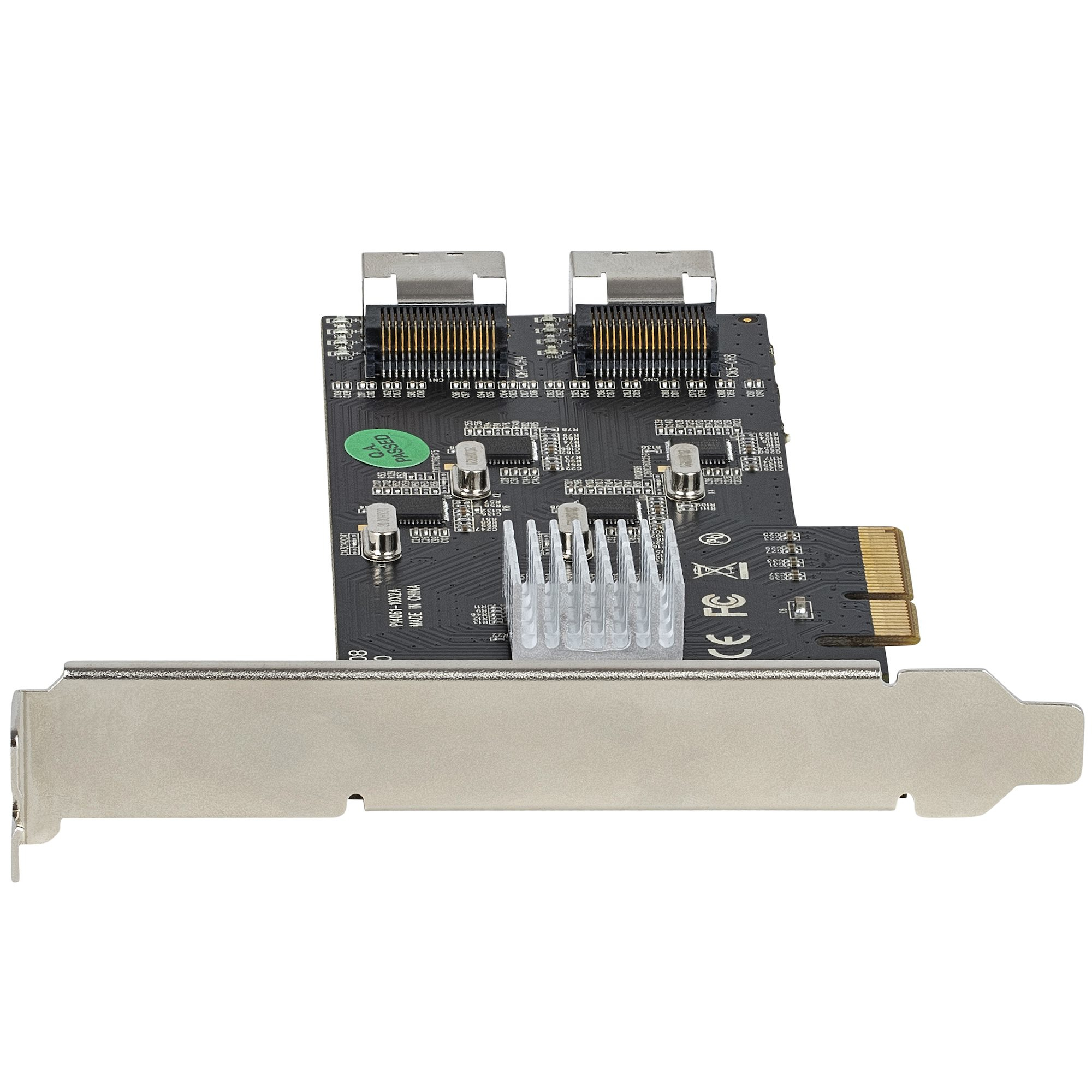

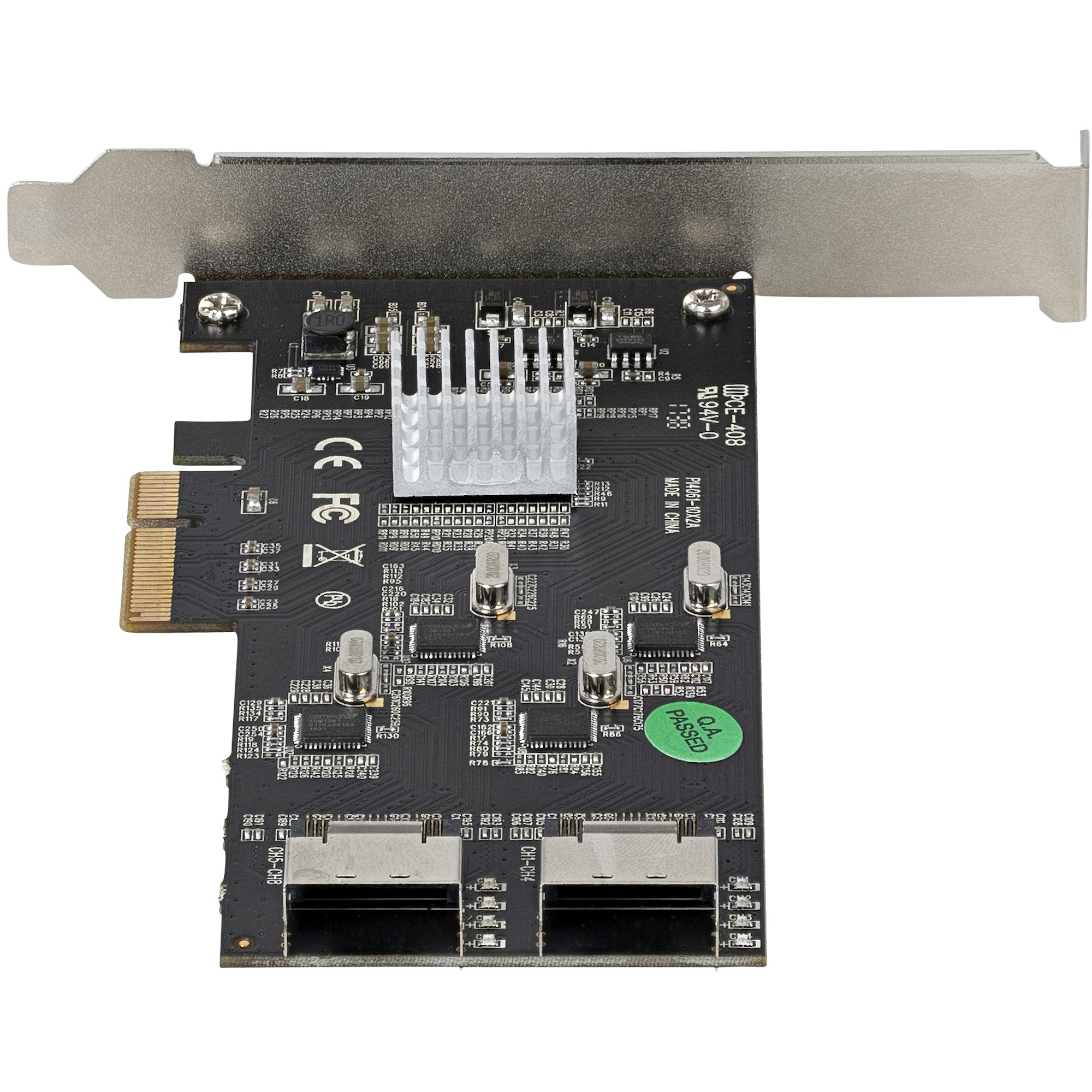

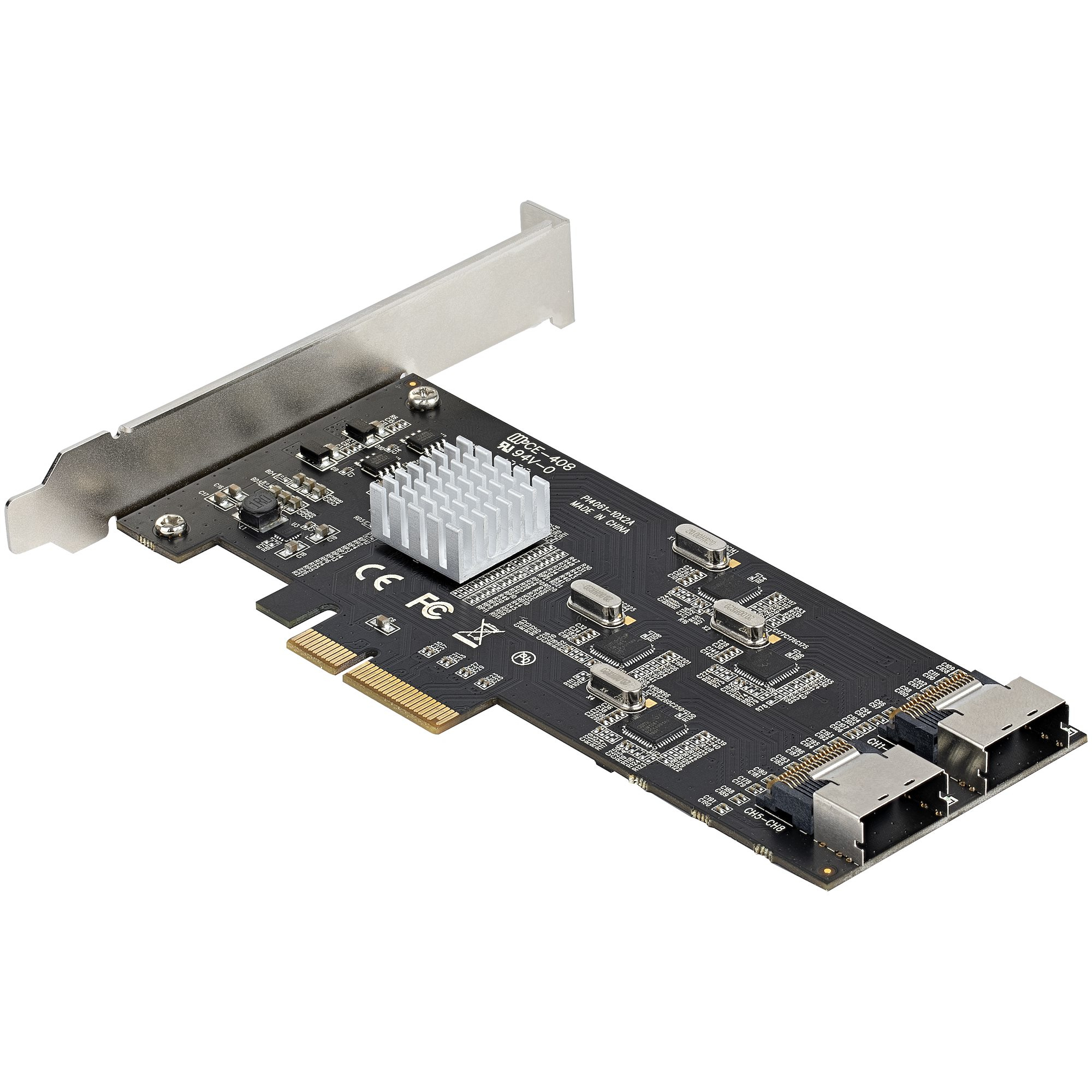

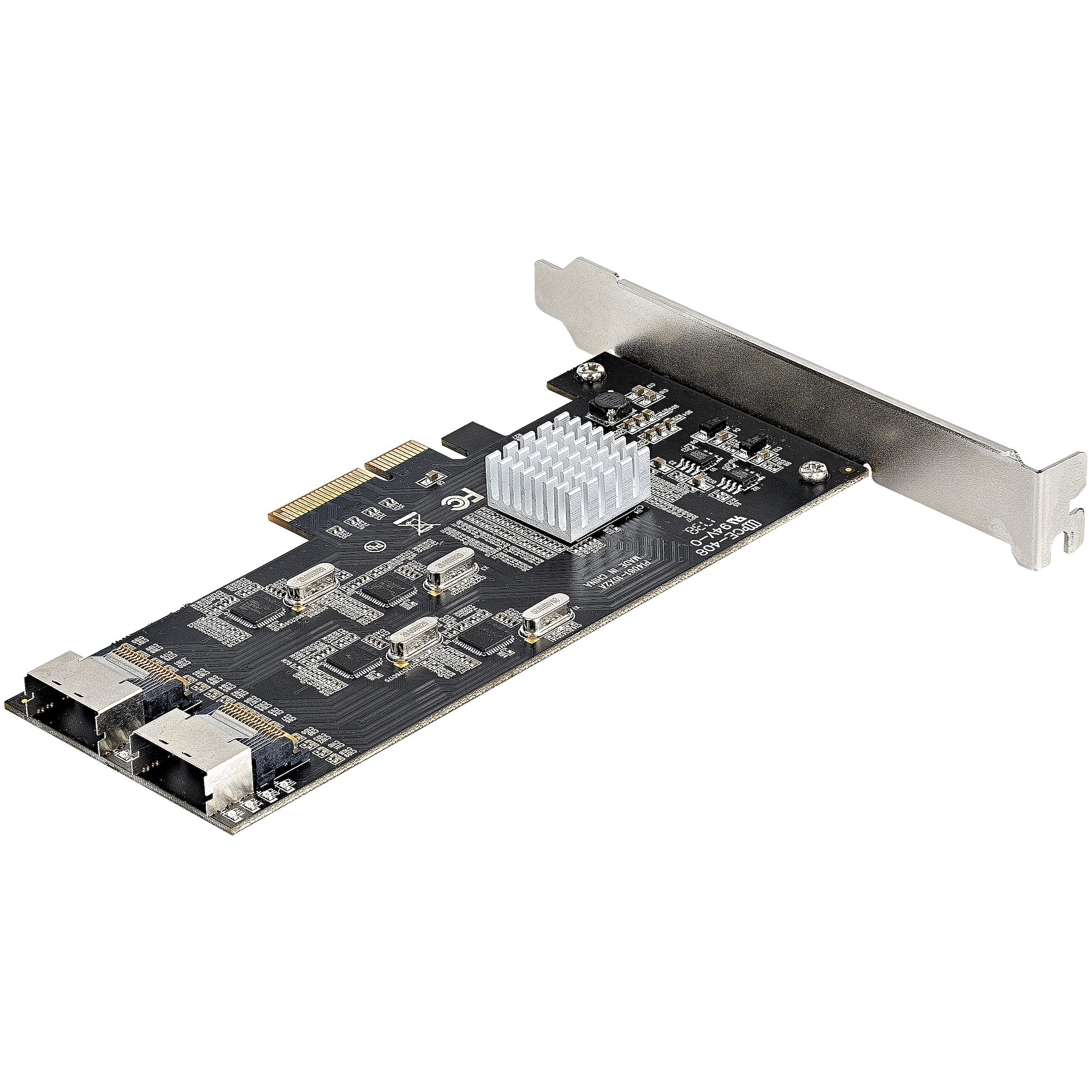

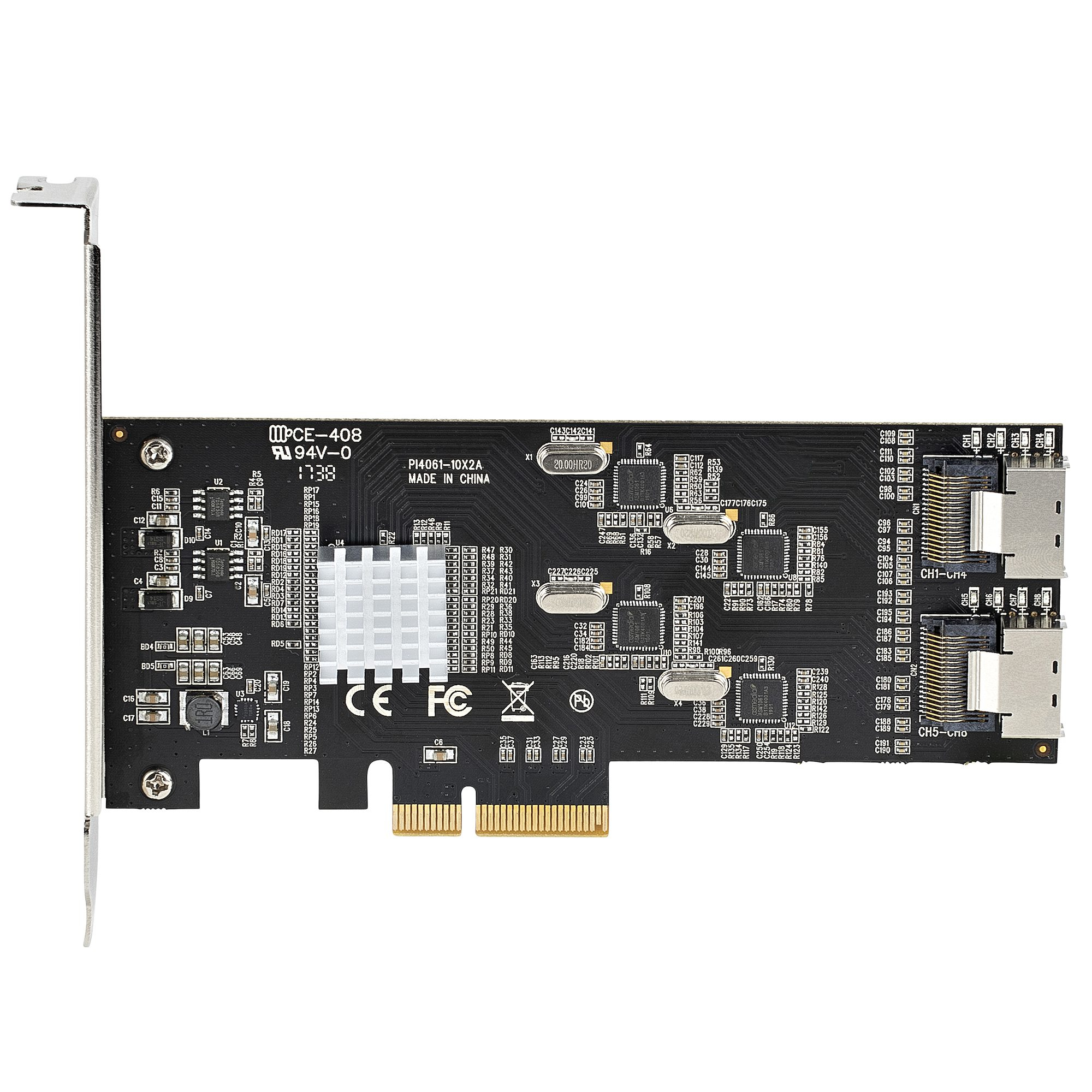

8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA
Model 8P6G-PCIE-SATA-CARDEAN 065030893275
36 specifications
- Weight75 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)6 Gbit/s
- Operating temperature (T-T)5 - 50 °C
Overview
- Weight
- 75 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 6 Gbit/s
- Operating temperature (T-T)
- 5 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 8P6G-PCIE-SATA-CARD
- Part number
- 8P6G-PCIE-SATA-CARD
- EAN / UPC
- 065030893275
- Also known as
- StarTech.com 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA
Specifications
36 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Mini-SAS |
| Expansion card standard | PCI 2.0 |
| SATA revision | 3.0 |
| External mini-SAS ports | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Chipset | Pericom - PI7C9X2G608GP, ASMedia - ASM1061 |
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.6 mm |
| Depth | 150 mm |
| Height | 14.6 mm |
| Weight | 75 g |
Packaging data
| Specification | Value |
|---|---|

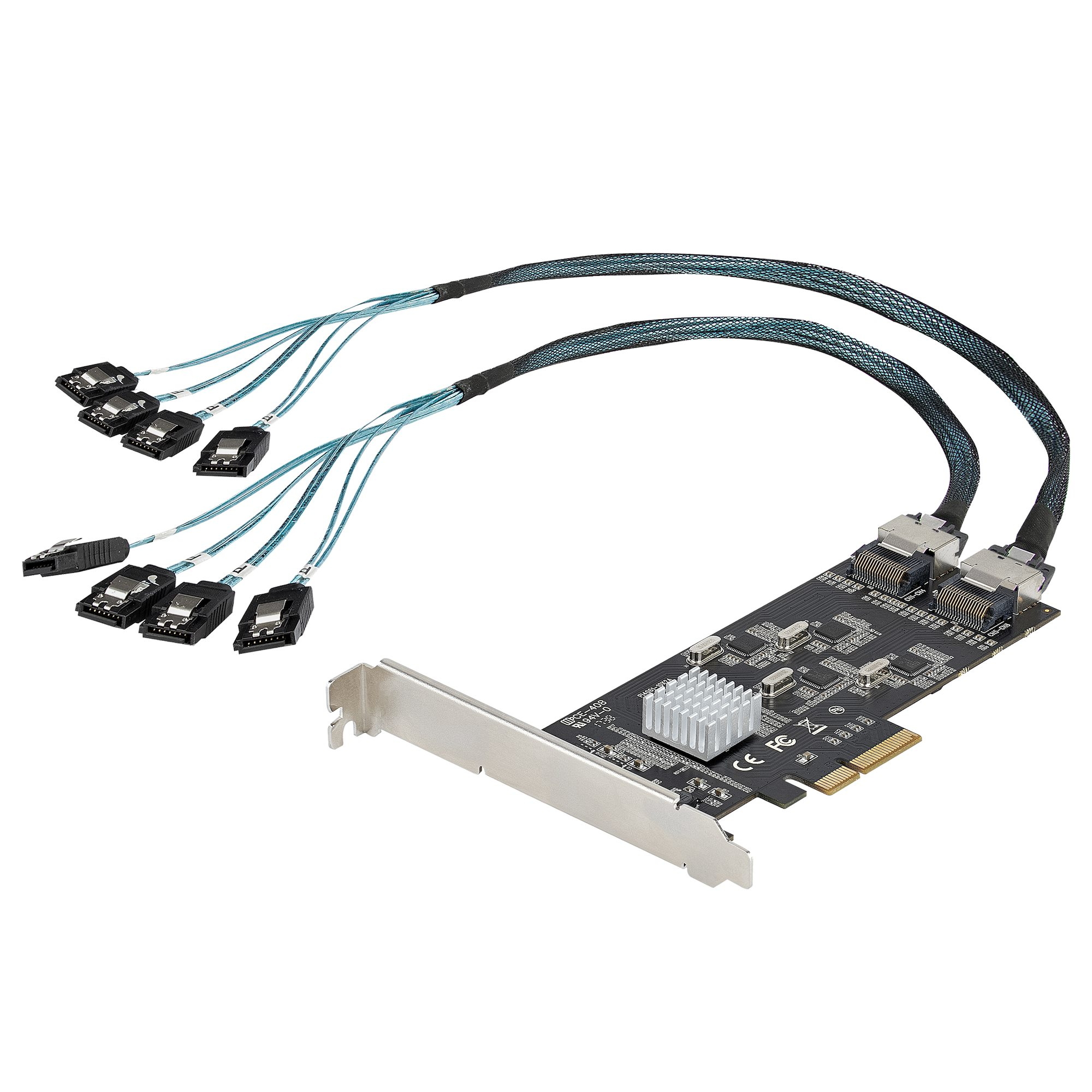

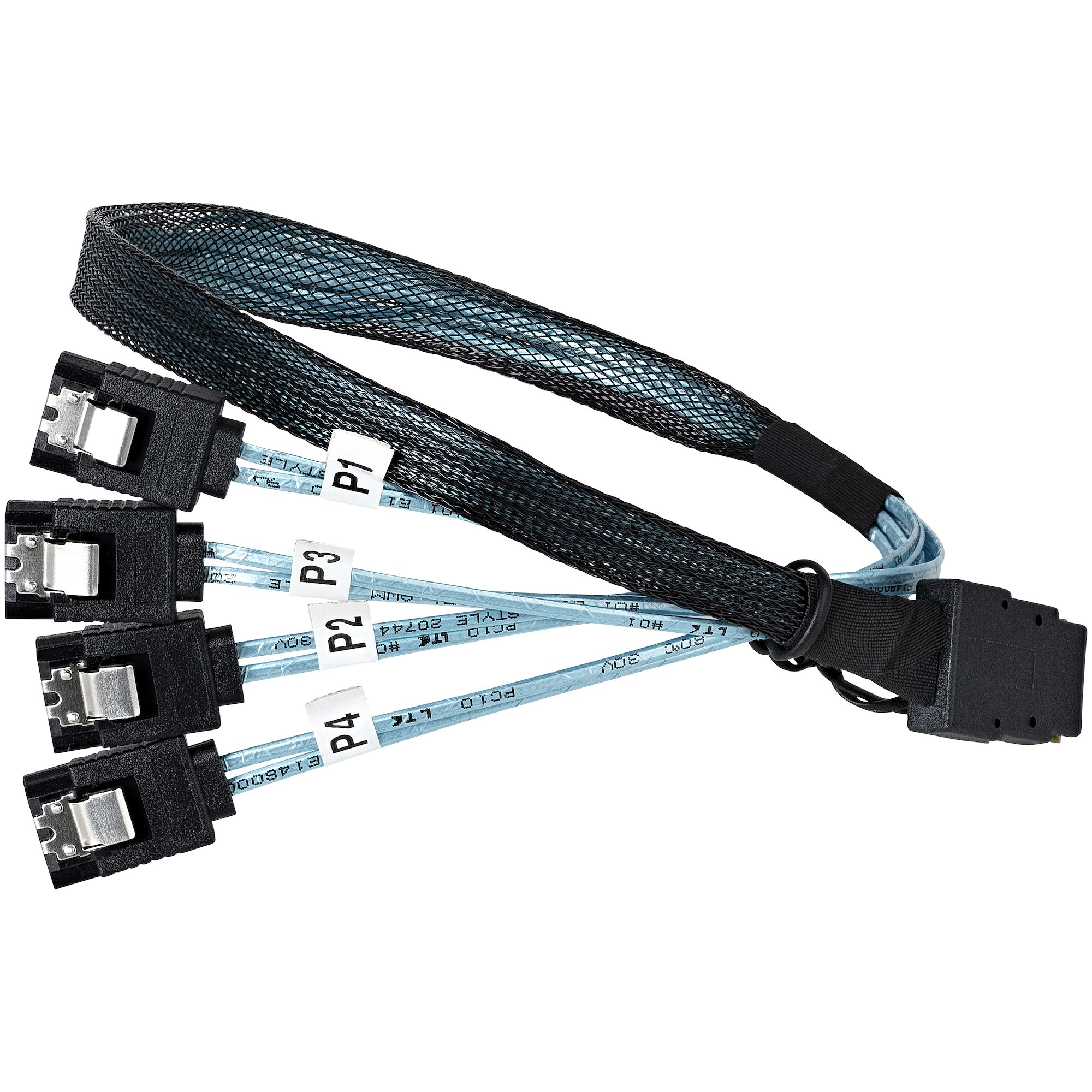

| Cables included | SATA |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 157 mm |
| Package depth | 232 mm |
| Package height | 58 mm |
| Package weight | 81 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 610 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 380 mm |
