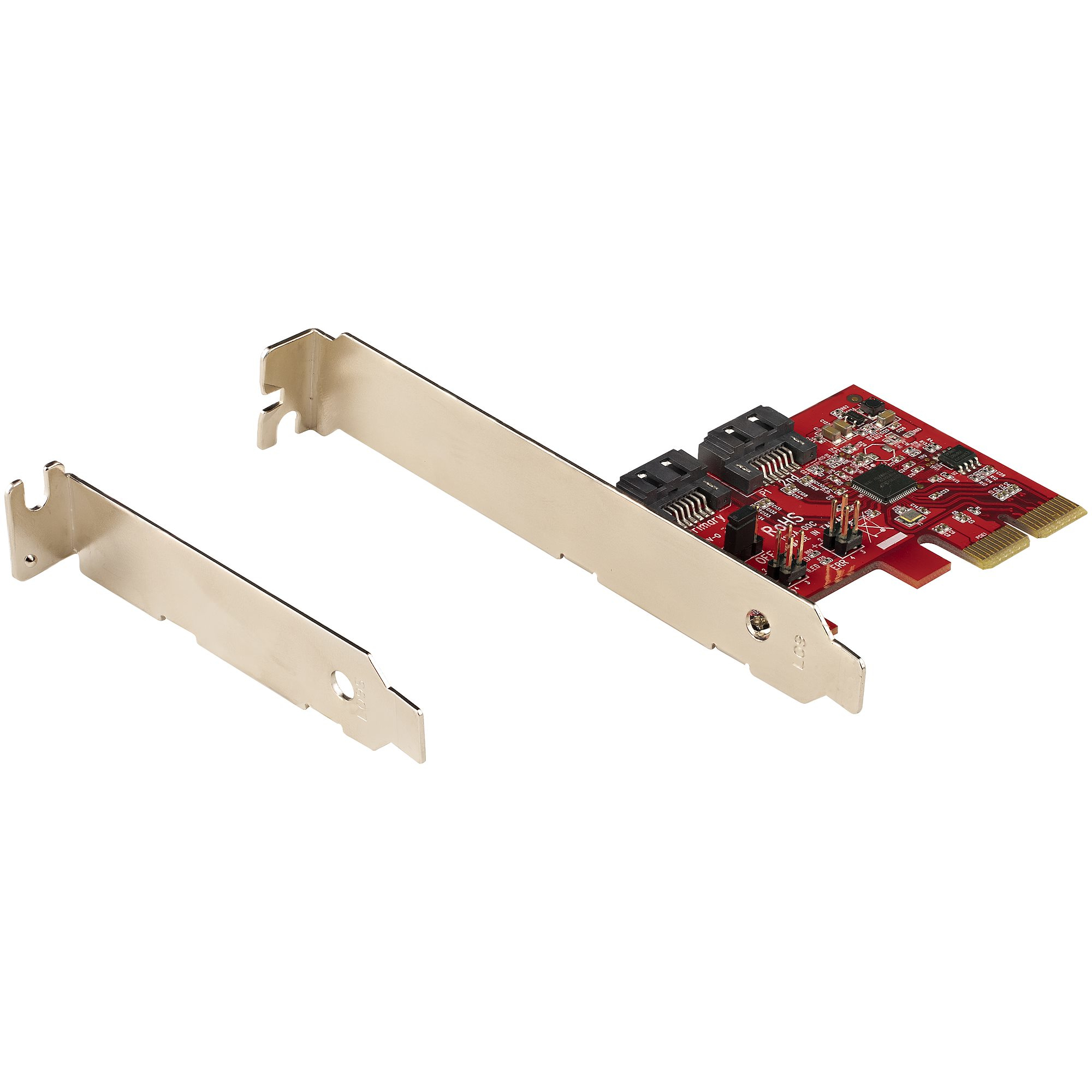

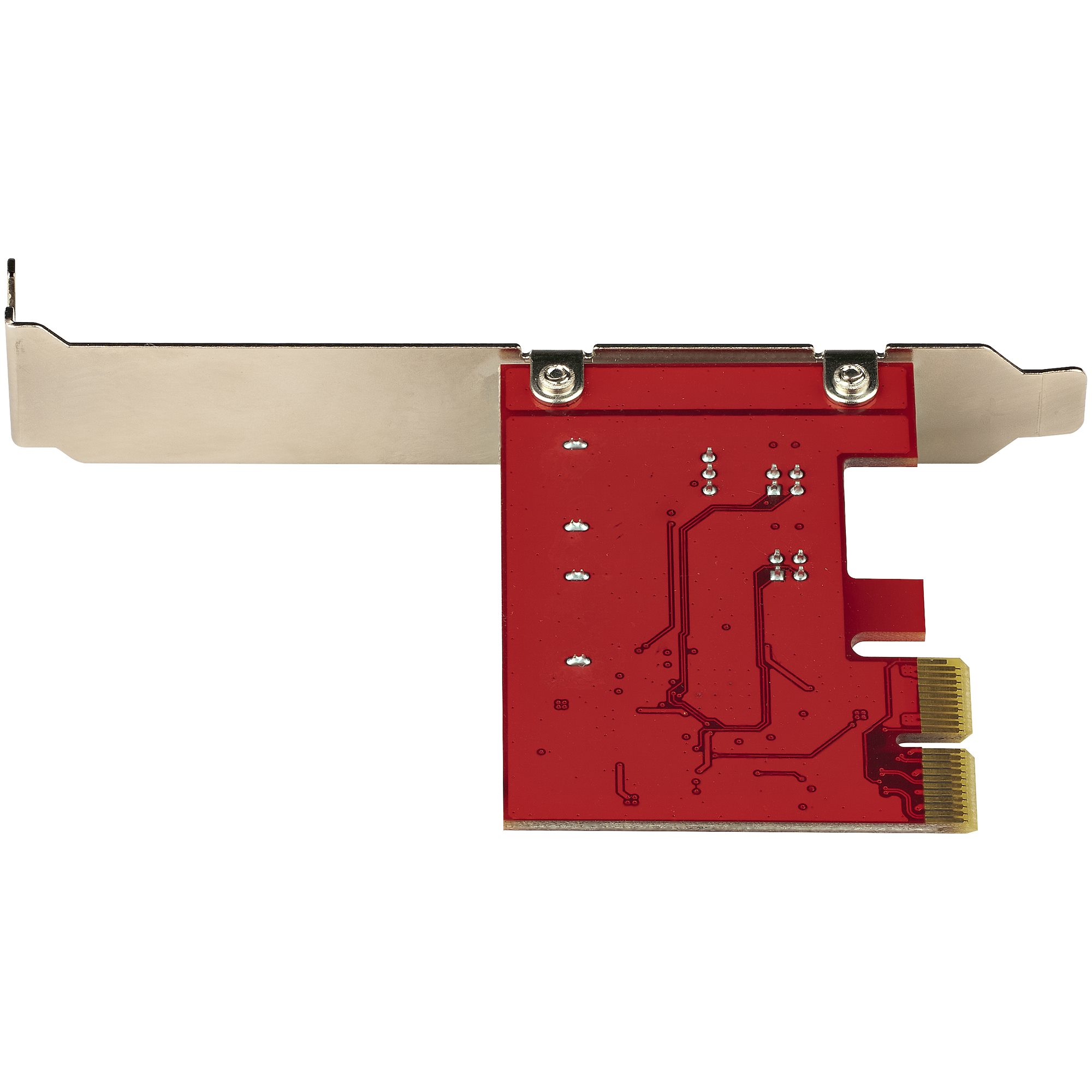

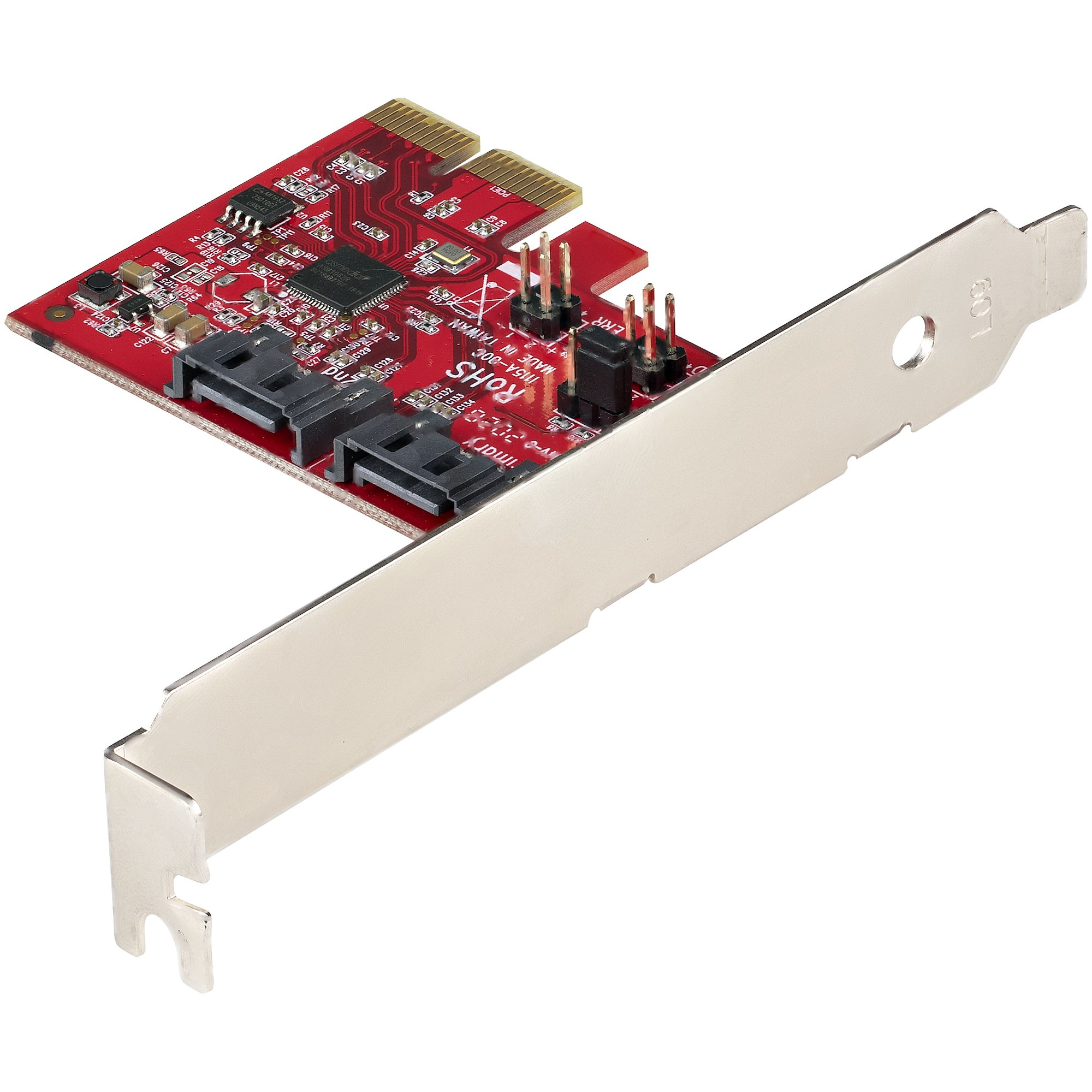

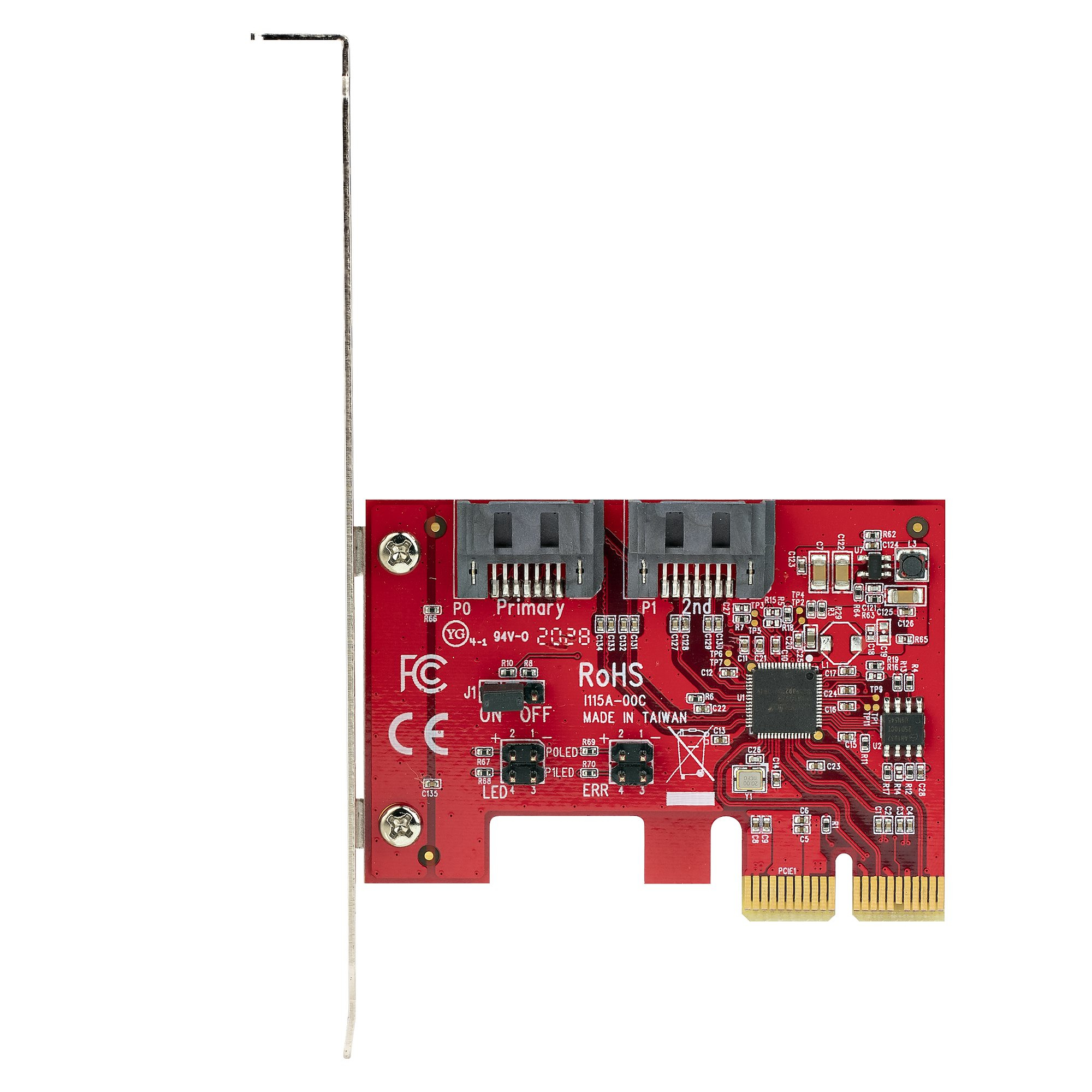

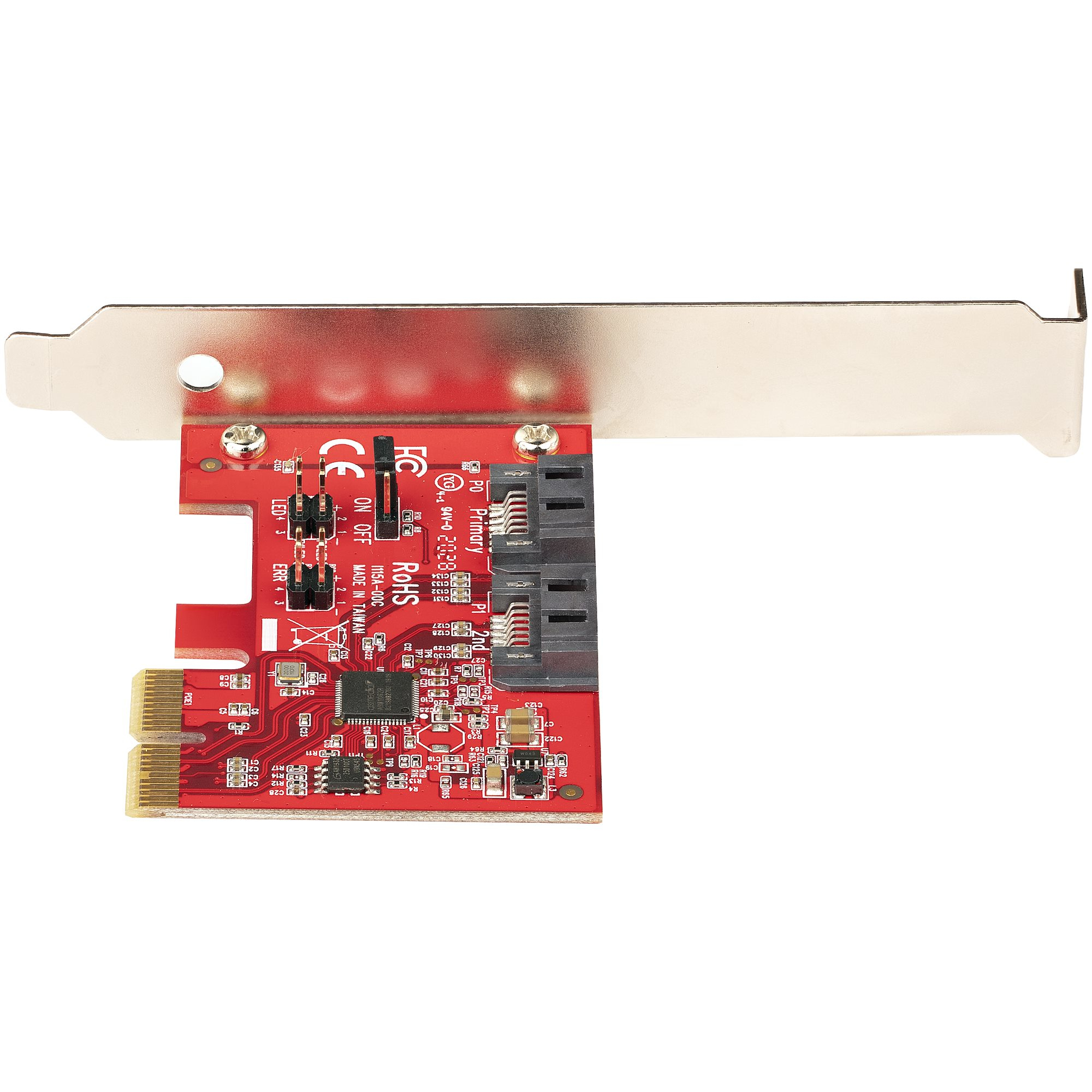

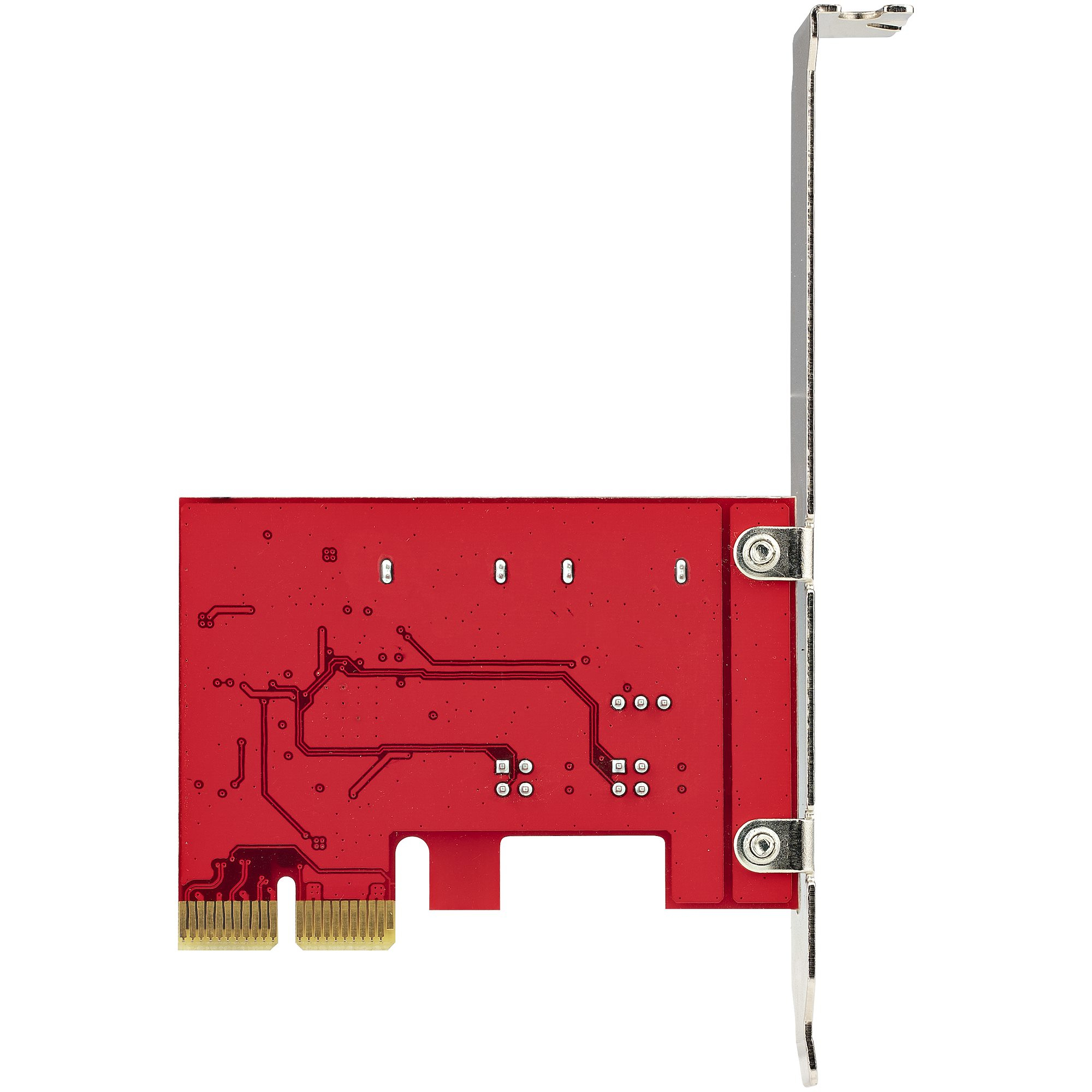

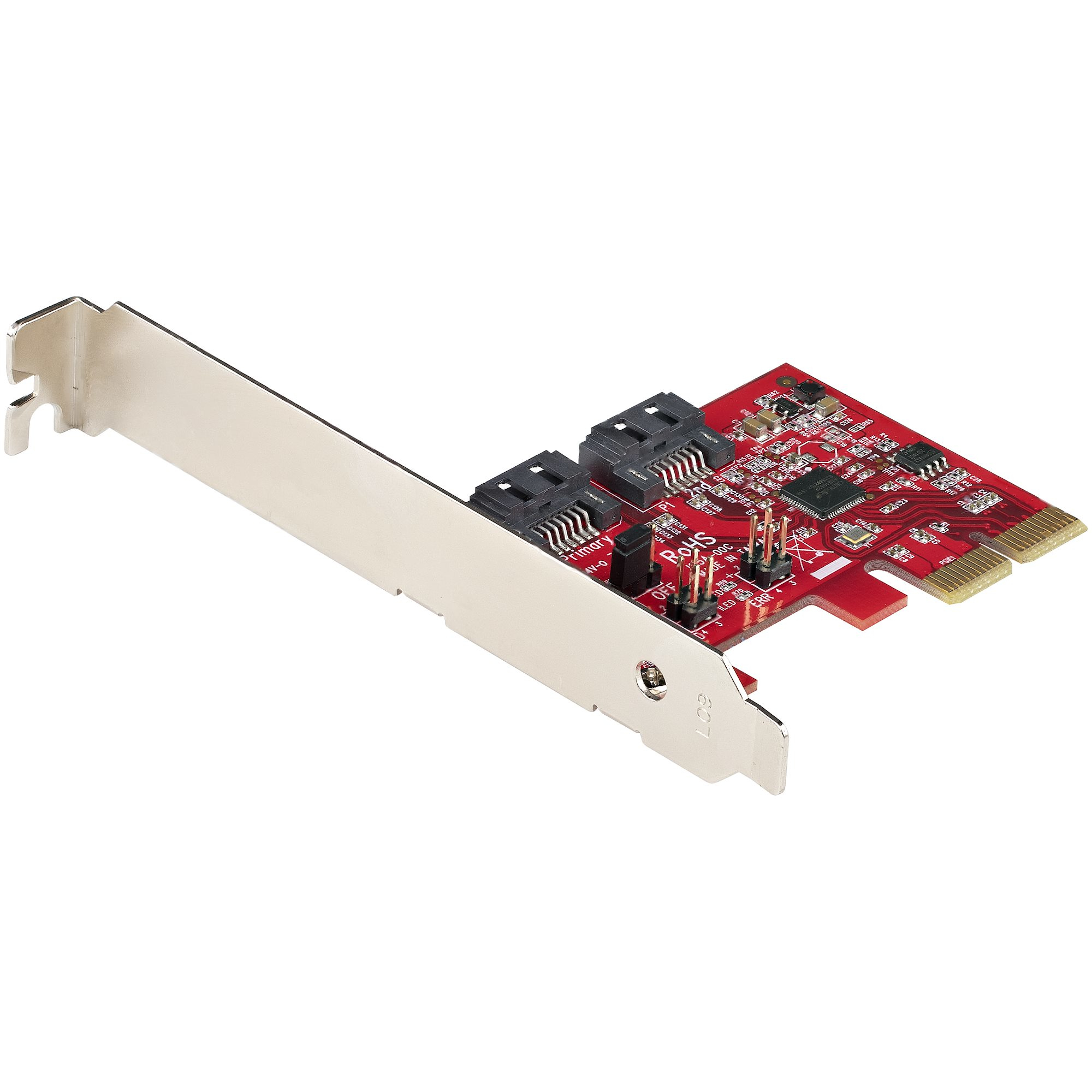

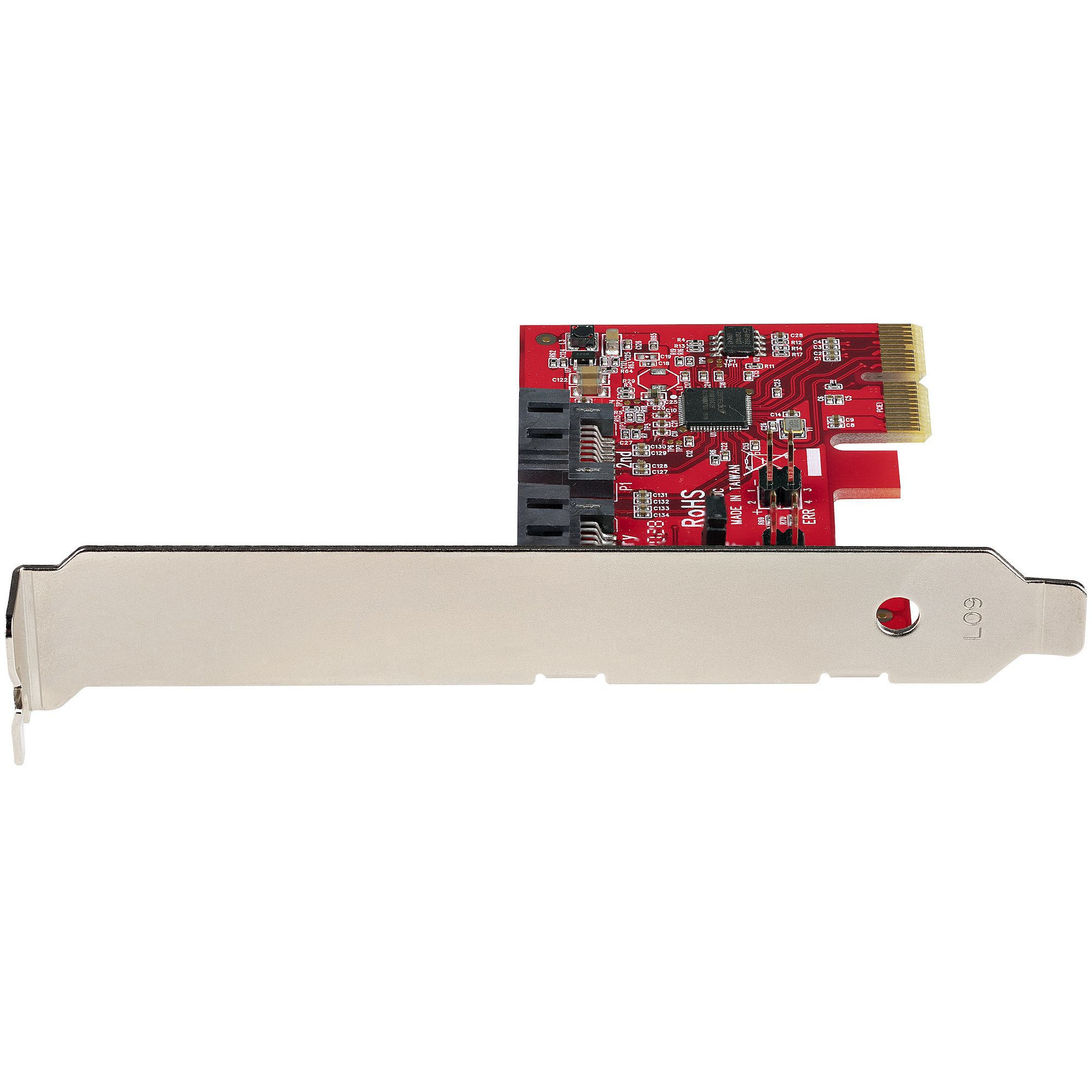

SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to
Model 2P6GR-PCIE-SATA-CARDEAN 065030893169
37 specifications
- Weight35 g
- ColourRed
- Host interfacePCIe
- InternalYes
- ChipsetASMedia - ASM1062R
- Operating temperature (T-T)0 - 85 °C
Overview
- Weight
- 35 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia - ASM1062R
- Operating temperature (T-T)
- 0 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 2P6GR-PCIE-SATA-CARD
- Part number
- 2P6GR-PCIE-SATA-CARD
- EAN / UPC
- 065030893169
- Also known as
- StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1062R |
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| RAID levels | 0, 1, BIG, JBOD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 22 mm |
| Height | 121 mm |
| Weight | 35 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 34 mm |
| Package weight | 126 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 310 mm |
