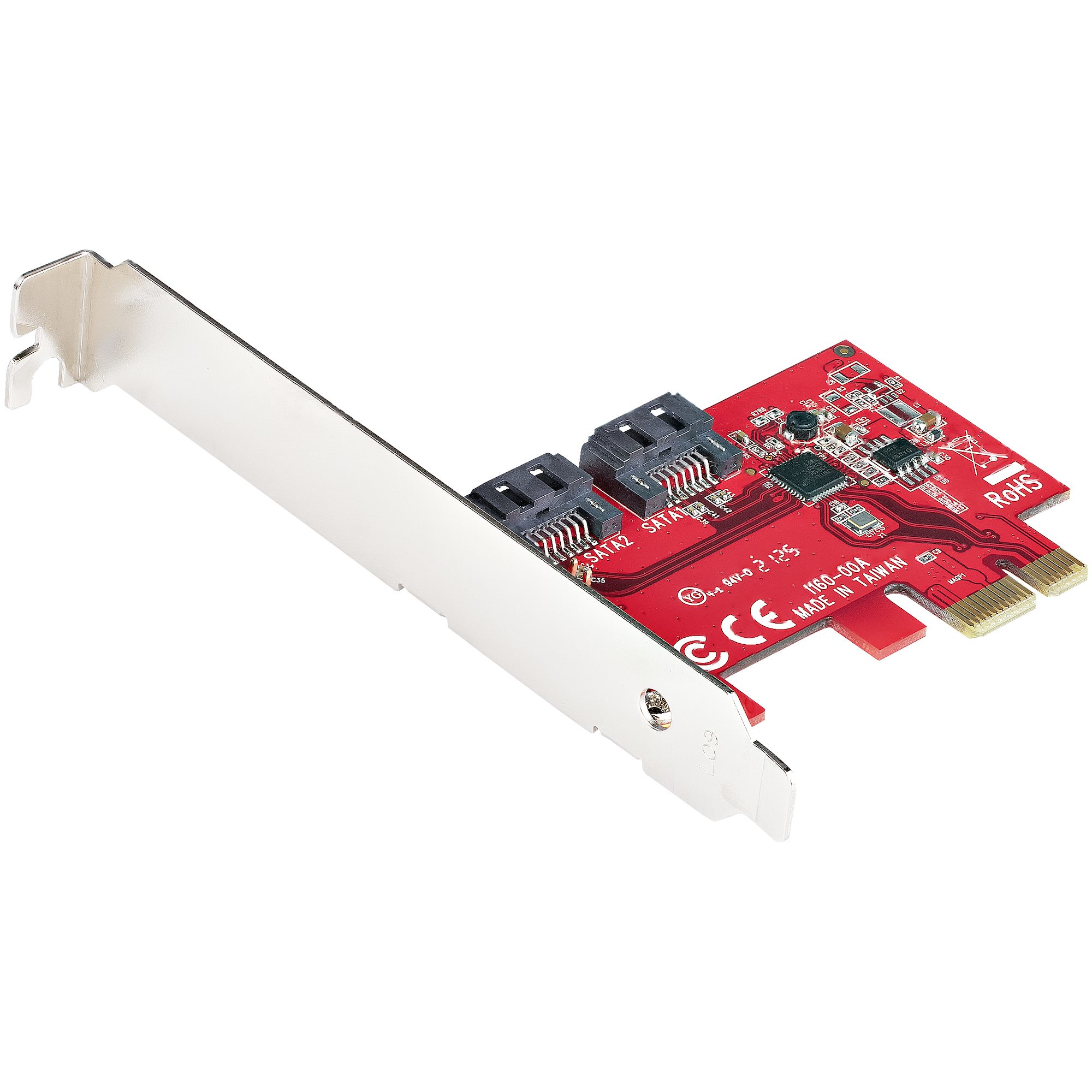

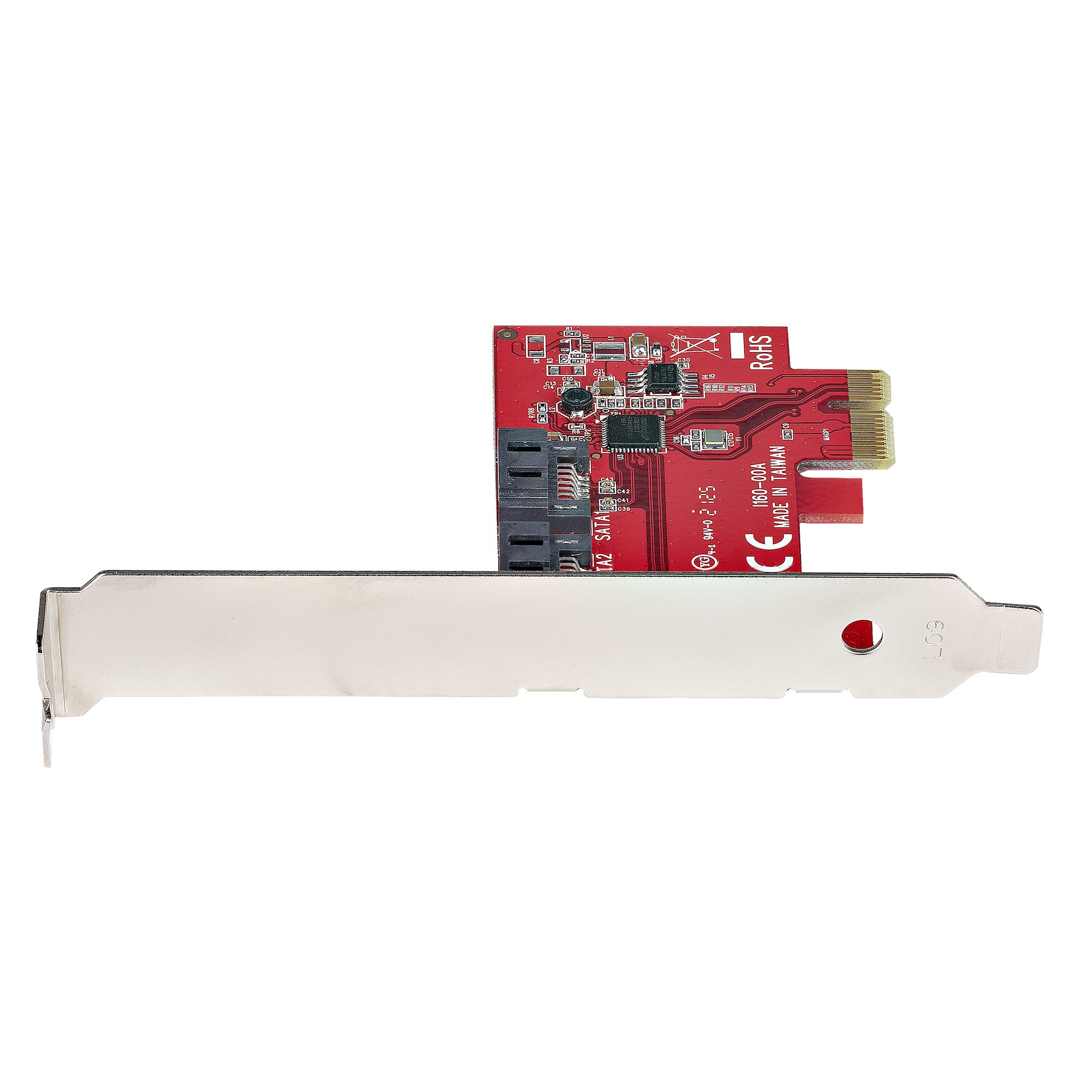

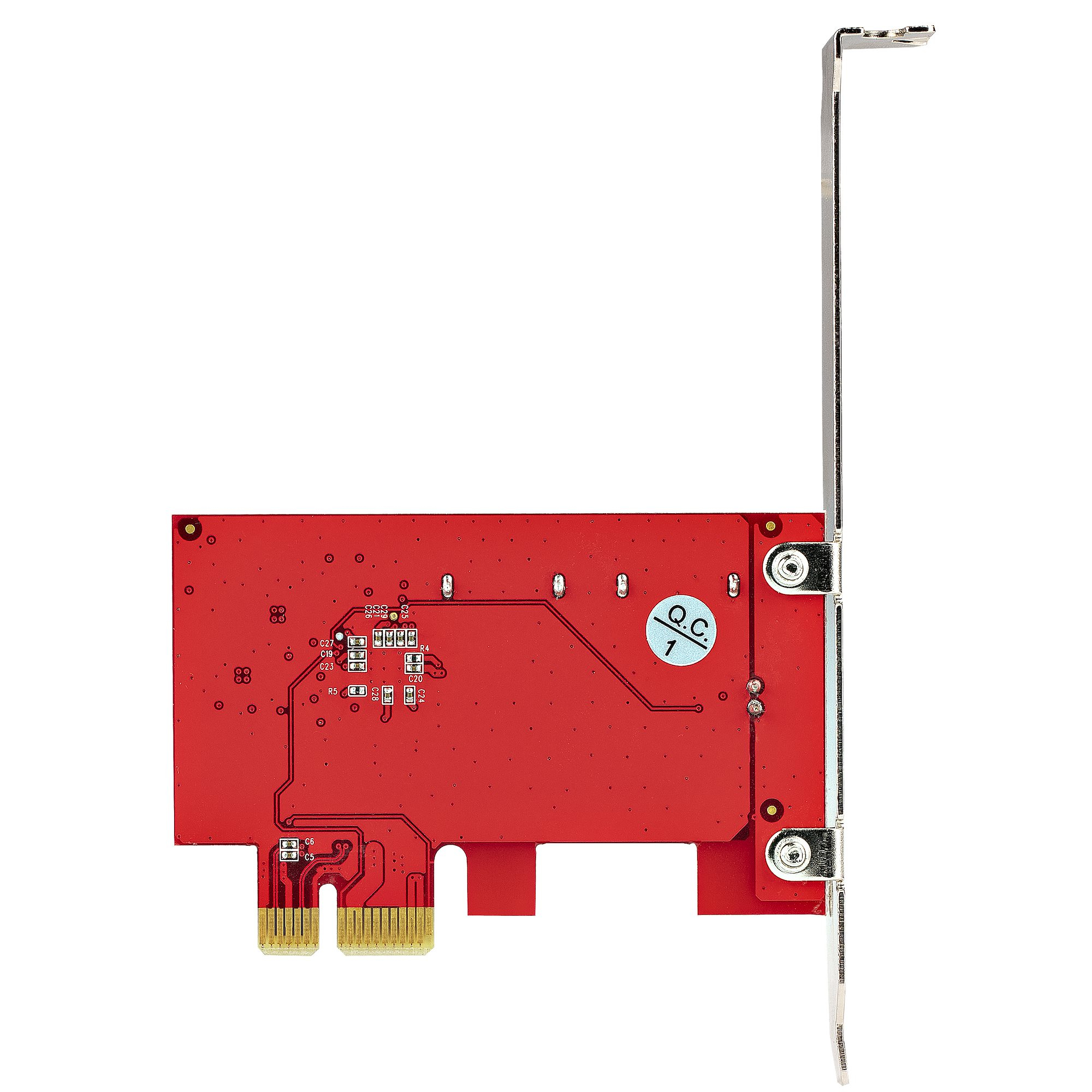

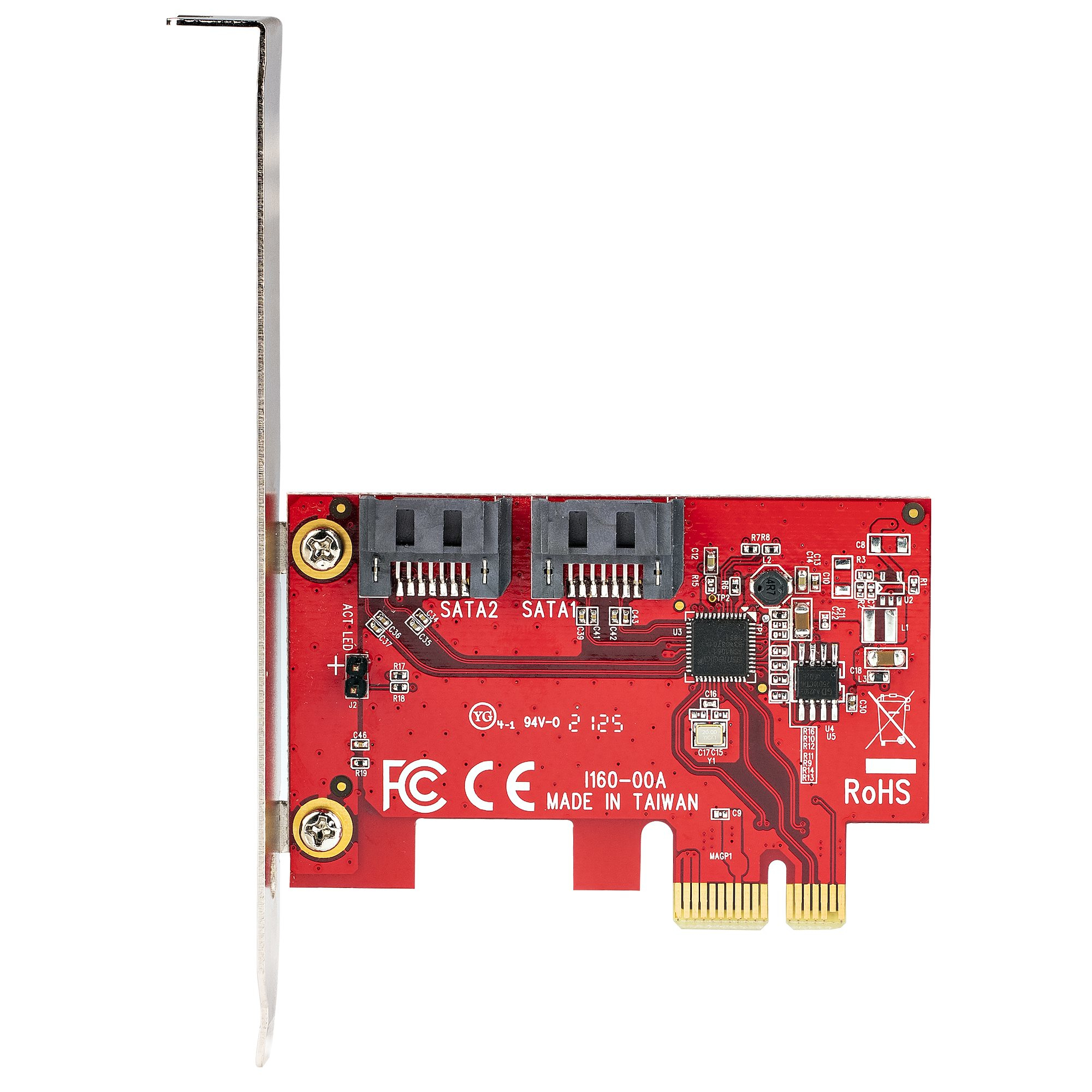

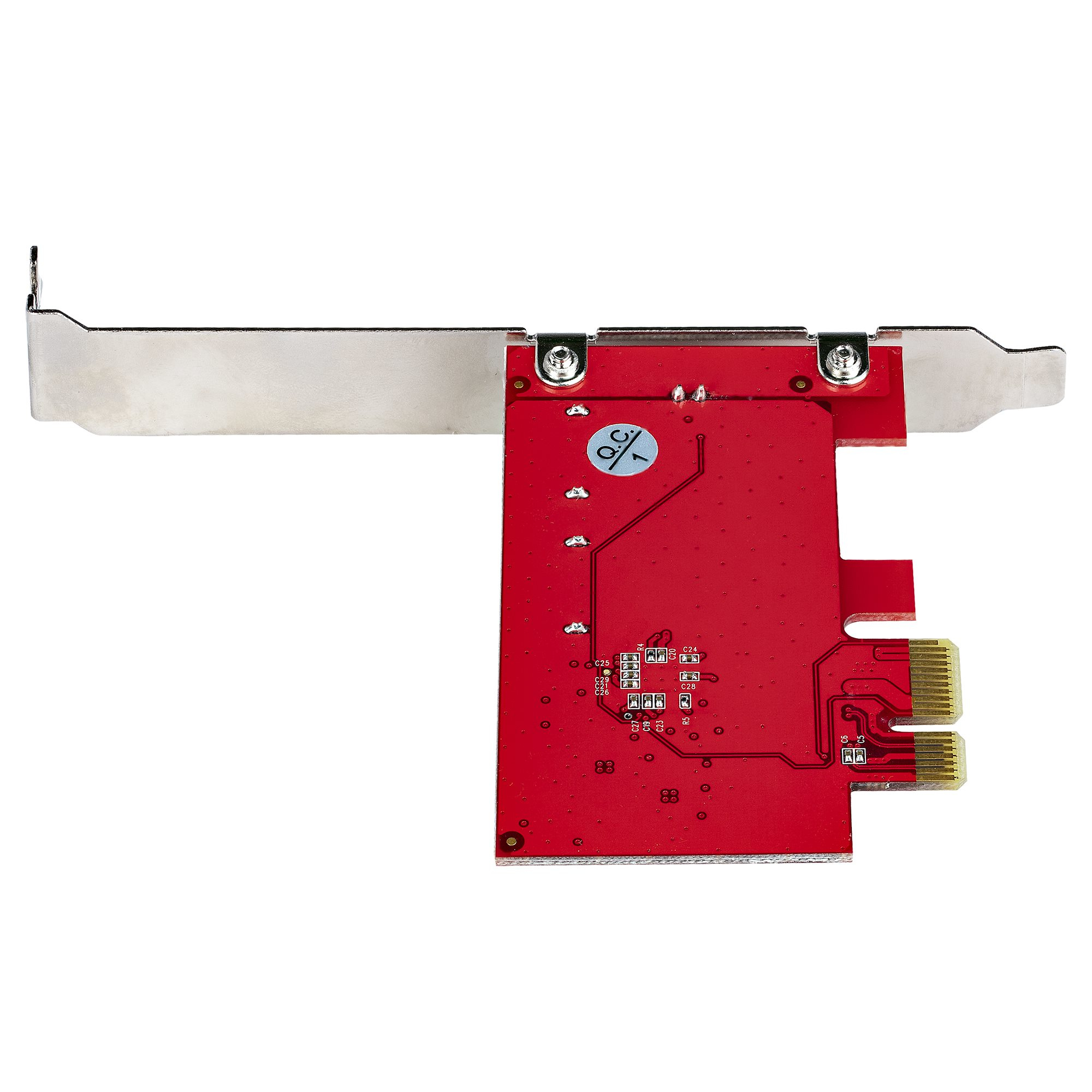

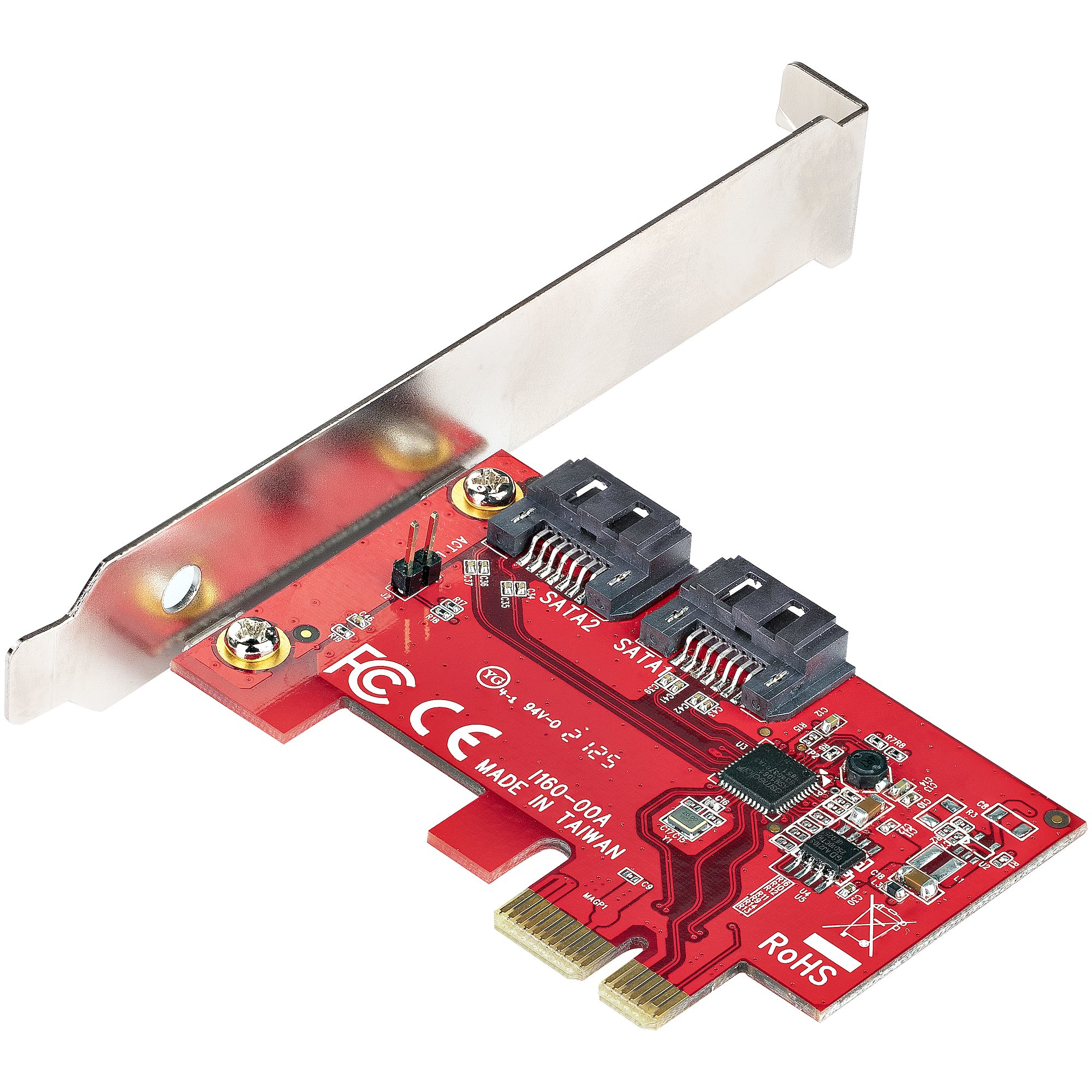

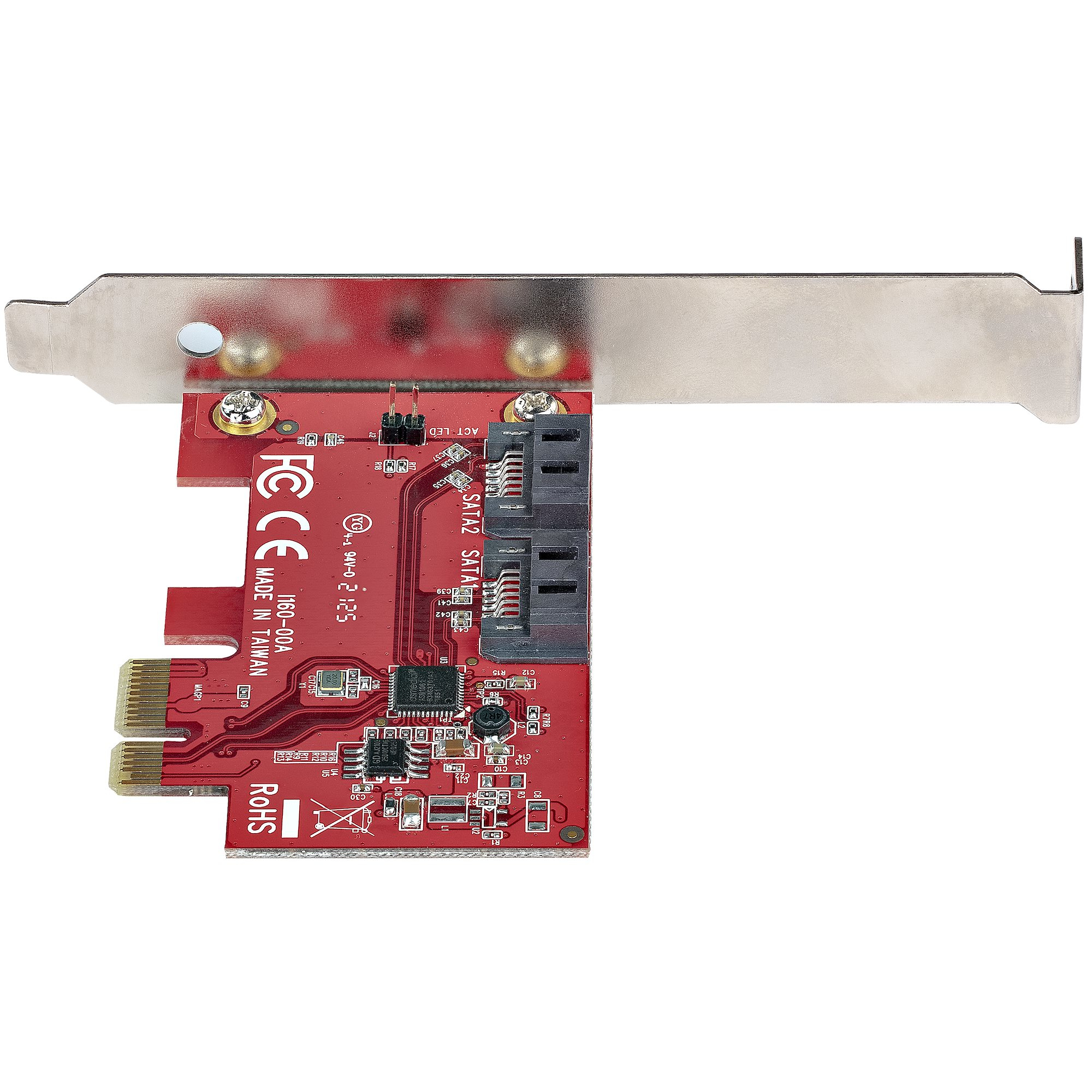

SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to S
Model 2P6G-PCIE-SATA-CARDEAN 065030895545
34 specifications
- Weight33 g
- ColourRed
- Host interfacePCIe
- InternalYes
- ChipsetASMedia - ASM1161
- Operating temperature (T-T)0 - 85 °C
Overview
- Weight
- 33 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia - ASM1161
- Operating temperature (T-T)
- 0 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 2P6G-PCIE-SATA-CARD
- Part number
- 2P6G-PCIE-SATA-CARD
- EAN / UPC
- 065030895545
- Also known as
- StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to S
Specifications
34 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1161 |
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventur |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 69 mm |
| Height | 121 mm |
| Weight | 33 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 34 mm |
| Package weight | 110 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 500 mm |
