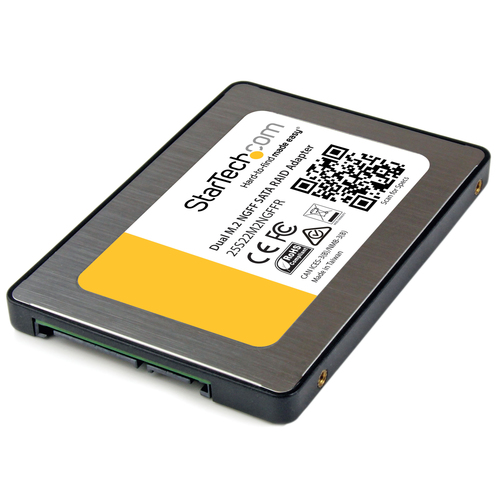

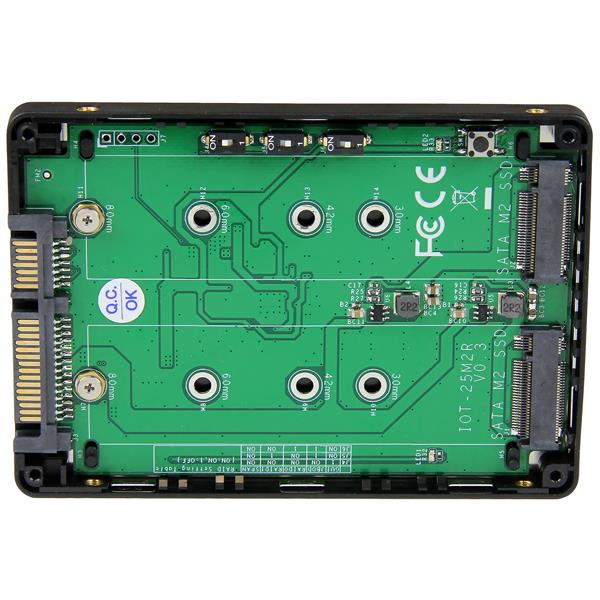

StarTech.com Dual M.2 NGFF SATA Adapter with RAID
Model 25S22M2NGFFREAN 065030863315
26 specifications
- Weight55 g
- ColourBlack, Metallic, White, Yellow
- Host interfaceSATA
- InternalNo
- ChipsetASMedia - ASM1092R
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 55 g
- Colour
- Black, Metallic, White, Yellow
- Host interface
- SATA
- Internal
- No
- Chipset
- ASMedia - ASM1092R
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 25S22M2NGFFR
- Part number
- 25S22M2NGFFR
- EAN / UPC
- 065030863315, 5054629977132
- Also known as
- StarTech.com Dual M.2 NGFF SATA Adapter with RAID
Specifications
26 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | SATA |
| Output interface | M.2 |
| SATA revision | 3.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black, Metallic, White, Yellow |
| Mean time between failures (MTBF) | 500000 h |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1092R |
| Data transfer rate (max) | 6 Gbit/s |
| RAID levels | 0, 1, BIG, JBOD |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |

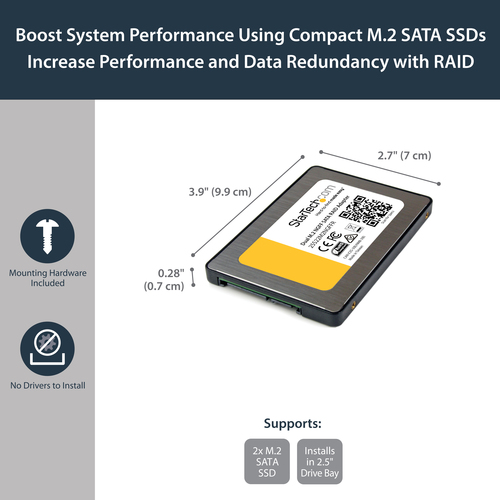

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 98 mm |
| Height | 8 mm |
| Weight | 55 g |

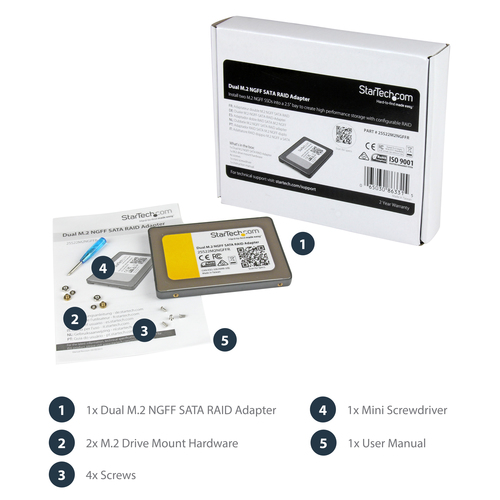

Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Package width | 131 mm |
| Package depth | 165 mm |
| Package height | 31 mm |
| Package weight | 118 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Material | Plastic, Steel |
What people say
Reviews & ratings
StarTech.com Dual M.2 NGFF SATA Adapter with RAID
No reviews yet
Be the first to tell others how StarTech.com Dual M.2 NGFF SATA Adapter with RAID works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare StarTech.com Dual M.2 NGFF SATA Adapter with RAID

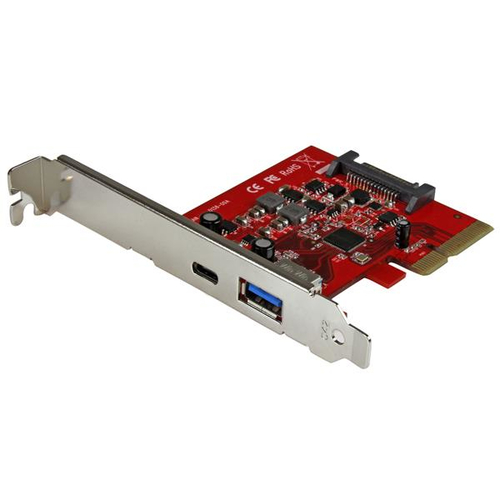

All interface cards/adapters comparisons- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsStarTech.com 2-Port USB 3.1 (10Gbps) Card - 1x USB-C, 1x USB-A - PCIeCompare specs

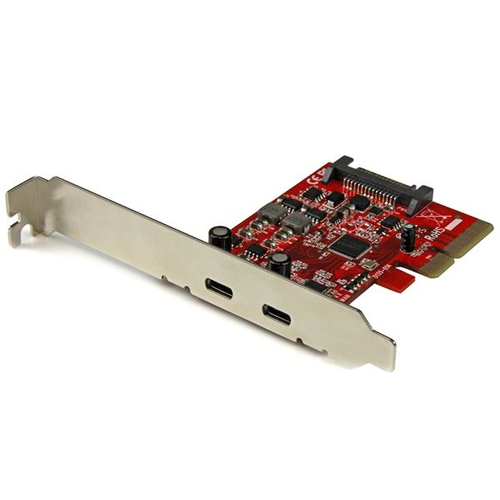

- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsStarTech.com 2-Port USB 3.1 (10Gbps) Card - 2x USB-C - PCIeCompare specs

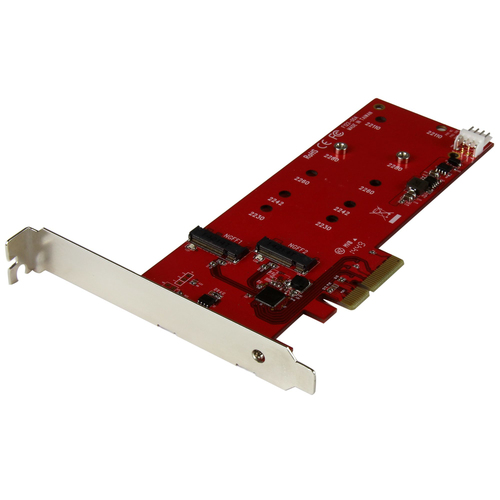

- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsStarTech.com 2x M.2 SATA SSD Controller Card - PCIe - TAACompare specs
- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsStarTech.com 2-Port USB 3.1 (10Gbps) Card - 2x USB-A - PCIeCompare specs
- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsTooQ TQCV-25S1U3B interface cards/adapter SATACompare specs

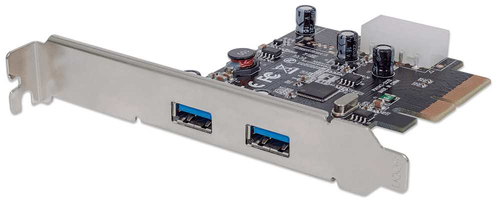

- StarTech.com Dual M.2 NGFF SATA Adapter with RAID vsManhattan 151795 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)Compare specs
