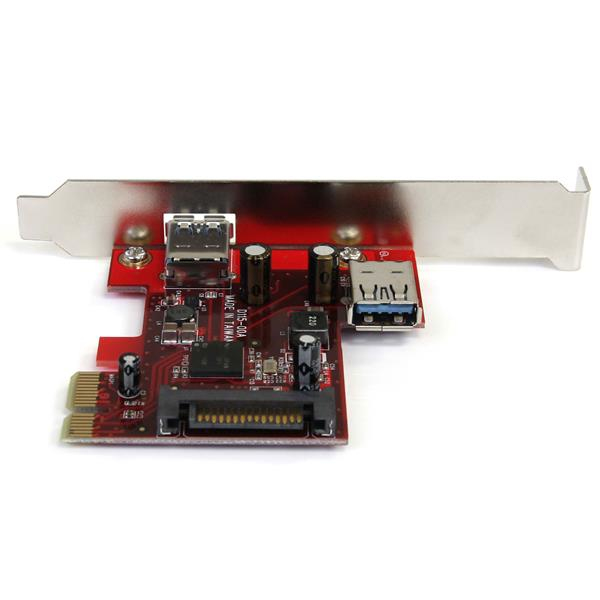

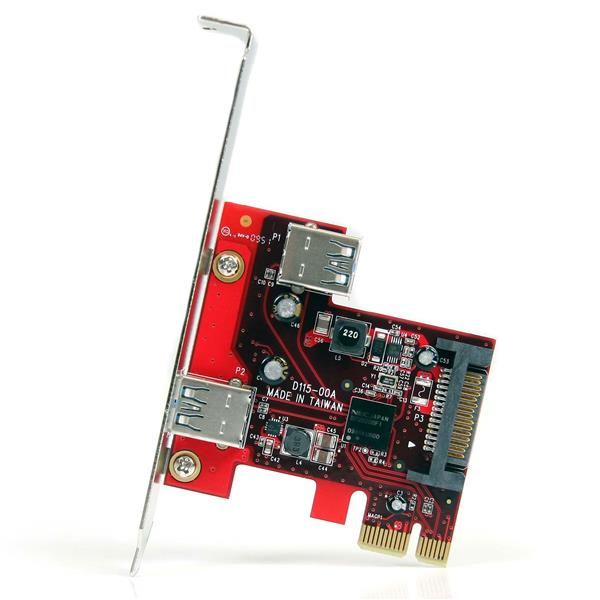

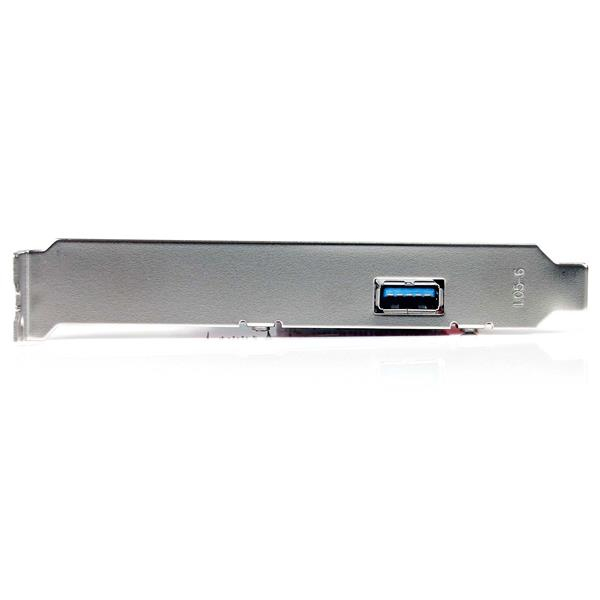

StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card
Model 2 port PCI Express SuperSpeed USB 3.0 CardPart no. PEXUSB3S11EAN 5054533311169
26 specifications
- ConnectivityWired
- Weight40 g
- ColourRed
- Host interfacePCIe
- Operating temperature (T-T)0 - 50 °C
- Width76 mm
Overview
- Connectivity
- Wired
- Weight
- 40 g
- Colour
- Red
- Host interface
- PCIe
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 76 mm
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 2 port PCI Express SuperSpeed USB 3.0 Card
- Part number
- PEXUSB3S11
- EAN / UPC
- 5054533311169, 065030840040, 132018234914, 191120097527 +13 more
- Also known as
- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card with UASP Support - 5Gbps - 1 Internal 1 External - TAA
Specifications
26 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
Design
| Specification | Value |
|---|---|
| Product colour | Red |
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 121 mm |
| Height | 19 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 135 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 508 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 322 mm |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 5120 Mbit/s |
| Ports quantity | 2 |
| Connectivity technology | Wired |
| Compatible operating systems | Microsoft Windows XP/Server 2003/Vista/7/Server 2008 R2 |
| Mac compatibility | No |
| Quantity outer carton | 40 pc(s) |
What people say
Reviews & ratings
StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card
No reviews yet
Be the first to tell others how StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card

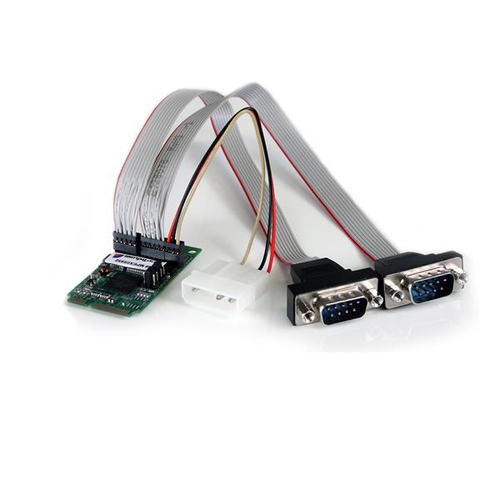

All interface cards/adapters comparisons- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsStarTech.com 2 Port RS232 Mini PCI Express Serial Card w/ 16950 UARTCompare specs

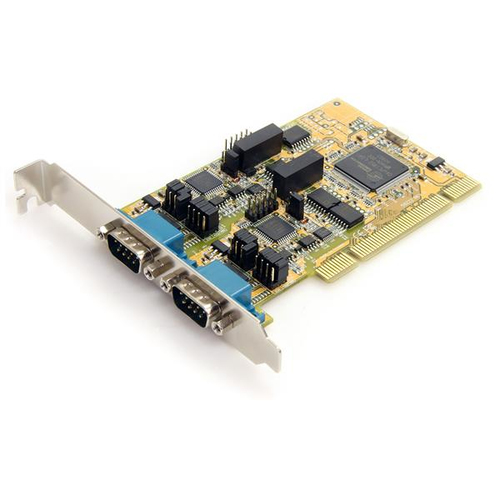

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsStarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD ProtectionCompare specs

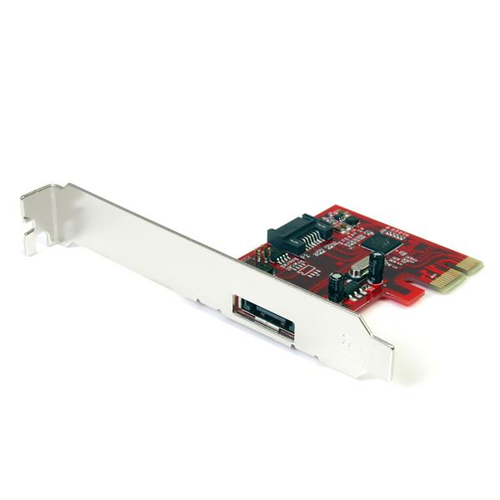

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsStarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card AdapterCompare specs

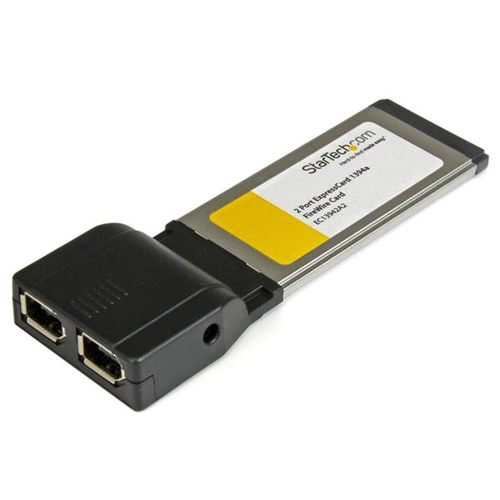

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsStarTech.com 2 Port ExpressCard 1394a FireWire Laptop Adapter CardCompare specs

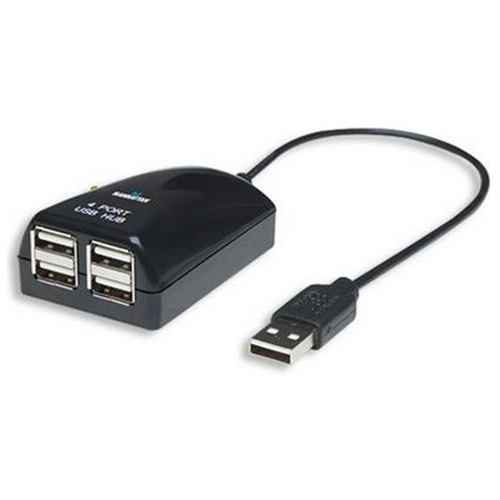

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsManhattan 167048 interface cards/adapterCompare specs

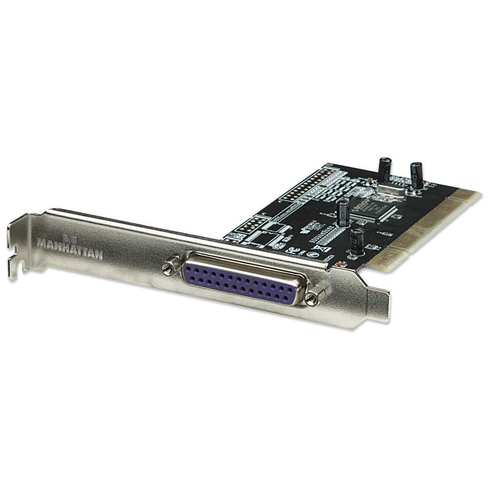

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsManhattan PCI Card, 1x Parallel DB25 Port, 1.5 Mbps, low profile bracket included, Supports EPP/ECP/SPP modes and PCI IRQ sharing, BoxCompare specs

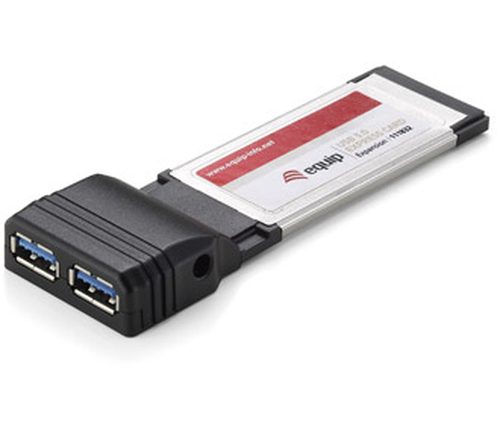

- StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card vsEquip 111832 interface cards/adapter USB 3.2 Gen 1 (3.1 Gen 1)Compare specs
