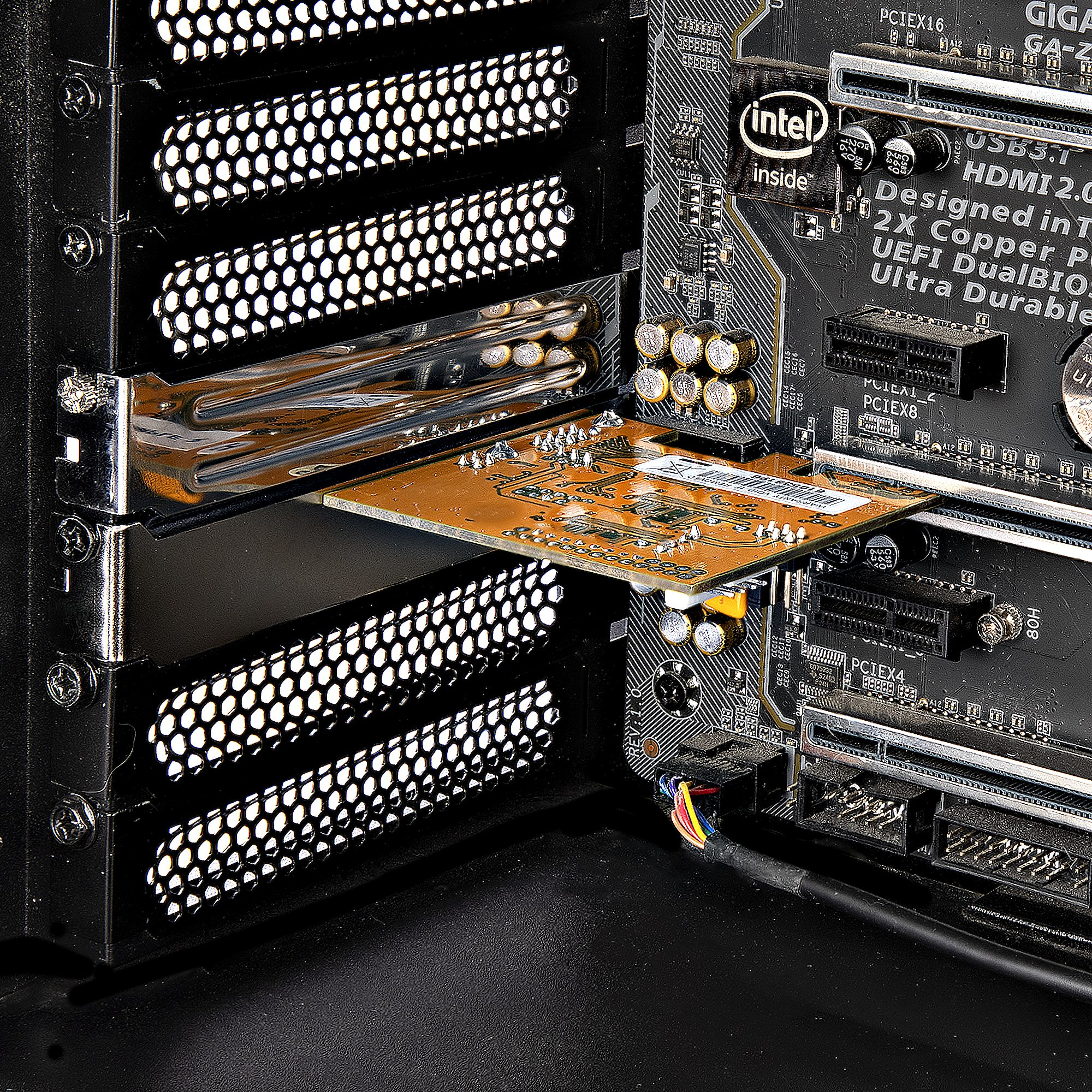

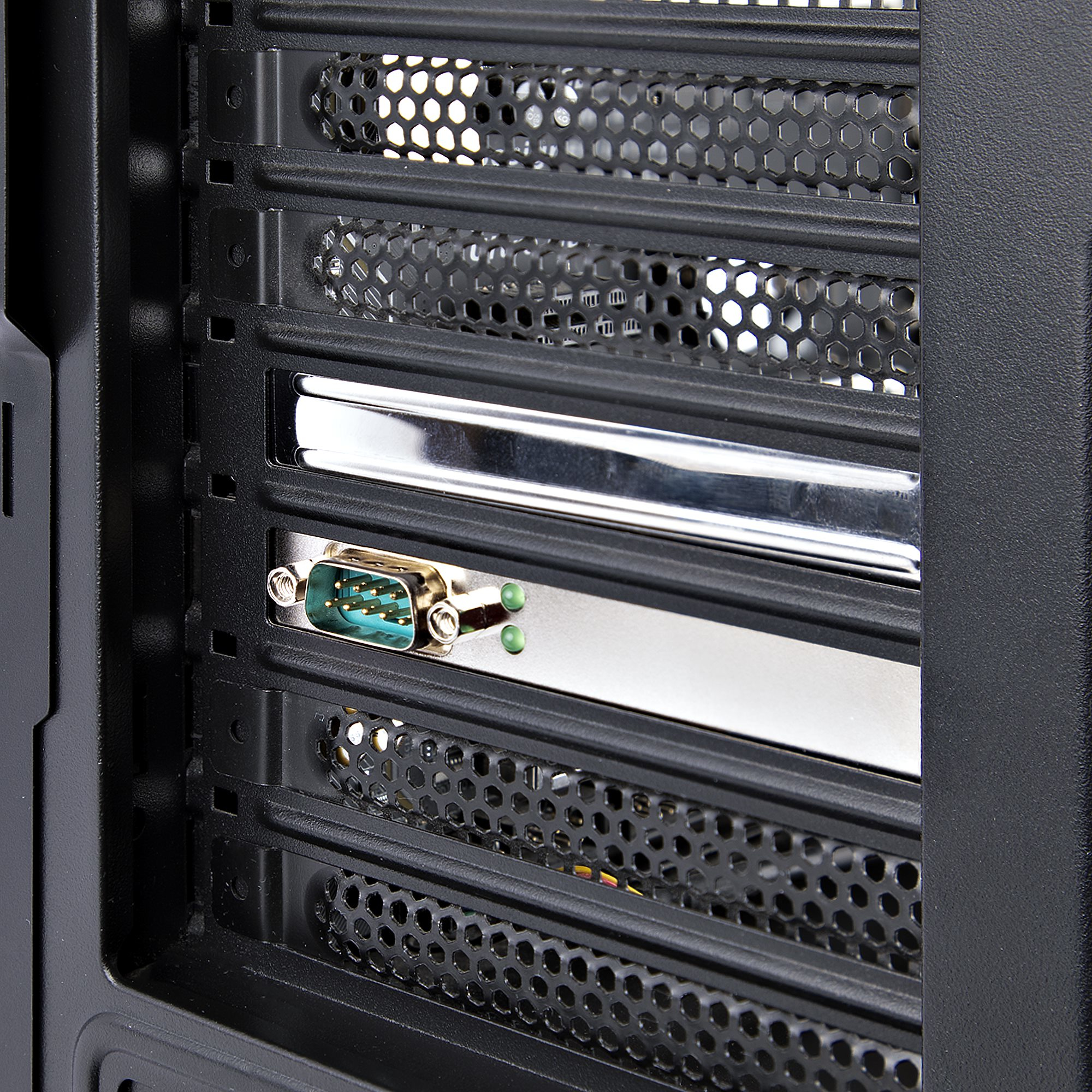

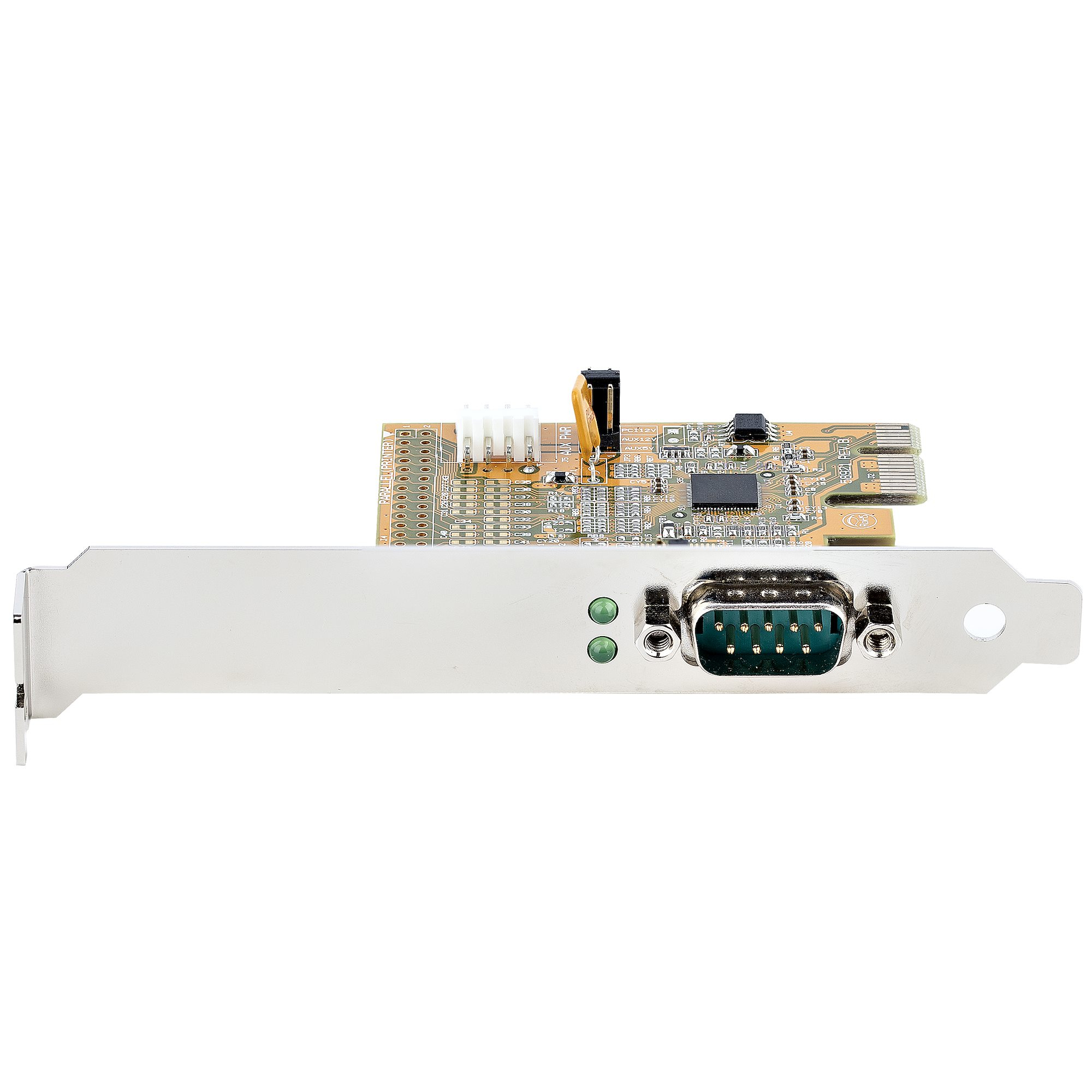

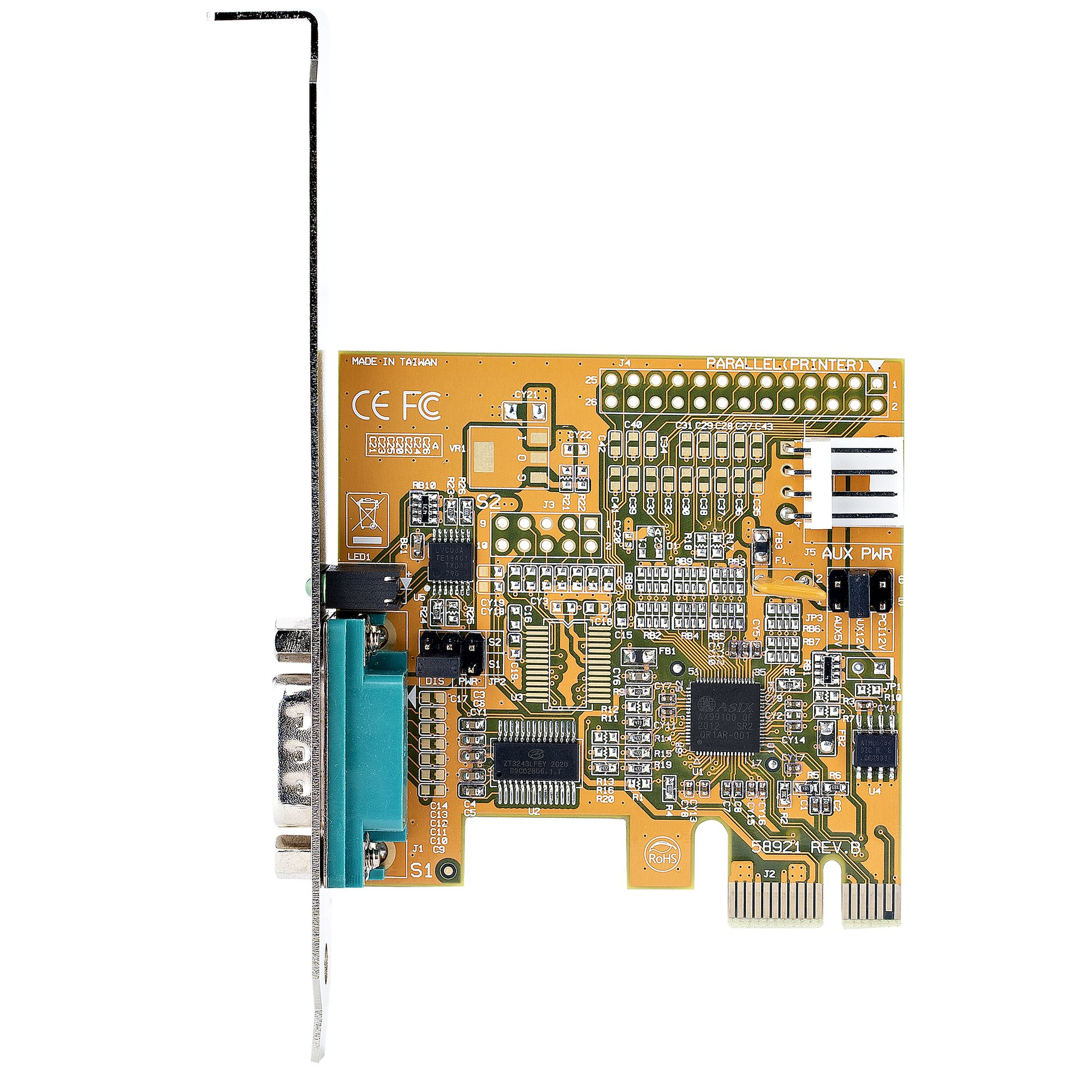

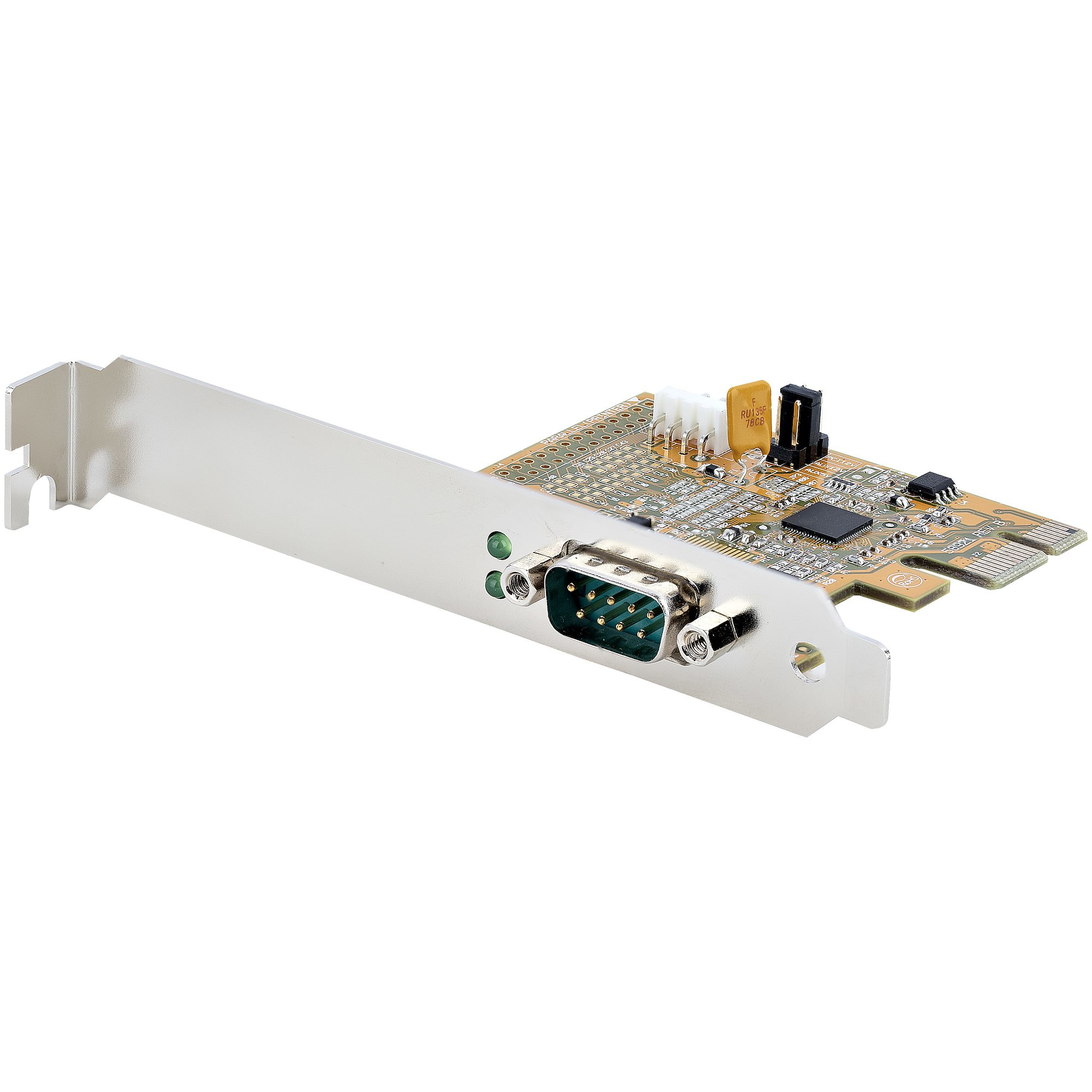

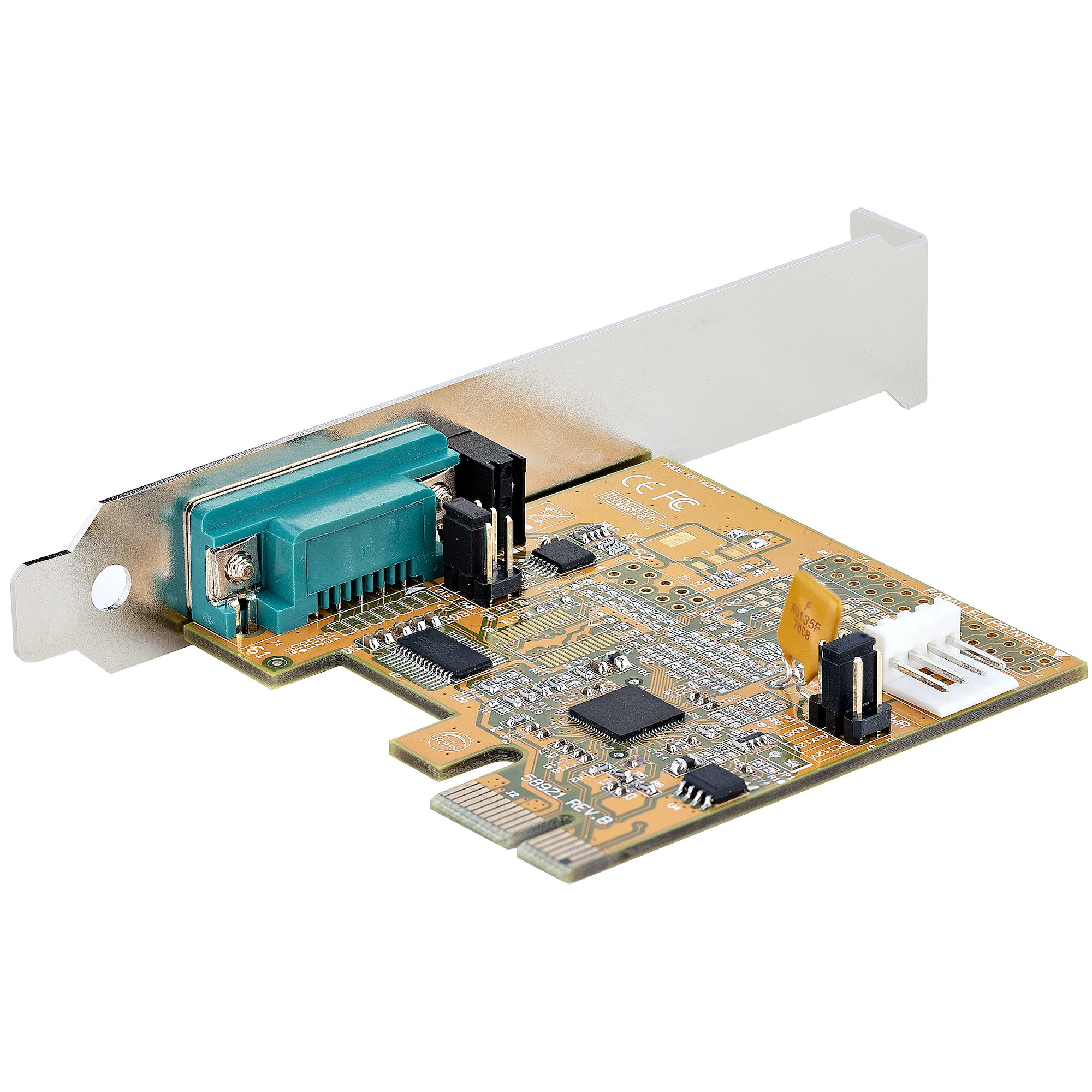

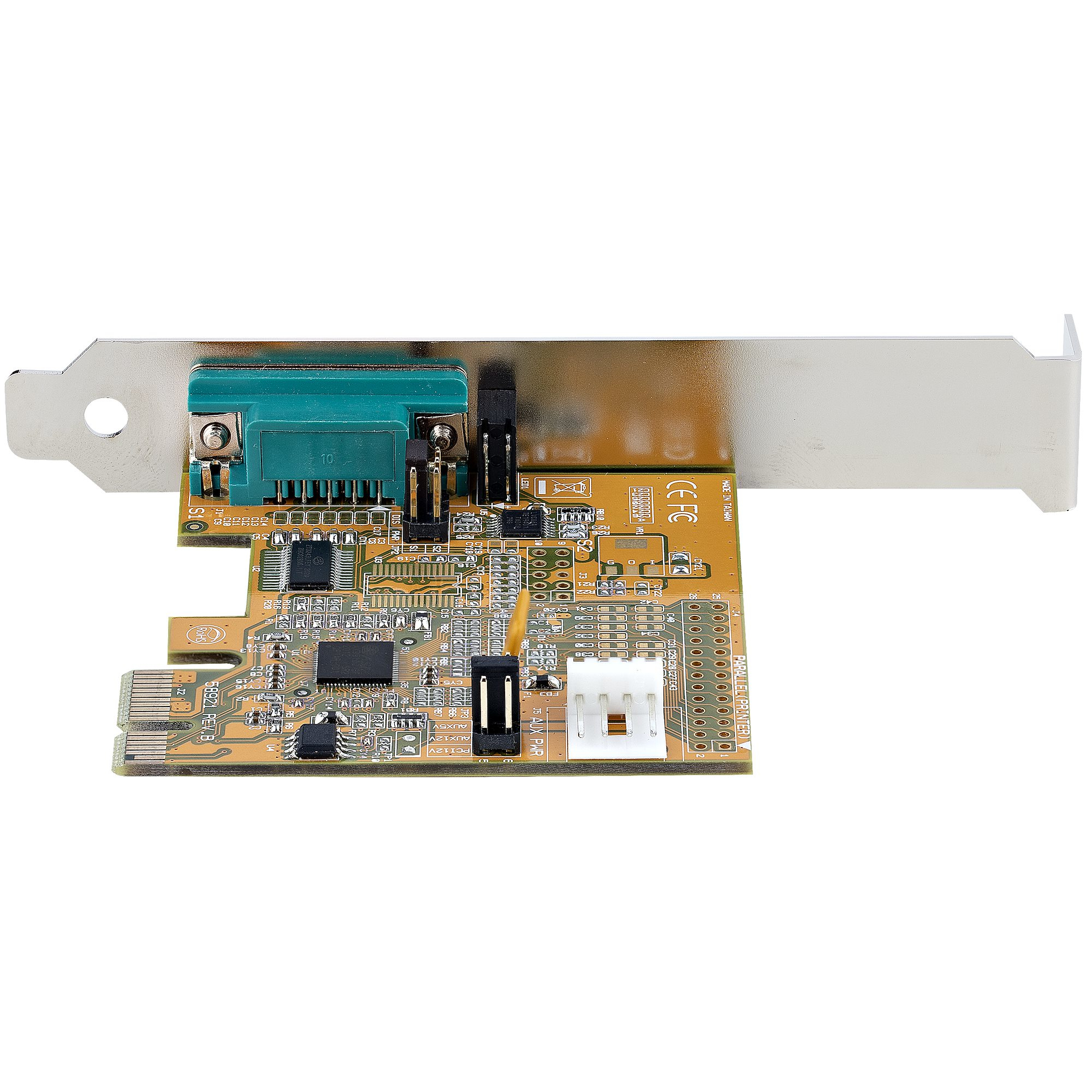

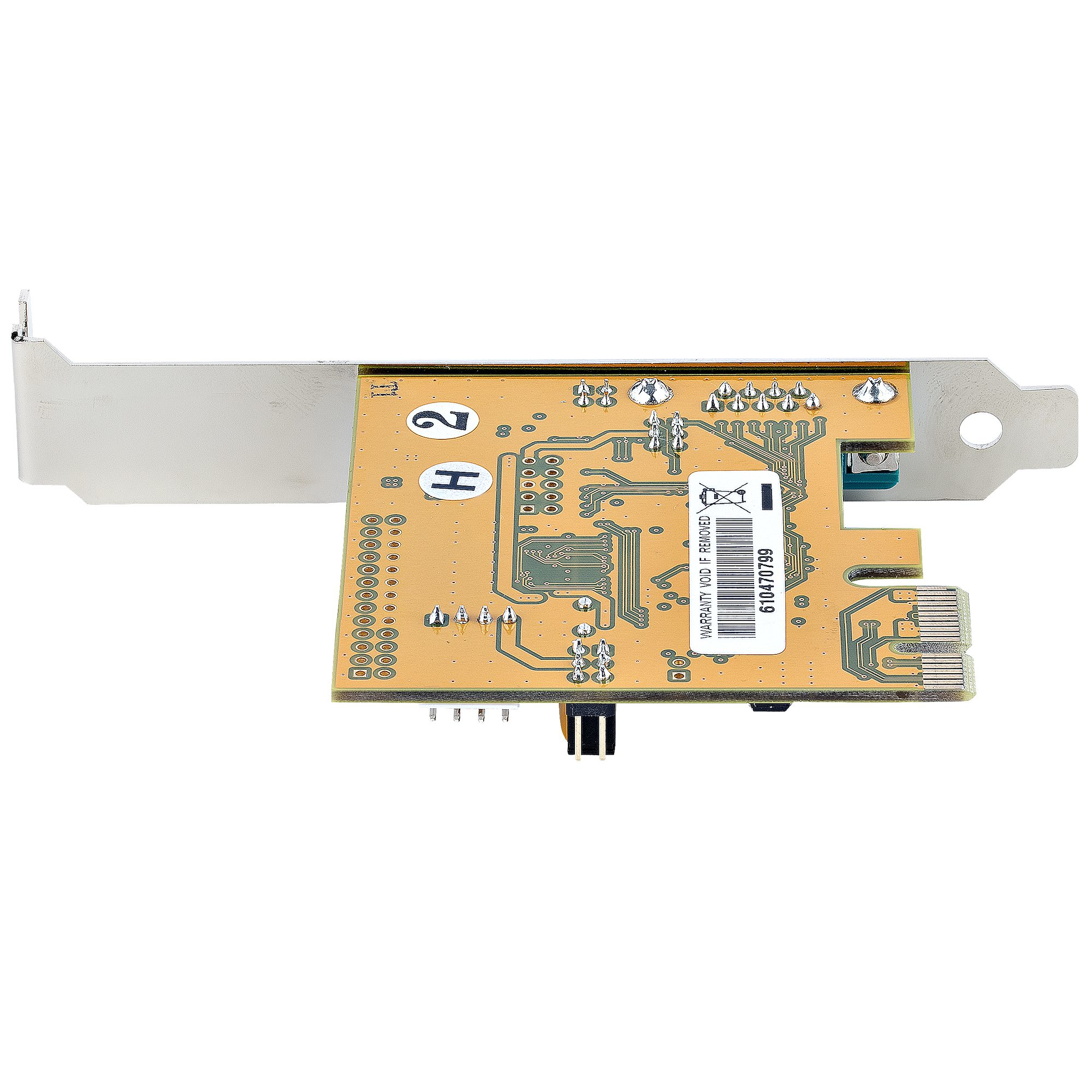

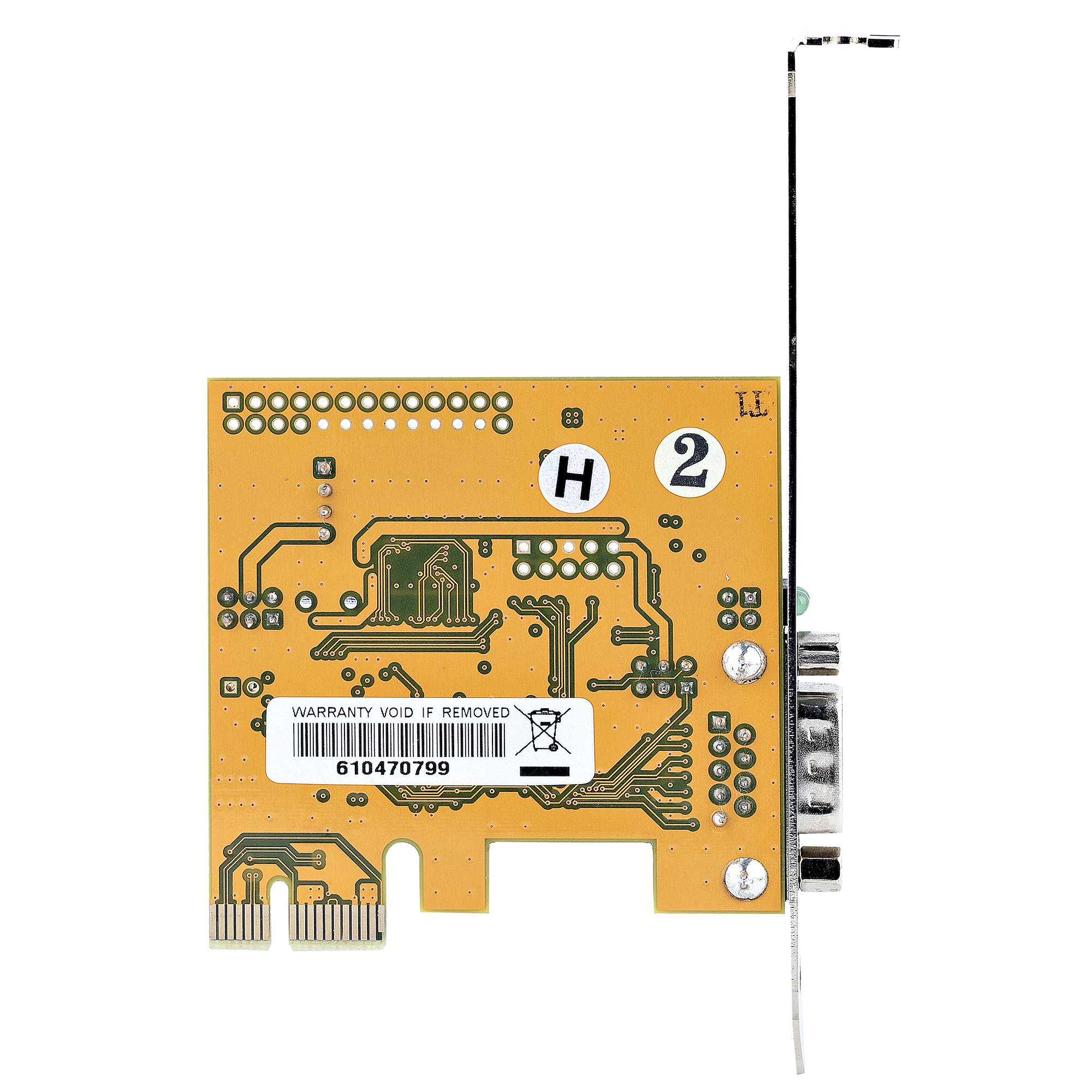

1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retenti
Model 11050-PC-SERIAL-CARDEAN 065030894777
38 specifications
- Weight42 g
- ColourYellow
- Host interfacePCIe
- InternalYes
- Baud rate921.6 Kbit/s
- Operating temperature (T-T)0 - 55 °C
Overview
- Weight
- 42 g
- Colour
- Yellow
- Host interface
- PCIe
- Internal
- Yes
- Baud rate
- 921.6 Kbit/s
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 11050-PC-SERIAL-CARD
- Part number
- 11050-PC-SERIAL-CARD
- EAN / UPC
- 065030894777
- Also known as
- StarTech.com 1-Port PCI Express Serial Card, PCIe to RS232 (DB9) Serial Interface Card, PC Serial Card, 16C1050 UART, Standard/Low Profile Brackets, COM Retenti
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Yellow |
| LED indicators | Activity |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Ent |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 67 mm |
| Height | 18 mm |
| Weight | 42 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 340 mm |
Other features
| Specification | Value |
|---|---|
| Material | Steel |
