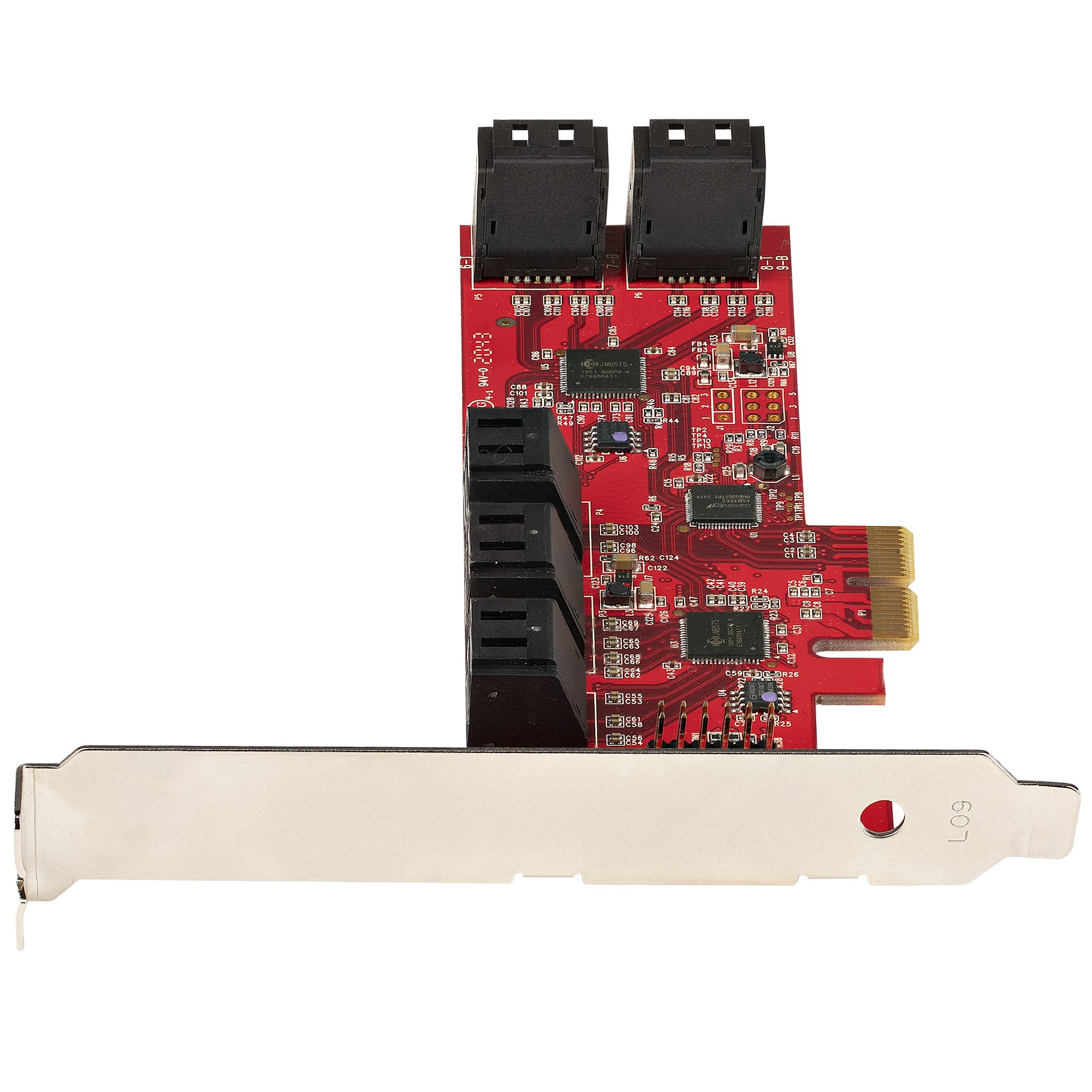

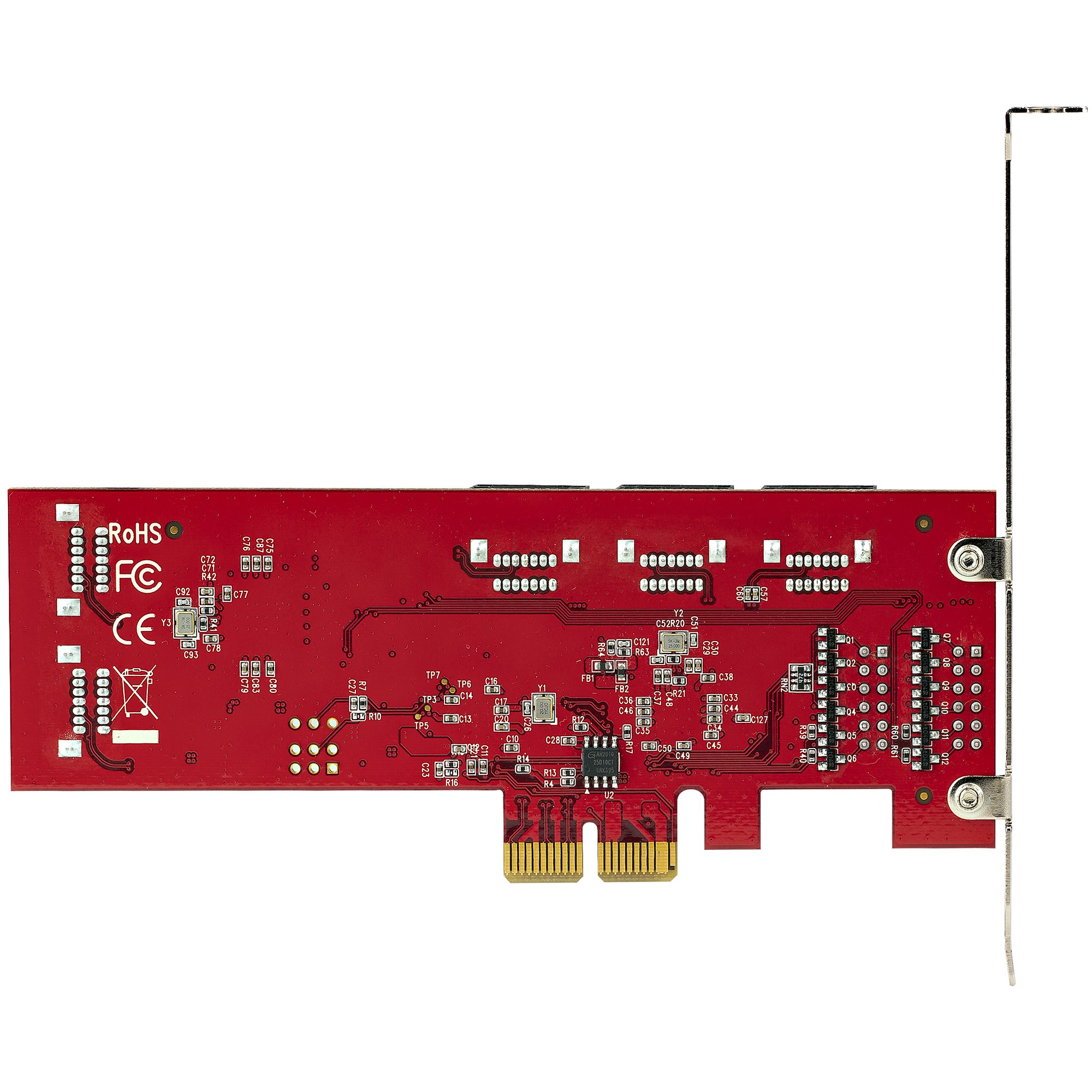

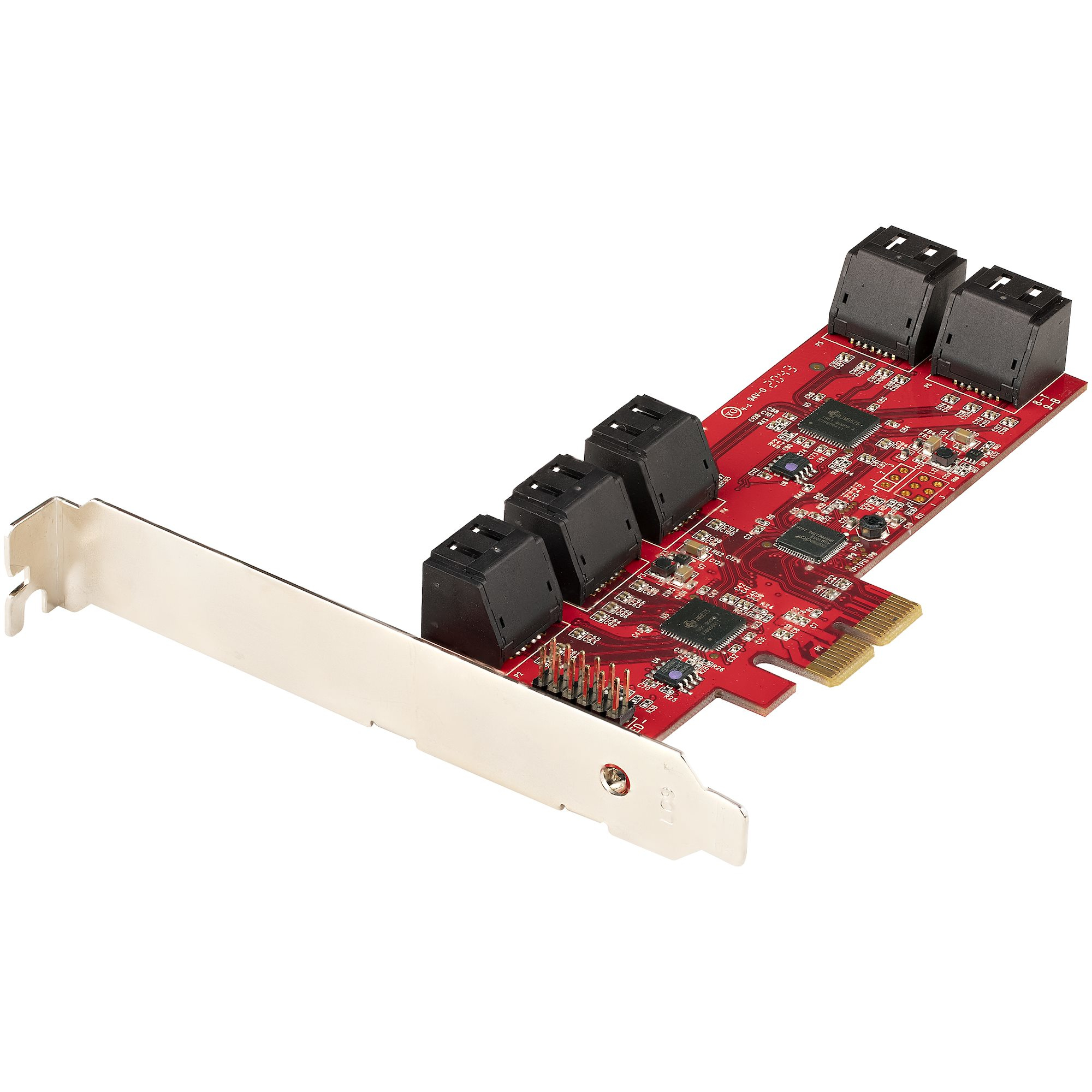

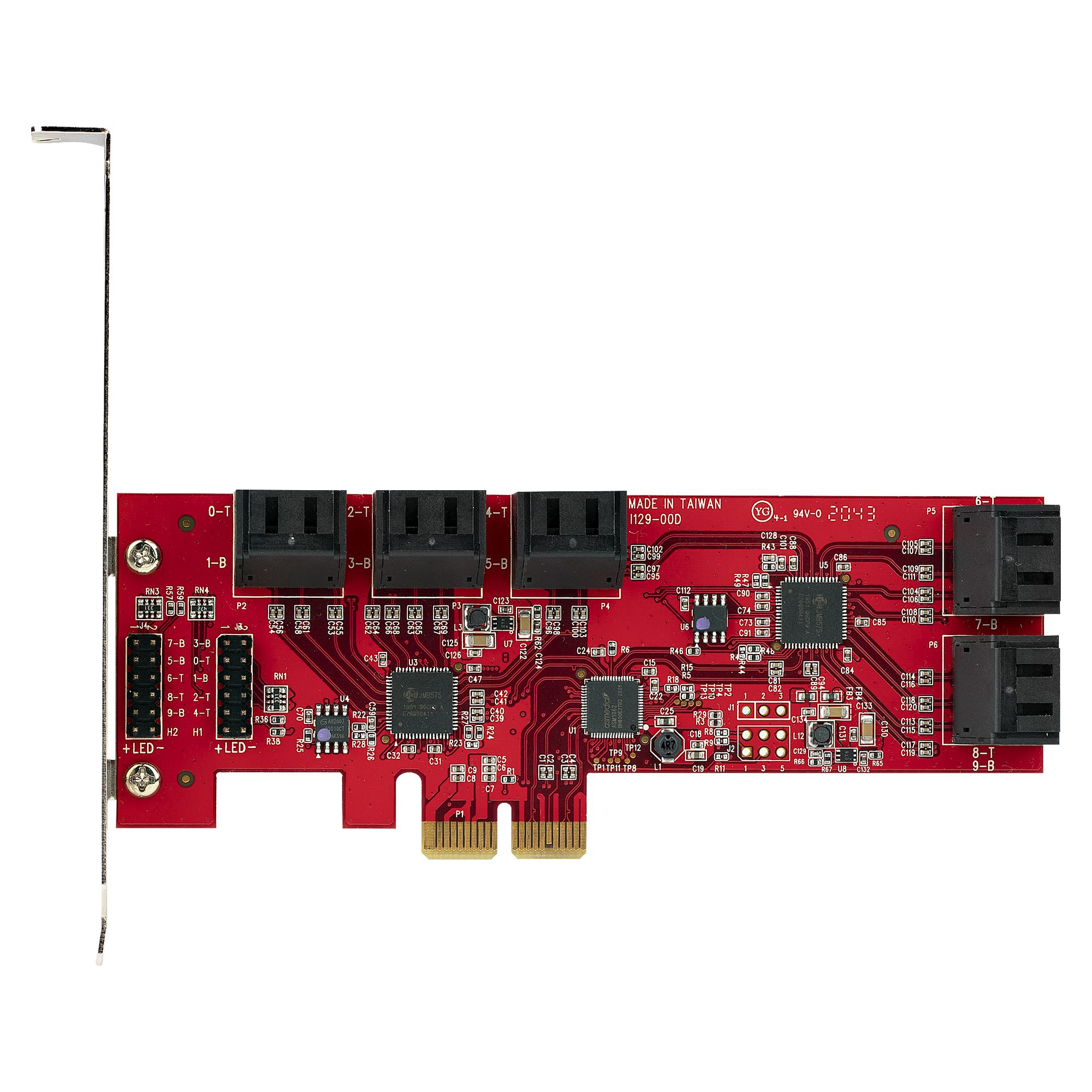

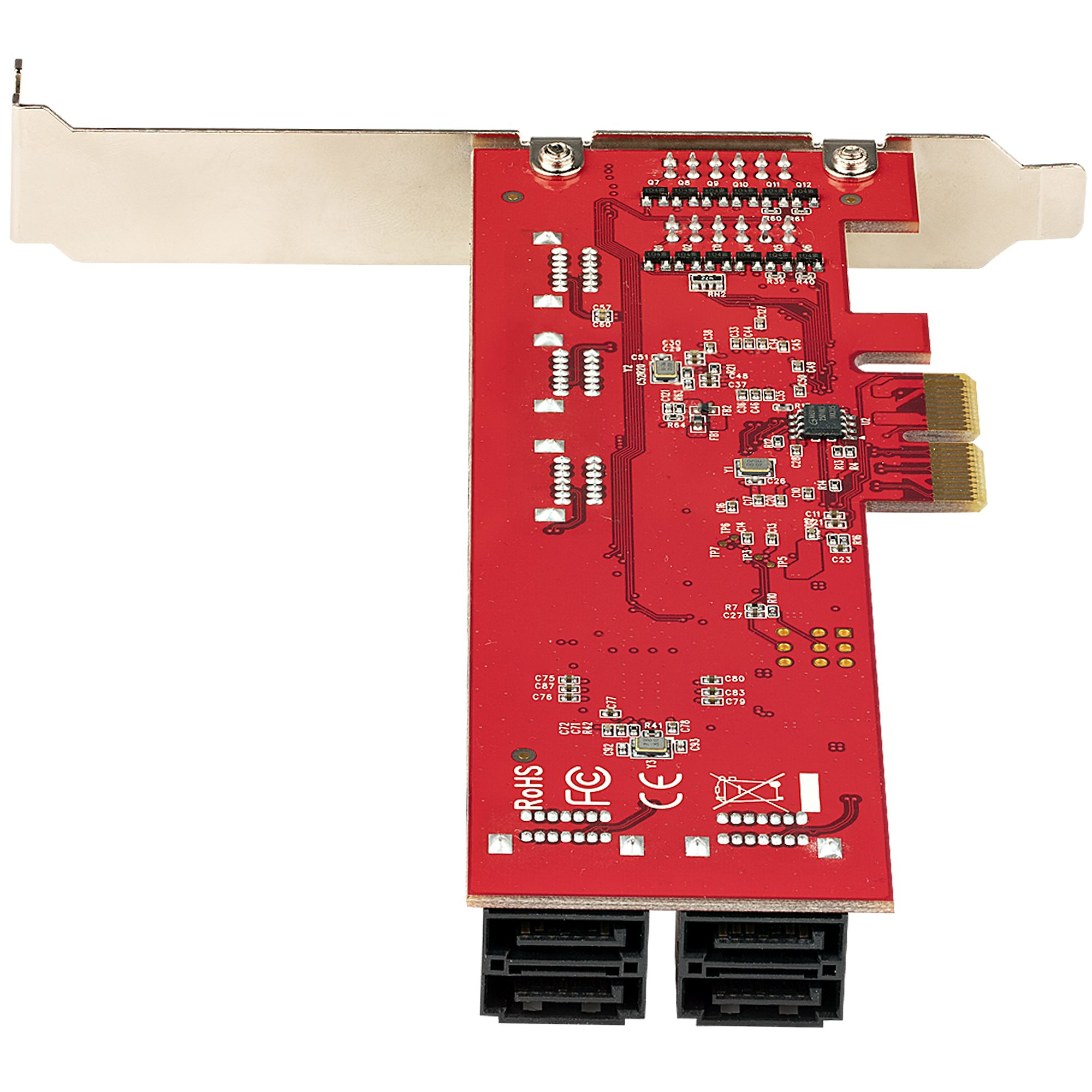

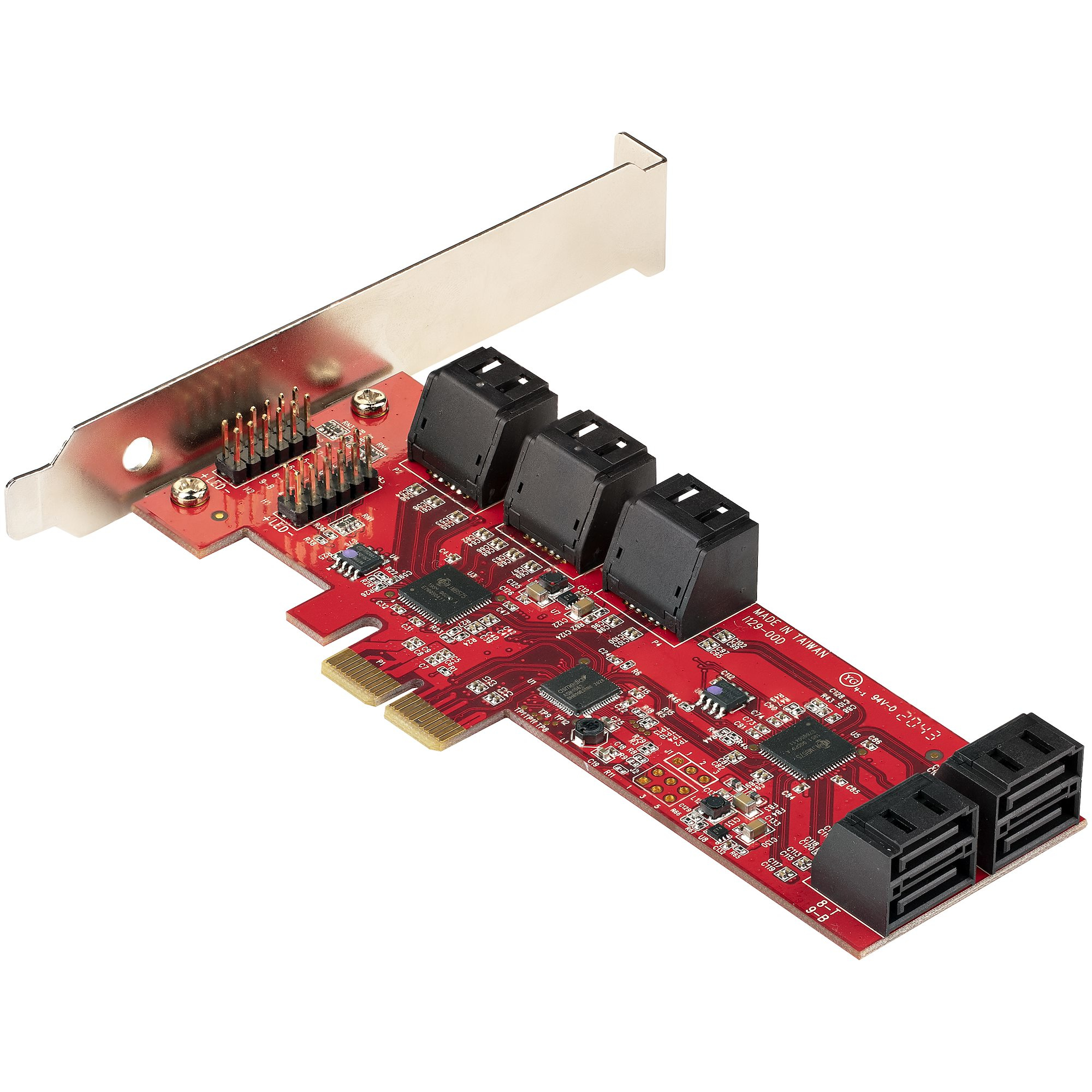

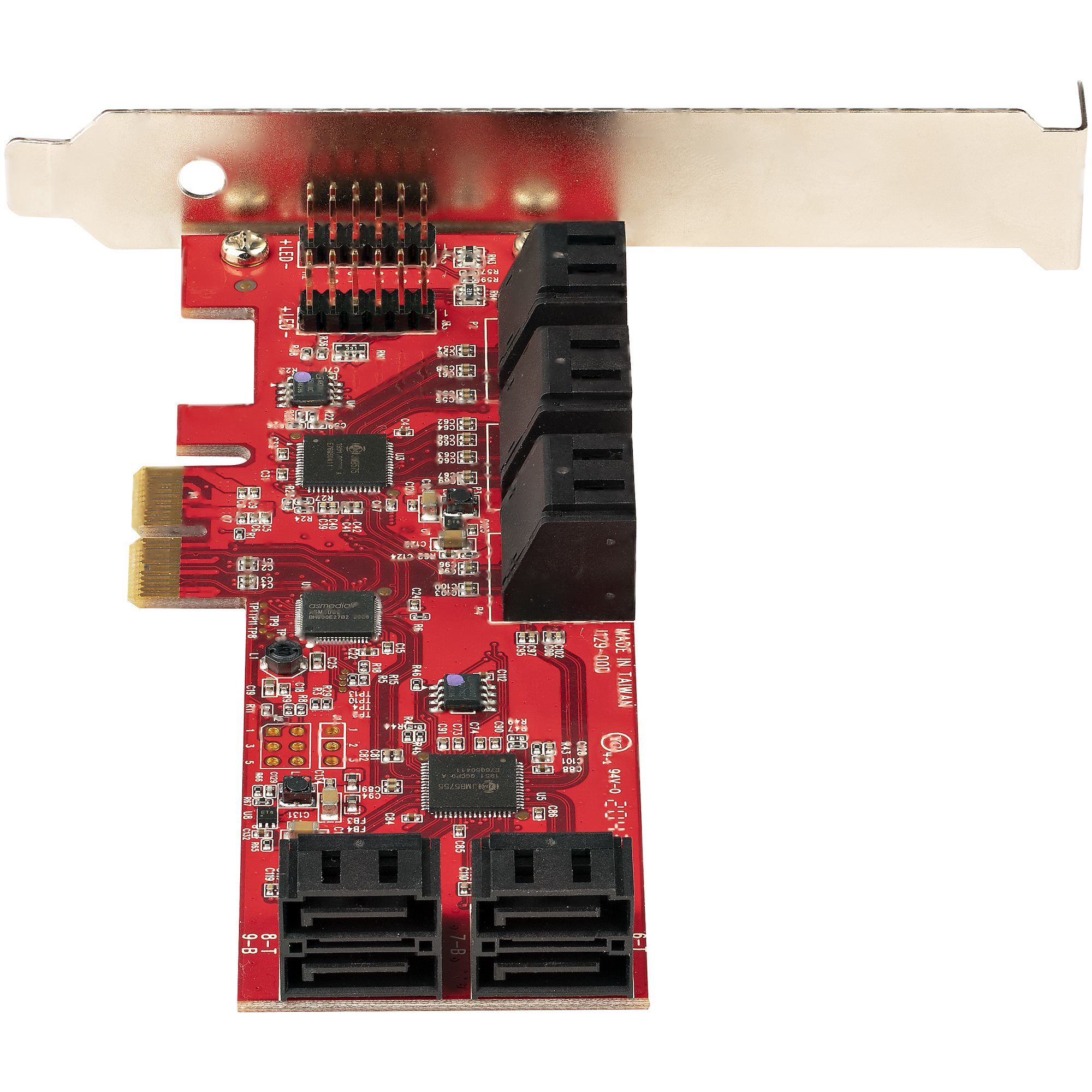

SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Con
Model 10P6G-PCIE-SATA-CARDEAN 065030893763
34 specifications
- Weight75 g
- ColourRed
- Host interfacePCIe
- InternalYes
- ChipsetASMedia - ASM1062
- Operating temperature (T-T)0 - 85 °C
Overview
- Weight
- 75 g
- Colour
- Red
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia - ASM1062
- Operating temperature (T-T)
- 0 - 85 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 10P6G-PCIE-SATA-CARD
- Part number
- 10P6G-PCIE-SATA-CARD
- EAN / UPC
- 065030893763
- Also known as
- StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Con
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| Expansion card standard | PCIe 2.0 |
| Internal SATA ports quantity | 10 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Red |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia - ASM1062 |
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, W |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2012 R2, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 139 mm |
| Height | 16 mm |
| Weight | 75 g |
Packaging data
| Specification | Value |
|---|---|

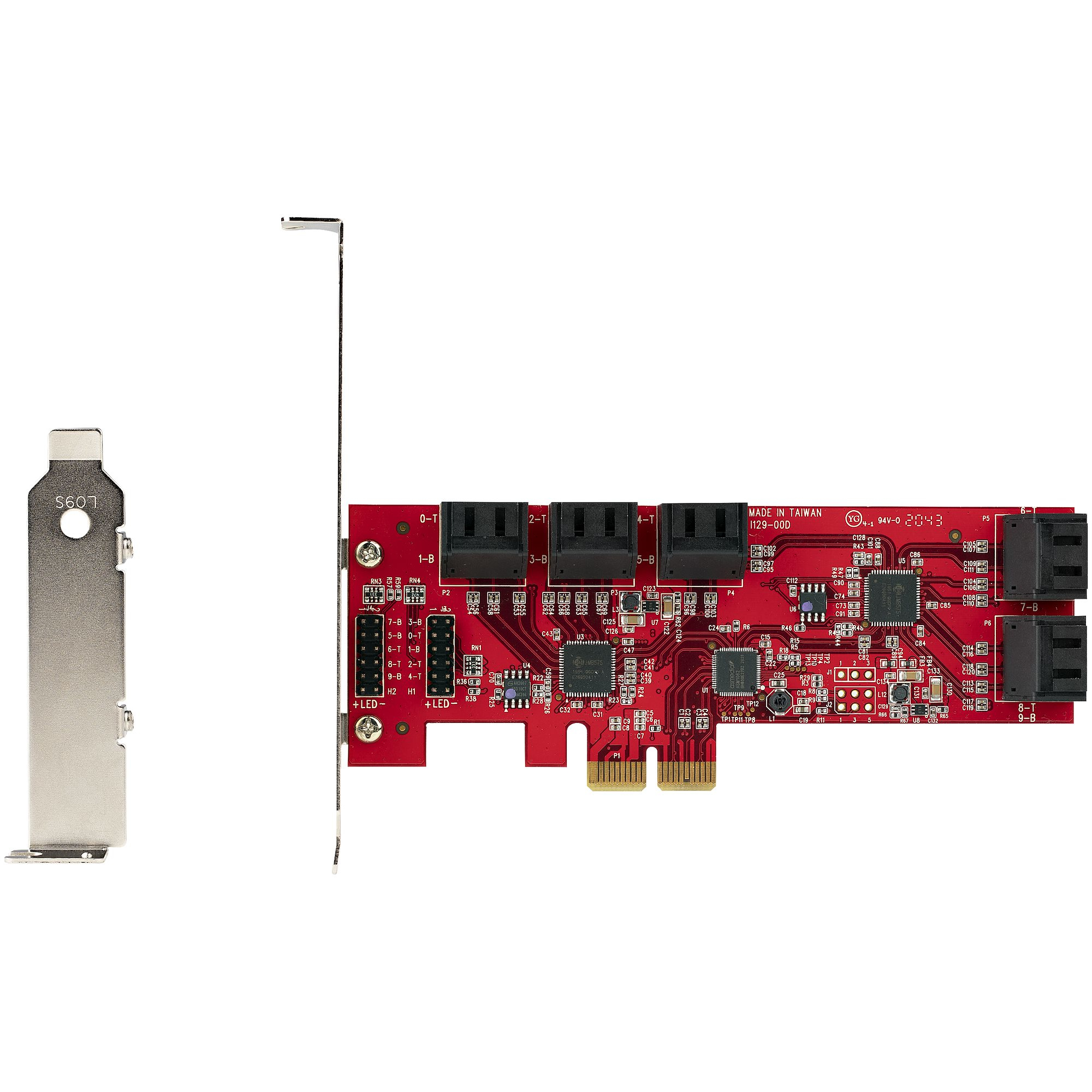

| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 143 mm |
| Package depth | 175 mm |
| Package height | 35 mm |
| Package weight | 120 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 310 mm |
