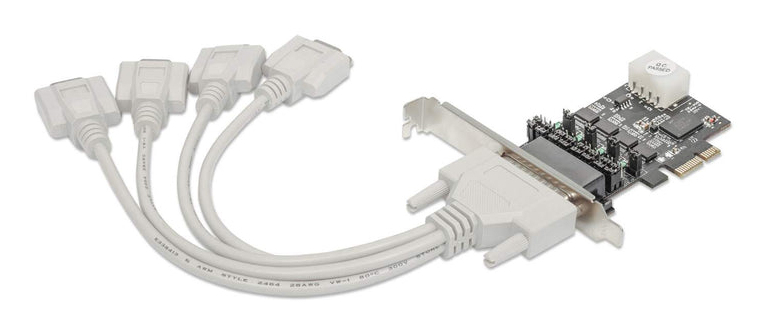

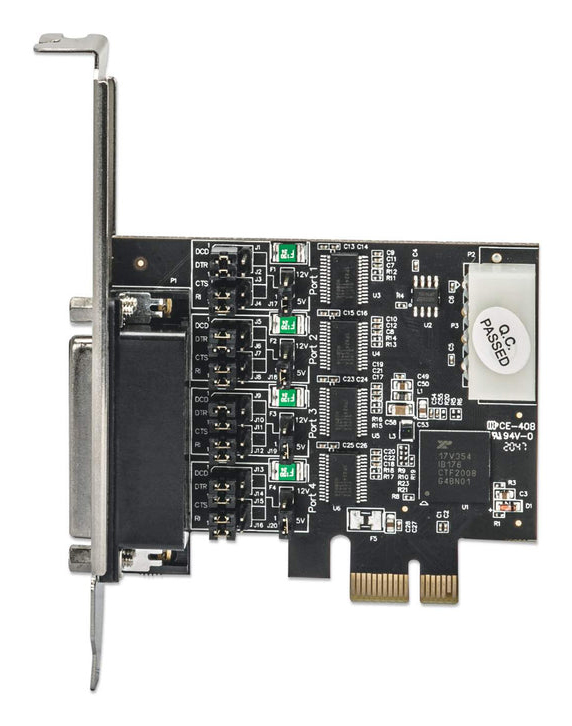

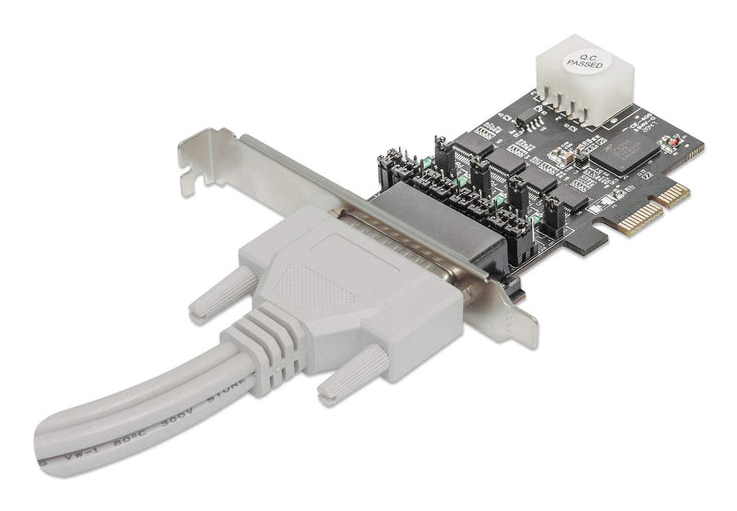

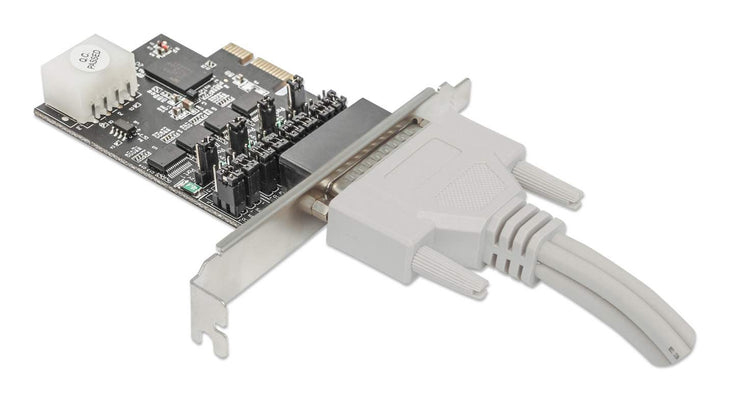

169950 interface cards/adapter Internal Serial
Model 169950
23 specifications
- Weight29.5 g
- ColourGrey
- Host interfacePCIe
- InternalYes
- ChipsetExar XR17V354
- Output voltage5 V
Overview
- Weight
- 29.5 g
- Colour
- Grey
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Exar XR17V354
- Output voltage
- 5 V
- Brand
- Manhattan
- Category
- Interface Cards/Adapters
- Model
- 169950
- Part number
- 169950
- Also known as
- Manhattan 169950 interface cards/adapter Internal Serial
Specifications
23 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.0 |
| Serial ports quantity | 4 |

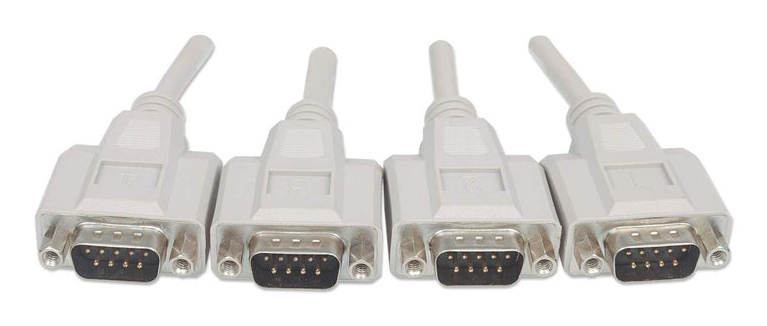

| Serial interface type | DB9 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Grey |
| Certification | CE FCC WEEE |
Features
| Specification | Value |
|---|---|
| Chipset | Exar XR17V354 |
| Bandwidth | 2.5 Gbit/s |
| FIFO (First In, First Out) | 256 B |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power management | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 20 mm |
| Height | 94 mm |
| Weight | 29.5 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting brackets included | Yes |
| Manual | Yes |
