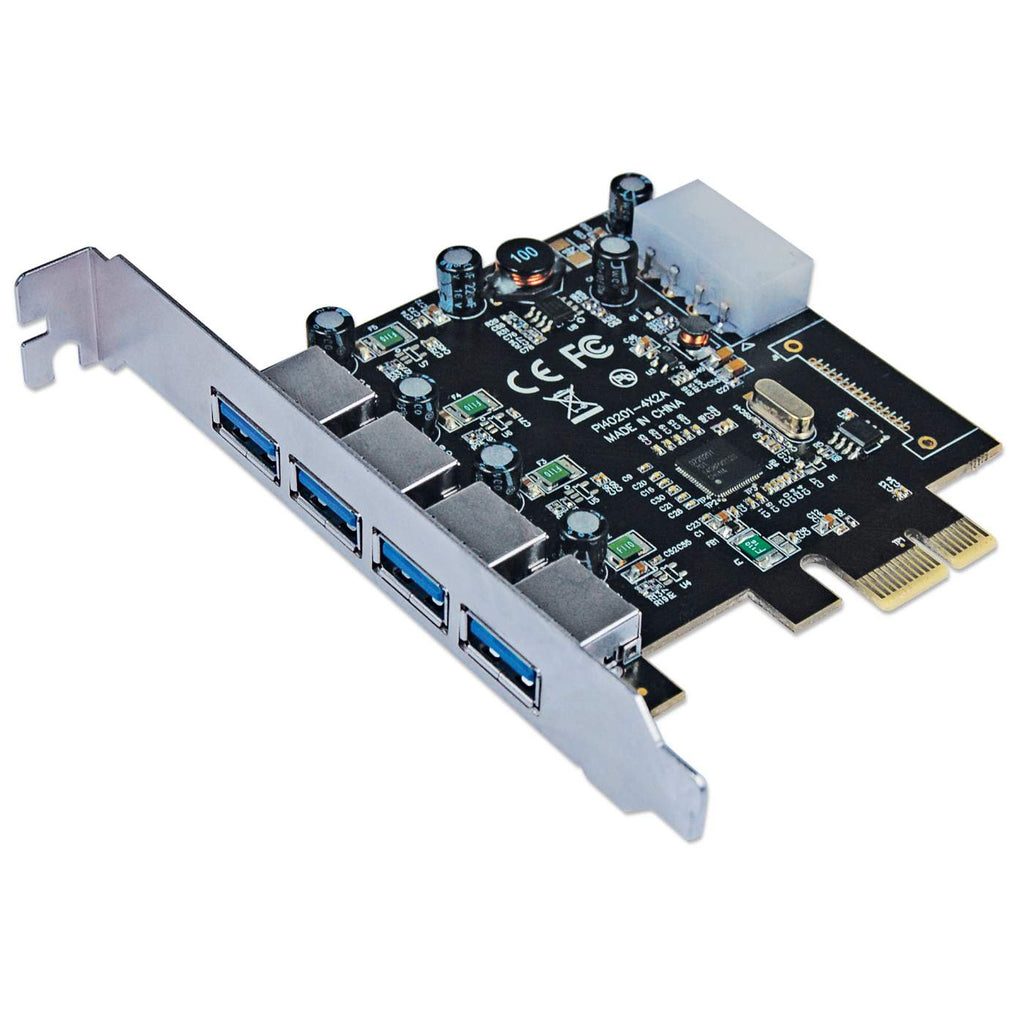

Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Model 152891EAN 766623152891
22 specifications
- Weight120 g
- Host interfacePCIe
- InternalYes
- ChipsetRenesas NEC uPD720201
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesRoHS
Overview
- Weight
- 120 g
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Renesas NEC uPD720201
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- RoHS
- Brand
- Manhattan
- Category
- Interface Cards/Adapters
- Model
- 152891
- Part number
- 152891
- EAN / UPC
- 766623152891
- Also known as
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | USB 3.0, PCI Express 2.0, FCC, CE, WEEE |
Features
| Specification | Value |
|---|---|
| Chipset | Renesas NEC uPD720201 |
| Data transfer rate (max) | 5 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 121 mm |
| Height | 23 mm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Drivers included | Yes |
| Quick installation guide | Yes |
What people say
Reviews & ratings
Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
No reviews yet
Be the first to tell others how Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
All interface cards/adapters comparisons- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsManhattan 152501 interface cards/adapter HDMICompare specs
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsManhattan 152884 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)Compare specs
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsManhattan 152532 interface cards/adapter DVI-ICompare specs
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsManhattan 207713 interface cards/adapter DVI-I, HDMI, VGACompare specs
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsGIGABYTE GC-TITAN RIDGECompare specs
- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsATEN UCE3250 interface cards/adapterCompare specs

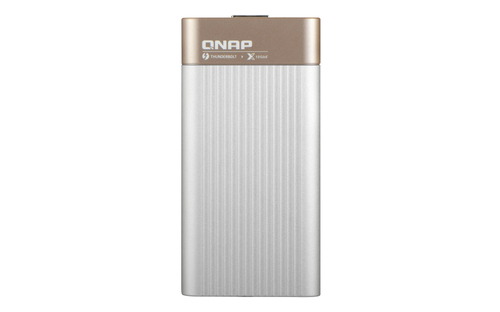

- Manhattan 152891 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) vsQNAP QNA-T310G1S interface cards/adapter SFP+Compare specs
