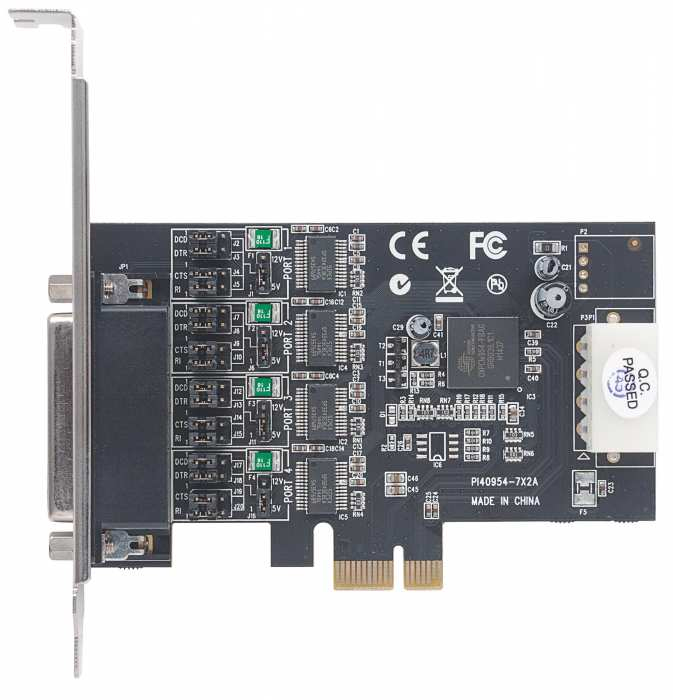

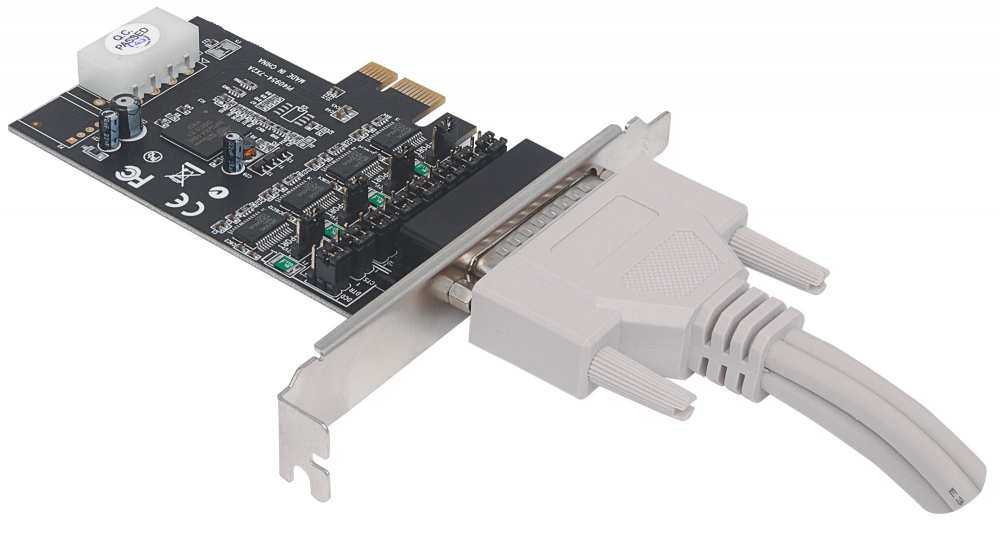

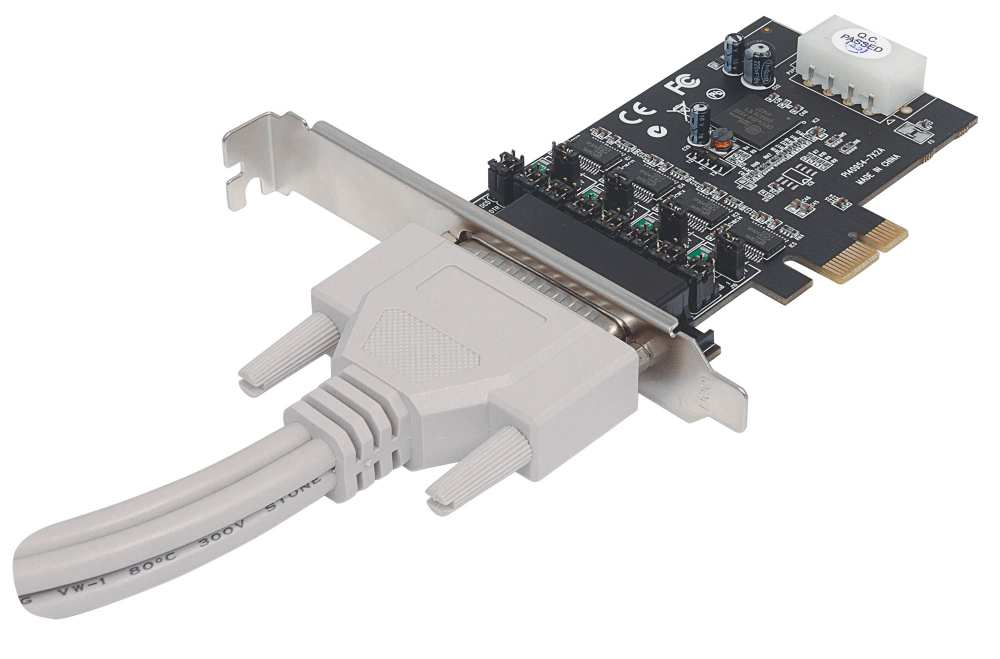

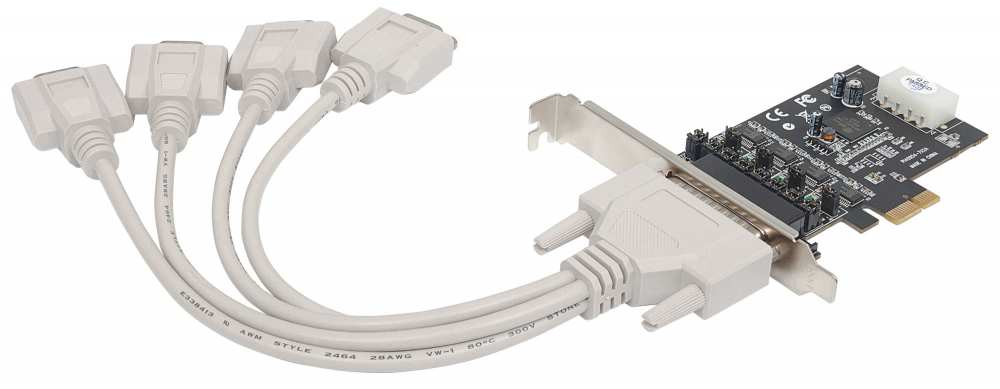

Manhattan 152105 interface cards/adapter Internal Serial
Model 152105EAN 766623152105
21 specifications
- Weight29.5 g
- ColourGrey
- Host interfacePCIe
- InternalYes
- ChipsetOxford
- Compliance certificatesRoHS
Overview
- Weight
- 29.5 g
- Colour
- Grey
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Oxford
- Compliance certificates
- RoHS
- Brand
- Manhattan
- Category
- Interface Cards/Adapters
- Model
- 152105
- Part number
- 152105
- EAN / UPC
- 766623152105
- Also known as
- Manhattan 152105 interface cards/adapter Internal Serial
Specifications
21 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.0 |
| Serial ports quantity | 4 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Grey |
| Certification | CE FCC WEEE |
Features
| Specification | Value |
|---|---|
| Chipset | Oxford |
| Bandwidth | 2.5 Gbit/s |
| FIFO (First In, First Out) | 128 B |
Power
| Specification | Value |
|---|---|
| Power management | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 20 mm |
| Height | 94 mm |
| Weight | 29.5 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|

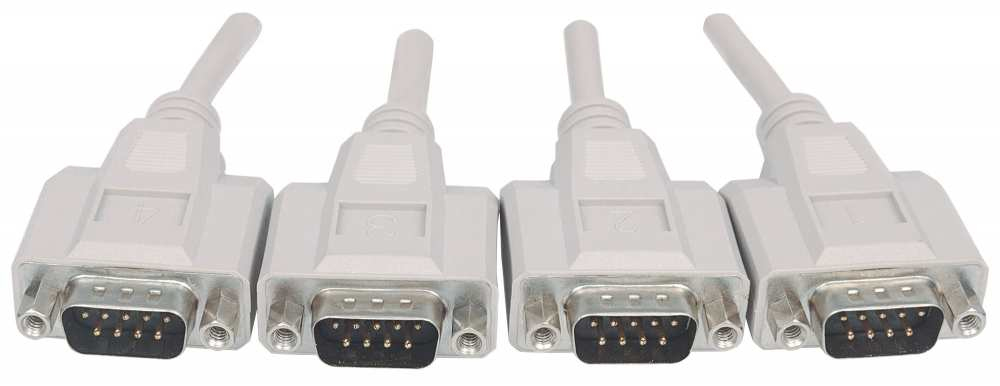

| Connector type | DB-9 |
