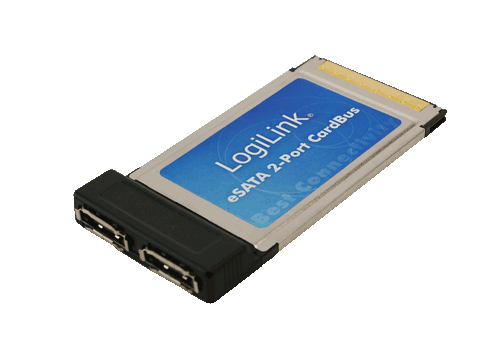

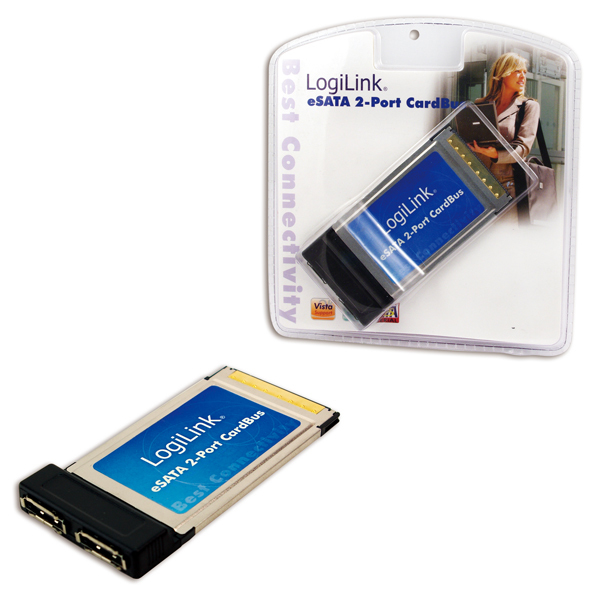

LogiLink PC0052 interface cards/adapter Internal eSATA
Model PC0052
18 specifications
- ConnectivityWired
- Host interfaceCardBus
- InternalYes
- RAID levels0, 1
- Server operating systems supportedWindows Server 2003
- Compliance certificatesRoHS
Overview
- Connectivity
- Wired
- Host interface
- CardBus
- Internal
- Yes
- RAID levels
- 0, 1
- Server operating systems supported
- Windows Server 2003
- Compliance certificates
- RoHS
- Brand
- LogiLink
- Category
- Interface Cards/Adapters
- Model
- PC0052
- Part number
- PC0052
- Also known as
- LogiLink PC0052 interface cards/adapter Internal eSATA
Specifications
18 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | CardBus |
| Output interface | eSATA |
| CardBus PCMCIA slot type | Type II |
| eSATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | CE |
Features
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional |
| Server operating systems supported | Windows Server 2003 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging data
| Specification | Value |
|---|---|
| Package width | 170 mm |
| Package depth | 183 mm |
| Package height | 61 mm |
| Package weight | 125 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 3 Gbit/s |
| Ports quantity | 2 |
| Connectivity technology | Wired |
