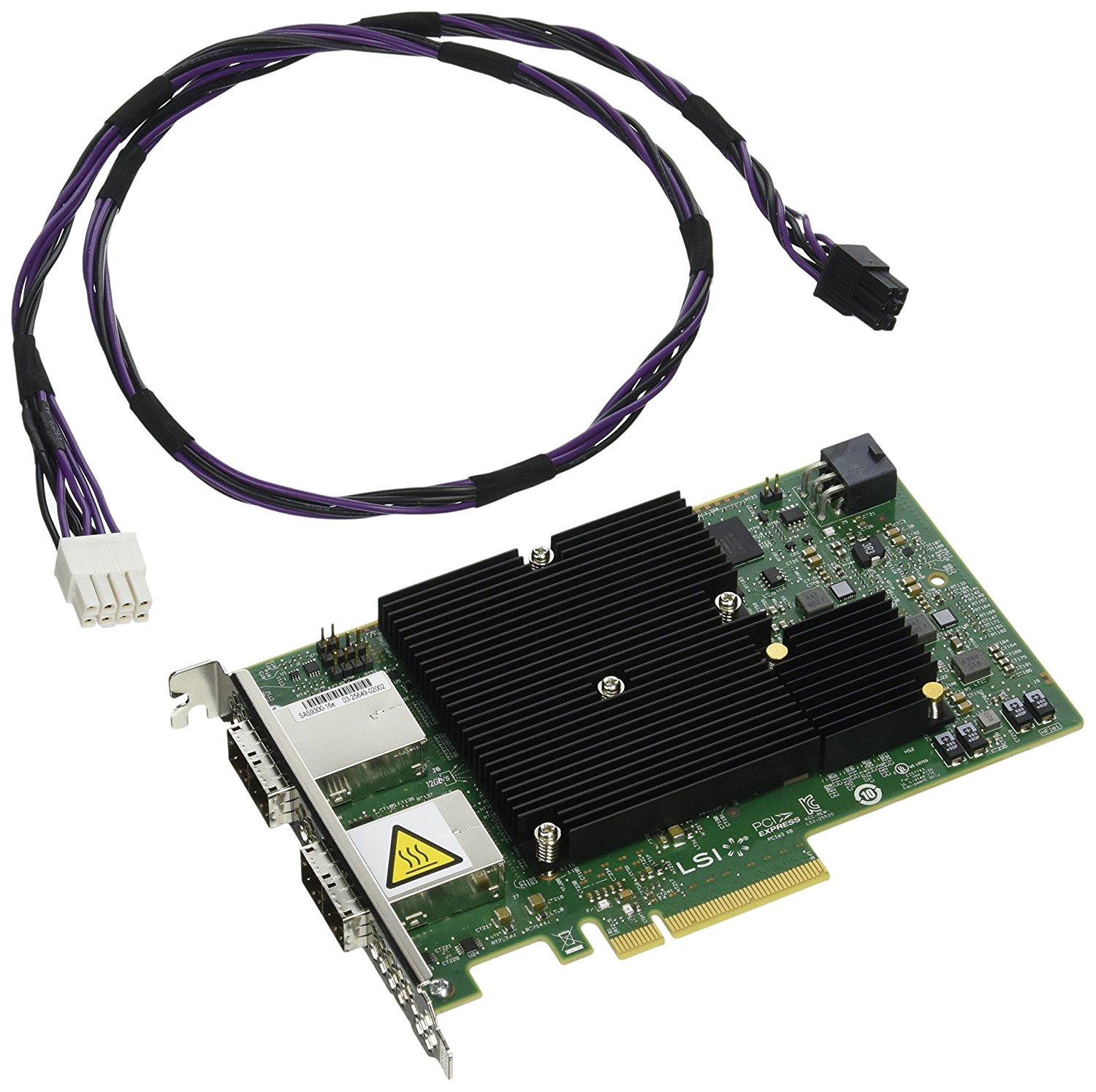

Lenovo N2226 interface cards/adapter SAS, SATA
Model N2226Part no. 00AE916EAN 883436554282
33 specifications
- Weight222 g
- ColourBlack, Green, Silver
- Host interfacePCIe
- InternalNo
- Data transfer rate (max)12 Gbit/s
- Power managementYes
Overview
- Weight
- 222 g
- Colour
- Black, Green, Silver
- Host interface
- PCIe
- Internal
- No
- Data transfer rate (max)
- 12 Gbit/s
- Power management
- Yes
- Brand
- Lenovo
- Category
- Interface Cards/Adapters
- Model
- N2226
- Part number
- 00AE916
- EAN / UPC
- 883436554282, 4053162520622
- Also known as
- Lenovo N2226 interface cards/adapter SAS, SATA
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SAS, SATA |
| Expansion card form factor | Full-height |
| Expansion card standard | PCIe 3.0 |
| Serial ports quantity | 16 |
| Serial interface type | SATA |
| External mini-SAS ports | 4 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black, Green, Silver |
| Purpose | Server |
| Easy to install | Yes |
| Certification | UL, cUL, IEC60950, EMC, FCC, CE, VCCI, BSMI, C-tick, KC |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 12 Gbit/s |
Power
| Specification | Value |
|---|---|
| Power management | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 93% |
| Storage relative humidity (H-H) | 8 - 93% |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | RedHat EL Linux 6.0, RedHat EL Linux 7.0 |
| Server operating systems supported | SUSE Linux Enterprise Server 11, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Other operating systems supported | VMware vSphere ESXi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 18 mm |
| Depth | 170 mm |
| Height | 111 mm |
| Weight | 222 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | SAS |
| Drivers included | Yes |
| User guide | Yes |
| Package width | 143 mm |
| Package depth | 238 mm |
| Package height | 51 mm |
| Package weight | 327 g |
| Package type | Box |
