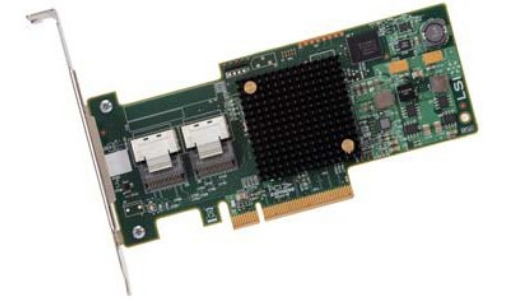

Lenovo 46C8988 interface cards/adapter Internal SAS, SATA
Model 46C8988
19 specifications
- Weight180 g
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)6 Gbit/s
- Operating temperature (T-T)5 - 40 °C
- Width65 mm
Overview
- Weight
- 180 g
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 6 Gbit/s
- Operating temperature (T-T)
- 5 - 40 °C
- Width
- 65 mm
- Brand
- Lenovo
- Category
- Interface Cards/Adapters
- Model
- 46C8988
- Part number
- 46C8988
- Also known as
- Lenovo 46C8988 interface cards/adapter Internal SAS, SATA
Specifications
19 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SAS, SATA |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 3.0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | UL cUL IEC60950 EMC FCC TUV CE VCCI BSMI C-tick KC |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 6 Gbit/s |
| Supported protocols | SSP, SMP, STP, SATA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 8 - 93% |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | SUSE Linux Enterprise Server, Windows Server 2008, Windows Server 2012, Windows Server 2012 R2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 152 mm |
| Height | 18 mm |
| Weight | 180 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 238 mm |
| Package height | 51 mm |
| Package weight | 275 g |
