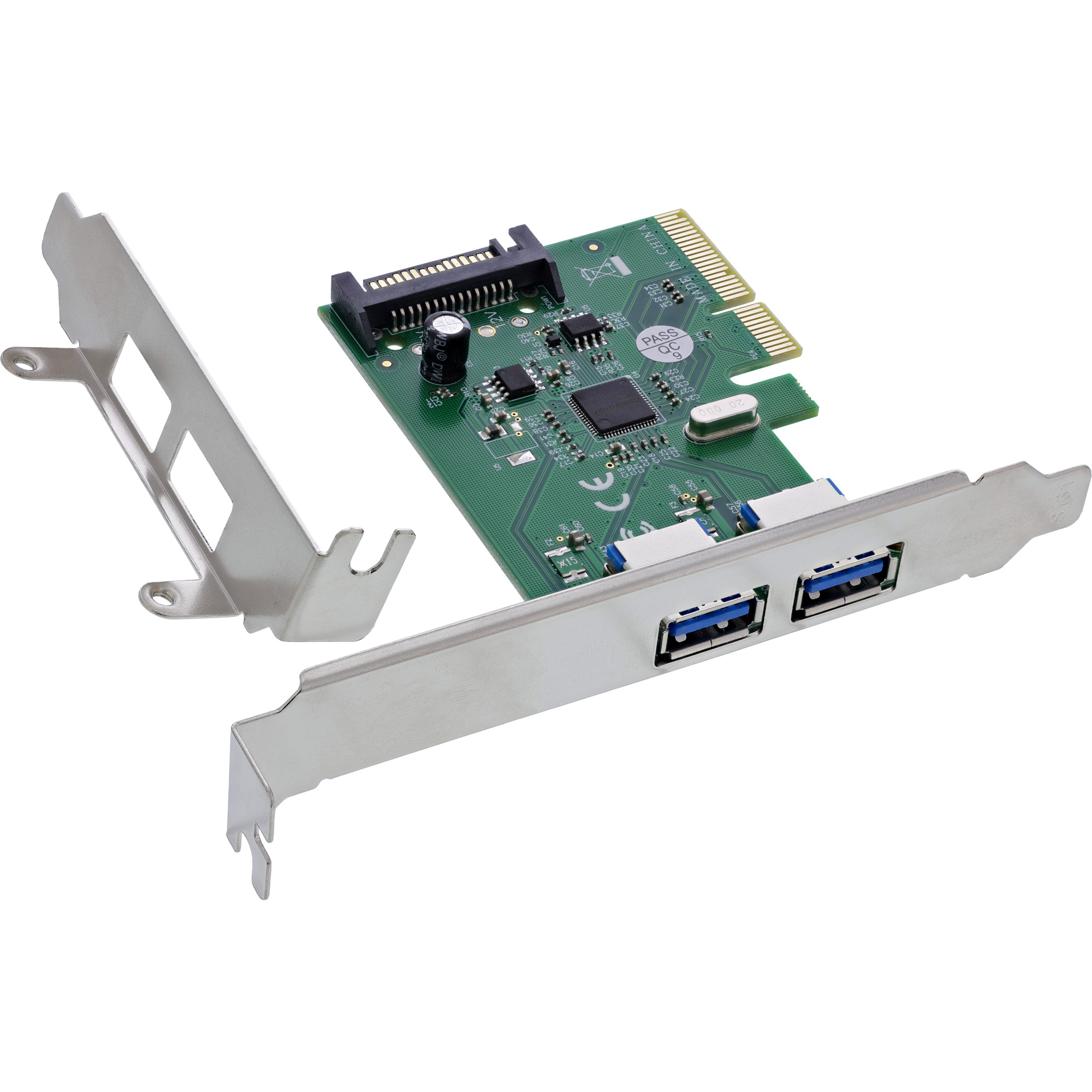

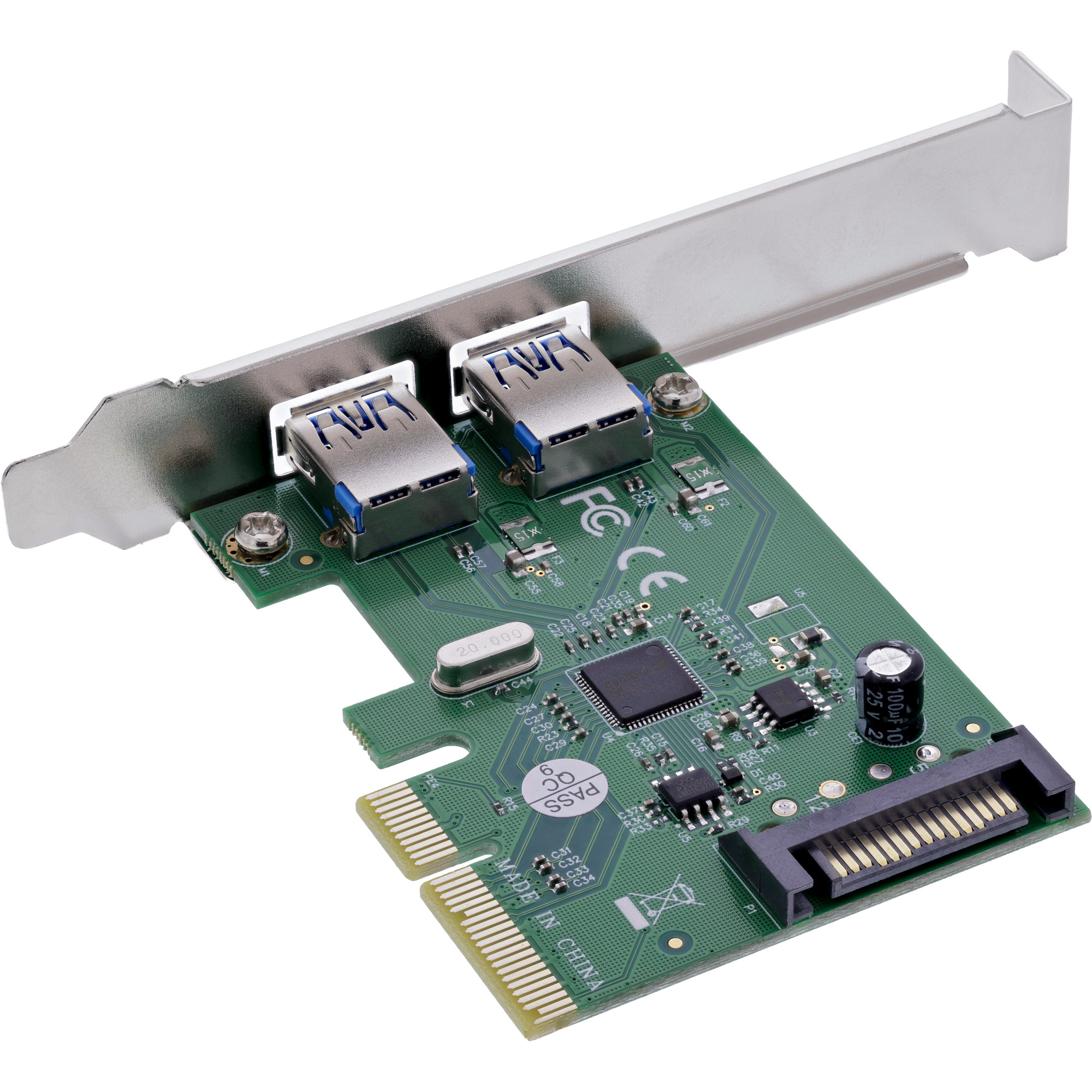

76666N interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
Model 76666NEAN 4043718347964
35 specifications
- Weight2 kg
- ColourGreen, Silver
- Host interfacePCIe
- InternalYes
- ChipsetASMedia ASM1142
- Output current0.9 A
Overview
- Weight
- 2 kg
- Colour
- Green, Silver
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia ASM1142
- Output current
- 0.9 A
- Brand
- InLine
- Category
- Interface Cards/Adapters
- Model
- 76666N
- Part number
- 76666N
- EAN / UPC
- 4043718347964
- Also known as
- InLine 76666N interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
Specifications
35 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Host interface gender | Male |
| Expansion card standard | PCIe 3.0 |
| SATA power connector type | SATA 15-pin |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green, Silver |
| Hot-Plug support | Yes |
| Country of origin | Taiwan |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia ASM1142 |
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Output current | 0.9 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 1.02 mm |
| Height | 120 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 150 mm |
| Package depth | 140 mm |
| Package height | 30 mm |
| Package weight | 36 g |
| Package volume | 700 cm³ |
| Package type | Hanging box |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 92 x 1.02 x 120 mm |
