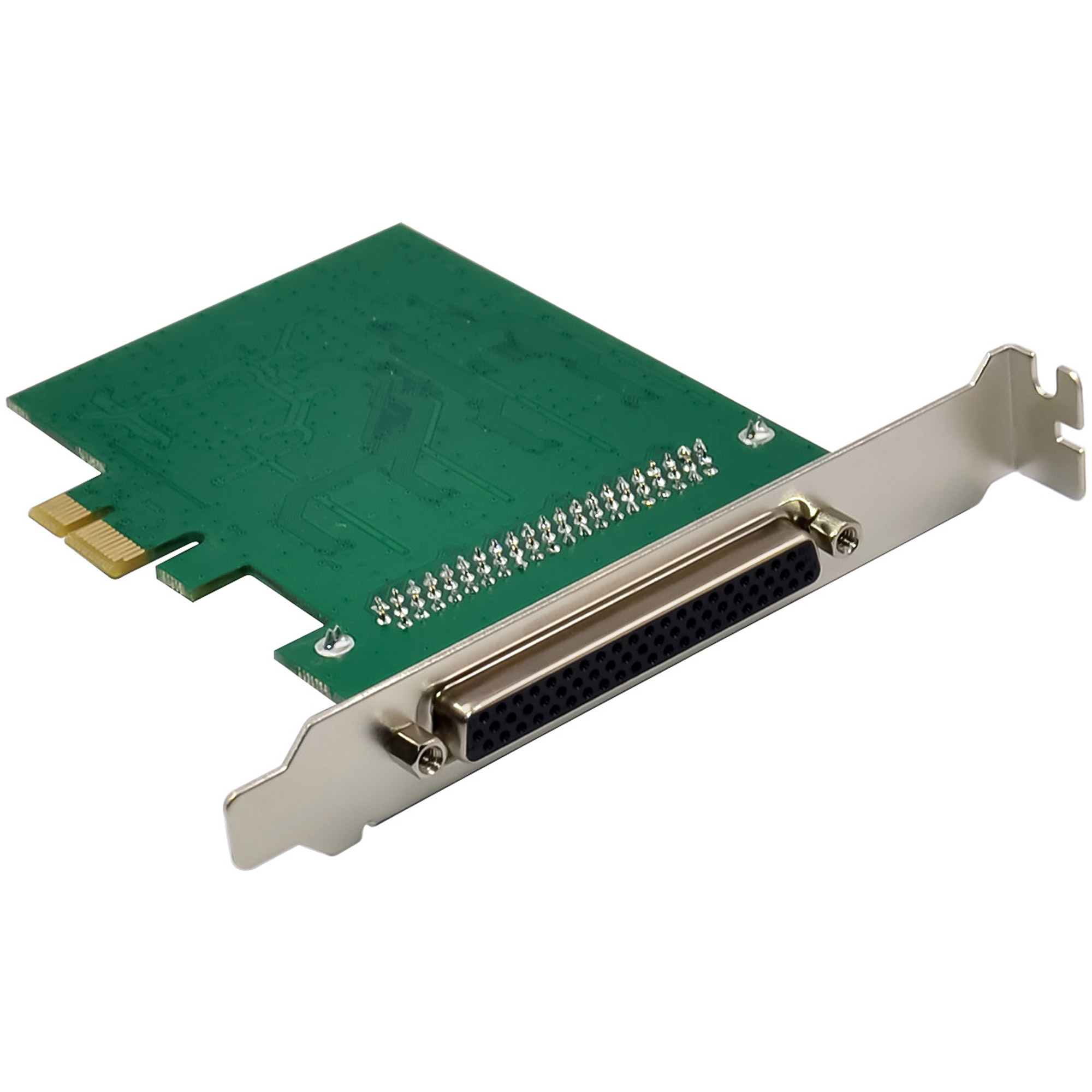

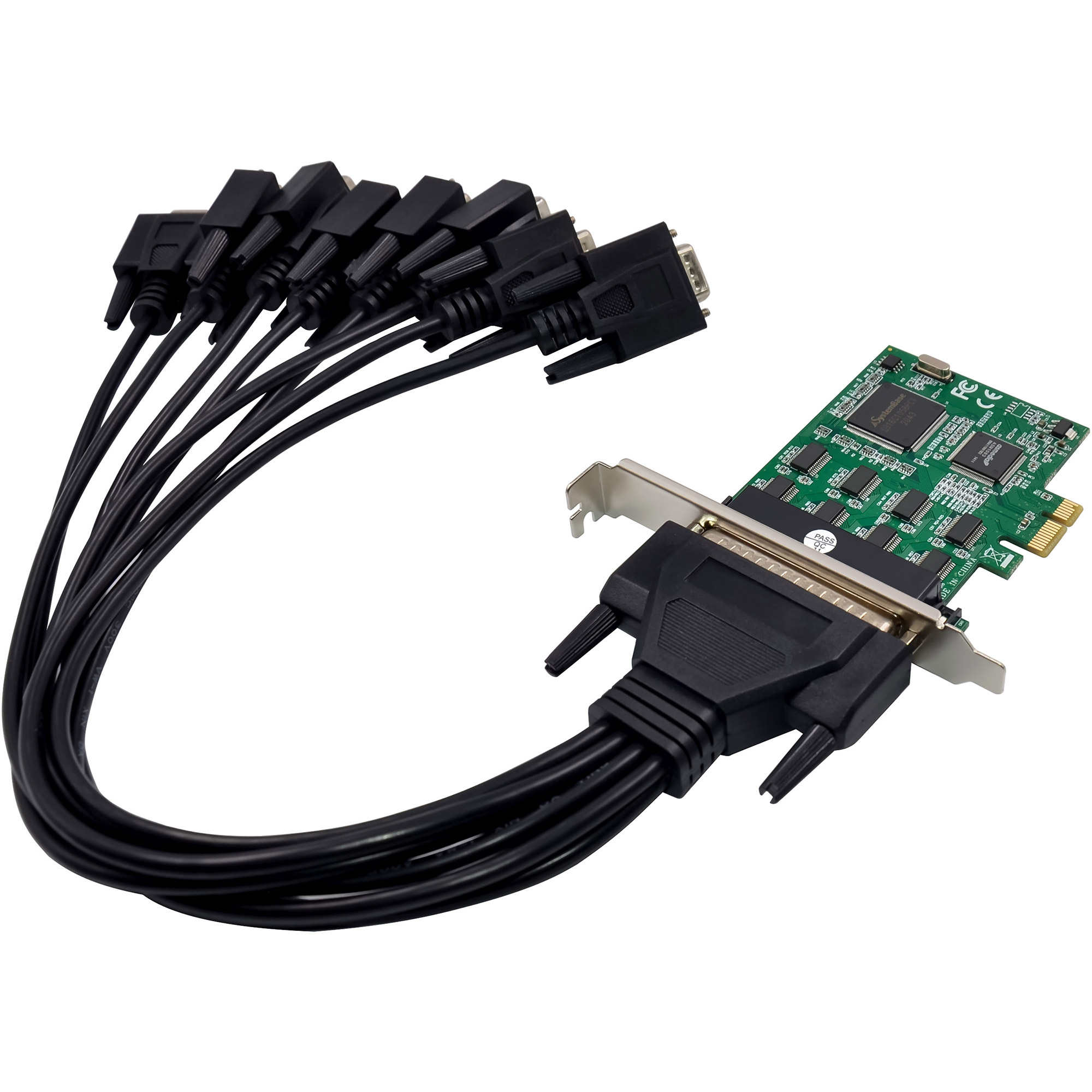

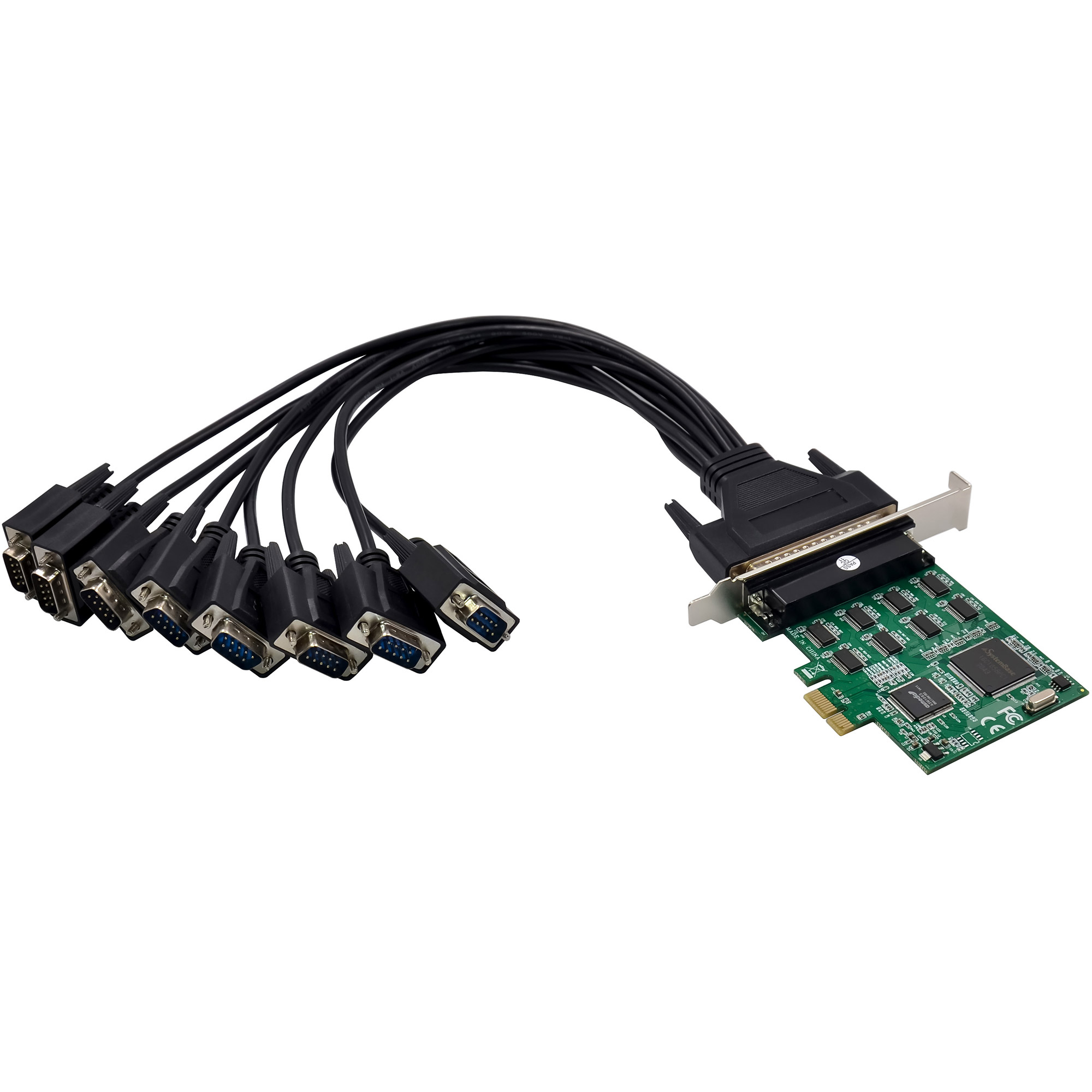

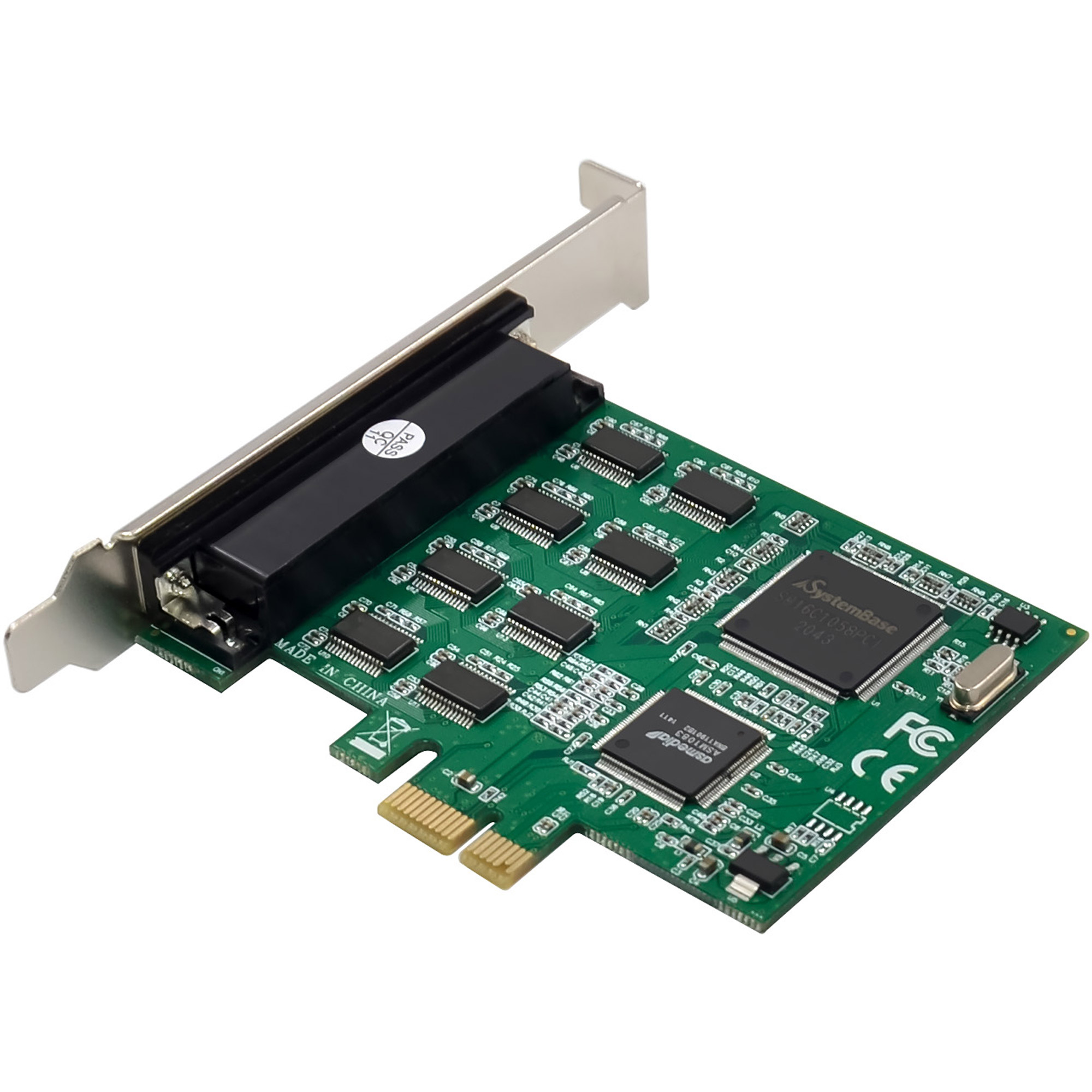

76660Z interface cards/adapter Internal RS-232
Model 76660ZEAN 4043718348268
33 specifications
- Weight12 kg
- Host interfacePCIe
- InternalYes
- ChipsetSB16C1058
- Operating temperature (T-T)0 - 55 °C
- Width105 mm
Overview
- Weight
- 12 kg
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- SB16C1058
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 105 mm
- Brand
- InLine
- Category
- Interface Cards/Adapters
- Model
- 76660Z
- Part number
- 76660Z
- EAN / UPC
- 4043718348268
- Also known as
- InLine 76660Z interface cards/adapter Internal RS-232
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | RS-232 |
| Host interface gender | Male |
| Expansion card standard | PCIe 1.1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Country of origin | Taiwan |
Features
| Specification | Value |
|---|---|

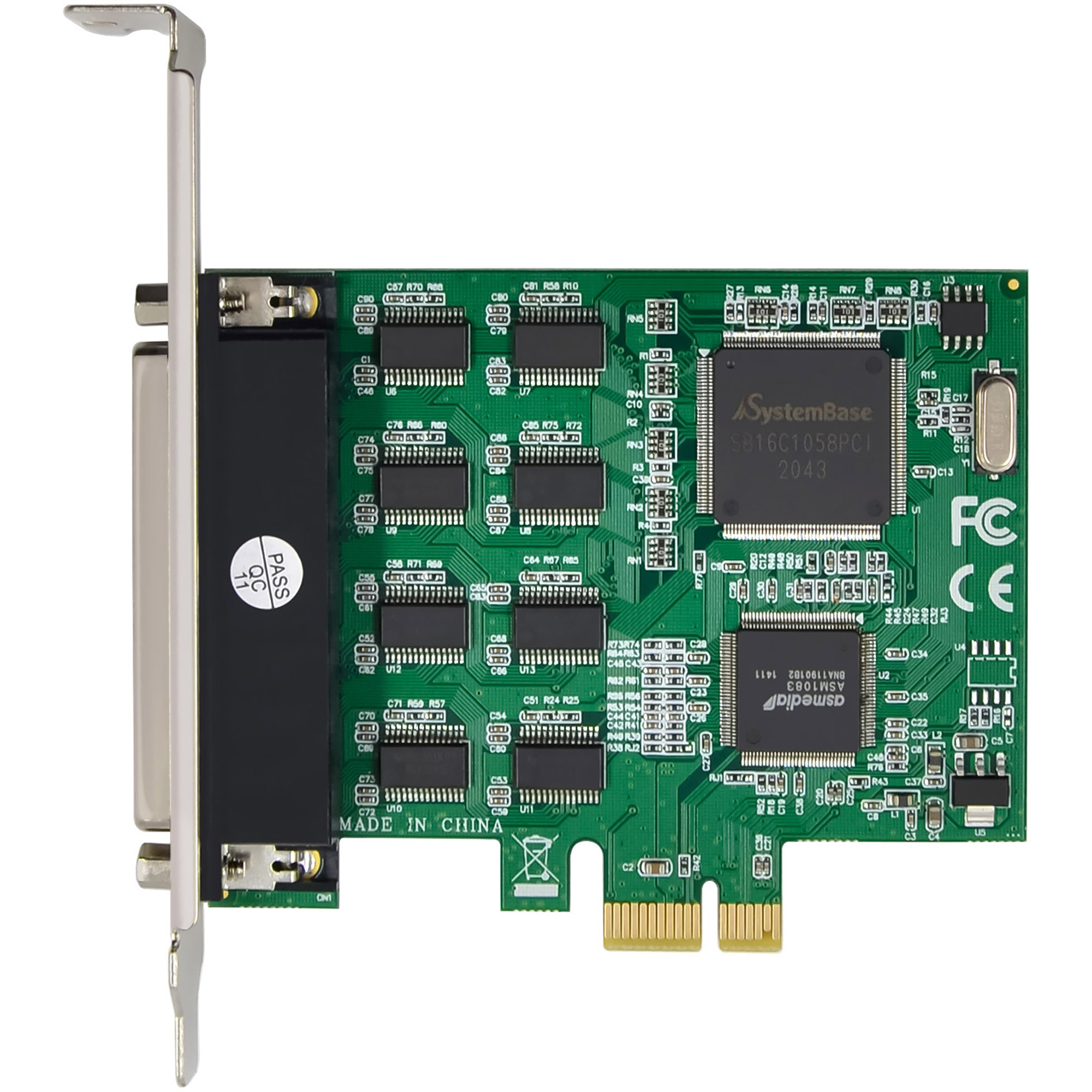

| Chipset | SB16C1058 |
| Baud rate | 230.4 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Flow Control type | RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 7, Windows 98, Windows ME, Windows Vista, Windows XP |
| Linux operating systems supported | Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), TÜV mark |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 5.61 mm |
| Height | 19 mm |
| Weight | 12 kg |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 140 mm |
| Package depth | 160 mm |
| Package height | 75 mm |
| Package weight | 62 g |
| Package volume | 1700 cm³ |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 105 x 5.61 x 19 mm |
