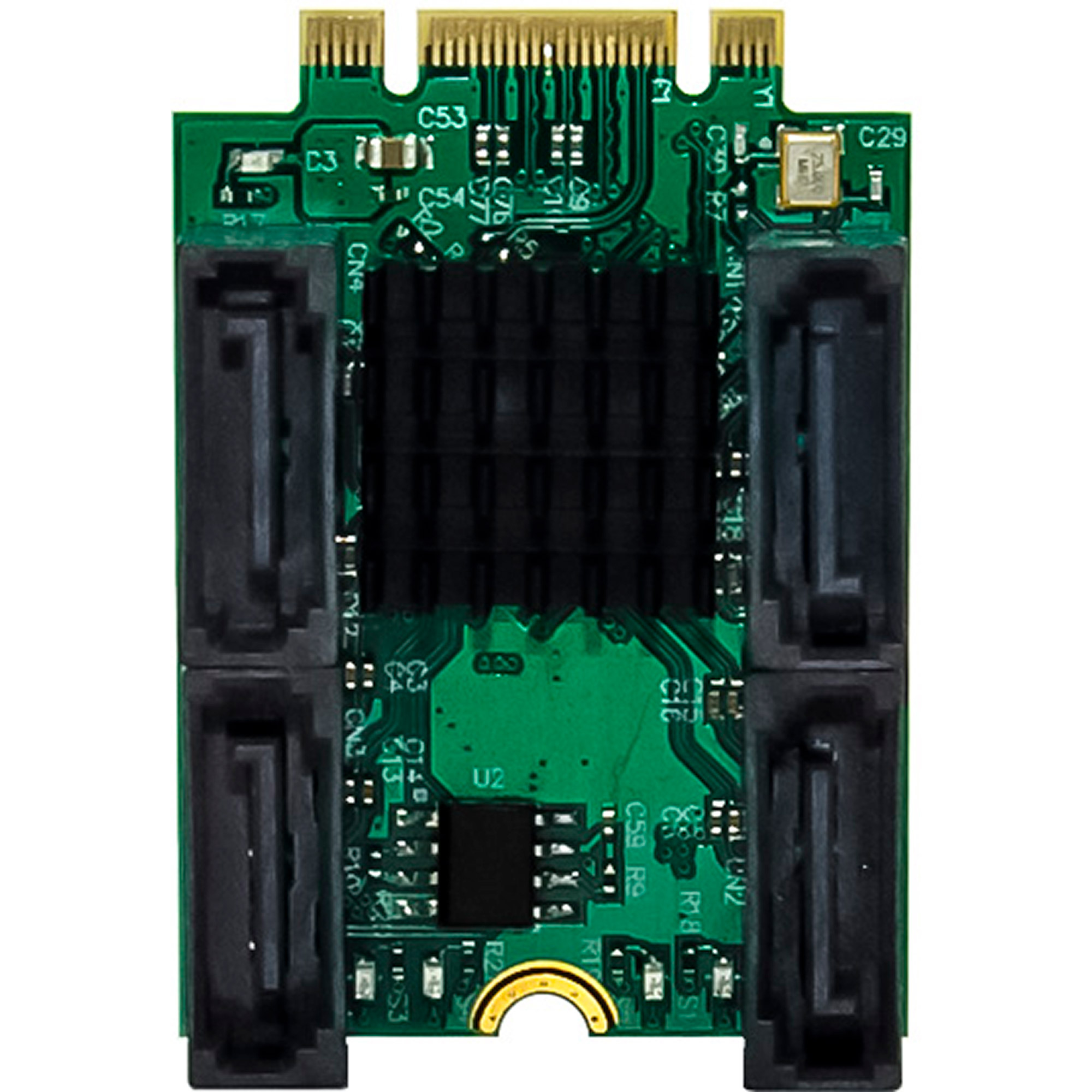

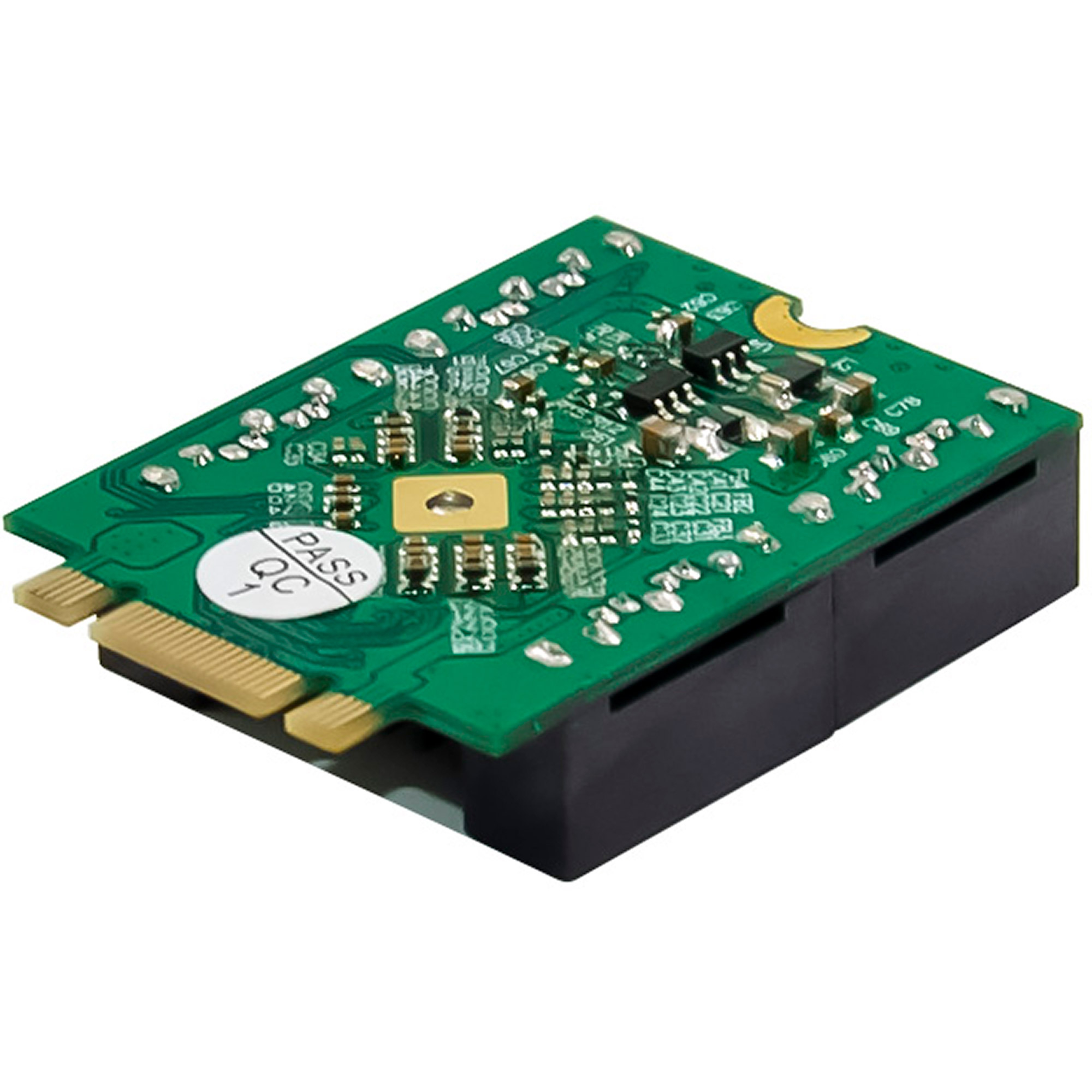

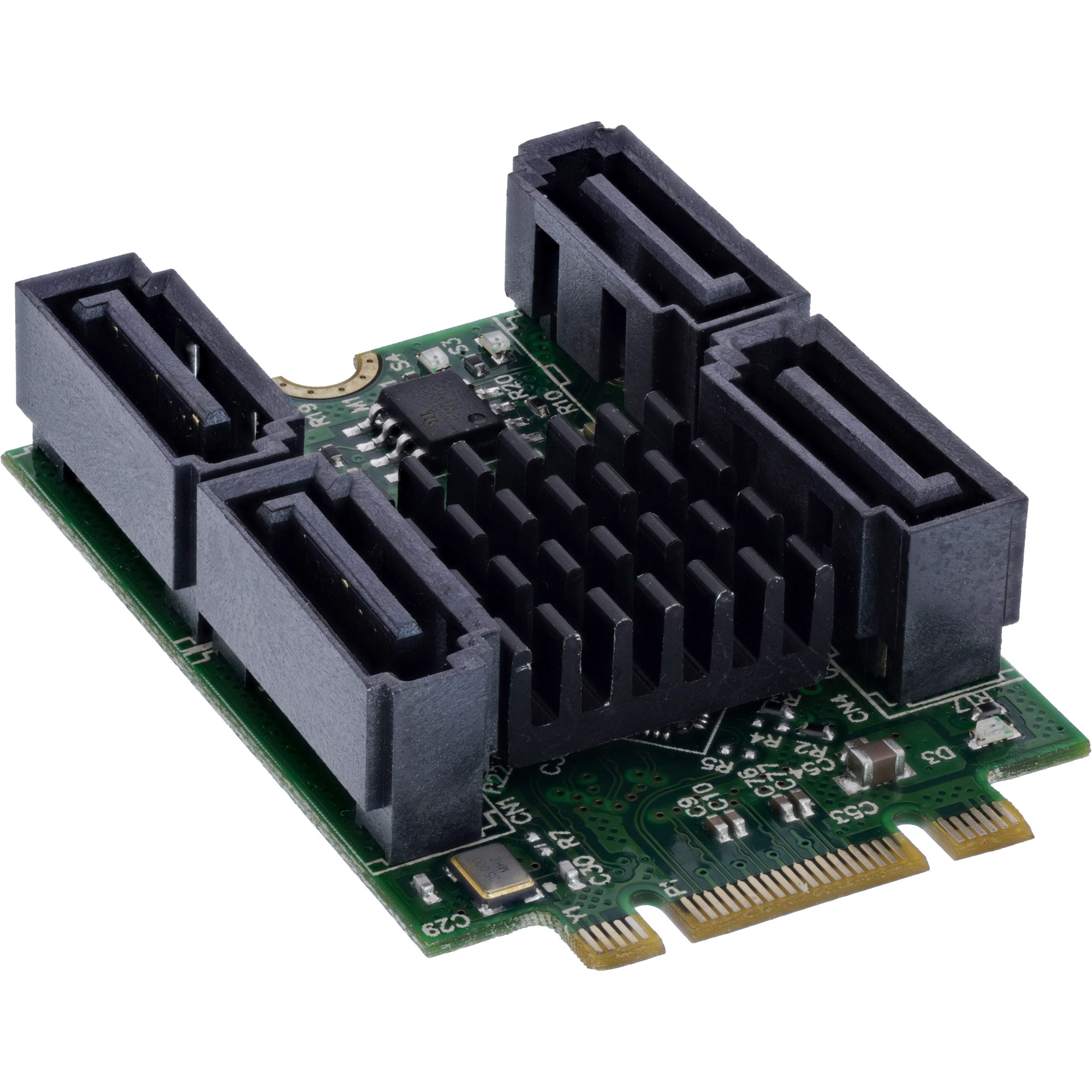

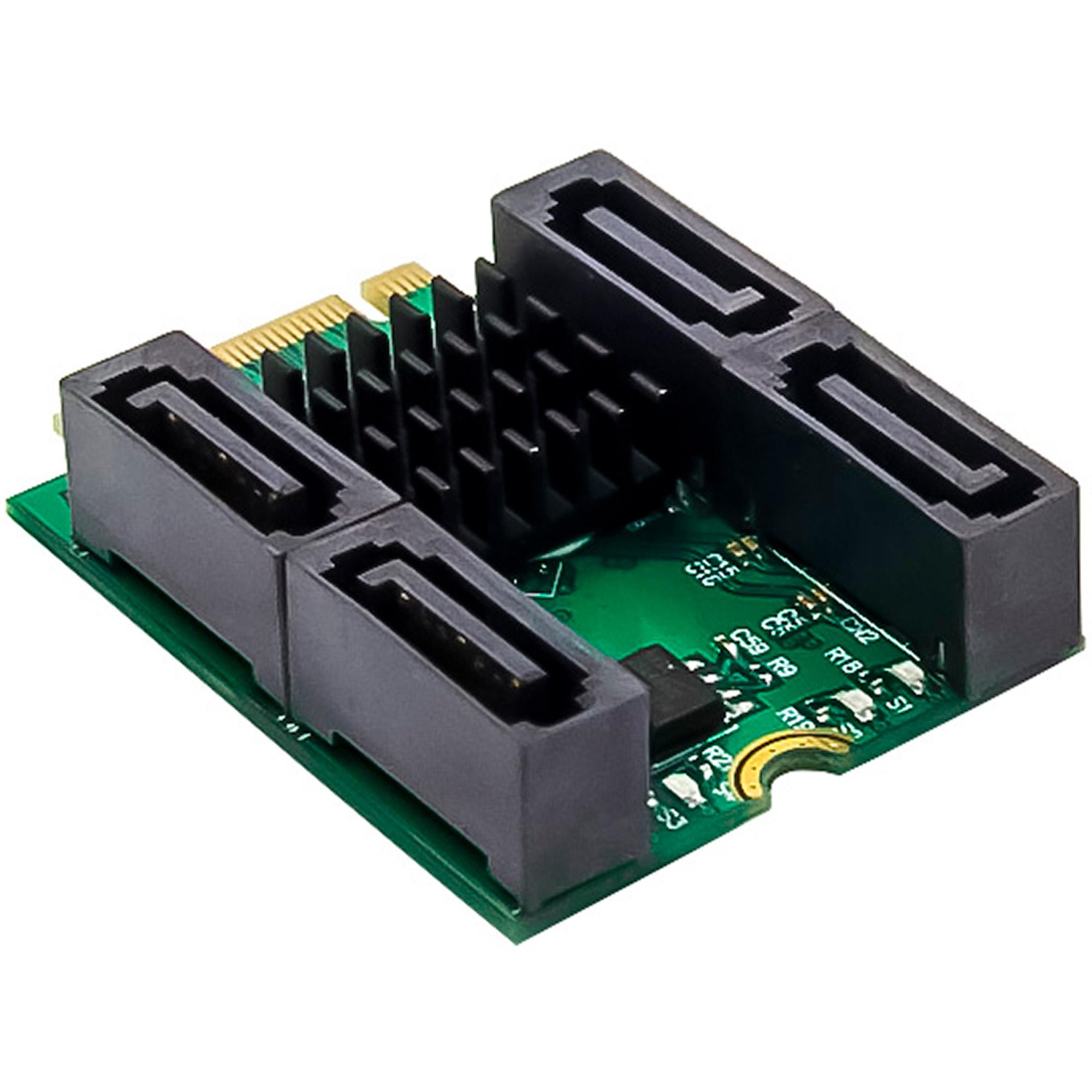

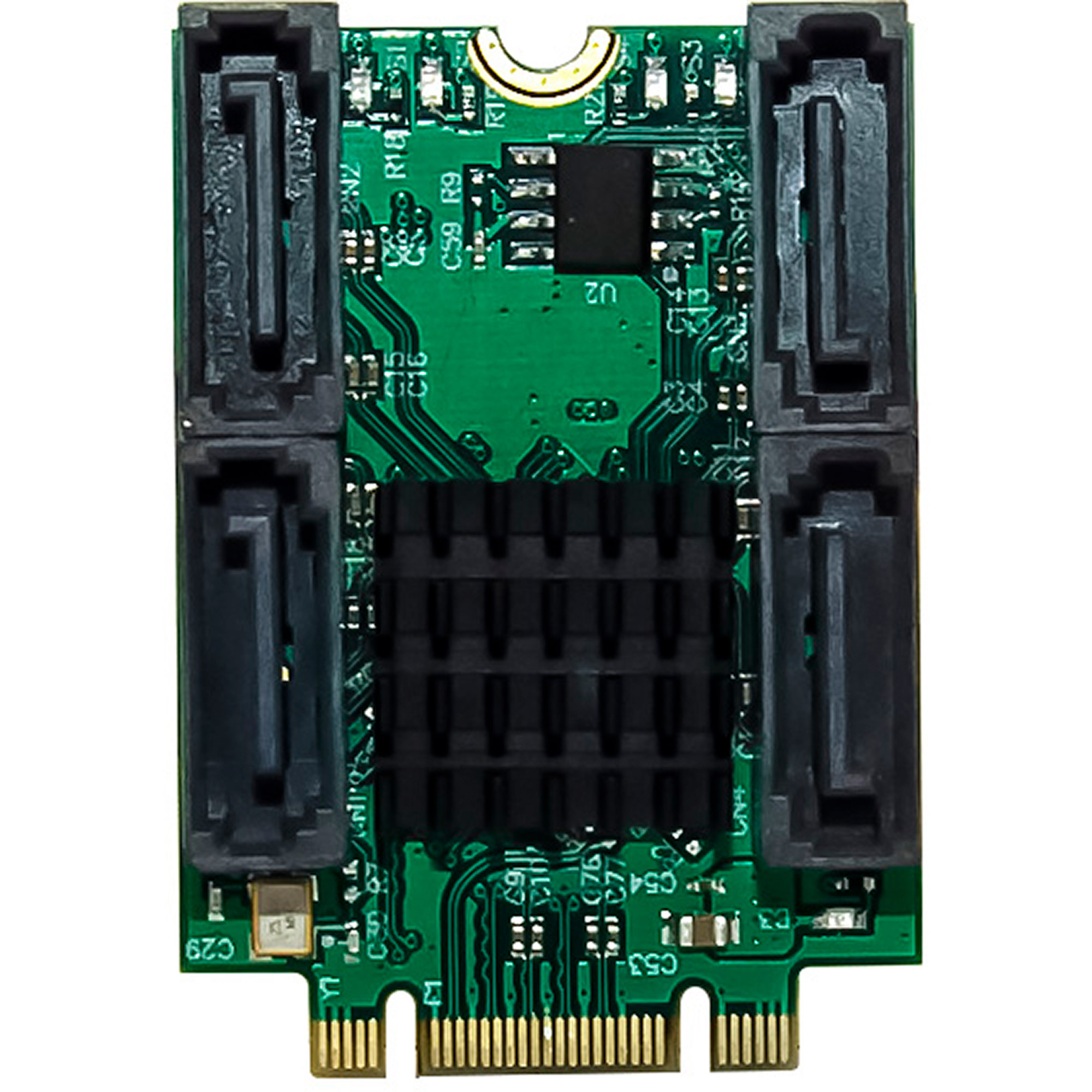

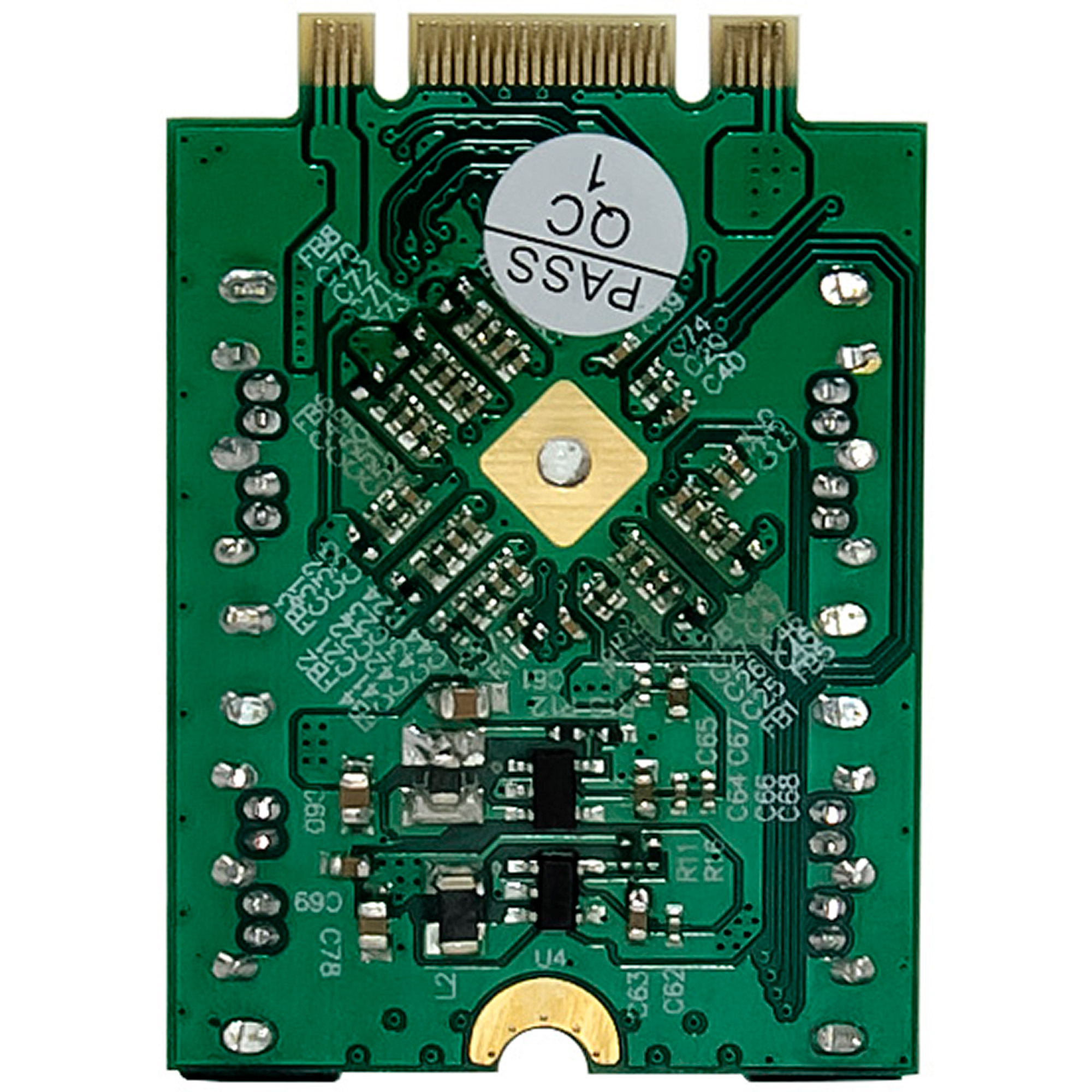

76660U interface cards/adapter Internal SATA
Model 76660UEAN 4043718341597
25 specifications
- Weight58 g
- Host interfaceM.2
- InternalYes
- ChipsetMarvell 88SE9230
- Width95 mm
Overview
- Weight
- 58 g
- Host interface
- M.2
- Internal
- Yes
- Chipset
- Marvell 88SE9230
- Width
- 95 mm
- Brand
- InLine
- Category
- Interface Cards/Adapters
- Model
- 76660U
- Part number
- 76660U
- EAN / UPC
- 4043718341597
- Also known as
- InLine 76660U interface cards/adapter Internal SATA
Specifications
25 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | M.2 |
| Output interface | SATA |
| Host interface gender | Male |
| NVMe | Yes |
| SATA revision | 3.0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Yes |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Country of origin | Taiwan |
Features
| Specification | Value |
|---|---|
| Chipset | Marvell 88SE9230 |
| Data transfer rate (max) | 6 Gbit/s |
| Native Command Queuing (NCQ) | Yes |
| RAID levels | 0, 1, 10 |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported | Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, Federal Communications Commission (FCC), CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 52 mm |
| Weight | 58 g |
Packaging data
| Specification | Value |
|---|---|

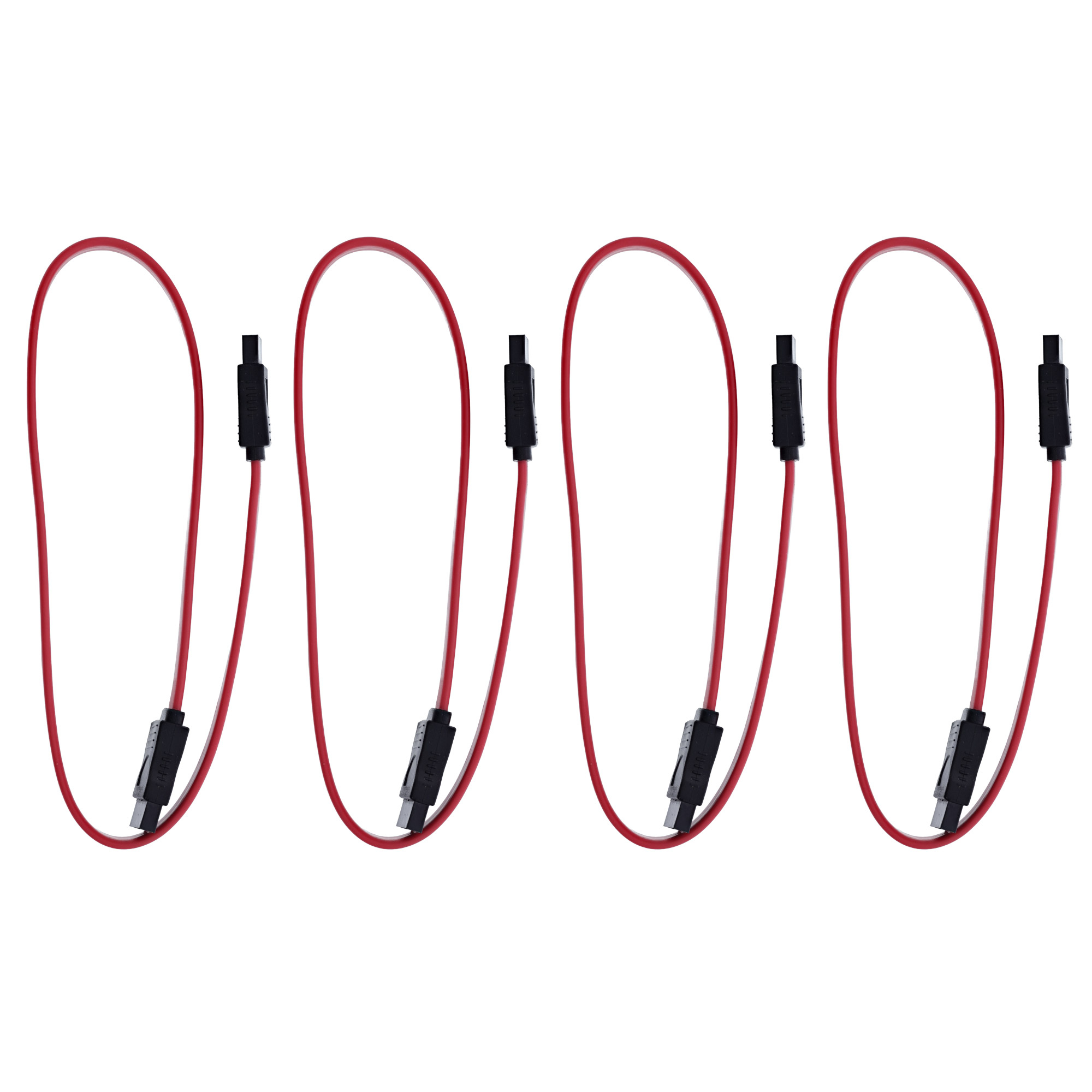

| Cables included | SATA |
| Manual | Yes |
| Package weight | 58 g |
| Package type | Hanging box |
