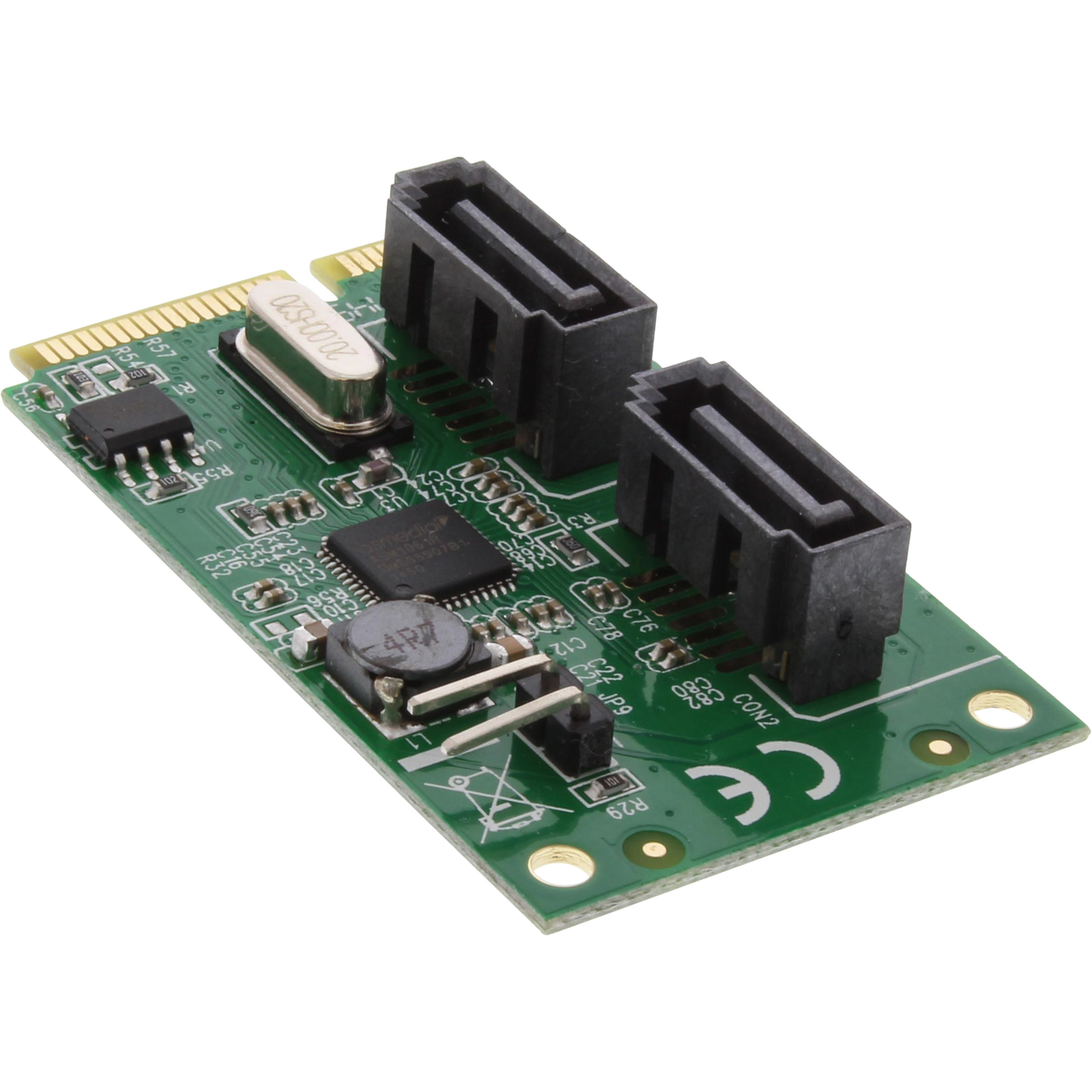

Mini-PCIe 2.0 Card 2x SATA
6Gb/s RAID 0 / 1 / SPAN
Model 66907EAN 4043718220656
26 specifications
- Weight1 kg
- ColourSilver
- Host interfaceMini PCI Express
- InternalYes
- ChipsetASMedia ASM1061R
- Width50 mm
Overview
- Weight
- 1 kg
- Colour
- Silver
- Host interface
- Mini PCI Express
- Internal
- Yes
- Chipset
- ASMedia ASM1061R
- Width
- 50 mm
- Brand
- InLine
- Category
- Interface Cards/Adapters
- Model
- 66907
- Part number
- 66907
- EAN / UPC
- 4043718220656
- Also known as
- InLine Mini-PCIe 2.0 Card 2x SATA 6Gb/s RAID 0 / 1 / SPAN
Specifications
26 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Mini PCI Express |
| Output interface | SATA |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Silver |
| Purpose | PC |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia ASM1061R |
| Data transfer rate (max) | 6 Gbit/s |
| Bandwidth | 2.5 Gbit/s |
| Native Command Queuing (NCQ) | Yes |
| RAID levels | 0, 1, SPAN |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 8, Windows 8.1, Windows Vista Home Premium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 0.0600 mm |
| Height | 30 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 102 mm |
| Package depth | 135 mm |
| Package height | 20 mm |
| Package weight | 6 g |
| Package volume | 1000 cm³ |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6000 Mbit/s |
| Dimensions (WxDxH) | 50 x 0.06 x 30 mm |
