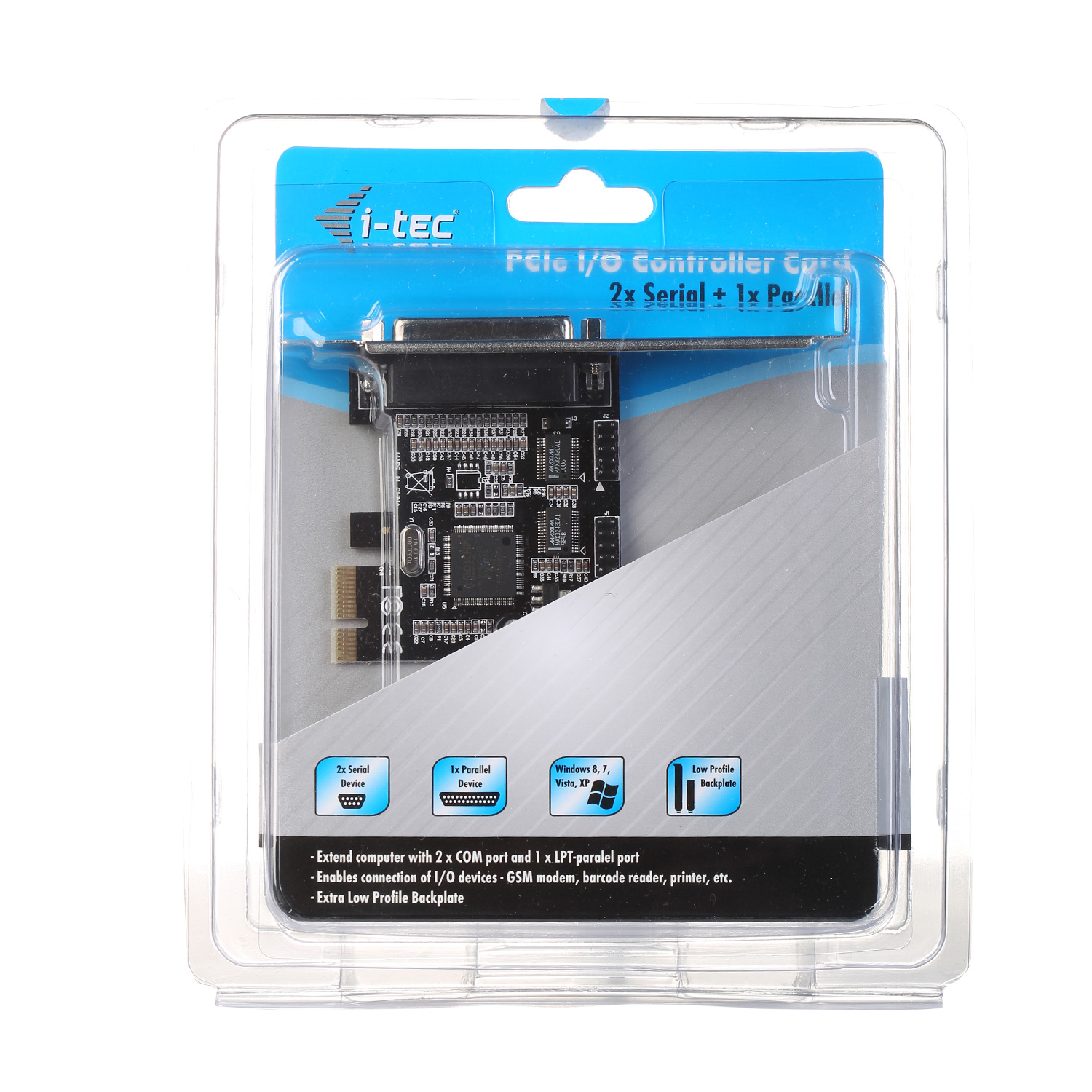

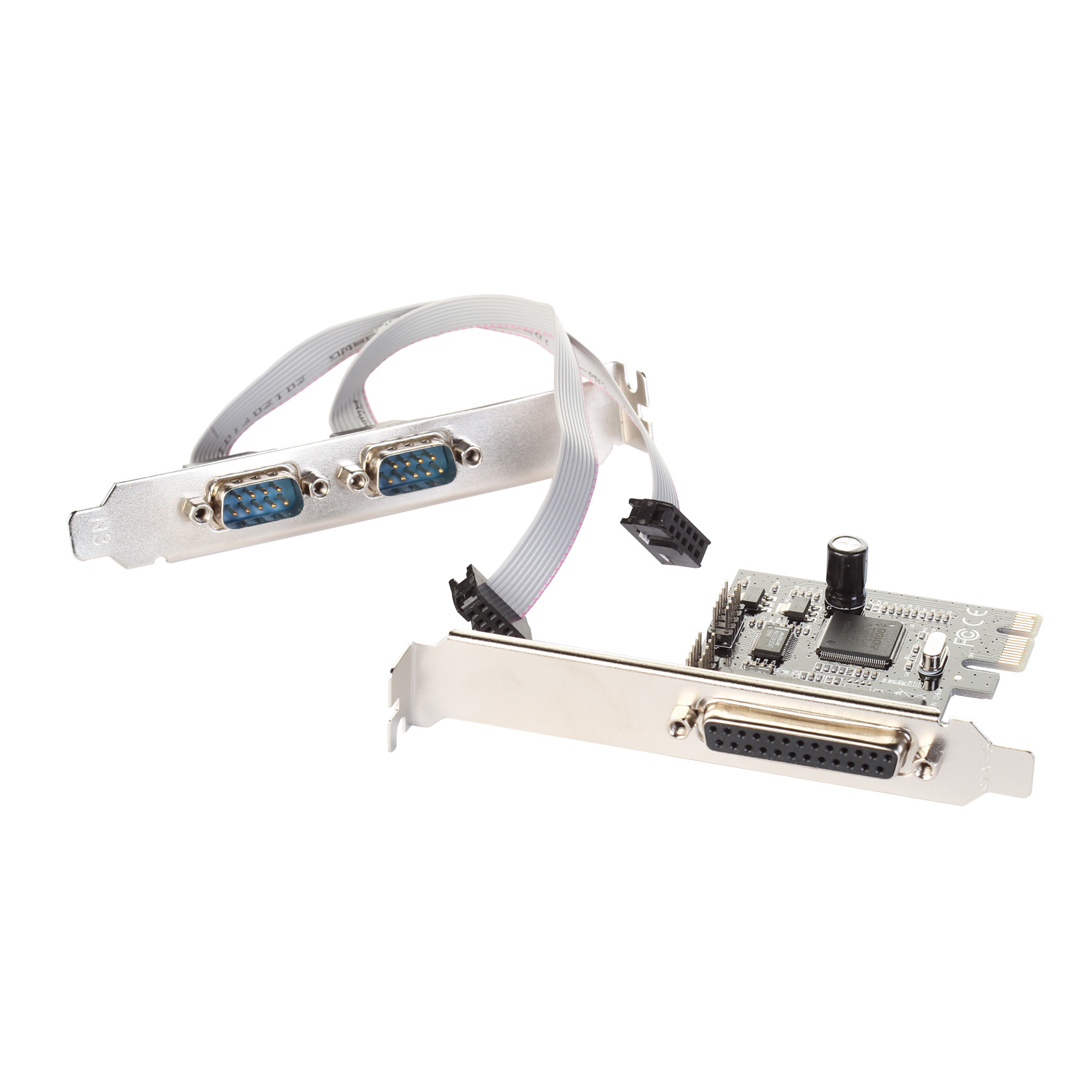

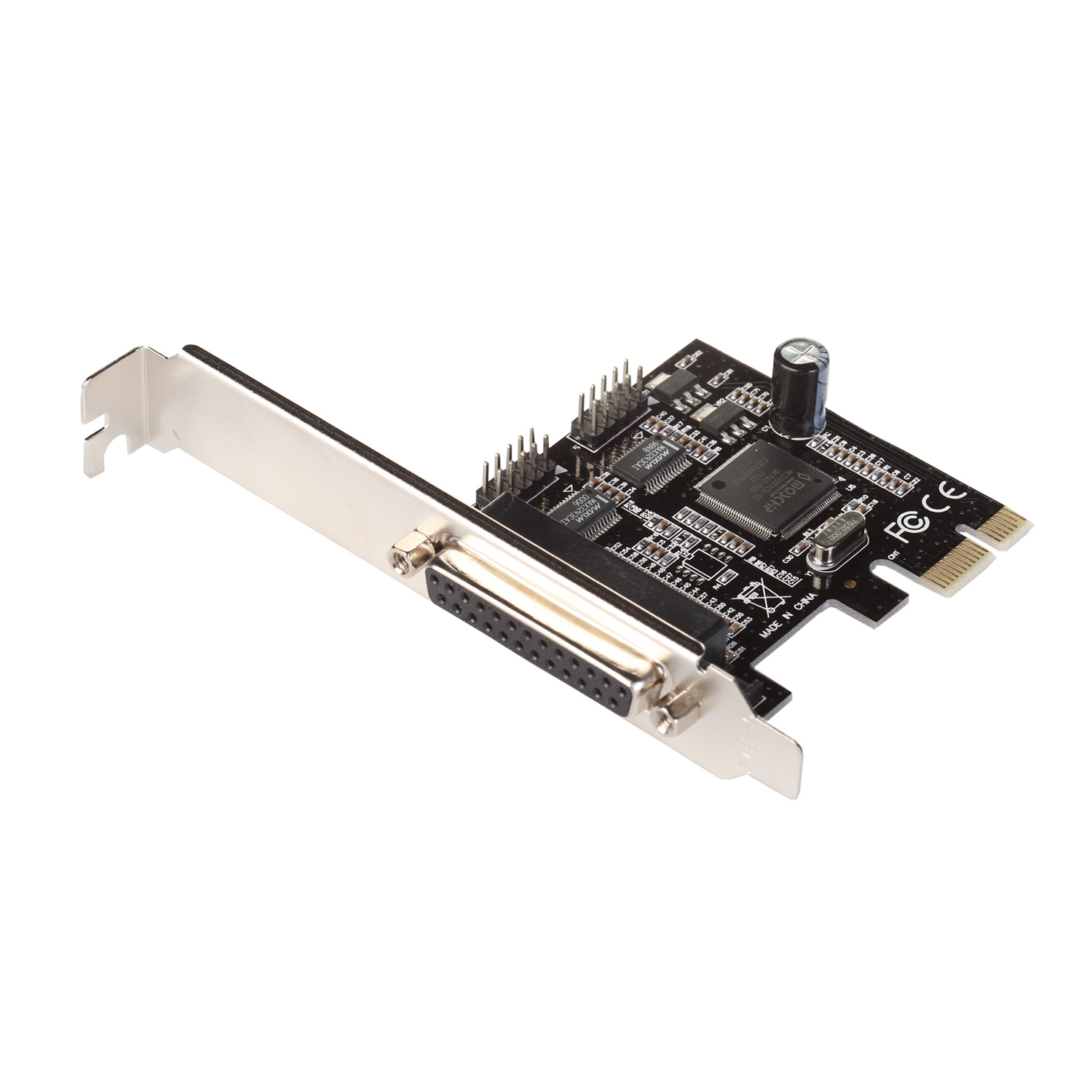

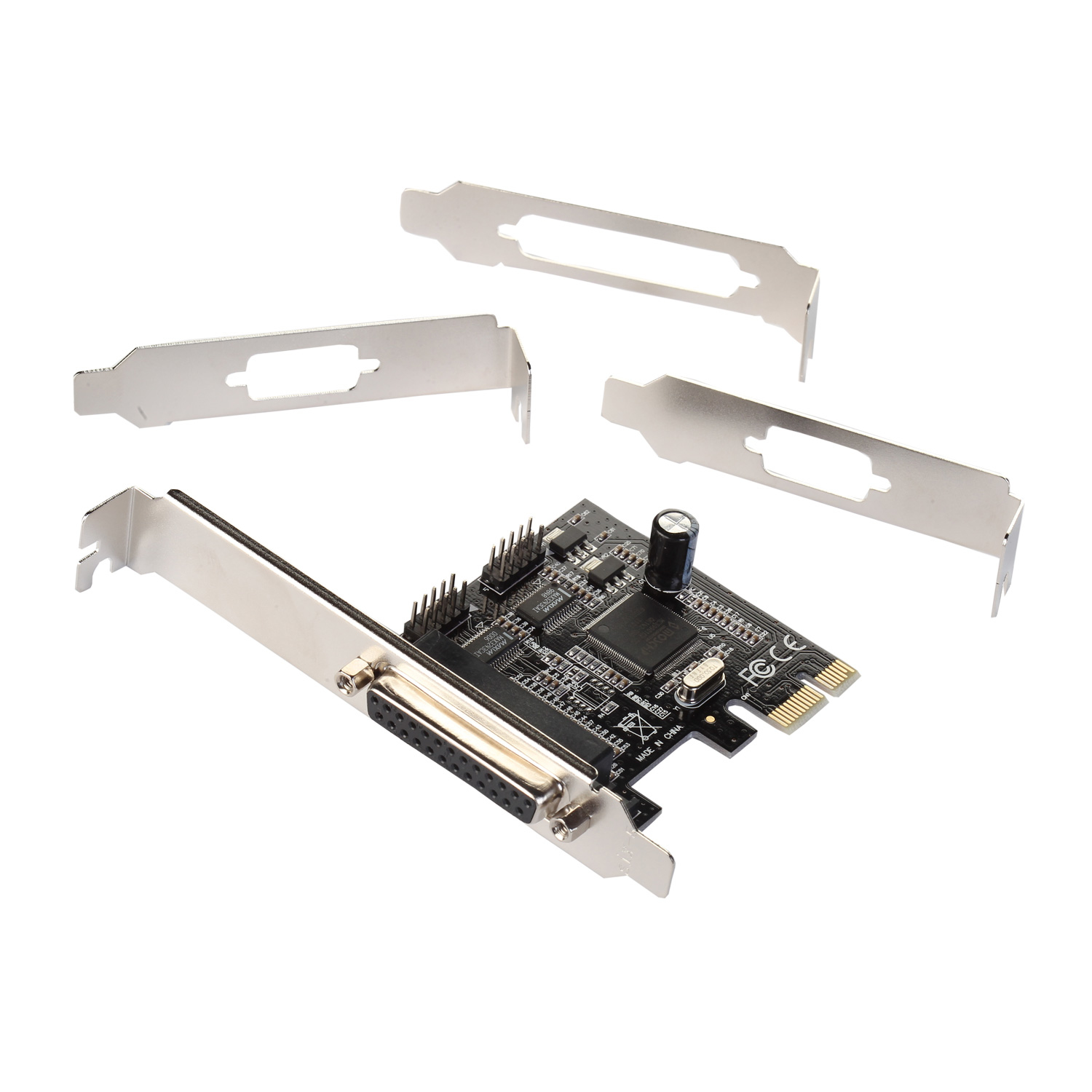

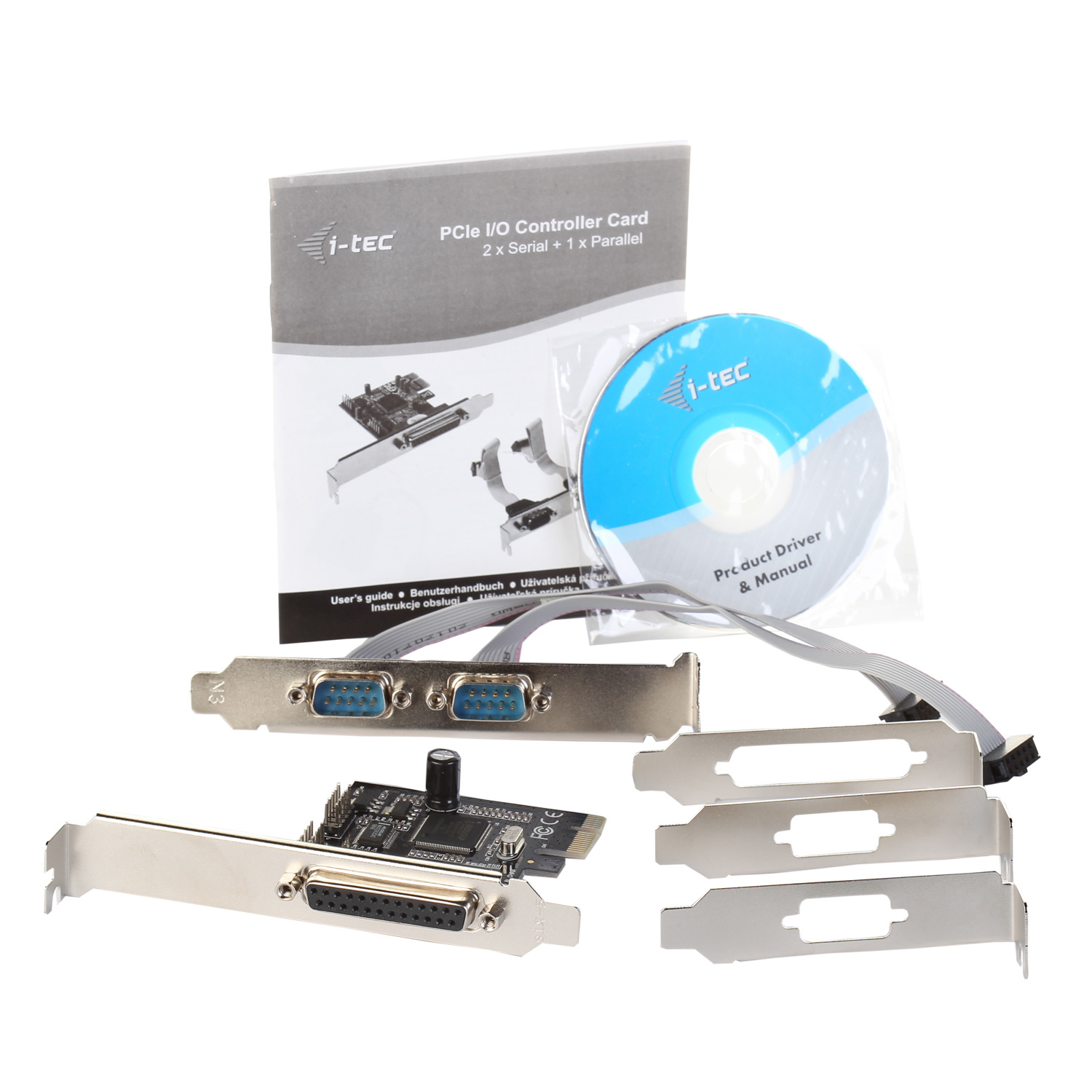

i-tec PCI-Express Card 2x Serial RS232 + 1x Parallel DB25
Model PCE2S1PEAN 8594047316542
29 specifications
- ConnectivityWired
- Weight46 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetMoschip MCS9901
Overview
- Connectivity
- Wired
- Weight
- 46 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Moschip MCS9901
- Brand
- i-tec
- Category
- Interface Cards/Adapters
- Model
- PCE2S1P
- Part number
- PCE2S1P
- EAN / UPC
- 8594047316542
- Also known as
- i-tec PCI-Express Card 2x Serial RS232 + 1x Parallel DB25
Specifications
29 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel, RS-232 |
| Expansion card standard | PCIe 1.0 |
| Serial ports quantity | 2 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Hot-swap | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | Moschip MCS9901 |
| FIFO (First In, First Out) | 256 B |
| Supports EPP and ECP | Yes |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 71 mm |
| Height | 19 mm |
| Weight | 46 g |
Packaging data
| Specification | Value |
|---|---|
| User guide | Yes |
| Package width | 195 mm |
| Package depth | 170 mm |
| Package height | 52 mm |
| Package weight | 185 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Ports quantity | 3 |
| Connectivity technology | Wired |
| Compatible operating systems | Windows 2000 Windows XP 32-bit Windows Vista 32/64-bit Windows 7 32/64-bit Linux Mac OS |
| RS-232 interface | Yes |
