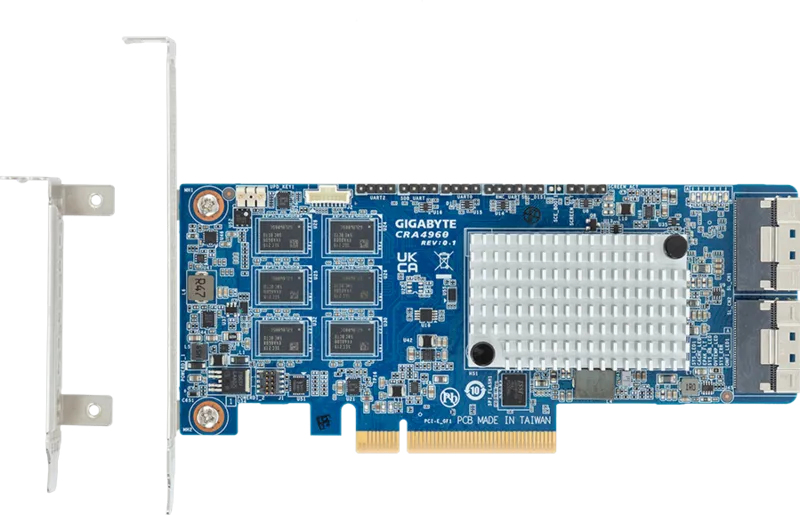

CRA4960 interface cards/adapter Internal SAS, SATA
Model CRA4960Part no. 9CRA4960NR-00EAN 4719331314316
14 specifications
- ColourBlue
- Host interfacePCIe
- InternalYes
- RAID levels0, 5, 6, 10, 50, 60
- Width167 mm
Overview
- Colour
- Blue
- Host interface
- PCIe
- Internal
- Yes
- RAID levels
- 0, 5, 6, 10, 50, 60
- Width
- 167 mm
- Brand
- GIGABYTE
- Category
- Interface Cards/Adapters
- Model
- CRA4960
- Part number
- 9CRA4960NR-00
- EAN / UPC
- 4719331314316
- Also known as
- GIGABYTE CRA4960 interface cards/adapter Internal SAS, SATA
Specifications
14 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SAS, SATA |
| Host interface gender | Male |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 4.0 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Blue |
| Purpose | Server |
| Cooling type | Passive |
Features
| Specification | Value |
|---|---|
| RAID levels | 0, 5, 6, 10, 50, 60 |
Technical details
| Specification | Value |
|---|---|
| Output connections | 2 x Slimline SAS 8i connectors; Supports up to 16 x SAS 12 Gb/s or SATA 6 Gb/s physical devices; Supports up to 4 x PCIe x4 NVMe physical devices |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167 mm |
| Depth | 68.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 10 pc(s) |
