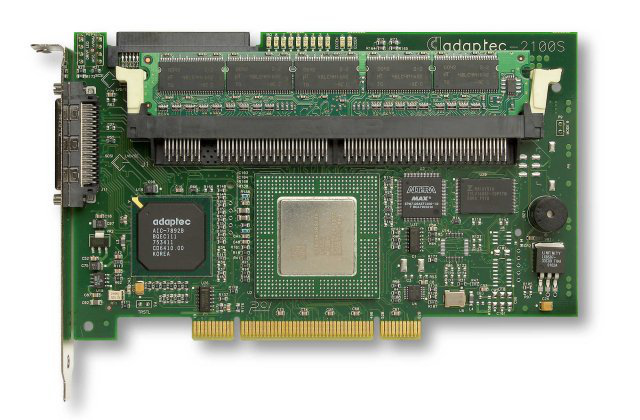

RAID Controller PCI 1xU160 RAID 32MB
Model RAID Controller PCI 1xU160 RAID 32MBPart no. S26361-F2405-L32EAN 4040528147685
11 specifications
- Memory32 MB
- ConnectivityWired
- TypePlug-in
- Host interfacePCI
- Operating temperature (T-T)0 - 55 °C
Overview
- Memory
- 32 MB
- Connectivity
- Wired
- Type
- Plug-in
- Host interface
- PCI
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- Fujitsu
- Category
- Interface Cards/Adapters
- Model
- RAID Controller PCI 1xU160 RAID 32MB
- Part number
- S26361-F2405-L32
- EAN / UPC
- 4040528147685, 5705965811634
- Also known as
- Fujitsu RAID Controller PCI 1xU160 RAID 32MB interface cards/adapter
Specifications
11 specifications in 3 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 160 Mbit/s |
| Connectivity technology | Wired |
| Form factor | Plug-in |
| Compatible operating systems | Microsoft Windows NT 4.0, SCO OpenServer 5, Microsoft Windows 95/98, Novell NetWare 4.2, SCO Unix 3.2.2 or later, Linux, Microsoft Windows 2000, Novell NetWare 5.x, UnixWare 7 or later |
| Dimensions (WxDxH) | 171 x 107 |
| Minimum system requirements | -Intel PC or equivalent -5 volt or 3.3 volt -PCI 2.2 compliant PCI slot |
| Internal memory | 32 MB |
| Slot type | 32-bit/33 MHz PCI |
| I/O ports | 1 x storage - Ultra160 SCSI - 68 pin HD D-Sub (HD-68) (internal) 1 x storage - Ultra160 SCSI - 68 PIN VHDCI (Mini-Centronics) (external) |
