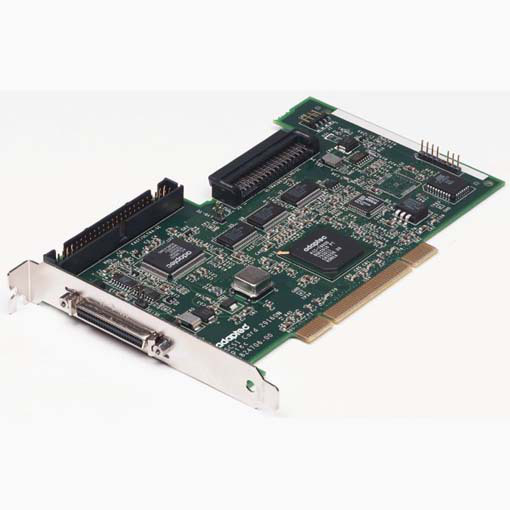

Controller SCSI U160 int ext SE
Model Controller SCSI U160 int ext SEPart no. S26361-F2399-L1EAN 4040528147661
9 specifications
- TypePlug-in
- Host interfacePCI
Overview
- Type
- Plug-in
- Host interface
- PCI
- Brand
- Fujitsu
- Category
- Interface Cards/Adapters
- Model
- Controller SCSI U160 int ext SE
- Part number
- S26361-F2399-L1
- EAN / UPC
- 4040528147661, 5704327944652
- Also known as
- Fujitsu Controller SCSI U160 int ext SE interface cards/adapter
Specifications
9 specifications in 2 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 160 Mbit/s |
| Bundled software | Adaptec EZ-SCSI software and supported operating systems drivers |
| Form factor | Plug-in |
| Compatible operating systems | Microsoft Windows NT 4.0, Novell NetWare 3.2, Novell NetWare 5, UnixWare 2.1.3, SunSoft Solaris 7, Microsoft Windows 95/98, Novell NetWare 4.2, SCO OpenServer 5.05, UnixWare 7.1, Linux, Microsoft Windows 2000, SunSoft Solaris 8 |
| Dimensions (WxDxH) | 175 x 98 |
| Minimum system requirements | Intel PC or equivalent with available PCI slot (2.1 PCI compliant) |
| Slot type | 32-bit PCI |
| I/O ports | Internal Connectors: One 68-pin for LVD SCSI One 50-pin for Ultra SCSI External Connectors: One 50-pin for Ultra SCSI |
