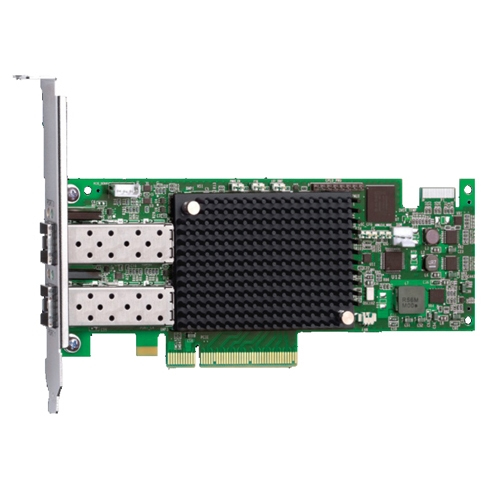

Dell Emulex LPe16002B
Model Emulex LPe16002BPart no. 406-10548
24 specifications
- ConnectivityWired
- TypeLP
- ColourGreen
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)14.025 Gbit/s
Overview
- Connectivity
- Wired
- Type
- LP
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 14.025 Gbit/s
- Brand
- Dell
- Category
- Interface Cards/Adapters
- Model
- Emulex LPe16002B
- Part number
- 406-10548
- Also known as
- DELL Emulex LPe16002B interface cards/adapter Internal Fiber
Specifications
24 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Fiber |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 2.0 |
| Fiber optic connector | FC, LC |
| Connector(s) | 2x Fiber 16Gb |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Certification | C-Tick, CISPR 22 Class A, RRL, VCCI Class A ITE, EN55024, EN55022 Class A, CISPR 22, CB, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, TUV Bauart, BSMI Class A, KCC Class A |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 14.025 Gbit/s |
| Full duplex | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 167.6 mm |
| Height | 68.9 mm |
Other features
| Specification | Value |
|---|---|
| Data link protocols | 16Gb Fibre Channel (SW) |
| Maximum operating distance | 125 m |
| Connectivity technology | Wired |
| Form factor | LP |
| Compatible operating systems | Linux, Microsoft Windows, VMware ESXi, Oracle Solaris |
| Firmware upgradeable | Yes |
| Compatibility | Dell: PowerEdge R620 PowerEdge R715 PowerEdge R720 Poweredge R720xd PowerEdge R815 PowerEdge R820 PowerEdge R910 |
