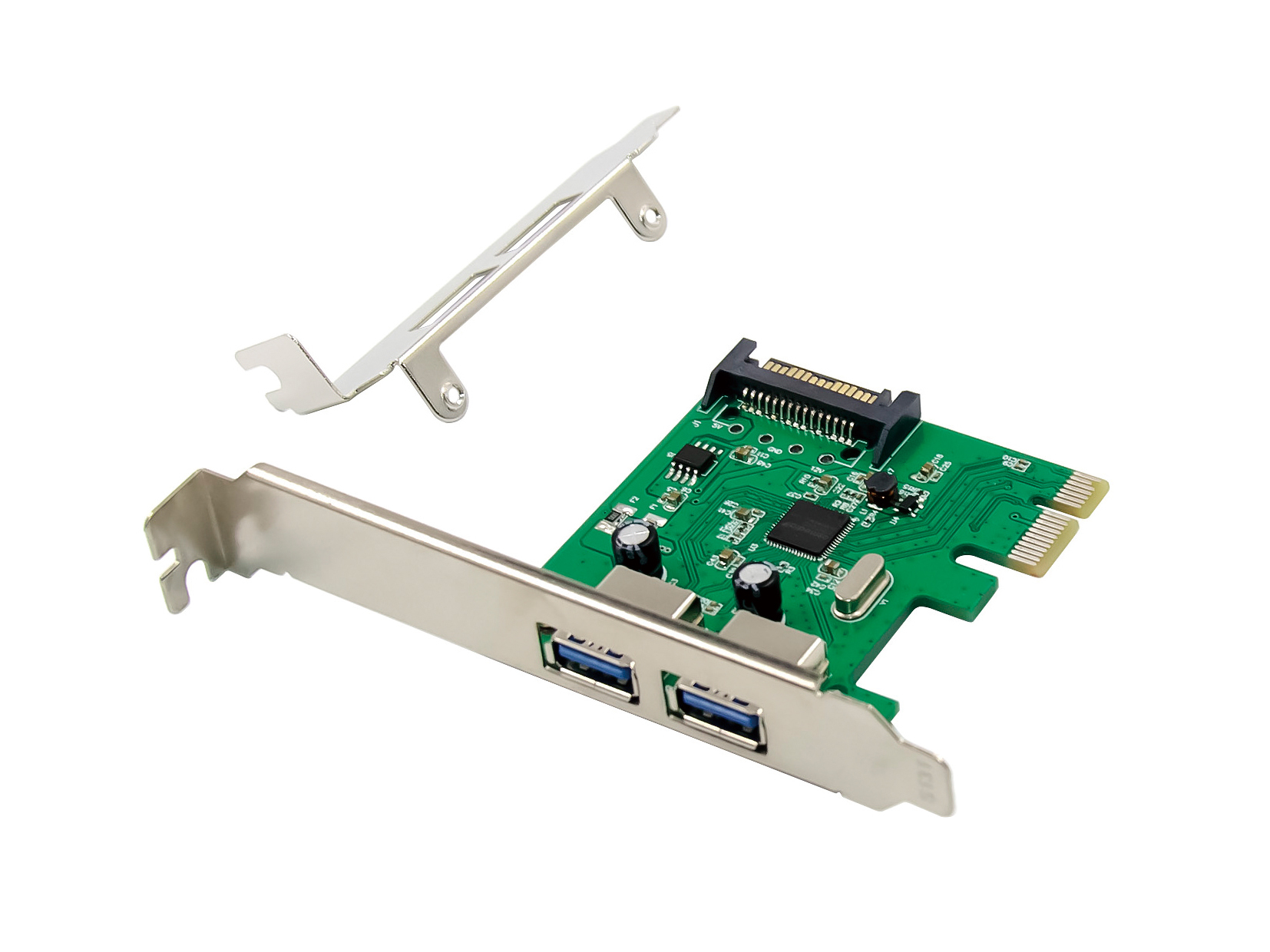

EMRICK 2-Port USB 3.0 PCIe Card
Model EMRICK06GEAN 4015867223697
33 specifications
- Weight35 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)5 Gbit/s
- Width61 mm
Overview
- Weight
- 35 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 5 Gbit/s
- Width
- 61 mm
- Brand
- Conceptronic
- Category
- Interface Cards/Adapters
- Model
- EMRICK06G
- Part number
- EMRICK06G
- EAN / UPC
- 4015867223697
- Also known as
- Conceptronic EMRICK 2-Port USB 3.0 PCIe Card
Specifications
33 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card standard | PCI 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Internal SATA ports quantity | 1 |
| SATA power connector type | SATA 15-pin |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Purpose | PC |
| Hot-swap | Yes |
| Country of origin | China |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 5 Gbit/s |
| UASP support | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 65 mm |
| Height | 20 mm |
| Weight | 35 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Quick installation guide | Yes |
| Package width | 125 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 120 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 405 mm |
| Master (outer) case gross weight | 3.6 kg |
