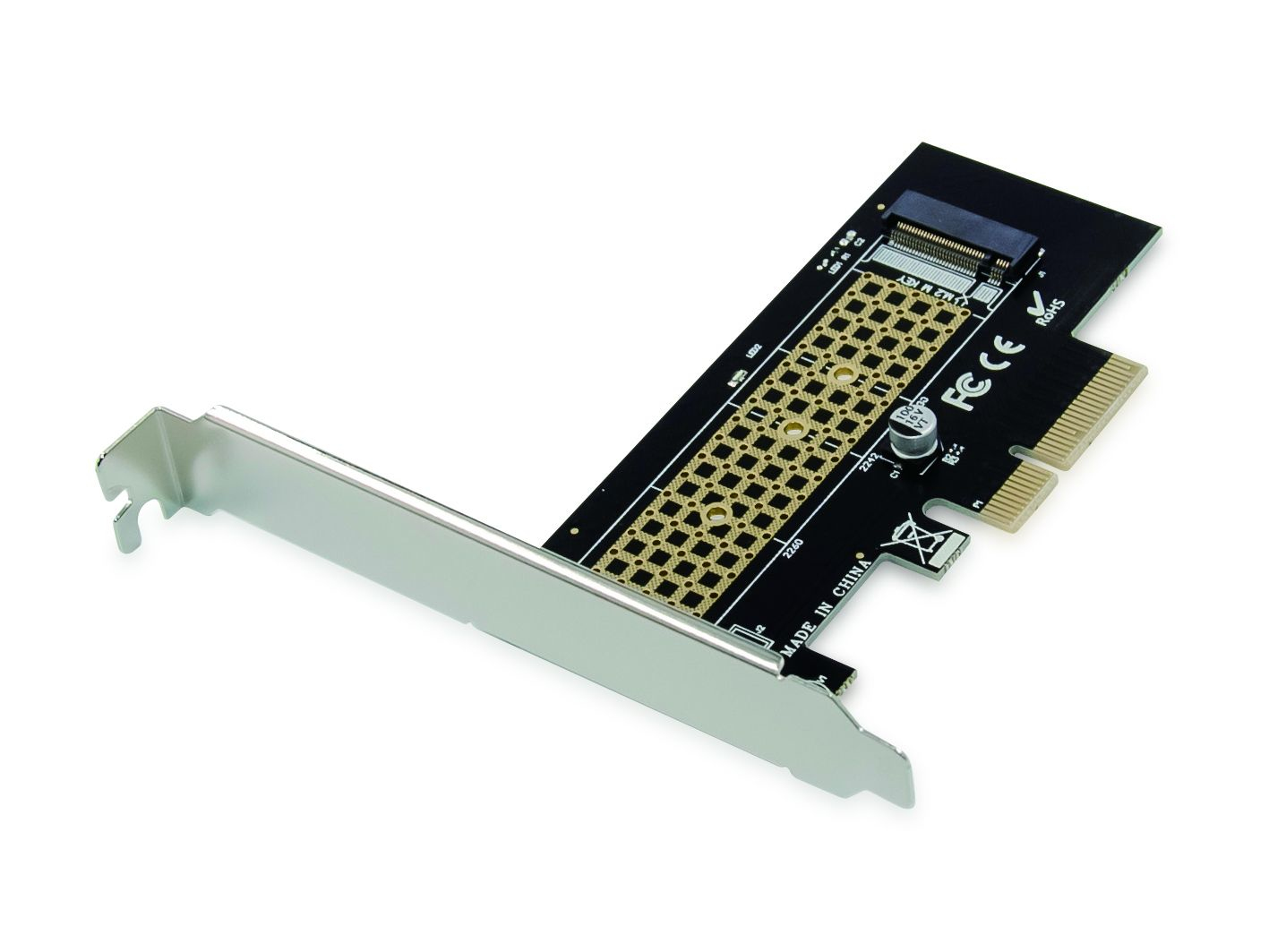

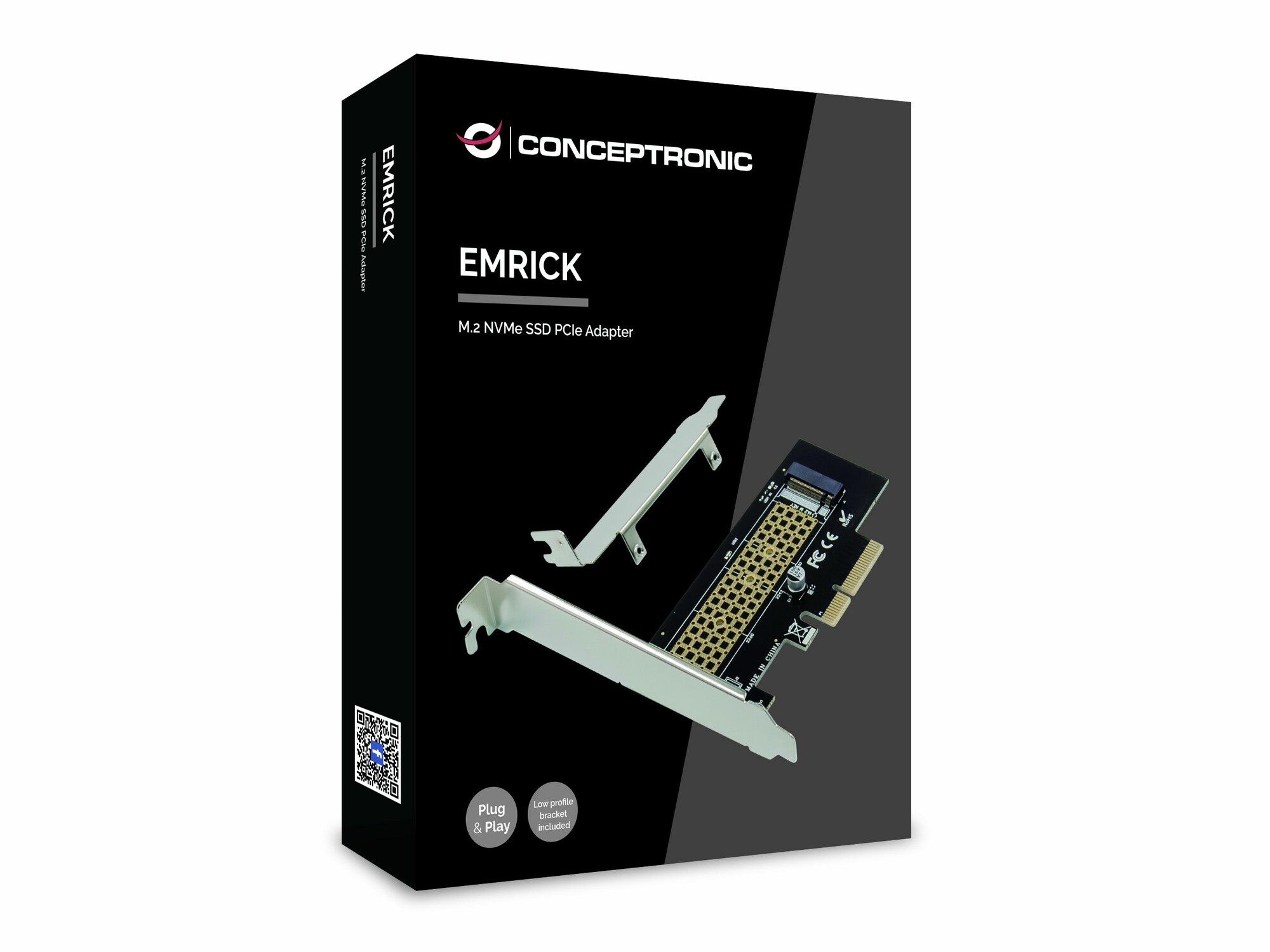

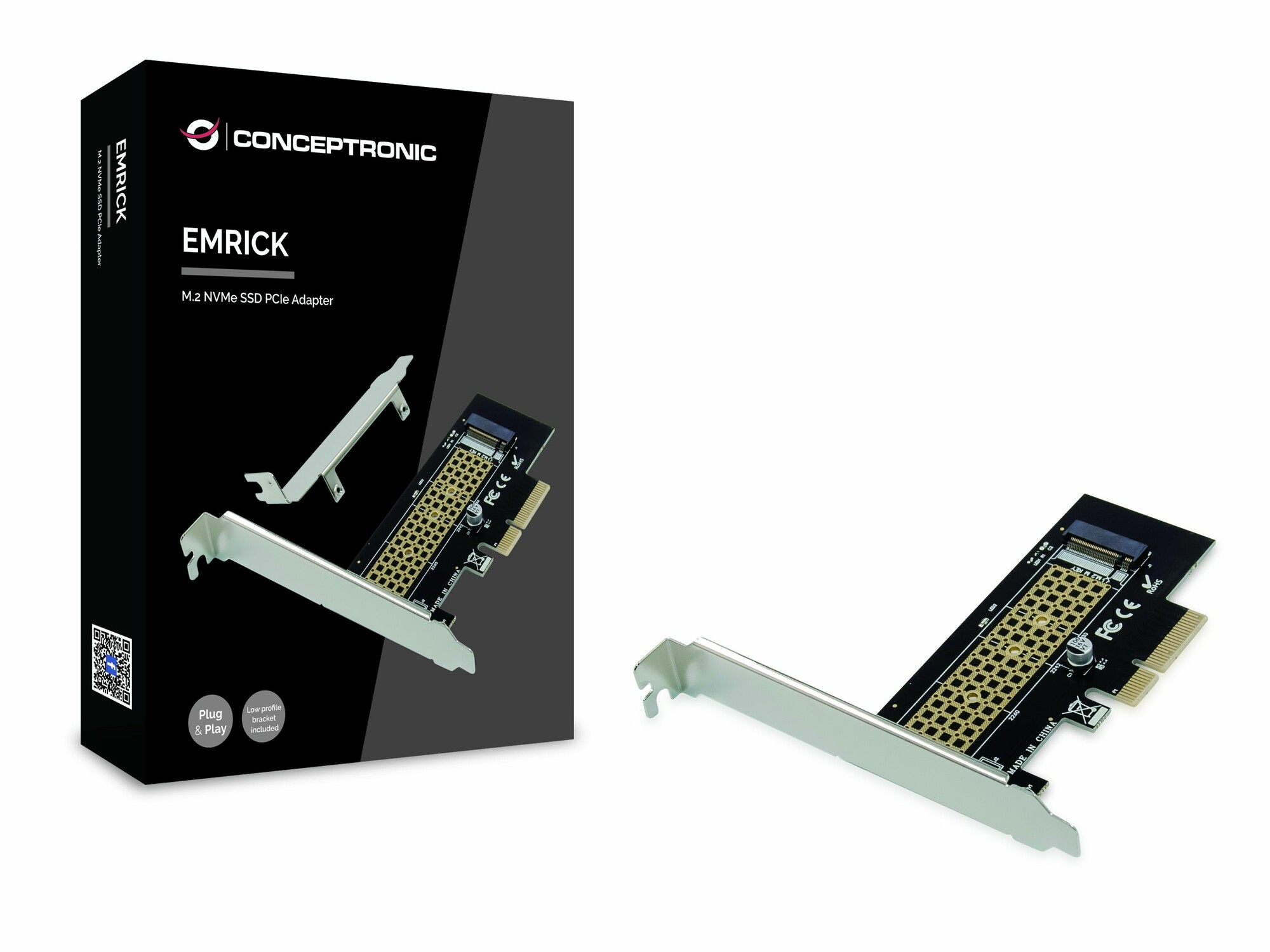

EMRICK M.2 NVMe SSD PCIe Adapter
Model EMRICK05BEAN 4015867223673
29 specifications
- Weight42 g
- ColourBlack, Stainless steel
- Host interfacePCIe
- InternalYes
- Bandwidth32 Gbit/s
- Width40 mm
Overview
- Weight
- 42 g
- Colour
- Black, Stainless steel
- Host interface
- PCIe
- Internal
- Yes
- Bandwidth
- 32 Gbit/s
- Width
- 40 mm
- Brand
- Conceptronic
- Category
- Interface Cards/Adapters
- Model
- EMRICK05B
- Part number
- EMRICK05B
- EAN / UPC
- 4015867223673
- Also known as
- Conceptronic EMRICK M.2 NVMe SSD PCIe Adapter
Specifications
29 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | M.2 |
| Expansion card standard | PCIe 3.0 |
| Number of M.2 (M) slots | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black, Stainless steel |
| Cooling type | Passive |
| Country of origin | China |
Features
| Specification | Value |
|---|---|
| Bandwidth | 32 Gbit/s |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterpris |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 102 mm |
| Height | 18 mm |
| Weight | 42 g |
Packaging data
| Specification | Value |
|---|---|

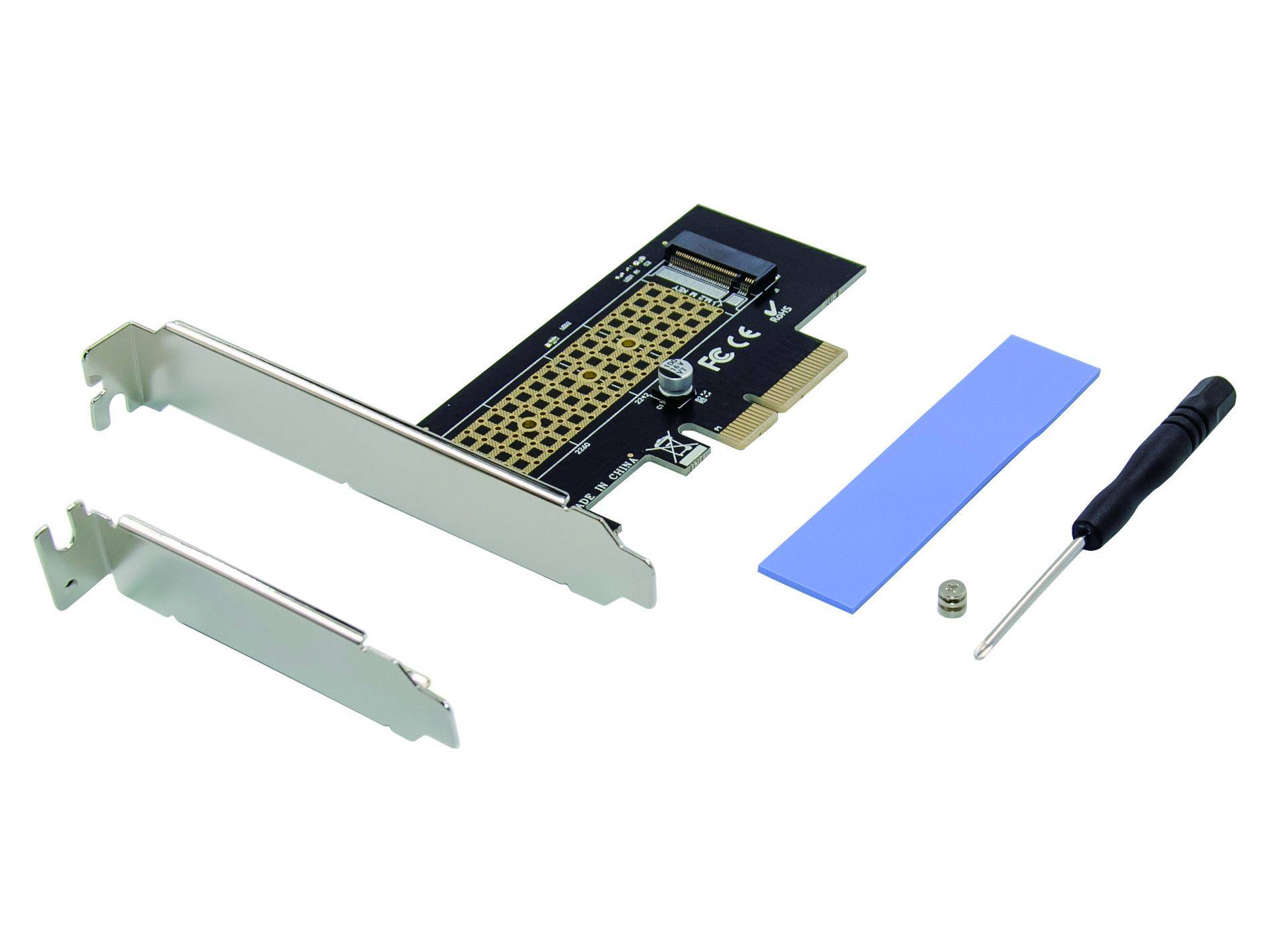

| Mounting brackets included | Yes |
| Screws included | Yes |
| Quick installation guide | Yes |
| Package width | 132 mm |
| Package depth | 156 mm |
| Package height | 26 mm |
| Package weight | 90 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 180 mm |
| Master (outer) case height | 415 mm |
| Master (outer) case gross weight | 3.45 kg |
