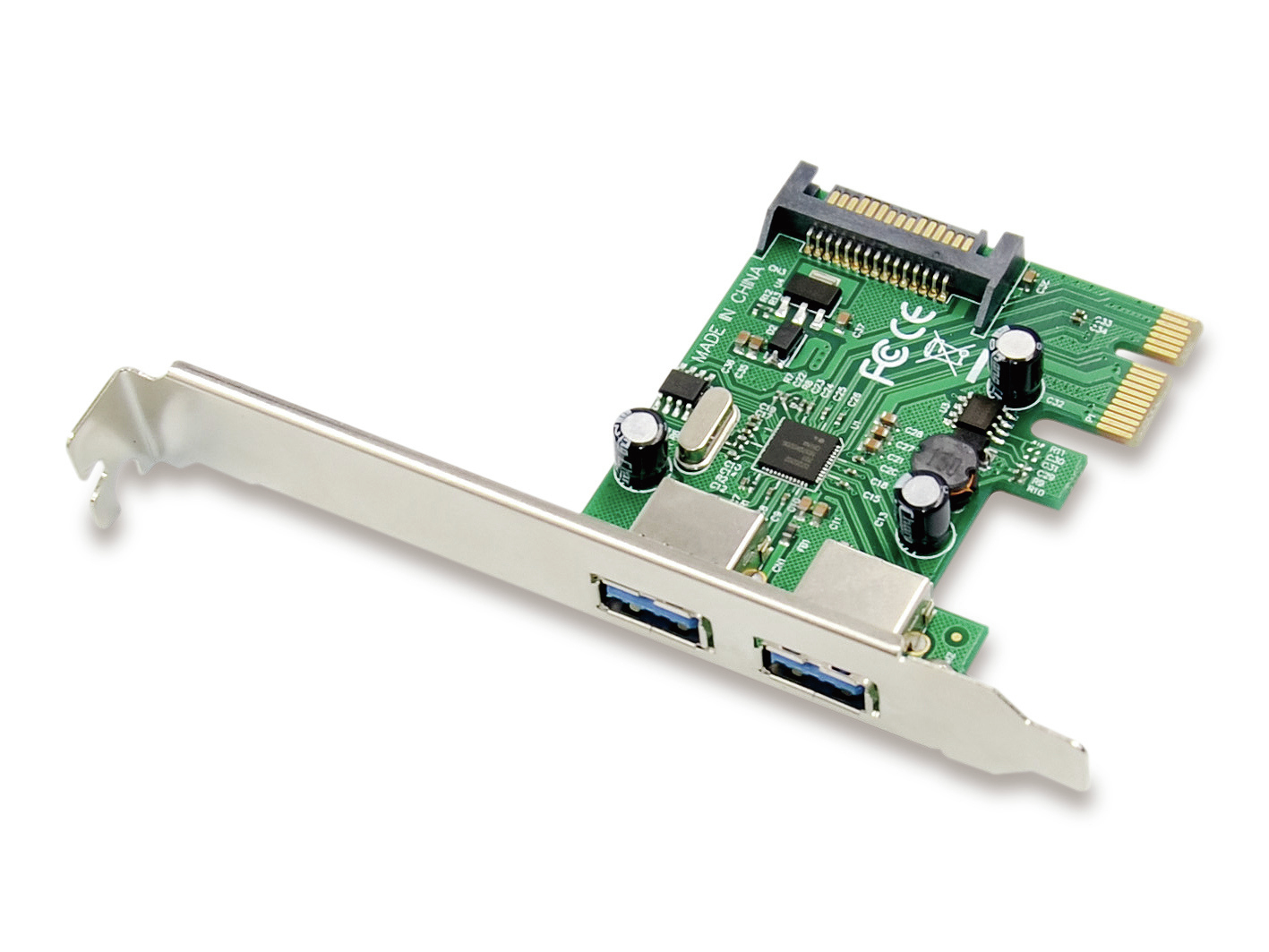

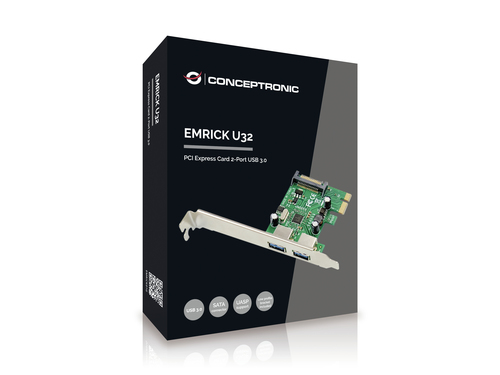

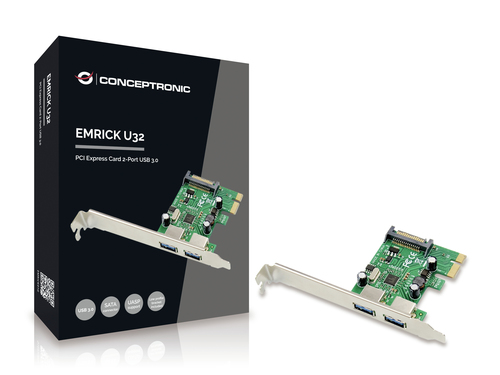

EMRICK01G interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Model EMRICK01GEAN 4015867221952
30 specifications
- ProcessorNEC720202
- Weight40 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- Linux operating systems supportedKernel 2.6.31
Overview
- Processor
- NEC720202
- Weight
- 40 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Linux operating systems supported
- Kernel 2.6.31
- Brand
- Conceptronic
- Category
- Interface Cards/Adapters
- Model
- EMRICK01G
- Part number
- EMRICK01G
- EAN / UPC
- 4015867221952
- Also known as
- Conceptronic EMRICK01G interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Specifications
30 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Purpose | PC |
| Cooling type | Passive |
| Number of expansion slots | 1 |
| Hot-swap | Yes |
| Country of origin | China |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | NEC720202 |
| Data transfer rate (max) | 5000 Gbit/s |
| UASP support | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Linux operating systems supported | Kernel 2.6.31 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54 mm |
| Depth | 65 mm |
| Height | 1.6 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Quick installation guide | Yes |
| Package width | 132 mm |
| Package depth | 26 mm |
| Package height | 156 mm |
| Package weight | 80 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
