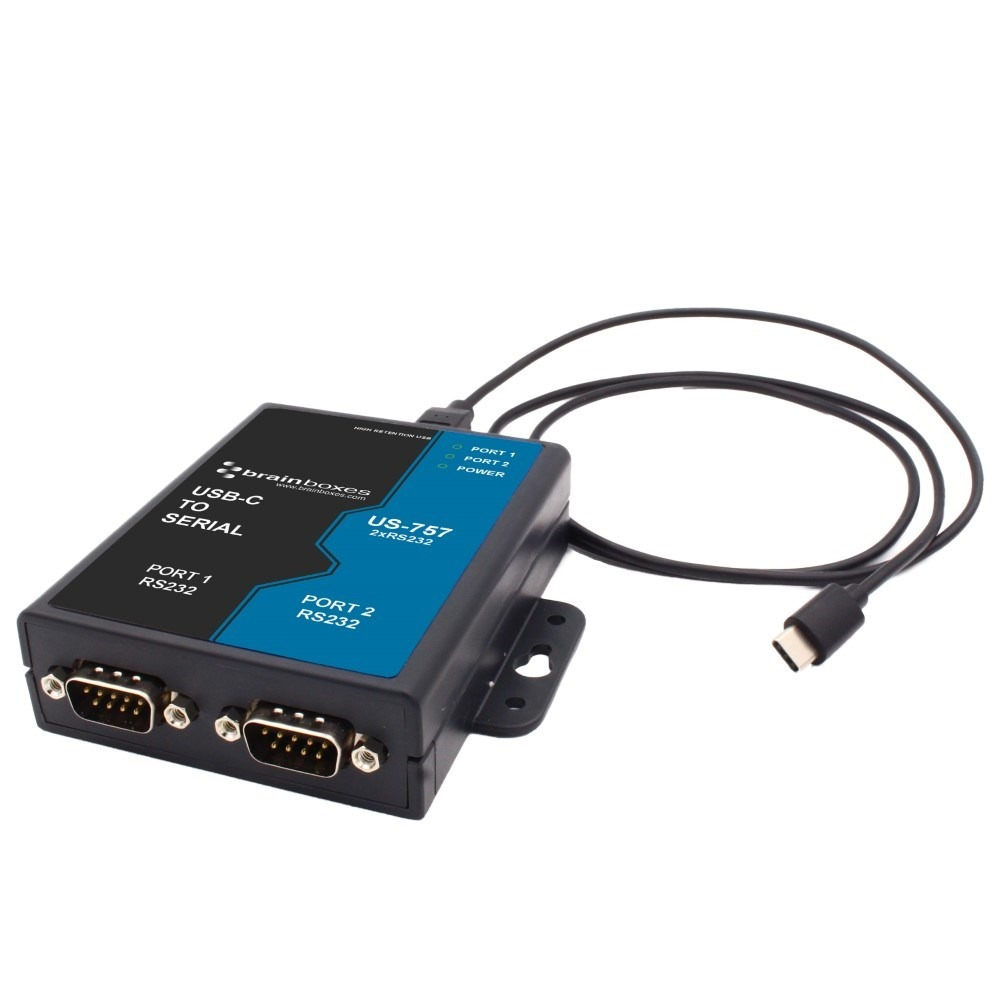

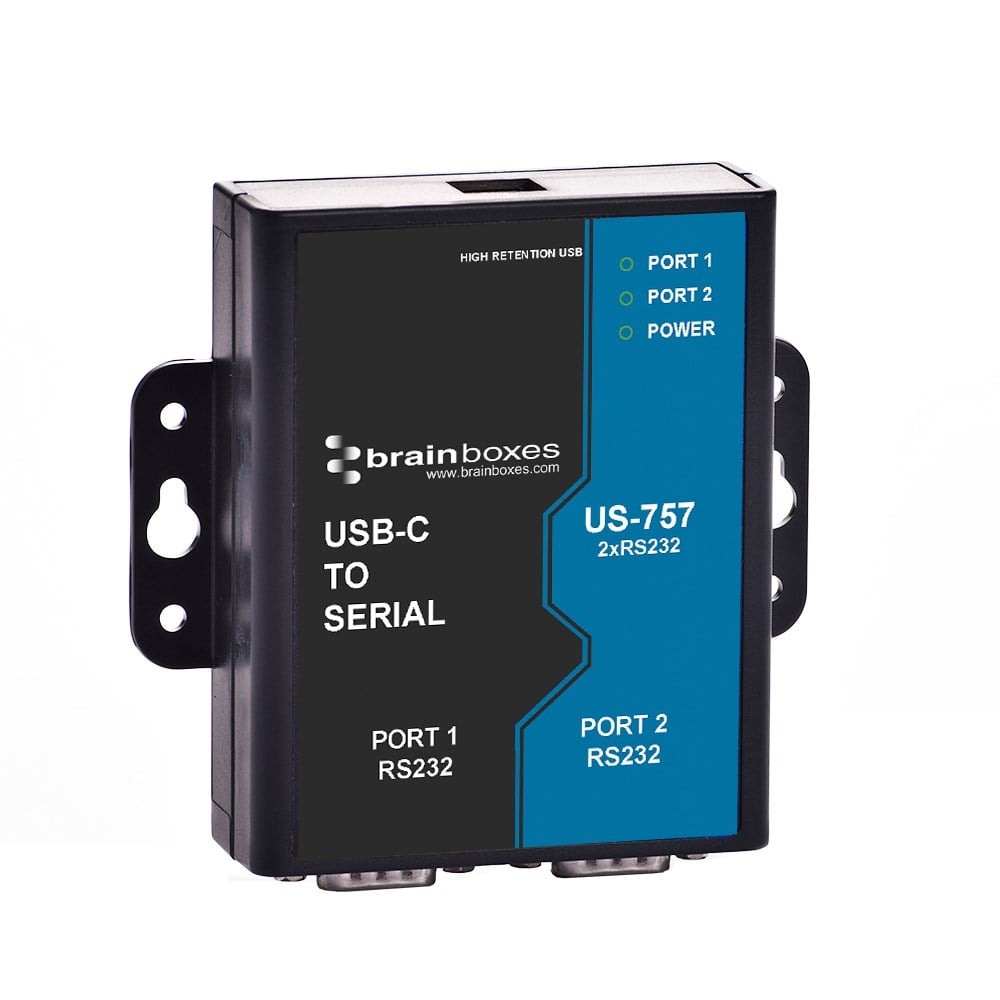

USB-C to 2 Port RS232 Serial Server Hub
Model US-757EAN 837324004625
38 specifications
- Weight109 g
- ColourBlack
- Host interfaceUSB Type-C
- InternalNo
- Baud rate1000 Kbit/s
- Output voltage3.3 V
Overview
- Weight
- 109 g
- Colour
- Black
- Host interface
- USB Type-C
- Internal
- No
- Baud rate
- 1000 Kbit/s
- Output voltage
- 3.3 V
- Brand
- Brainboxes
- Category
- Interface Cards/Adapters
- Model
- US-757
- Part number
- US-757
- EAN / UPC
- 837324004625
- Also known as
- Brainboxes USB-C to 2 Port RS232 Serial Server Hub
Specifications
38 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB Type-C |
| Output interface | Serial |
| Host interface gender | Male |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black |

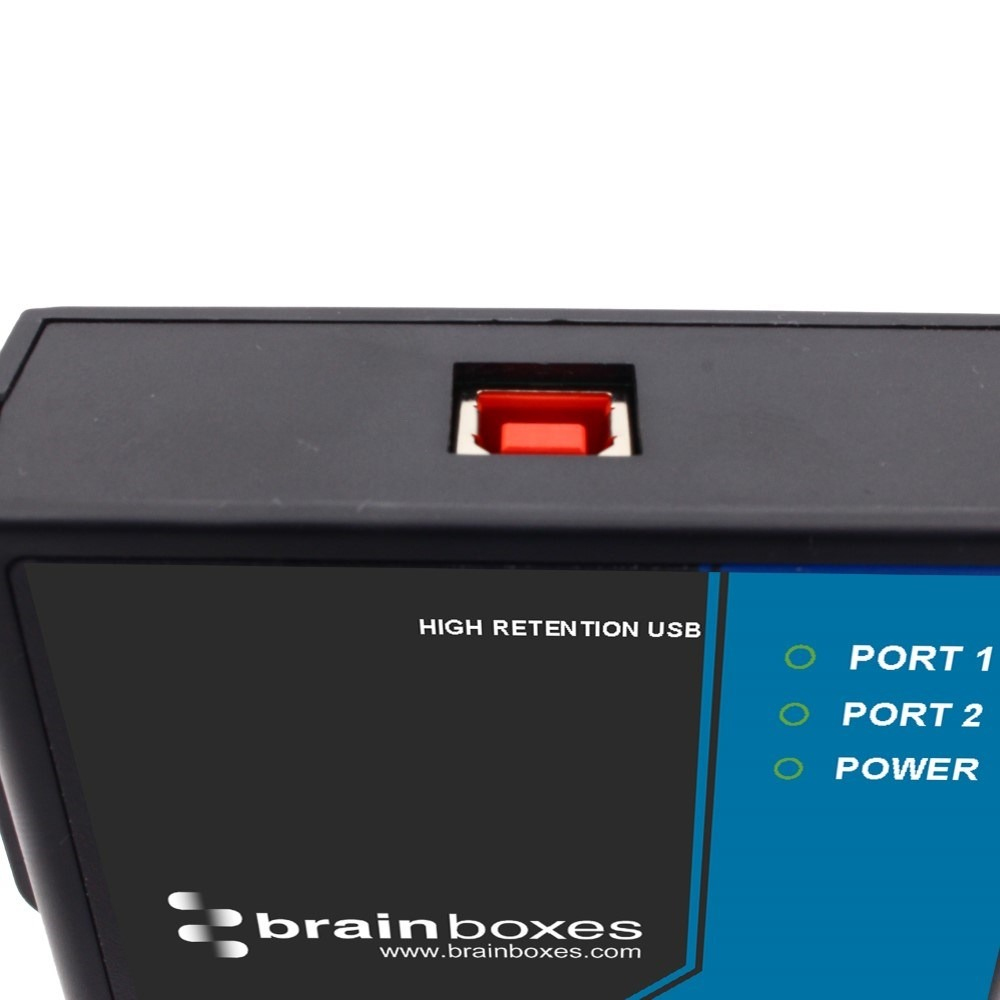

| LED indicators | Status |
| Country of origin | United Kingdom |
Features
| Specification | Value |
|---|---|
| Baud rate | 1000 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Plug and Play | Yes |
| Export Control Classification Number (ECCN) | 4A994 |
Power
| Specification | Value |
|---|---|
| Output voltage | 3.3 V |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 100 mm |
| Height | 27 mm |
| Weight | 109 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Package width | 160 mm |
| Package depth | 49 mm |
| Package height | 135 mm |
| Package weight | 260 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84718 |
Other features
| Specification | Value |
|---|---|
| Cable length | 1 m |
