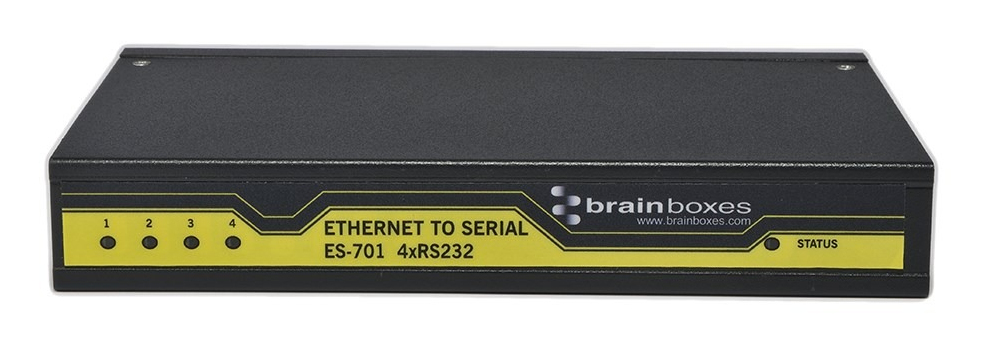

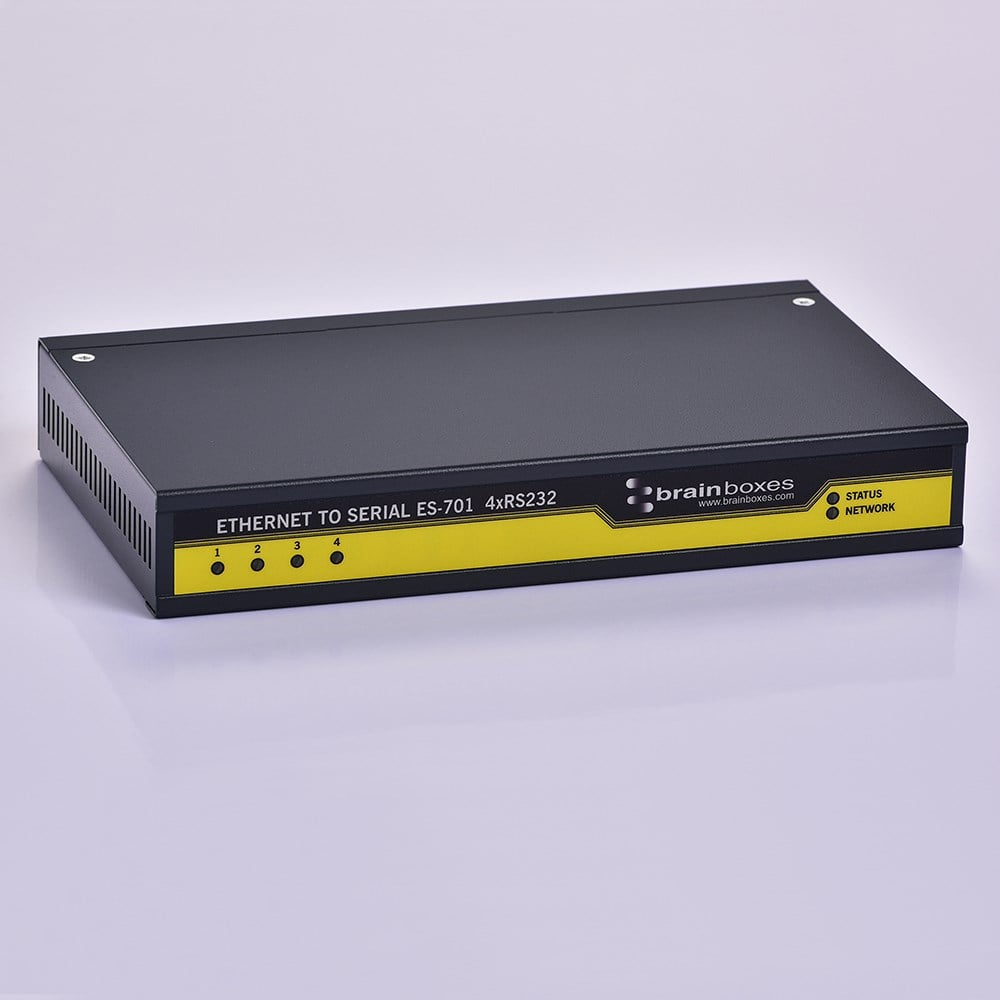

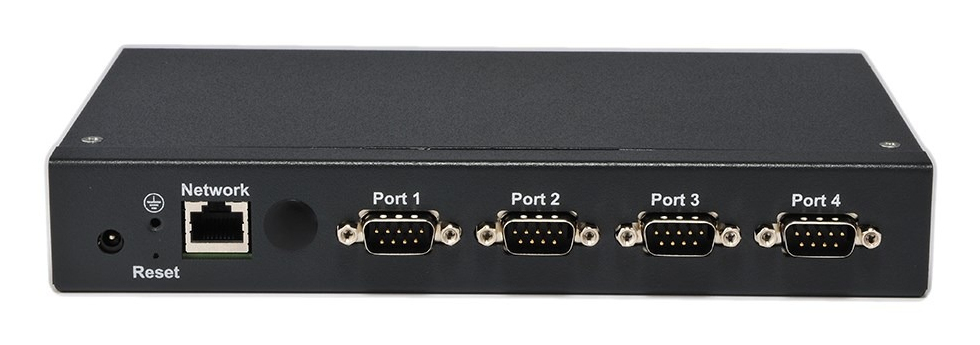

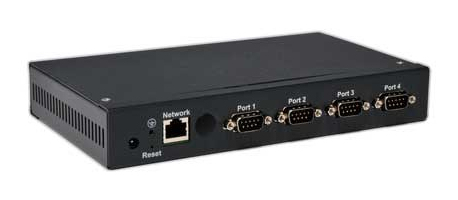

Brainboxes Ethernet 4 Port RS232
Model ES-701EAN 837324009965
31 specifications
- ConnectivityWired
- Weight959 g
- ColourBlack
- Host interfaceRJ-45
- InternalNo
- Data transfer rate (max)0.1 Gbit/s
Overview
- Connectivity
- Wired
- Weight
- 959 g
- Colour
- Black
- Host interface
- RJ-45
- Internal
- No
- Data transfer rate (max)
- 0.1 Gbit/s
- Brand
- Brainboxes
- Category
- Interface Cards/Adapters
- Model
- ES-701
- Part number
- ES-701
- EAN / UPC
- 837324009965, 5052181426068, 8373240099656, 8716065295016
- Also known as
- Brainboxes Ethernet 4 Port RS232
Specifications
31 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | RJ-45 |
| Output interface | RS-232 |
| Host interface gender | Female |
| Serial ports quantity | 4 |
| Serial interface type | DB9 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black |
| LED indicators | Status |
| Certification | EMC CE, WEEE, TAA, AEO C-TPAT |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 0.1 Gbit/s |
| FIFO (First In, First Out) | 2048 B |
| Flow control support | Yes |
| Export Control Classification Number (ECCN) | 5A991.b |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.35 W |
| Power supply input voltage | 5 - 30 V |
| External power adapter | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 300 mm |
| Height | 80 mm |
| Weight | 959 g |
Packaging data
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Package width | 240 mm |
| Package depth | 260 mm |
| Package height | 80 mm |
| Package weight | 1.05 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 851762 |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Mac compatibility | No |
