PCES-SA2N interface cards/adapter Internal SATA
Model PCES-SA2NEAN 8595247906281
31 specifications
- ColourBlack
- Host interfacePCIe
- InternalYes
- ChipsetASMedia ASM1061
- Warranty period3 year(s)
Overview
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASMedia ASM1061
- Warranty period
- 3 year(s)
- Brand
- Axagon
- Category
- Interface Cards/Adapters
- Model
- PCES-SA2N
- Part number
- PCES-SA2N
- EAN / UPC
- 8595247906281
- Also known as
- Axagon PCES-SA2N interface cards/adapter Internal SATA
Specifications
31 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | SATA |
| Host interface gender | Male |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 2 |
| Port multiplier | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Purpose | PC |
| LED indicators | Yes |
| Hot-Plug support | Yes |
Features
| Specification | Value |
|---|---|
| Chipset | ASMedia ASM1061 |
| Data transfer rate (max) | 6 Gbit/s |
| TRIM support | Yes |
| Native Command Queuing (NCQ) | Yes |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33 |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

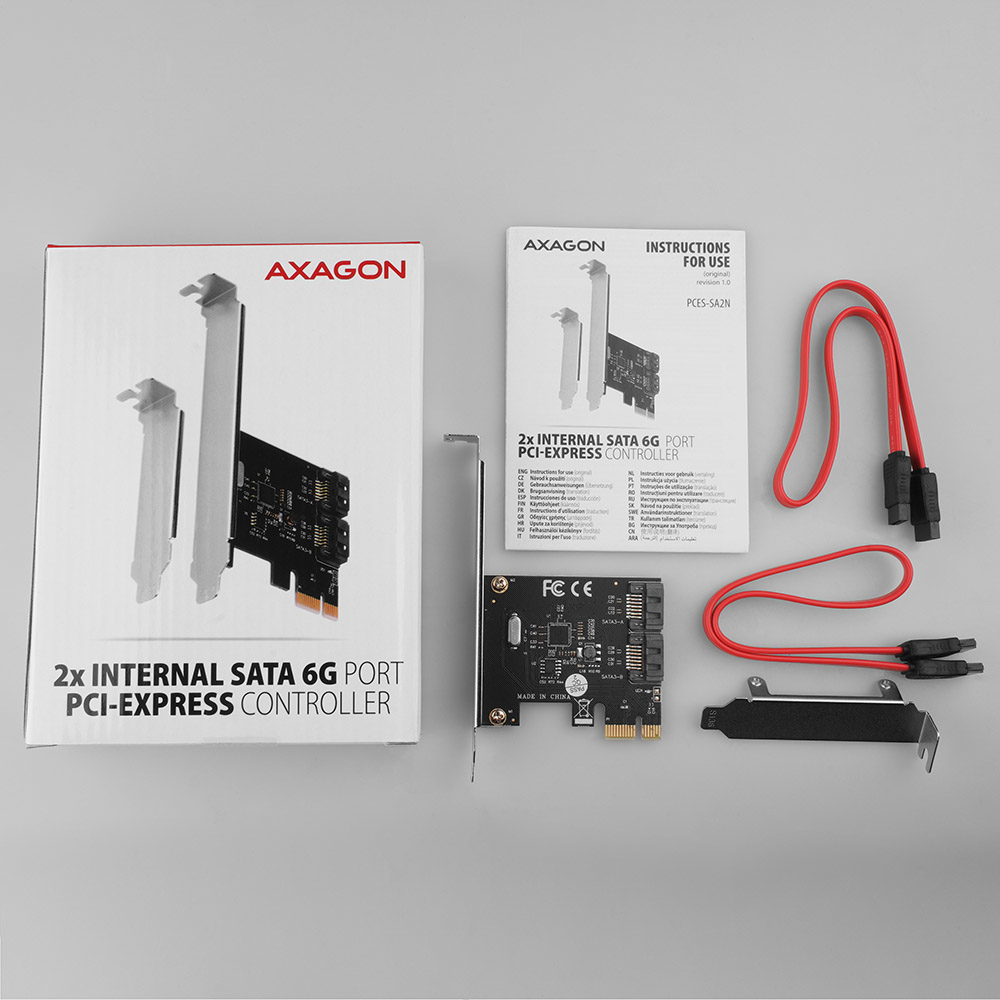

| Cables included | SATA |
| Quick installation guide | Yes |
| Package width | 133 mm |
| Package depth | 30 mm |
| Package height | 170 mm |
| Package weight | 115 g |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Quantity per box | 100 pc(s) |
