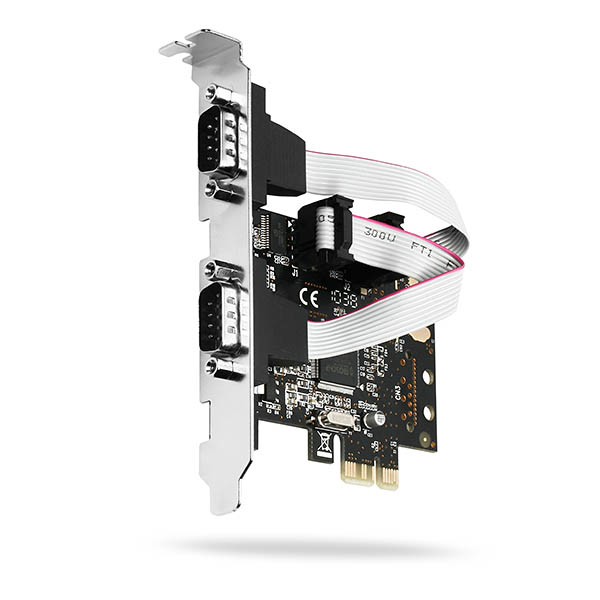

PCEA-S2 interface cards/adapter Internal Serial
Model PCEA-S2EAN 8595247901552
25 specifications
- Host interfacePCIe
- InternalYes
- Bandwidth2.5 Gbit/s
- Compliance certificatesRoHS
Overview
- Host interface
- PCIe
- Internal
- Yes
- Bandwidth
- 2.5 Gbit/s
- Compliance certificates
- RoHS
- Brand
- Axagon
- Category
- Interface Cards/Adapters
- Model
- PCEA-S2
- Part number
- PCEA-S2
- EAN / UPC
- 8595247901552
- Also known as
- Axagon PCEA-S2 interface cards/adapter Internal Serial
Specifications
25 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Purpose | PC |
| Country of origin | China |
| Certification | CE |
Features
| Specification | Value |
|---|---|
| Bandwidth | 2.5 Gbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 9 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016 |
| Other operating systems supported | DOS |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 3 year(s) |
Packaging data
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Quick installation guide | Yes |
| Package type | Box |
