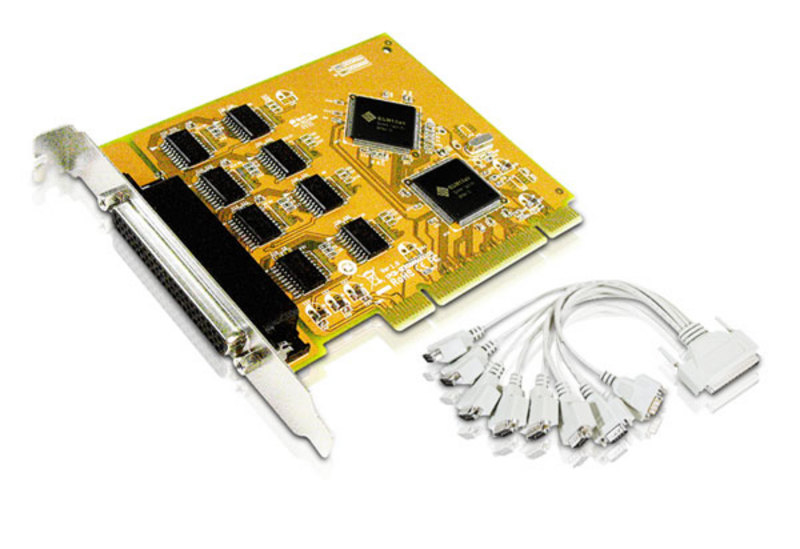

IC108S interface cards/adapter Internal Serial
Model IC108SPart no. IC108S-AT
22 specifications
- ColourGrey, Yellow
- Host interfaceSerial
- InternalYes
- Operating temperature (T-T)0 - 57 °C
Overview
- Colour
- Grey, Yellow
- Host interface
- Serial
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 57 °C
- Brand
- ATEN
- Category
- Interface Cards/Adapters
- Model
- IC108S
- Part number
- IC108S-AT
- Also known as
- ATEN IC108S interface cards/adapter Internal Serial
Specifications
22 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Serial |
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Grey, Yellow |
Features
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Data bits | 4, 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Full duplex | Yes |
| Flow control support | Yes |
| Parity bit | Even, Mark, Odd, Space |
| Flow Control type | XON/XOFF |
| Plug and Play | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 57 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | DOS |
