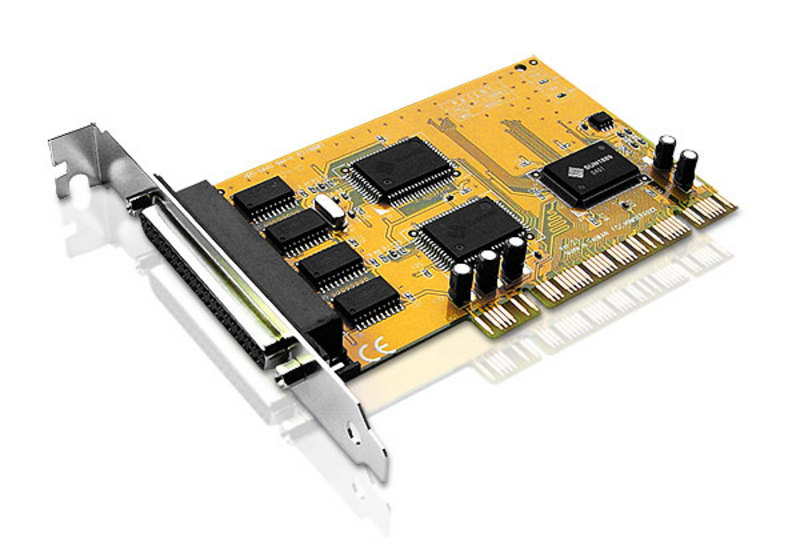

IC-104S interface cards/adapter Internal RS-232
Model IC-104SEAN 4710423772458
21 specifications
- ColourMulticolour
- Host interfacePCI
- InternalYes
- Baud rate921.6 Kbit/s
- Operating temperature (T-T)0 - 57 °C
Overview
- Colour
- Multicolour
- Host interface
- PCI
- Internal
- Yes
- Baud rate
- 921.6 Kbit/s
- Operating temperature (T-T)
- 0 - 57 °C
- Brand
- ATEN
- Category
- Interface Cards/Adapters
- Model
- IC-104S
- Part number
- IC-104S
- EAN / UPC
- 4710423772458
- Also known as
- ATEN IC-104S interface cards/adapter Internal RS-232
Specifications
21 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCI |
| Output interface | RS-232 |
| Serial ports quantity | 4 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Multicolour |
| Number of fans | 0 fan(s) |
Features
| Specification | Value |
|---|---|
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 32 B |
| Data bits | 4, 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, Mark, Odd, Space |
| Flow Control type | No, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 57 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 3.x, Windows ME, Windows NT, Windows XP |
| Linux operating systems supported | Yes |
| Other operating systems supported | DOS |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
