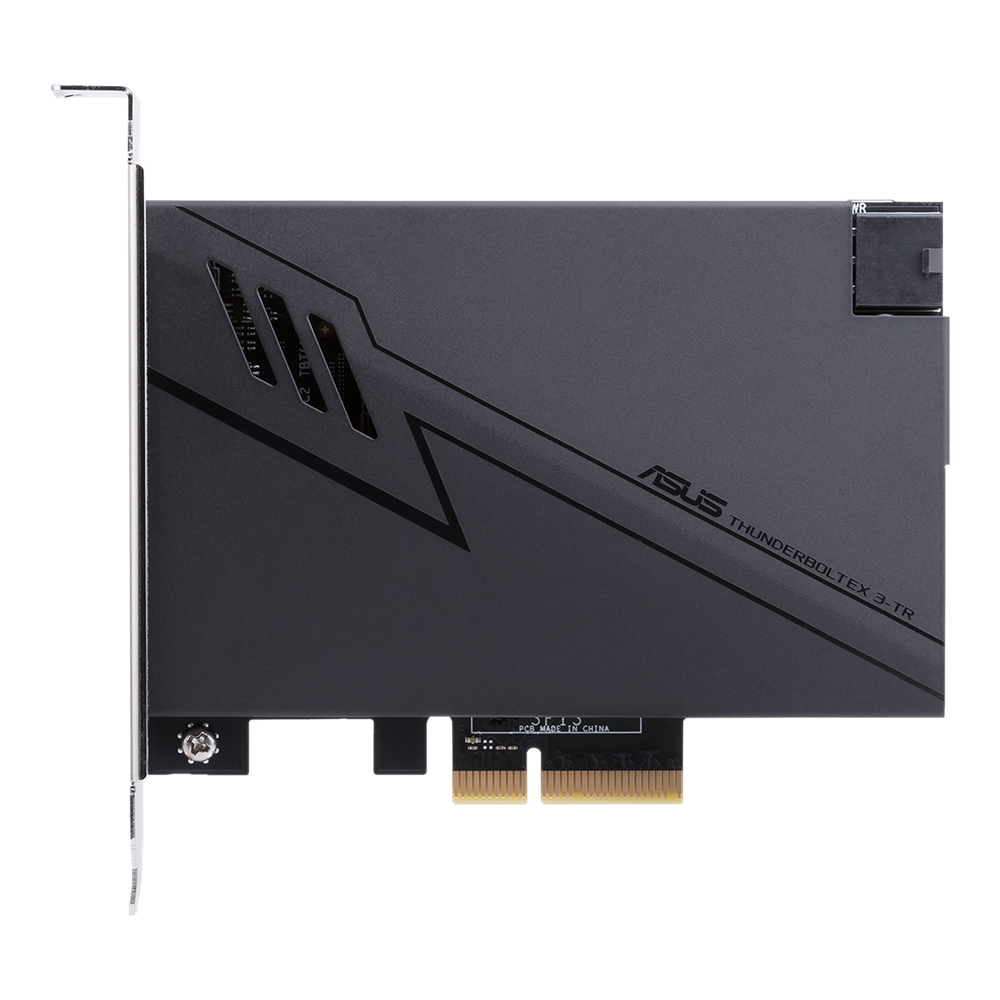

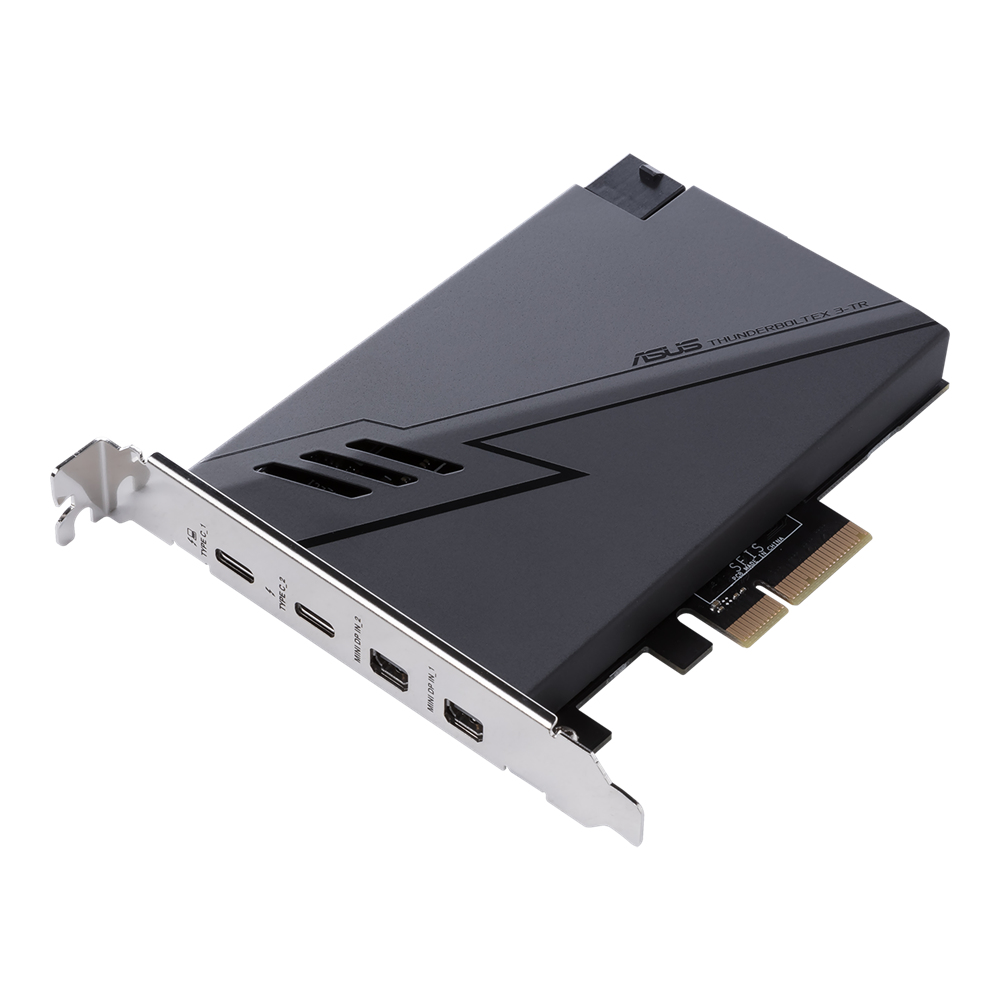

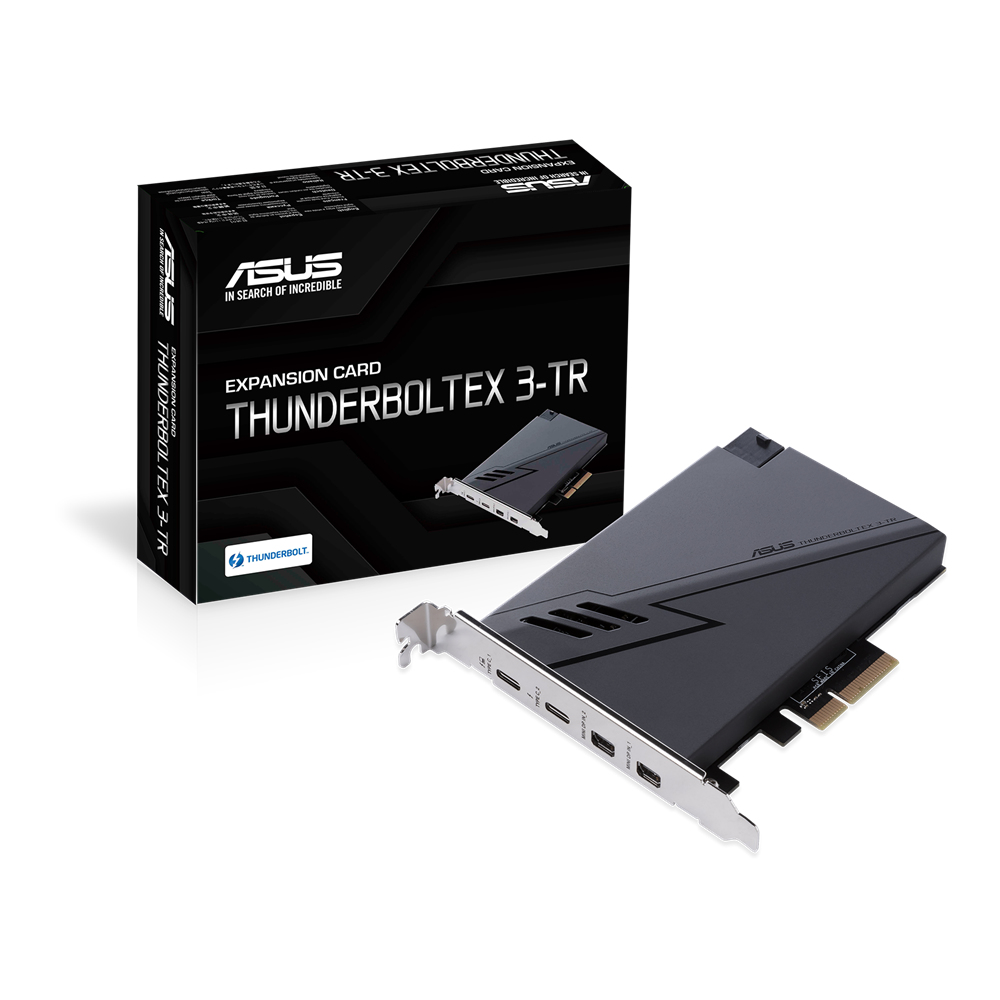

ThunderboltEX 3-TR
Model ThunderboltEX 3-TRPart no. 90MC08R0-M0EAY0EAN 4718017727853
22 specifications
- ColourBlack
- Host interfacePCIe
- InternalYes
- ChipsetIntel Thunderbolt 3 JHL7540
- Windows operating systems supportedWindows 10 x64
- Width117.7 mm
Overview
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Intel Thunderbolt 3 JHL7540
- Windows operating systems supported
- Windows 10 x64
- Width
- 117.7 mm
- Brand
- ASUS
- Category
- Interface Cards/Adapters
- Model
- ThunderboltEX 3-TR
- Part number
- 90MC08R0-M0EAY0
- EAN / UPC
- 4718017727853
- Also known as
- ASUS ThunderboltEX 3-TR interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, Thunderbolt 3, USB 2.0
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |

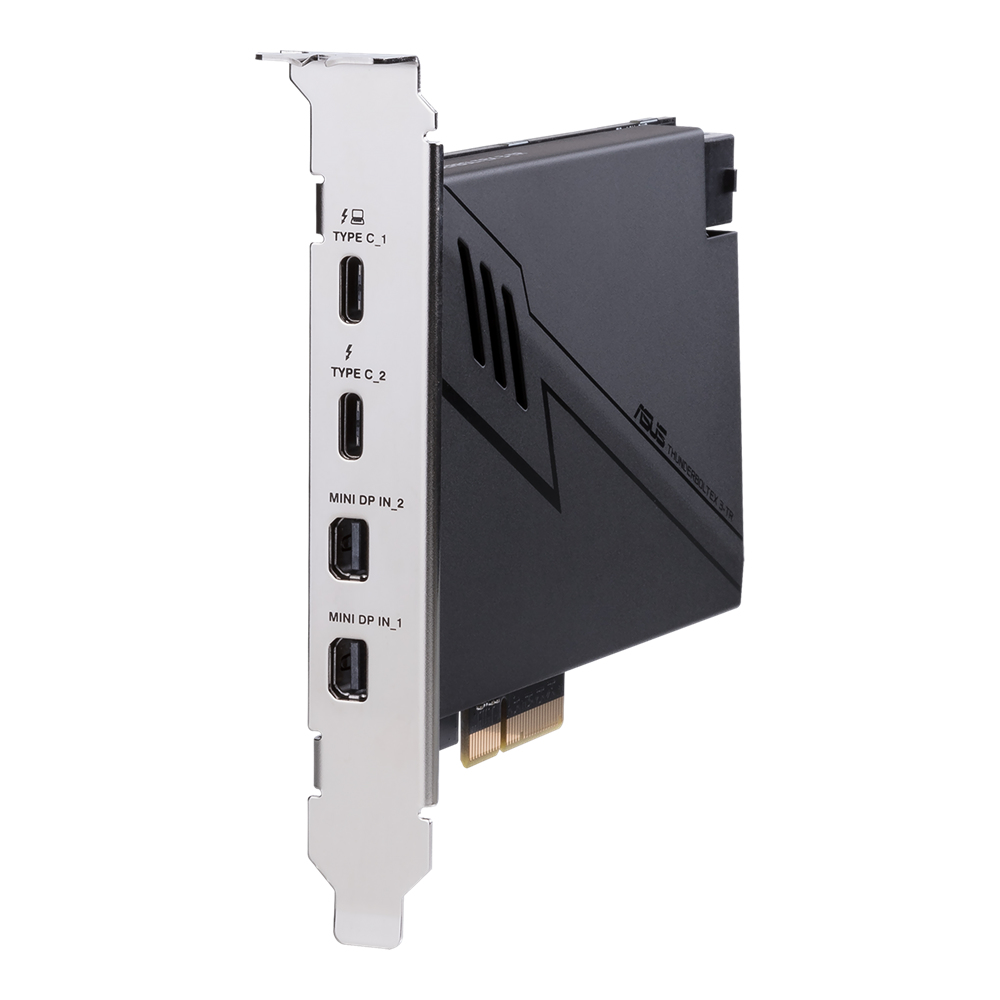

| Output interface | Mini DisplayPort, PCIe, Thunderbolt, Thunderbolt 3, USB 2.0 |
| Expansion card standard | PCIe 3.0 |
| USB 2.0 ports quantity | 1 |
| Thunderbolt 3 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
| Purpose | PC |
Features
| Specification | Value |
|---|---|
| Chipset | Intel Thunderbolt 3 JHL7540 |
| Data transfer rate (max) | 40 Gbit/s |
| Plug and Play | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117.7 mm |
| Depth | 180.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |

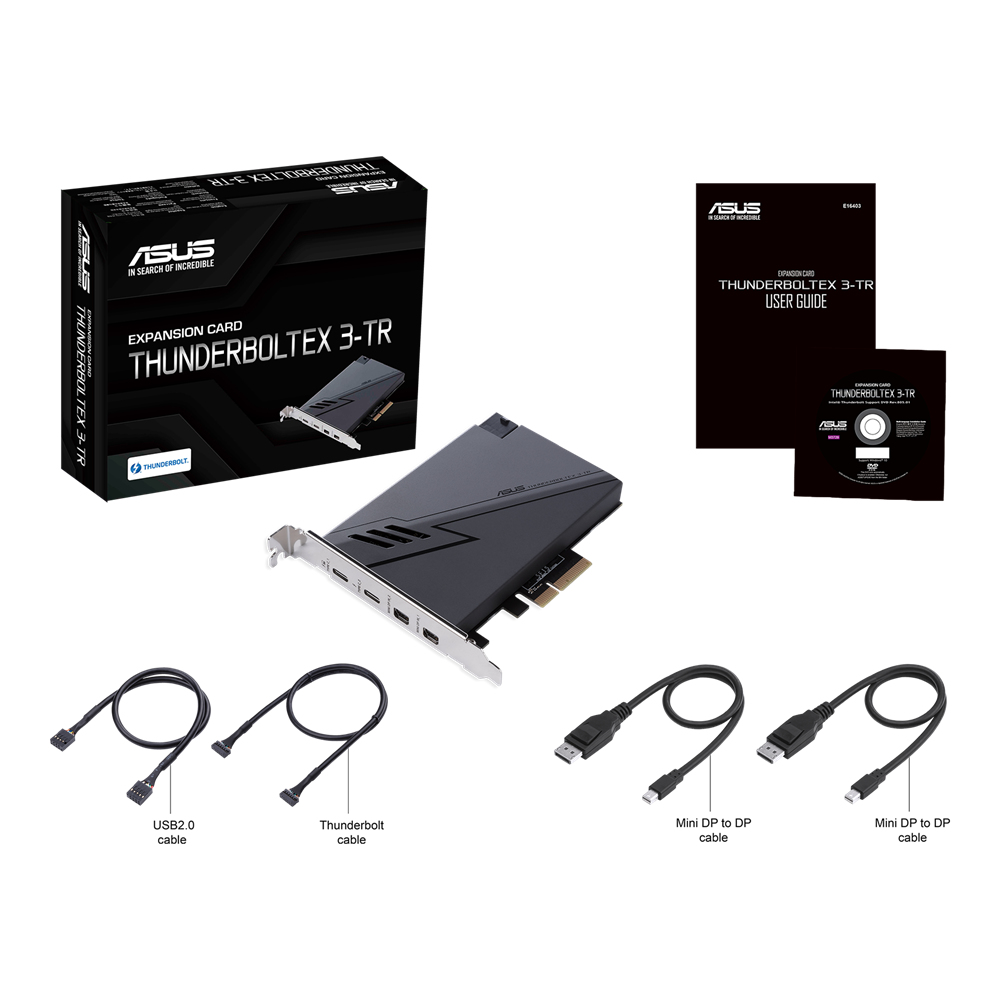

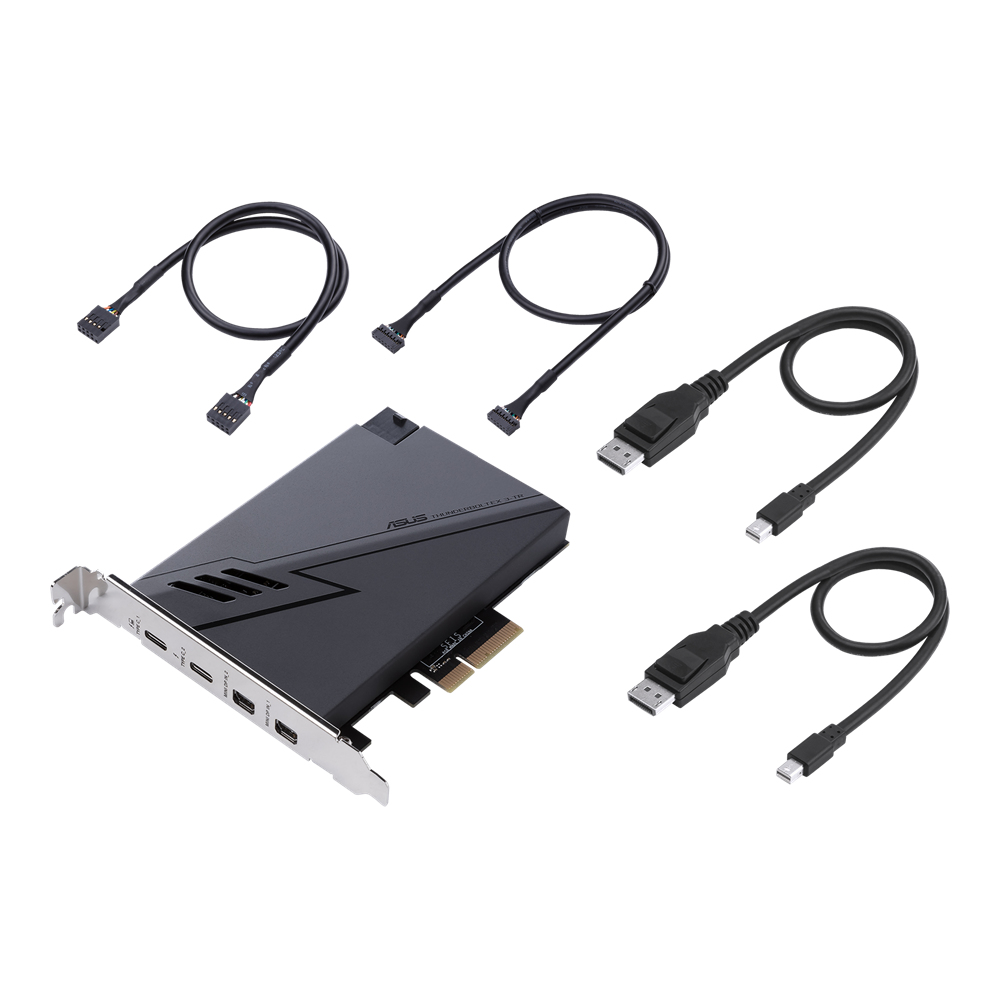

| Cables included | Mini DisplayPort, Thunderbolt, USB |
| Drivers included | Yes |
| Manual | Yes |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |

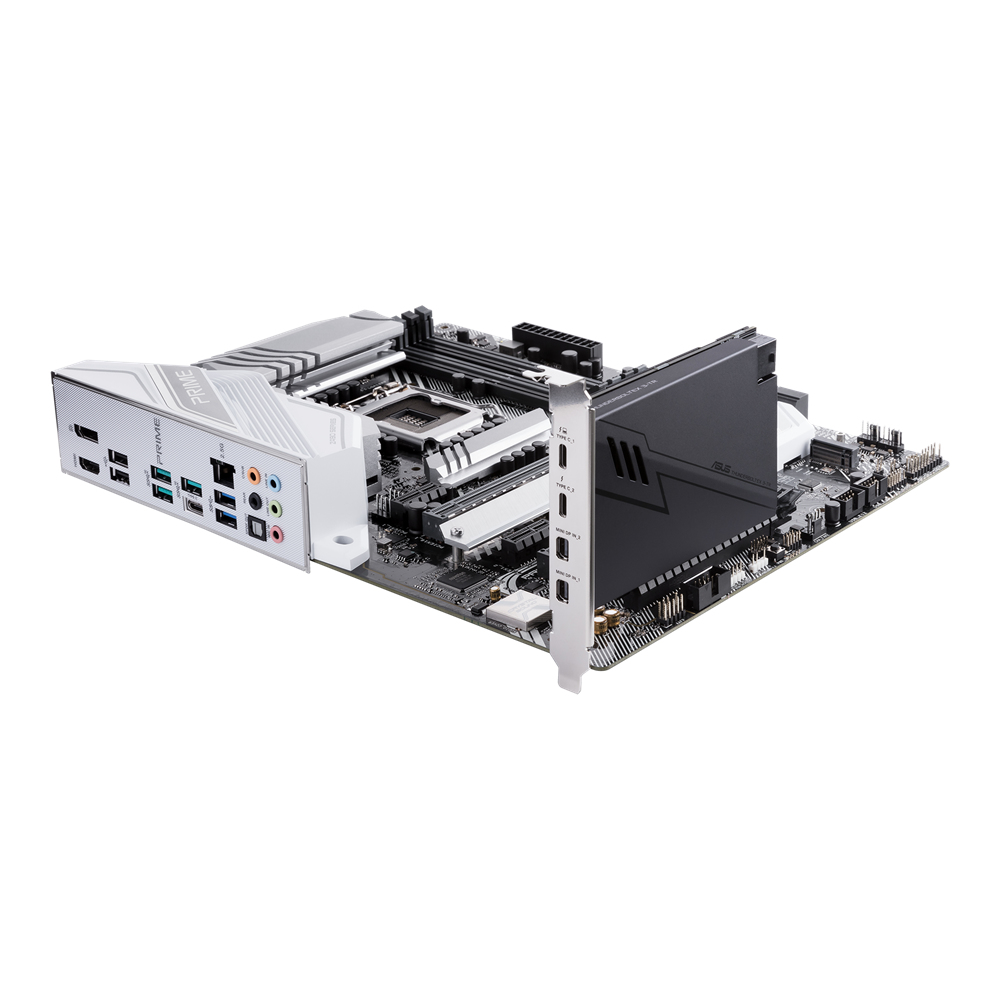

| Compatibility | ASUS Intel 400 series, ASUS AMD B550 |
