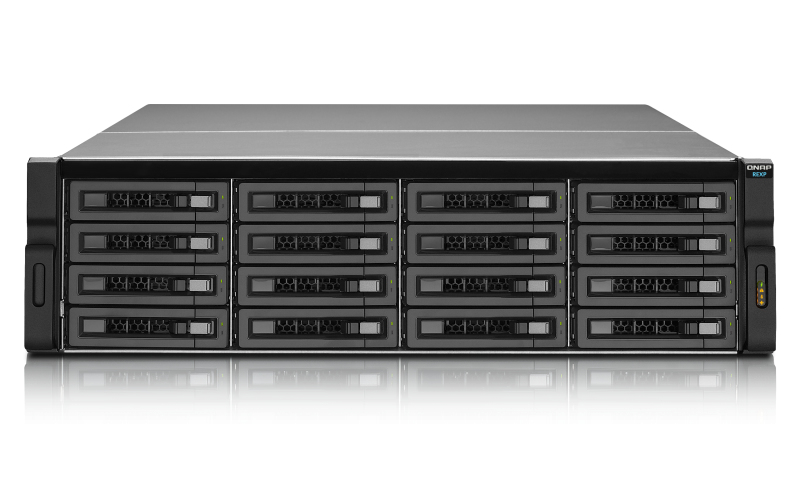

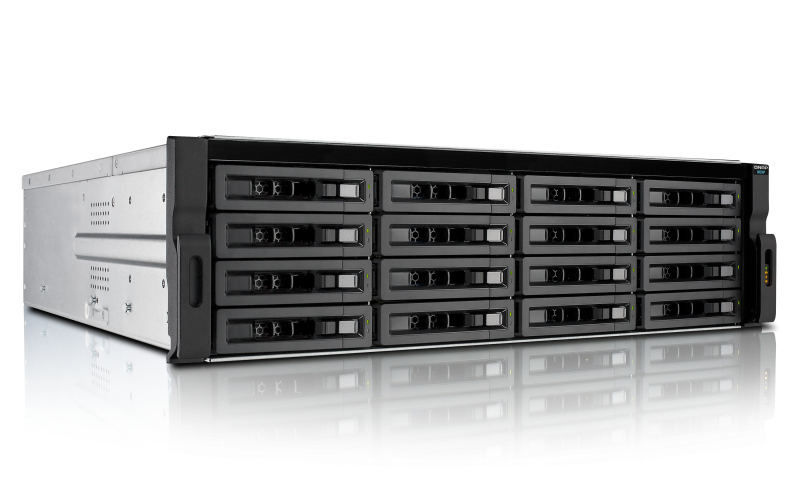

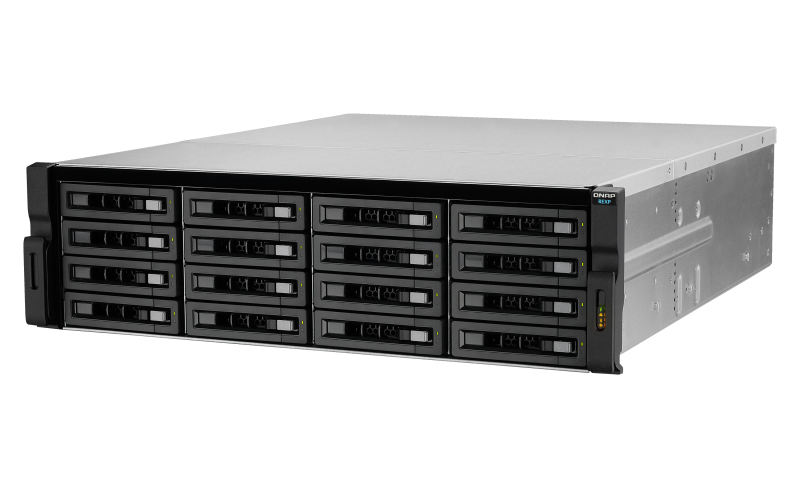

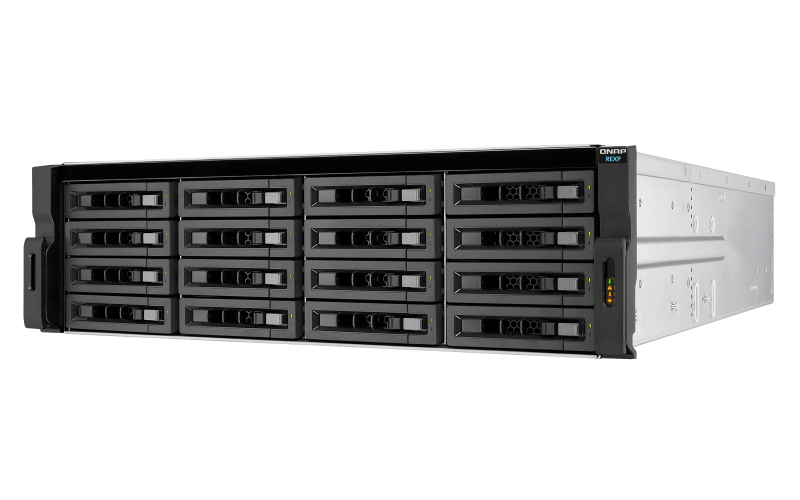

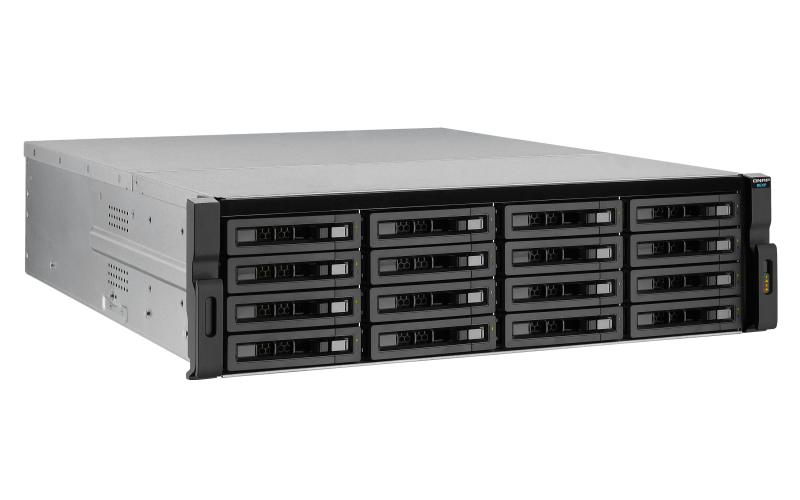

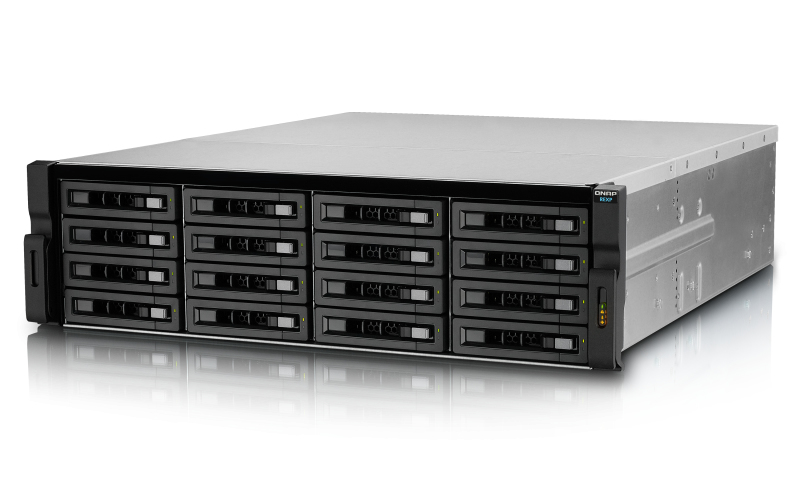

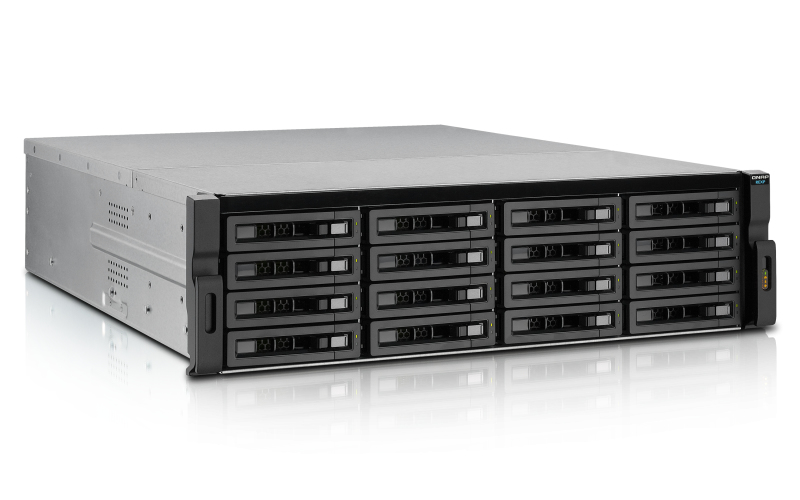

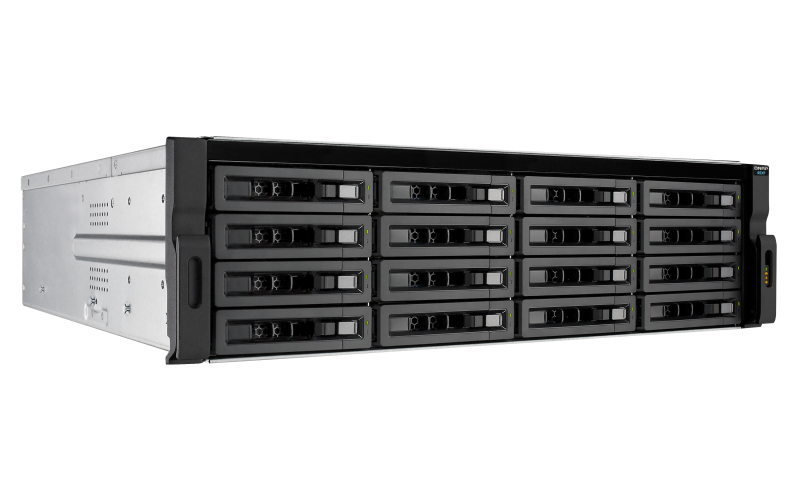

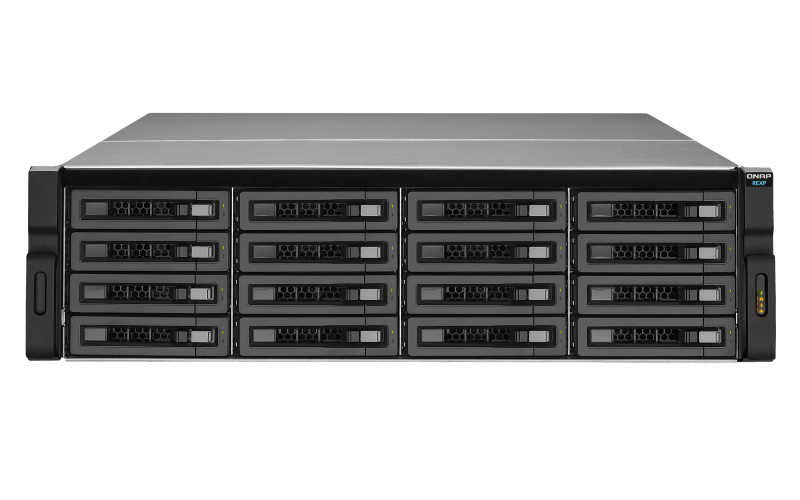

REXP-1620U-RP 32TB (16x 2TB Seagate Exos Enterprise HDD)
Model REXP-1620U-RP 32TB (16x 2TB Seagate Exos Enterprise HDD)Part no. REXP-1620U-RP/32TB-EXOSEAN 5050914091316
31 specifications
- Noise36.7 dB
- ColourBlack, Silver
- Storage drives installedYes
- USB connectivityNo
- Device classSmall & Medium Business
- Power supply unit (PSU) capacity650 W
Overview
- Noise
- 36.7 dB
- Colour
- Black, Silver
- Storage drives installed
- Yes
- USB connectivity
- No
- Device class
- Small & Medium Business
- Power supply unit (PSU) capacity
- 650 W
- Brand
- QNAP
- Category
- Disk Array
- Model
- REXP-1620U-RP 32TB (16x 2TB Seagate Exos Enterprise HDD)
- Part number
- REXP-1620U-RP/32TB-EXOS
- EAN / UPC
- 5050914091316, 5055628423422
- Also known as
- QNAP REXP-1620U-RP 32TB (16x 2TB Seagate Exos Enterprise HDD) disk array Rack (3U) Black, Silver
Specifications
31 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 16 |
| Total installed storage capacity | 32 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 16 |
| Storage drive capacity | 2 TB |
| Storage drive interface | Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
| RAID levels | 0, 1, 5, 6 |
| Data transfer rate | 12 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Mini-SAS host port | Yes |
| Number of mini-SAS host ports | 3 |
| SATA host port | Yes |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Rack (3U) |
| Internal | No |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Noise level | 36.7 dB |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 650 W |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 90-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442.4 mm |
| Depth | 528.3 mm |
| Height | 130 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, SAS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
