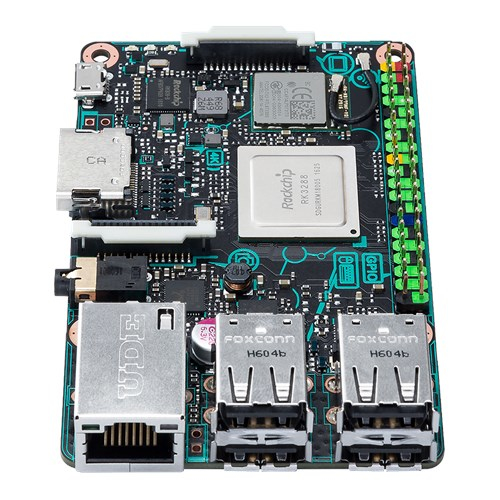

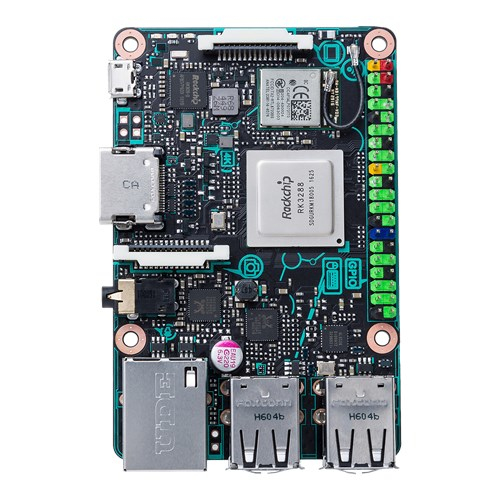

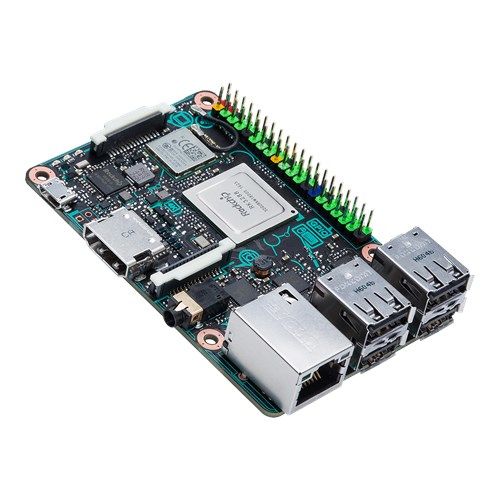

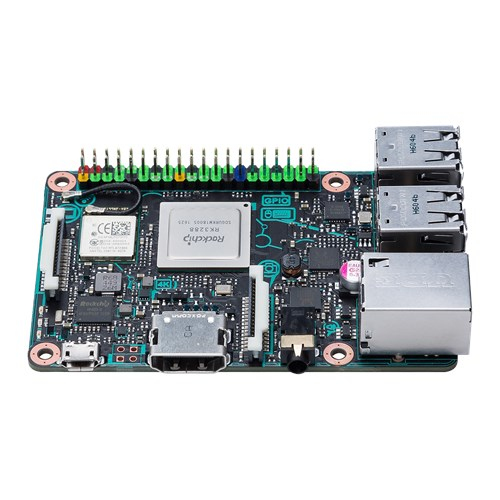

Tinker Board
Model Tinker BoardPart no. 90MB0QY1-M0EAY0EAN 889349552872
19 specifications
- ProcessorRockchip RK3288
- Weight55 g
- Maximum internal memory2 GB
- Wi-FiYes
Overview
- Processor
- Rockchip RK3288
- Weight
- 55 g
- Maximum internal memory
- 2 GB
- Wi-Fi
- Yes
- Brand
- ASUS
- Category
- Development Board
- Model
- Tinker Board
- Part number
- 90MB0QY1-M0EAY0
- EAN / UPC
- 889349552872, 4712900552874
- Also known as
- ASUS Tinker Board development board Rockchip RK3288
Specifications
19 specifications in 5 groups
Processor
| Specification | Value |
|---|---|
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3 |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | ARM Mali-T764 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 55 g |
