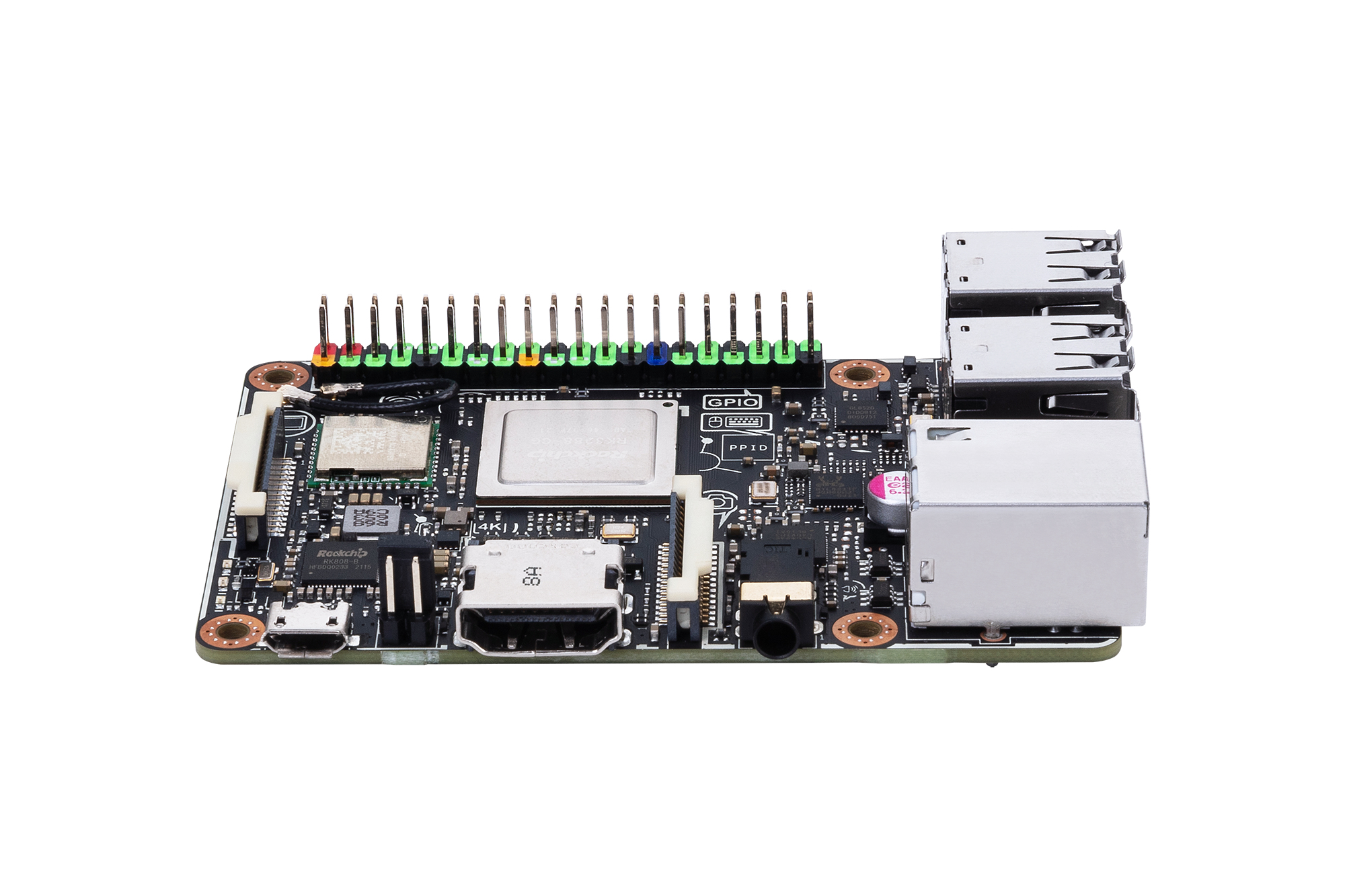

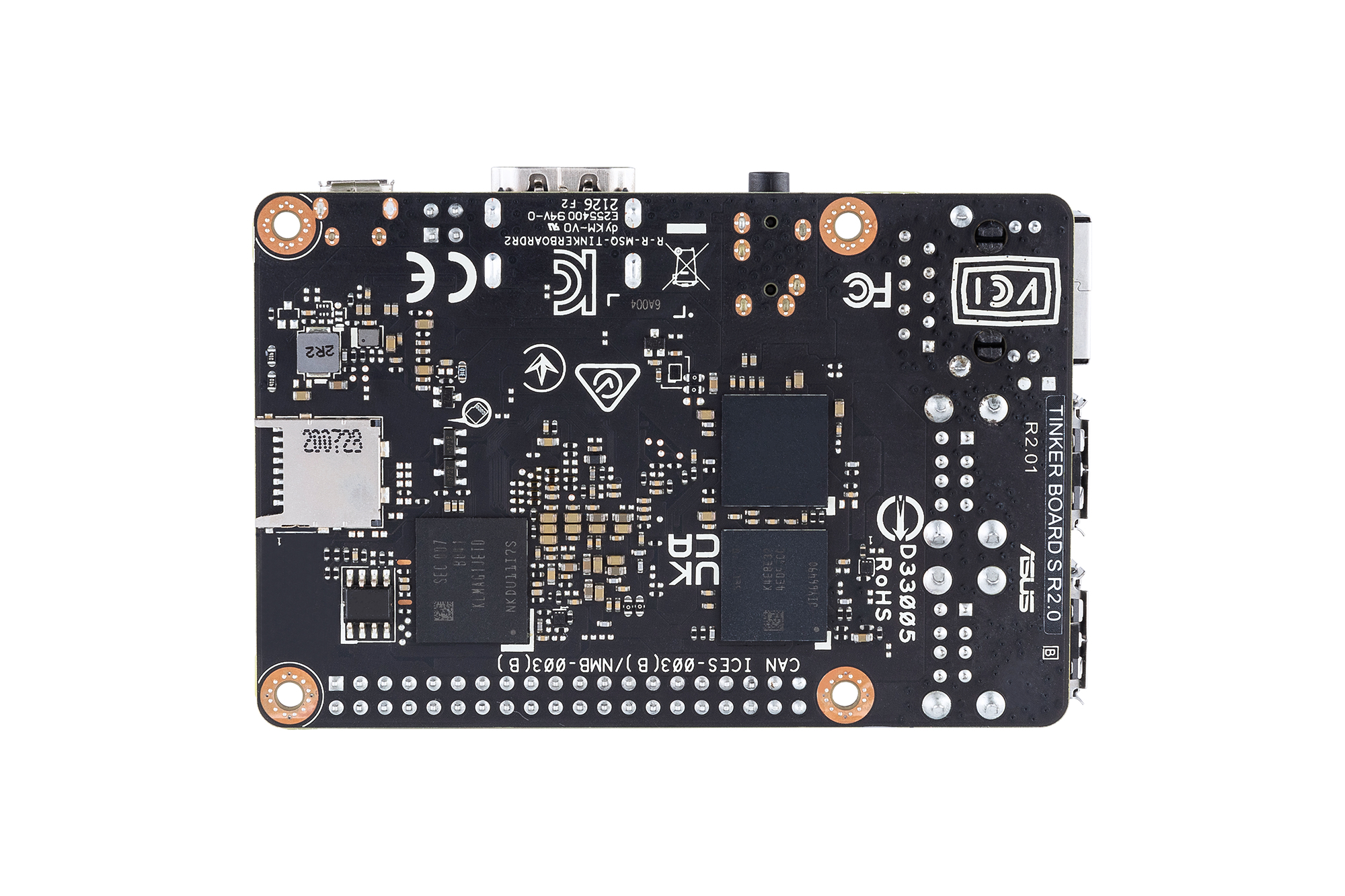

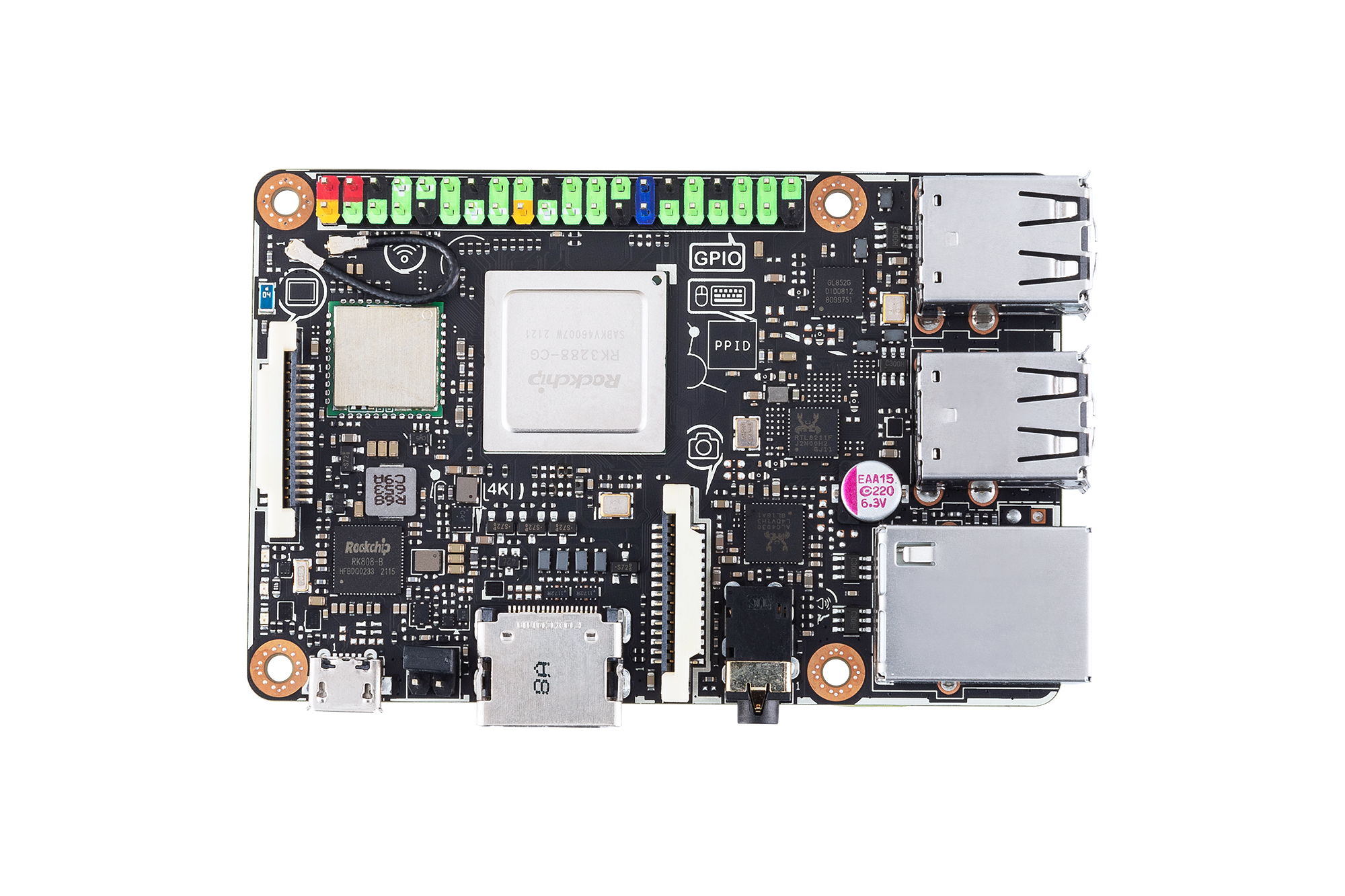

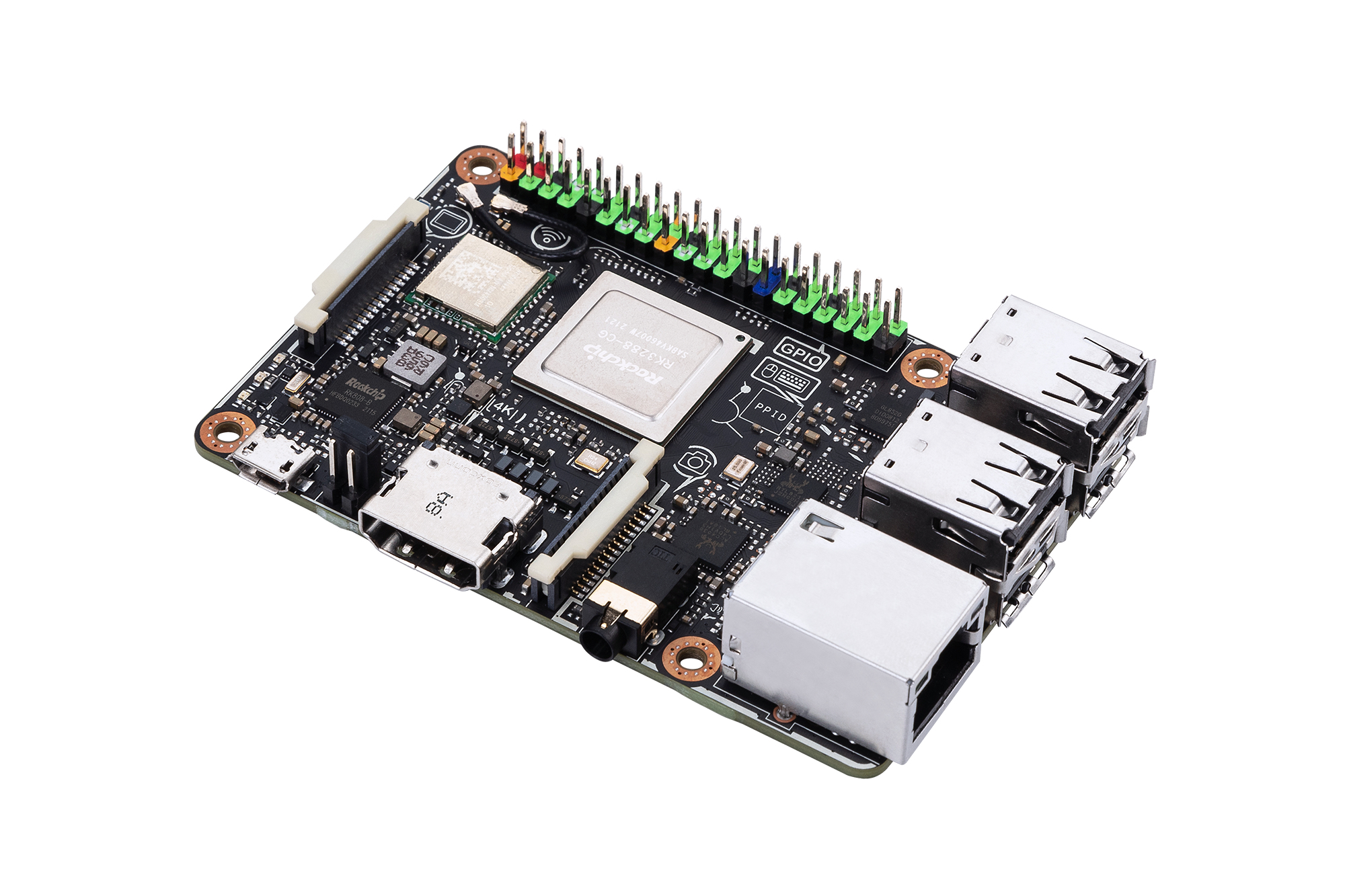

Tinker Board R2.0
Model Tinker Board R2.0Part no. 90ME03D1-M0EAY0EAN 4711081466031
34 specifications
- ProcessorRockchip RK3288
- Weight55 g
- Processor manufacturerRockchip
- Maximum internal memory2 GB
- Wi-FiYes
- MultiVolt I/Os3.3,5 V
Overview
- Processor
- Rockchip RK3288
- Weight
- 55 g
- Processor manufacturer
- Rockchip
- Maximum internal memory
- 2 GB
- Wi-Fi
- Yes
- MultiVolt I/Os
- 3.3,5 V
- Brand
- ASUS
- Category
- Development Board
- Model
- Tinker Board R2.0
- Part number
- 90ME03D1-M0EAY0
- EAN / UPC
- 4711081466031, 5715063256923
- Also known as
- ASUS Tinker Board R2.0 development board Rockchip RK3288
Specifications
34 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Audio port type | 3.5mm |
| Bluetooth | Yes |
| Bluetooth version | 4.2+EDR |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| GPIO interface | Yes |
| HDMI ports quantity | 1 |
| I2C interface | Yes |
| I2S interface | Yes |
| Integrated LAN | Yes |
| MPI CSI interface | Yes |
| MPI DSI interface | Yes |
| PCM interface | Yes |
| SPI interface | Yes |
| UART | Yes |
Features
| Specification | Value |
|---|---|
| MultiVolt I/Os | 3.3,5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 85.5 mm |
| Weight | 55 g |
| Width | 54 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
