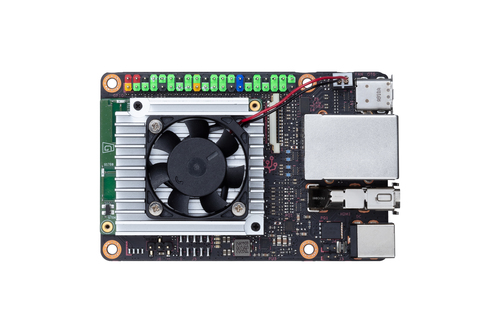

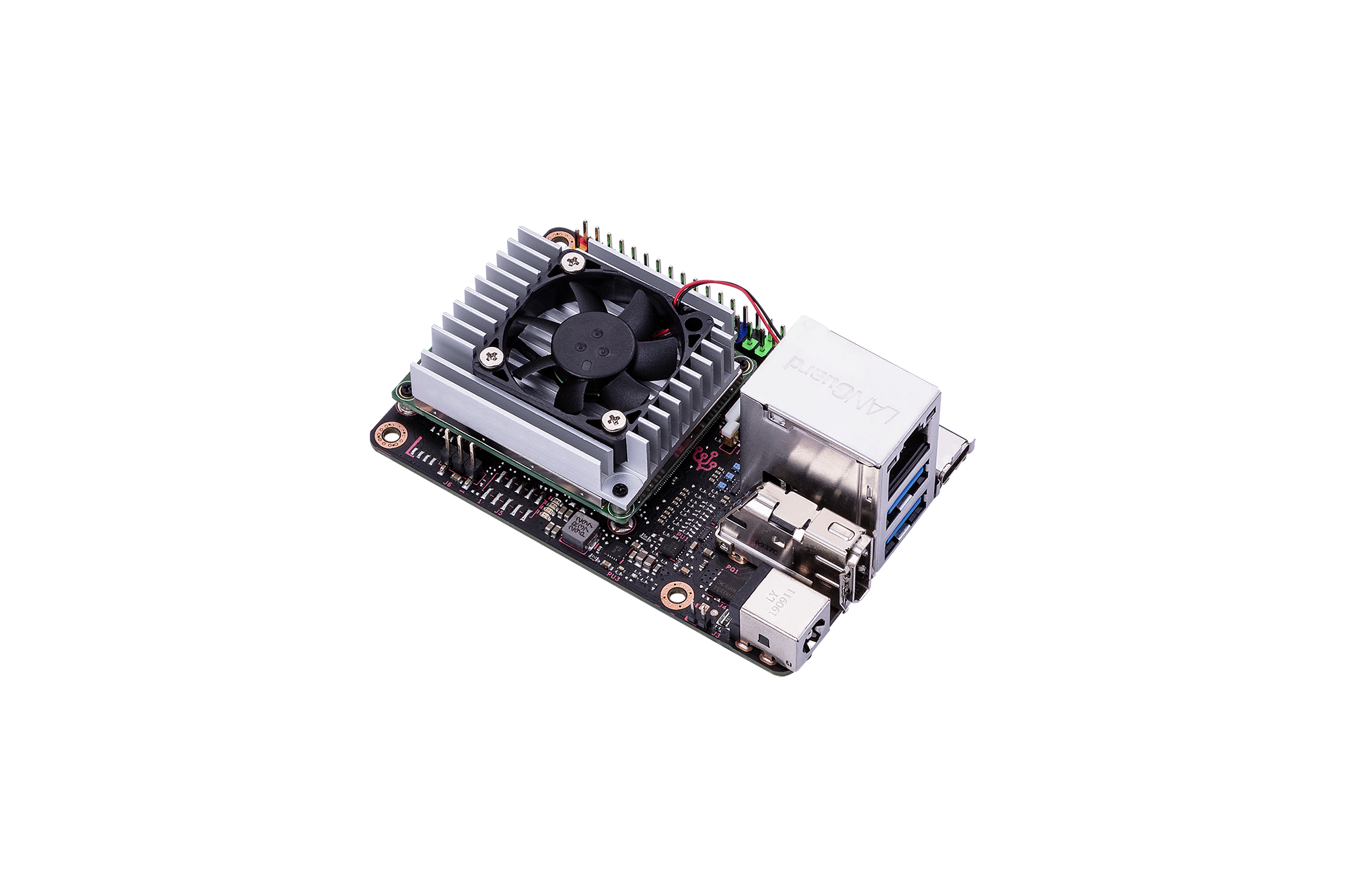

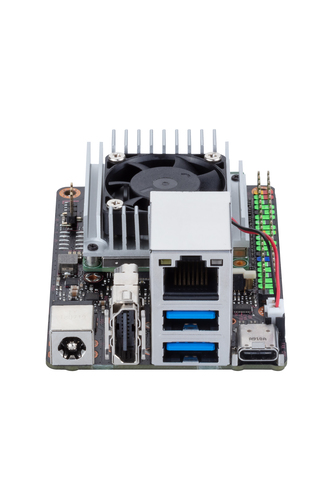

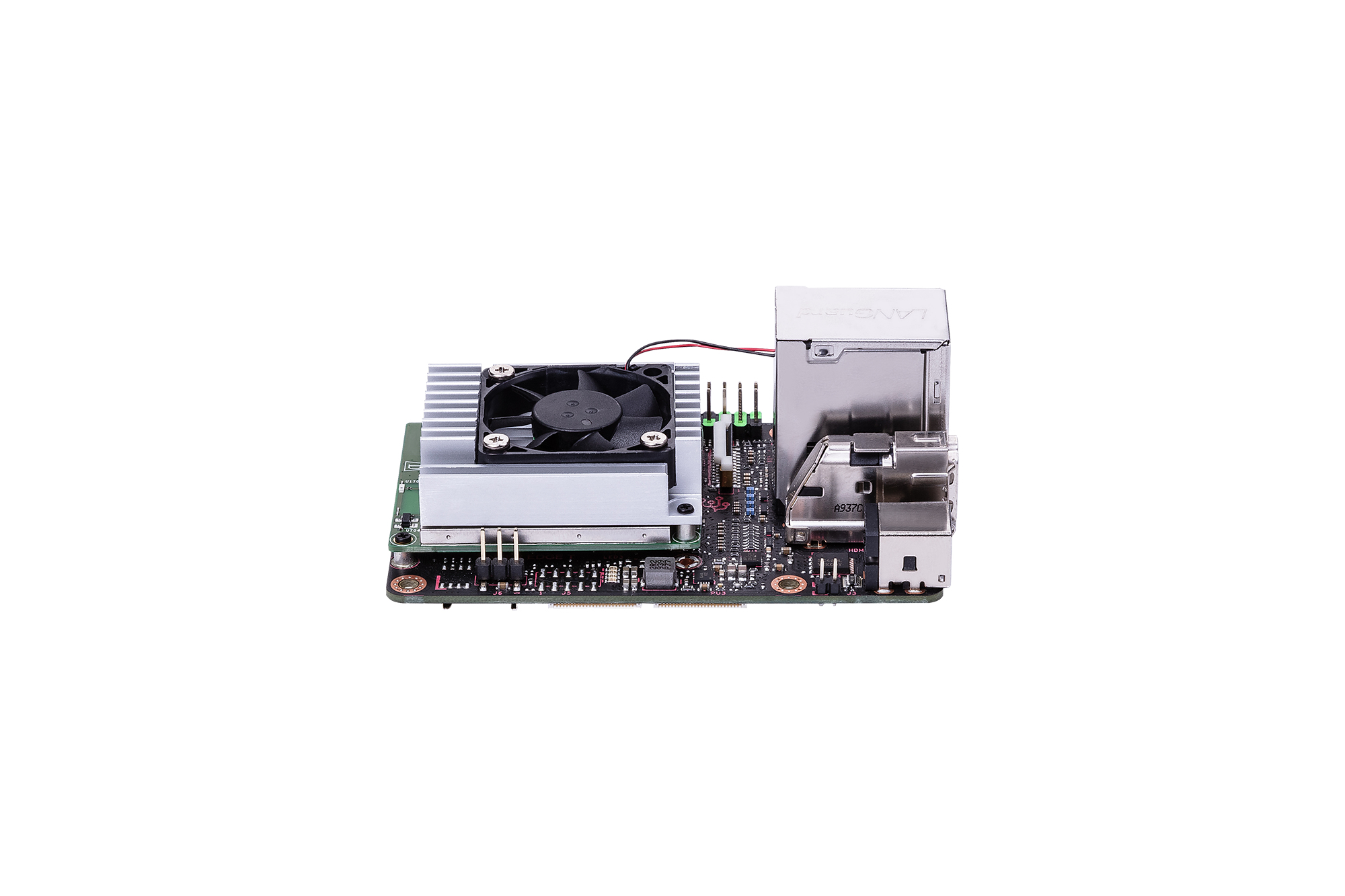

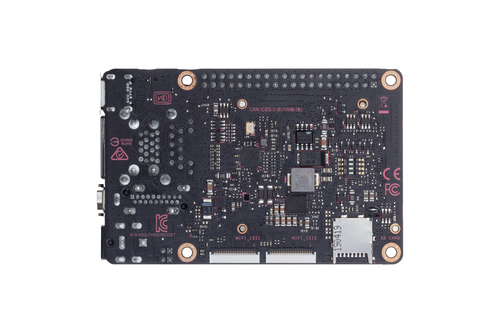

Tinker Edge T
Model Tinker Edge TPart no. 90ME0140-M0EAY0EAN 4718017533577
35 specifications
- Processori.MX 8M
- Processor manufacturerNXP
- Maximum internal memory1 GB
- Wi-FiYes
- DC input voltage12 - 19 V
- Board dimensions85.5 x 54 mm
Overview
- Processor
- i.MX 8M
- Processor manufacturer
- NXP
- Maximum internal memory
- 1 GB
- Wi-Fi
- Yes
- DC input voltage
- 12 - 19 V
- Board dimensions
- 85.5 x 54 mm
- Brand
- ASUS
- Category
- Development Board
- Model
- Tinker Edge T
- Part number
- 90ME0140-M0EAY0
- EAN / UPC
- 4718017533577
- Also known as
- ASUS Tinker Edge T development board i.MX 8M
Specifications
35 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | NXP |
| Processor model | i.MX 8M |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 1 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory channels | Dual-channel |
| Flash memory type | eMMC |
| eMMC capacity | 8 GB |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| GPIO interface | Yes |
| HDMI ports quantity | 1 |
| I2C interface | Yes |
| I2S interface | Yes |
| MIPI CSI-2 (24-pin) ports quantity | 2 |
| MIPI DSI 1.1 | Yes |
| MPI CSI interface | Yes |
| MPI DSI interface | Yes |
| PCM interface | Yes |
| PWM digital I/O pins | 3 |
| SPI interface | Yes |
| UART | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Vivante GC7000 Lite |
Power
| Specification | Value |
|---|---|
| DC input voltage | 12 - 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Board dimensions | 85.5 x 54 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
